KINEVO^® 900 S from ZEISS

Technical specifications

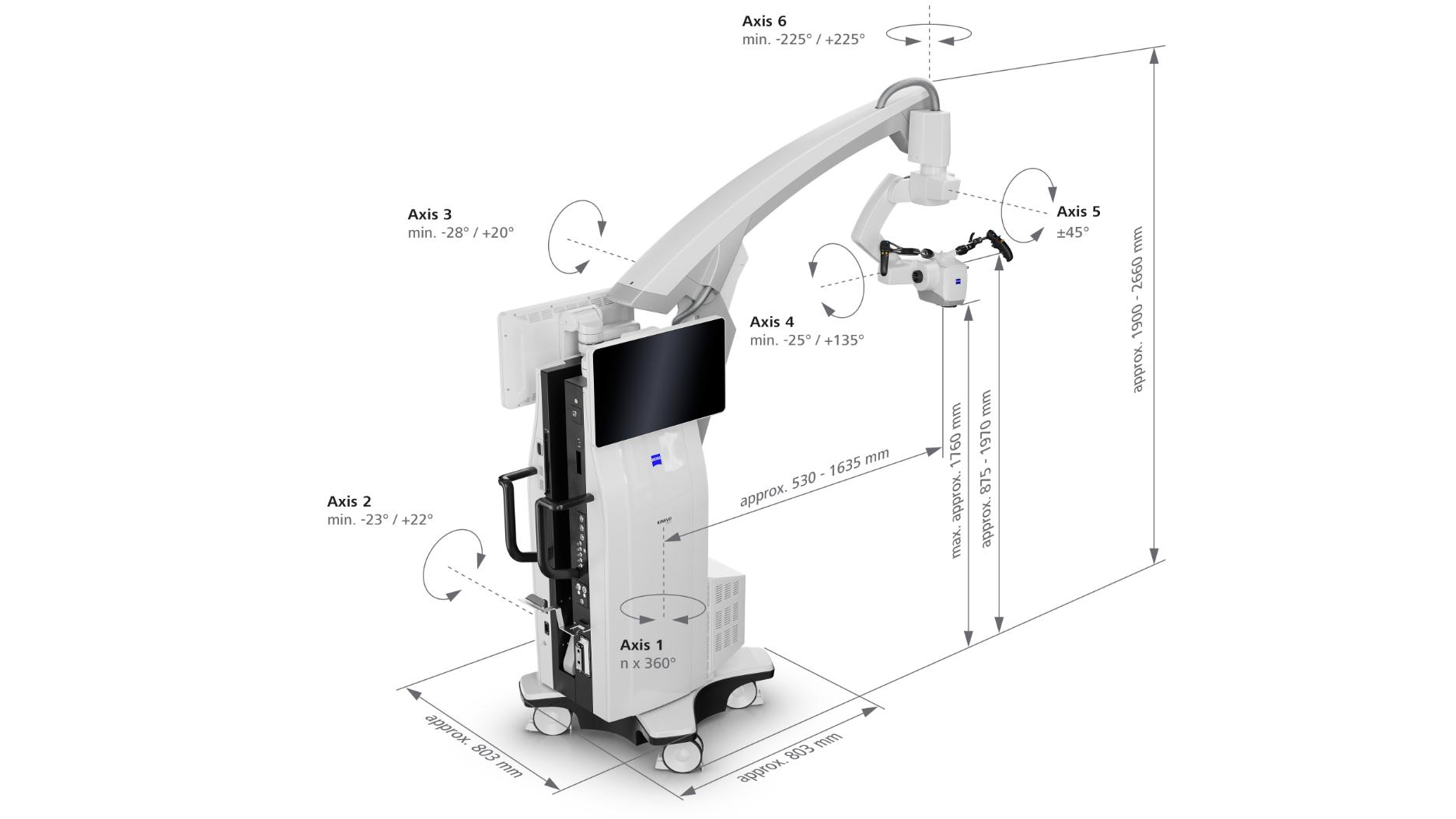

$KINEVO{^®} 900 S from ZEISS, technical data drawing$

Technical data

Rated Voltage	100 V–240 V AC
Current Consumption	Max. 1500 VA
Rated Frequency	50 Hz – 60 Hz
Electrical Standard	IEC 60601-1, IEC 60601-1-2, IEC 60825, IEC 62304, C AN/CSA -C22.2 NO. 60601-1
	Degree of protection against electric shock: Class 1
	Class 2 laser product as per IEC 60825-1
Weight	Total weight of device with max. add. load: Max. 395 kg
Weight	Total weight of the device incl. single-use transport box: Approx. 525 kg

	Packages	K900S Select	Standard	Comfort	Premium	Digital Plus
System	KINEVO 900 S	●	●	●	●	●
Main Tubes	180° Tiltable tube	○	●	–	–	–
Main Tubes	Foldable tube f170/f260	–	–	●	●	–
Eyepieces	10x widefield eyepiece	○	○	○	○	–
Eyepieces	12,5x widefield eyepieces	○	○	○	○	–
Co-Observation	Left / right with stereo co-observer	○	○	●	●	–
Co-Observation	Face-to-face	○	○	●	●	–
Tube for co-observation 90°	Straight tube f170	○	○	–	–	–
	Tiltable tube 180°	○	○	●	●	–
	Foldable tube f170/f260	○	○	–	–	–
Fluorescence¹ / QEVO	BLUE 400	□	□	□	□	□
	BLUE 400 S	□	–	□	□	□
	YELLOW 560	□	□	□	□	□
	INFRARED 800 WITH FLOW 800 OPTION	□	□	□	□	□
	QEVO	□	□	●	●	□
Video System	4K 2D Video Package - Fully integrated 4K 3-chip camera, 2160 p	○	●	–	–	–
	4K 3D Video Package - Fully integrated 3-chip cameras, 2160 p	○	–	●	–	–
	Native 4K 3D Video Package - Fully integrated 3-chip camera with native resolution, 2160 p and HDR	○	–	–	●	●
Video Options	Video Recording HD	□	●	●	–	●
	Video Recording 4K	□	□	□	●	□
	Integrated second video monitor 2D	□	□	–	–	–
	Integrated second video monitor 3D	□	–	●	●	●
	External 55’ 4K 3D monitor with cart	□	□	□	□	□
Illumination	Xenon – Fully integrated Xenon light source, 300W	●	●	●	●	●
Focus	Laser Autofocus	●	●	●	●	●
Working Distance	200 – 625 mm	●	●	●	●	●
Balance	AutoBalance	●	●	●	●	●
XYZ-Movement	XYZ robotic movement in 6 axes (variable speed), Z-Mode	●	●	●	●	●
XYZ-Movement	AutoCenter	□	–	□	□	□
Cobotics	Inertia Compensation	●	●	●	●	●
Cobotics	Voice Assistant	□	□	□	□	□
Visualization	Integrated DepthPro	●	●	●	●	●
	MultiVision	●	●	●	●	–
	Digital MultiVision	●	●	●	●	●
	Panorama and Brilliance Image Modes	●	●	●	●	●
	Hybrid Option²	●	●	●	●	□
Networking & Storage	Integrated 2TB hard drive	●	●	●	●	●
	Navigation Module	□	□	□	□	□
	DICOM Package – Patient data exchange with PACS system via DICOM	□	□	□	□	□
	Shared Network Package – Storage on shared network directories	□	□	●	●	□
	ZEISS Surgical Cloud and ZEISS Livestream Preparation	●	●	●	●	●
	ZEISS Smart Services Package – Connectivity for ZEISS Smart Services	●	●	●	●	●
	WLAN Package	●	●	●	●	●
	Navigation Package	□	□	□	□	□
Foot Control Panel	Foot Control Panel wired / wireless	□	□	□	□	□

● Basic ○ Configurable □ Option

¹Standard Package: max. 2 fluorescences - YELLOW 560 and BLUE 400 can only be combined with INFRARED 800 with FLOW 800 Option, not with each other
² Activates MultiVision
