ZEISS OPMI PROergo

Essential

Advanced

Motorized zoom system; with apochromatic 1:6 ratio; magnification factor Y = 0.4x-2.4x

●

●

without reticle

●

–

with reticle

o

●

without reticle

o

–

with reticle

o

–

Tiltable tube 0-180°

●

–

Foldable tube f170/260, incl. PROMAG function boost to 150% magnification and detail magnification

o

●

Continuous motorized focusing via Varioskop

●

●

Focusing range of 200-415 mm

●

●

SpeedFokus only in combination with the video camera

□

□

Halogen illumination with 2 halogen reflector lamps in the quick-change module

●

–

Xenon illumination, with daylight characteristic including 2 xenon lamps in the quick-change model

o

●

Integrated coaxial cold light illumination

●

●

Orange filter for composite materials

●

●

Green filter

●

●

Swing-in illumination diaphragms

●

●

Free float magnetic system

●

●

Multifunctional, programmable handgrips

●

●

LCD display with user guidance

●

●

Example with working distance 300 mm and 12.5x eyepieces:
Magnification 2.3x up to 14x
Field-of-view diameter: 75 to 16 mm

●

●

1Chip HD Camera (1080p), 1/3" CMOS Output: DVI, HD-SDI, S-Video

□

□

HD video recorder

□

□

without side port

□

–

with rotatable adapter

□

–

with side port

□

●

with side port & rotatable adapter

□

–

Double iris diaphragm to increase the depth of field

□

o

Beam splitter 20 or 50

□

□

Stereo co-observer

□

□

Foot control panel for zoom and focus

□

□

Photo adapter for SLR cameras (f=340 mm)

□

□

Instrument tray on floor stand

□

□

Splash protection for the objective lens

□

□

Vision Guard^* drapes

□

□

Sterilizable asepsis caps and handgrip covers

□

□

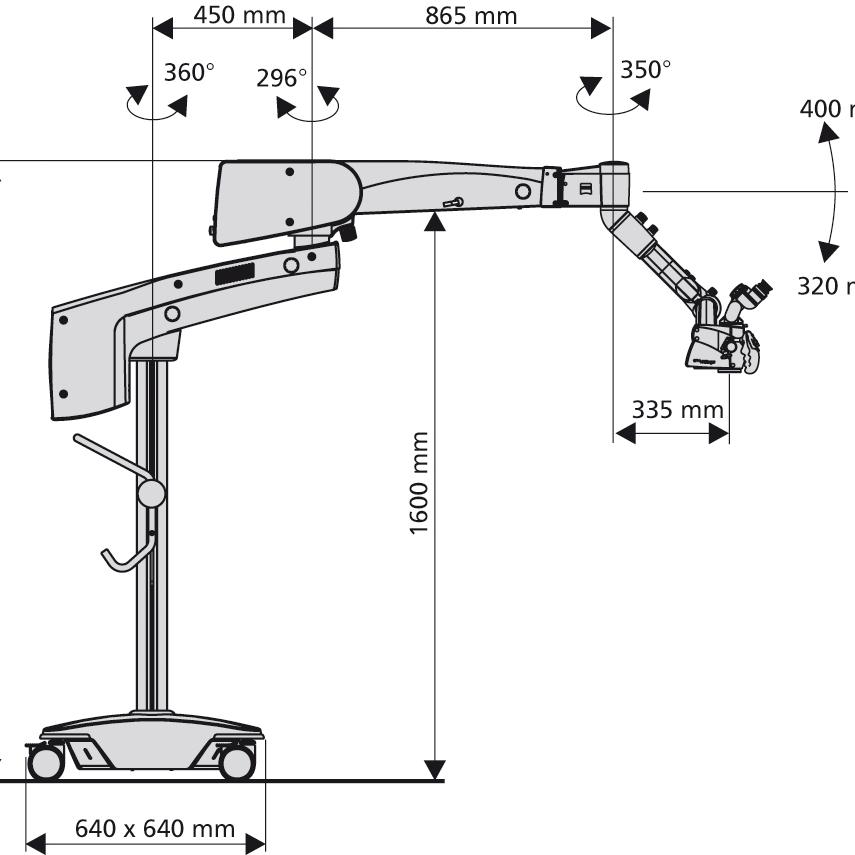

S7 Floor stand

●

●

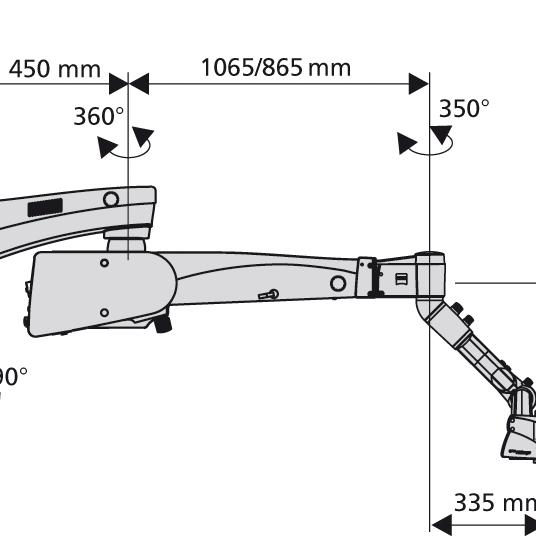

S7 Wall mount (short or long arm)

o

o

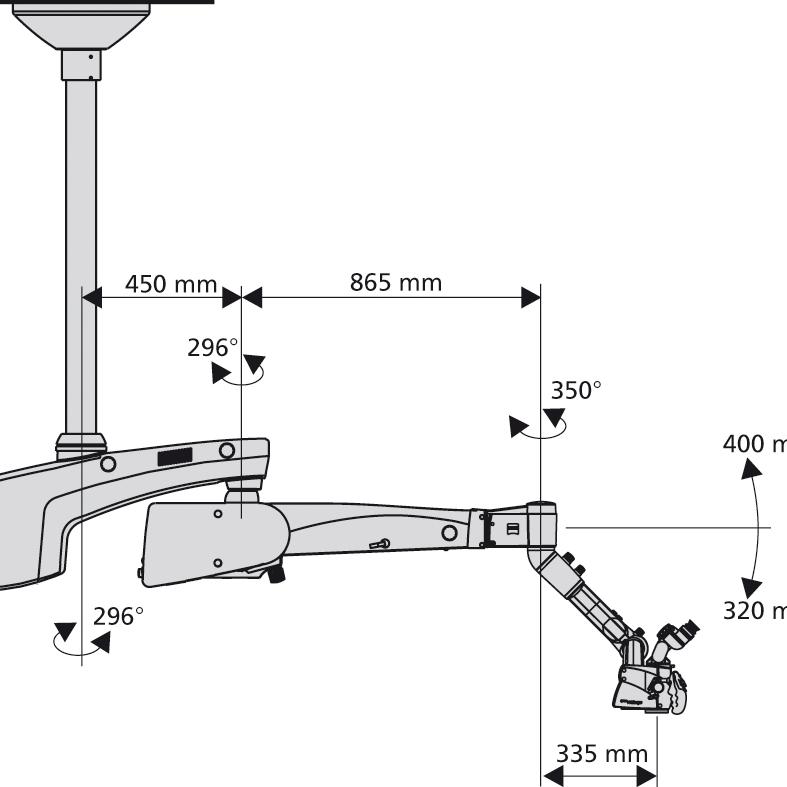

S7 Ceiling mount

o

o

S7 Centro suspension system

o

o
