From Programming to Reporting — Fully Automated Metrology That Scales With You

ZEISS ScanBox: Hello automated digital twins and inspections. Goodbye bottlenecks.

Production and lab floor proven all-in-one automated 3D scanning solution that empowers you to program, digitize, inspect, and report — all in one seamless workflow.

It delivers high-speed, high-accuracy metrology results designed for real-world production environments - whether you need to measure full vehicle bodies or multiple small intricate parts, or looking for lights out solutions:

  • Automate your inspection processes with repeatable, robot-controlled measurements
  • Accelerate throughput with 50–80% faster measuring times
  • Catch production deviations early with full-field 3D comparisons to CAD
  • Create inspection programs offline using the Virtual Measuring Room (VMR)
  • Generate instant GD&T data, trimming lines, hole locations, and more
  • Simplify operation with minimal training required
  • Scale from small parts to complete assemblies with modular system options
  • Ensure reliable, standardized measurement routines across global plants
Marcus Nickel, Optical Metrology Specialist, Buderus Guss

ScanBox enables us to digitize a complete part in little or no time to create GD&Ts as well as sections or false-color comparisons afterwards in order to determine various drawing dimensions.

Marcel Nickel Optical Metrology Specialist, Buderus Guss

Why ZEISS ScanBox?

Here are 5 solid reasons to get started with your demo or proof of concept...

  • Accelerated measuring times

    Accelerated measuring times

    50 – 80 % faster compared to traditional metrology

    While mechanical measuring systems capture data in a point-based or linear manner, the optical 3D measuring machine ZEISS ScanBox provides full-field 3D measurement coordinates. The resulting 3D model can be compared with the CAD model. This allows you to detect deviations and identify defects such as deformations. With ZEISS ScanBox you can measure and inspect your parts 50 to 80 % faster than with traditional methods.

    Your advantage: Faster results and less scrap

  • Easy operation

    Easy operation

    Automated process control at the touch of a button

    ZEISS ScanBox can be programmed and controlled via a simple user interface, the Kiosk Interface. Plan your measurement sequences with just a few clicks and then execute them automatically in the virtual measuring room (VMR) in ZEISS INSPECT. The Smart Teach functionality in the VMR simplifies the creation of robot programs. Your employees do not need any special robot expertise to do this.

    Your advantage: Reliable series inspection, no expert skills required

  • Numerous applications

    Numerous applications

    Large variety of applications – from toys to body-in-white

    ZEISS ScanBox is available in various models for different part sizes and applications. Allround systems are available as well as specialized solutions for specific requirements. The ZEISS ScanBox systems for small parts are compact, while the larger 3D measuring machines can be used in a fixed position for quality assurance in production. They also serve perfectly for tool try-out and product development.

    Your advantage: Customized solutions also for your industry

  • Effective analysis tool

    Effective analysis tool

    All-in one: scanning, inspection and reporting

    Our strength is the combination of hardware and software: ZEISS ScanBox covers all process steps - from programming and automated digitization to inspection and reporting. The software ZEISS INSPECT automatically generates GD&T information as well as trimming and hole positions. This allows you to implement necessary corrections directly thanks to easy to understand results.

    Your advantage: Complete solution for simple or complex inspections

  • Be in good company

    Be in good company

    OEM proven and high reputation worldwide

    In production, the 3D measuring machine convinces with robustness, its measuring speed and the compensation of temperature fluctuations. Even under harsh conditions you get traceable results. Today, ZEISS ScanBox has already established itself worldwide as the preferred measuring system for production control and quality assurance in a wide range of industries, such as automotive, aerospace or energy.

    Your advantage: High process reliability and long-lasting system runtime

ZEISS ScanBox: Modular, Turnkey Solutions for Fast Deployment

Choose from a full range of ZEISS ScanBox models engineered for parts from a few centimeters to entire car bodies — all delivering fast, automated, and highly accurate 3D inspection. Scale easily with solutions built for small components, medium-sized parts, or large assembly structures.

  • ZEISS ScanBox Series 8

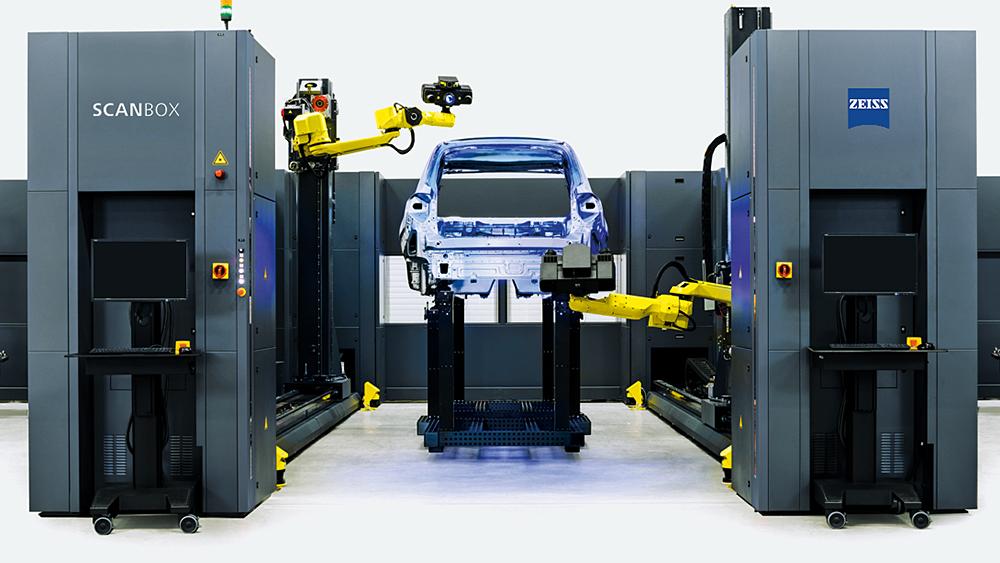

    The two 8-axis kinematics of the ATOS ScanBox Series 8 enable full-field digitizing of entire car bodies – from above and below to inside and out.

  • ZEISS ScanBox Series 7

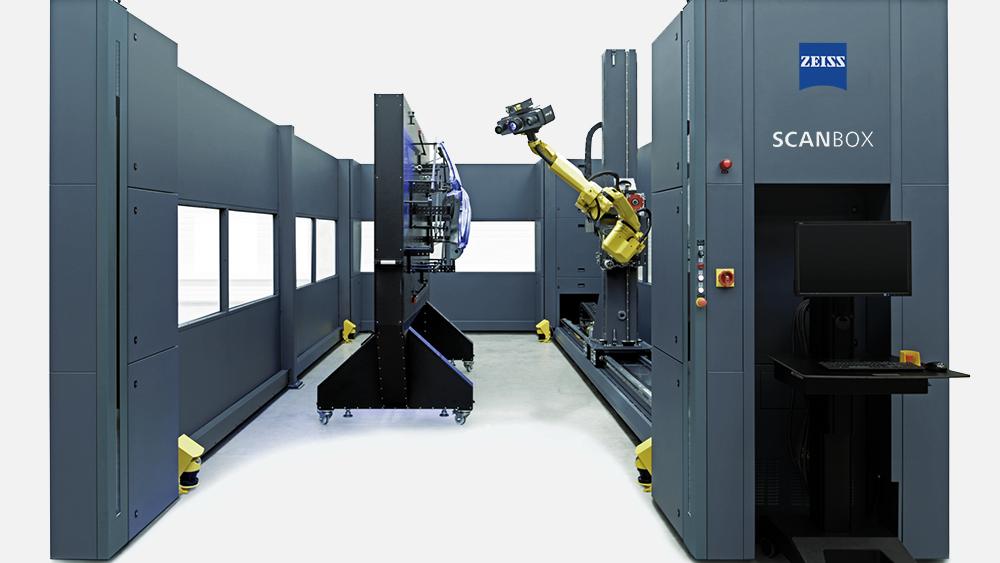

    A single ATOS sensor featuring 8-axis kinematics and maximum flexibility for sensor positioning, ATOS ScanBox Series 7 realizes full-field analysis measurements of largeer parts.

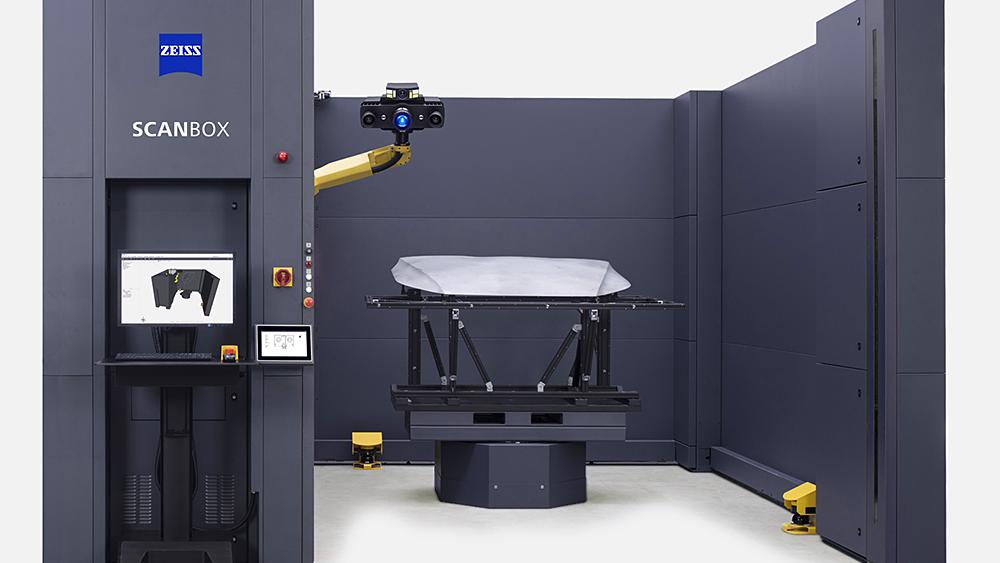

  • ZEISS ScanBox Series 6

    Automated shop floor metrology systems developed specifically to measuring large and heavy components. Inspection times are shortened, and scrap production and rework are reduced.

  • ZEISS ScanBox Series 5

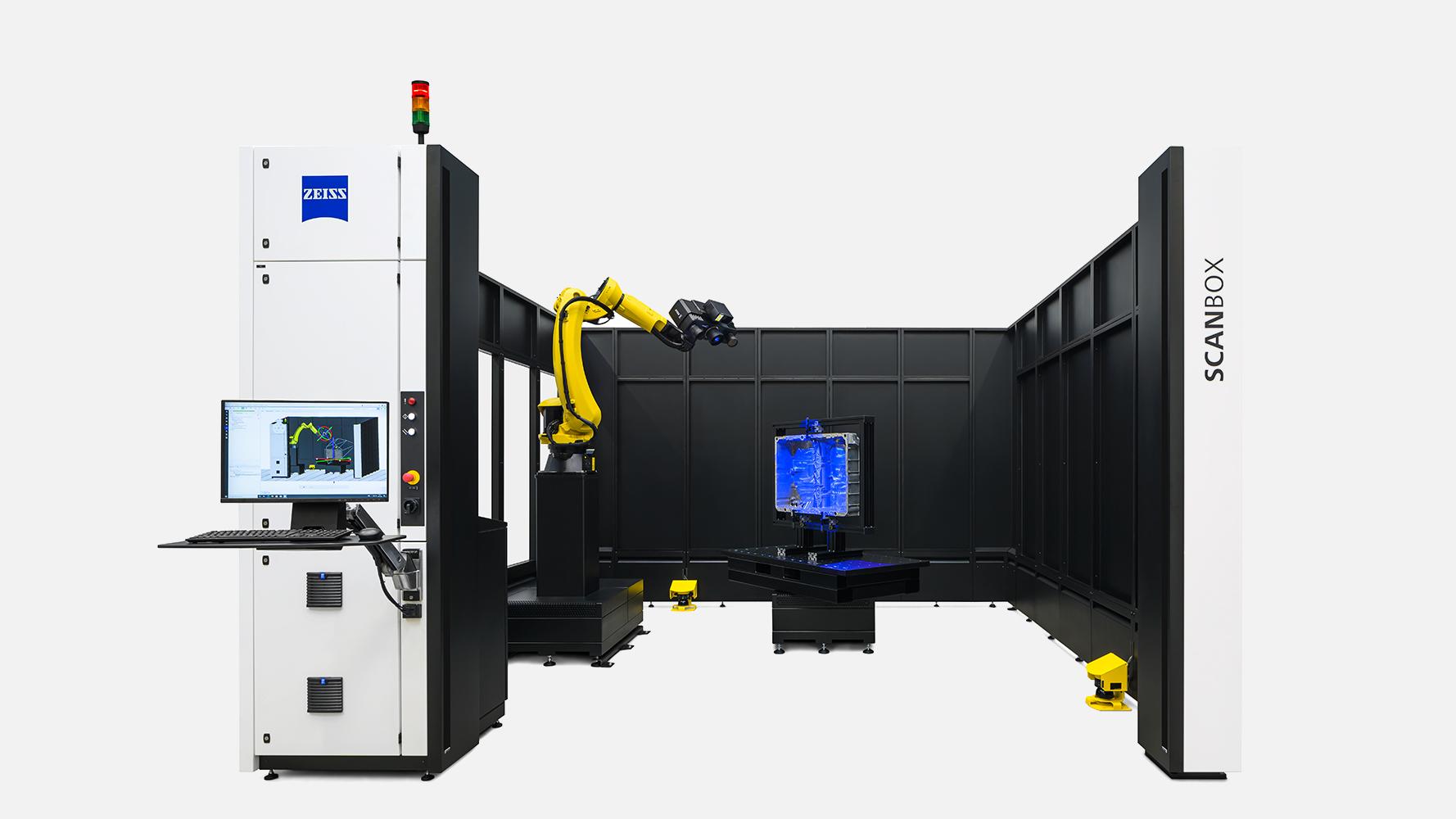

    ZEISS ScanBox Series 5 for the inspection of complex parts offers numerous options for individual upgrades.

  • ZEISS ScanBox Series 4

    Automated shop floor metrology systems developed specifically to measuring large and heavy components. Inspection times are shortened, and scrap production and rework are reduced.

Specialized ZEISS ScanBox Innovations

  • ZEISS ScanBox Series 5 RC

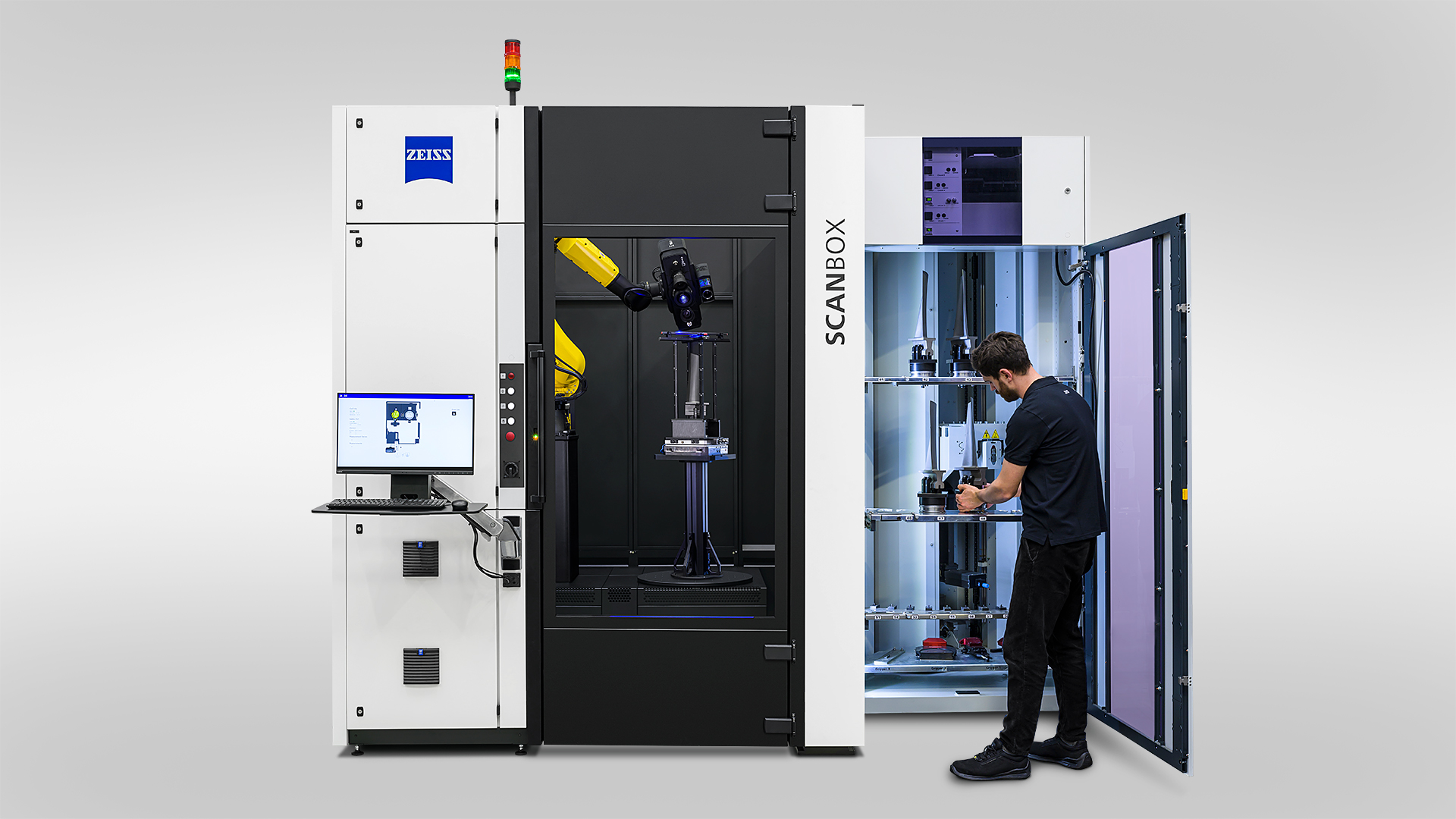

    Parts can be loaded by a robot or an individually configured feeding system through the motorized sliding door and placed on the rotation table module.

  • ZEISS ScanBox Series 4 RC

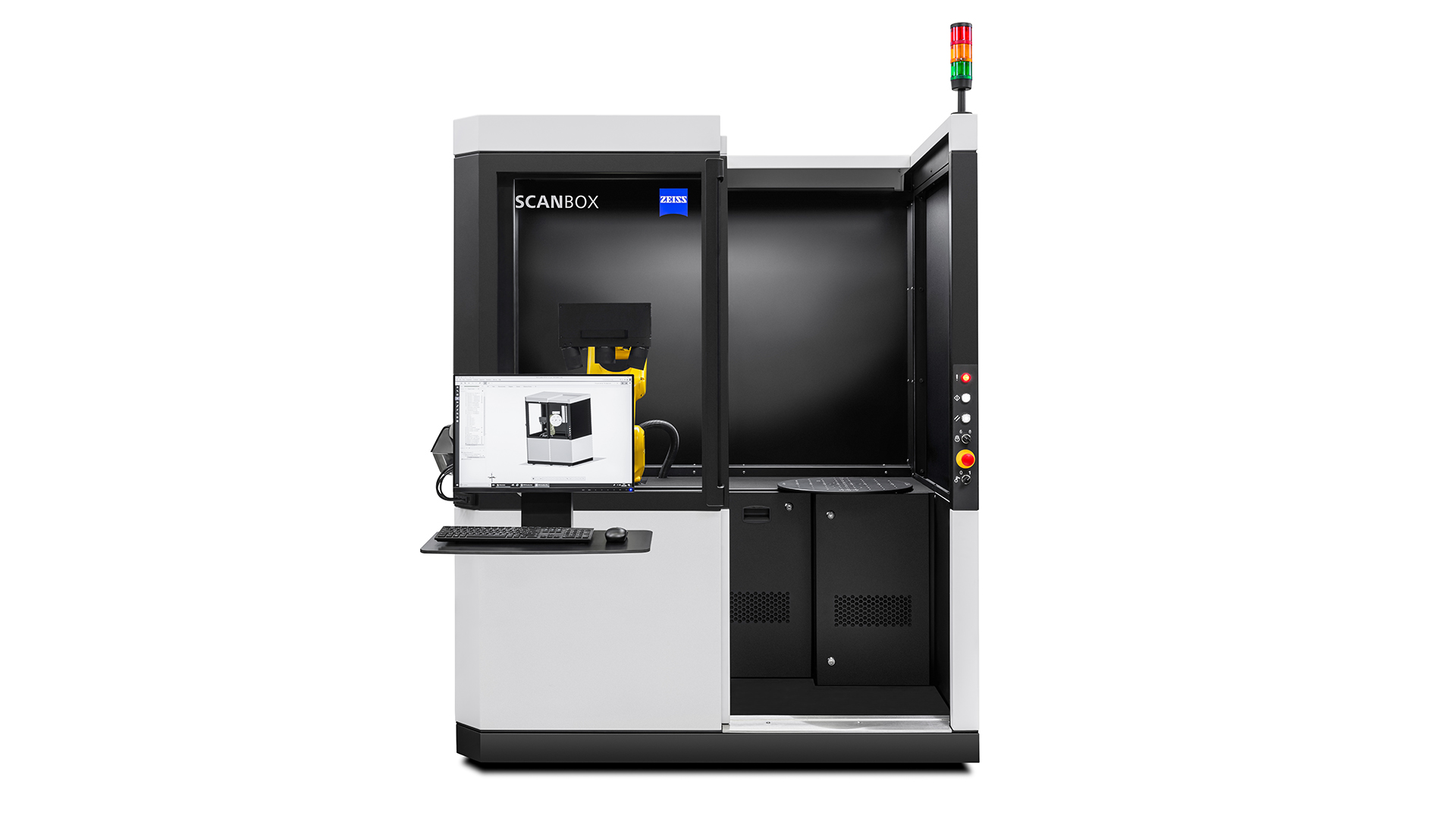

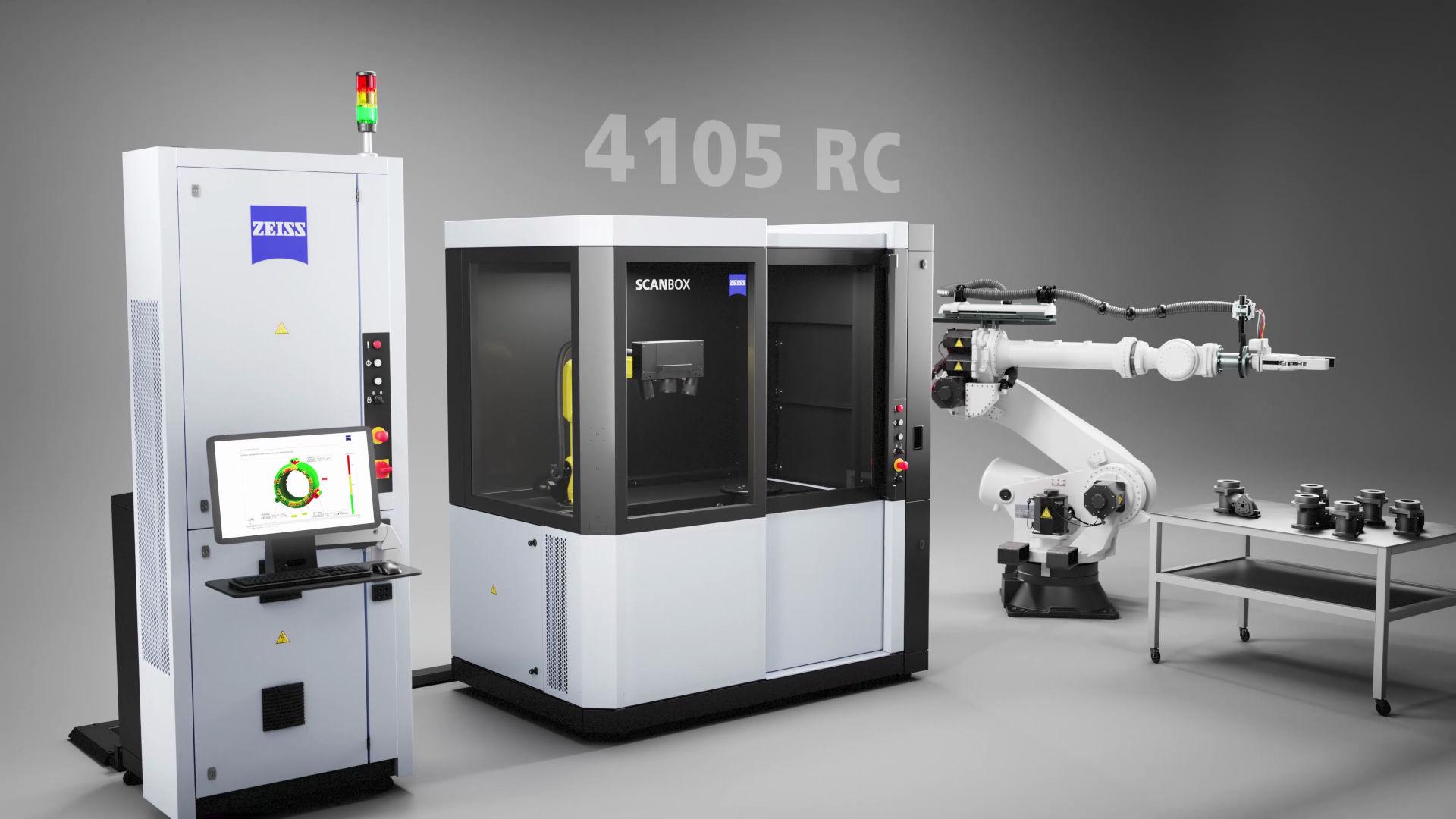

    ZEISS ScanBox Series 4 RC is a 3D measuring machine with a motorized sliding door. Parts are loaded and unloaded by a robot.

  • ZEISS ScanBox 4105 for eMotors

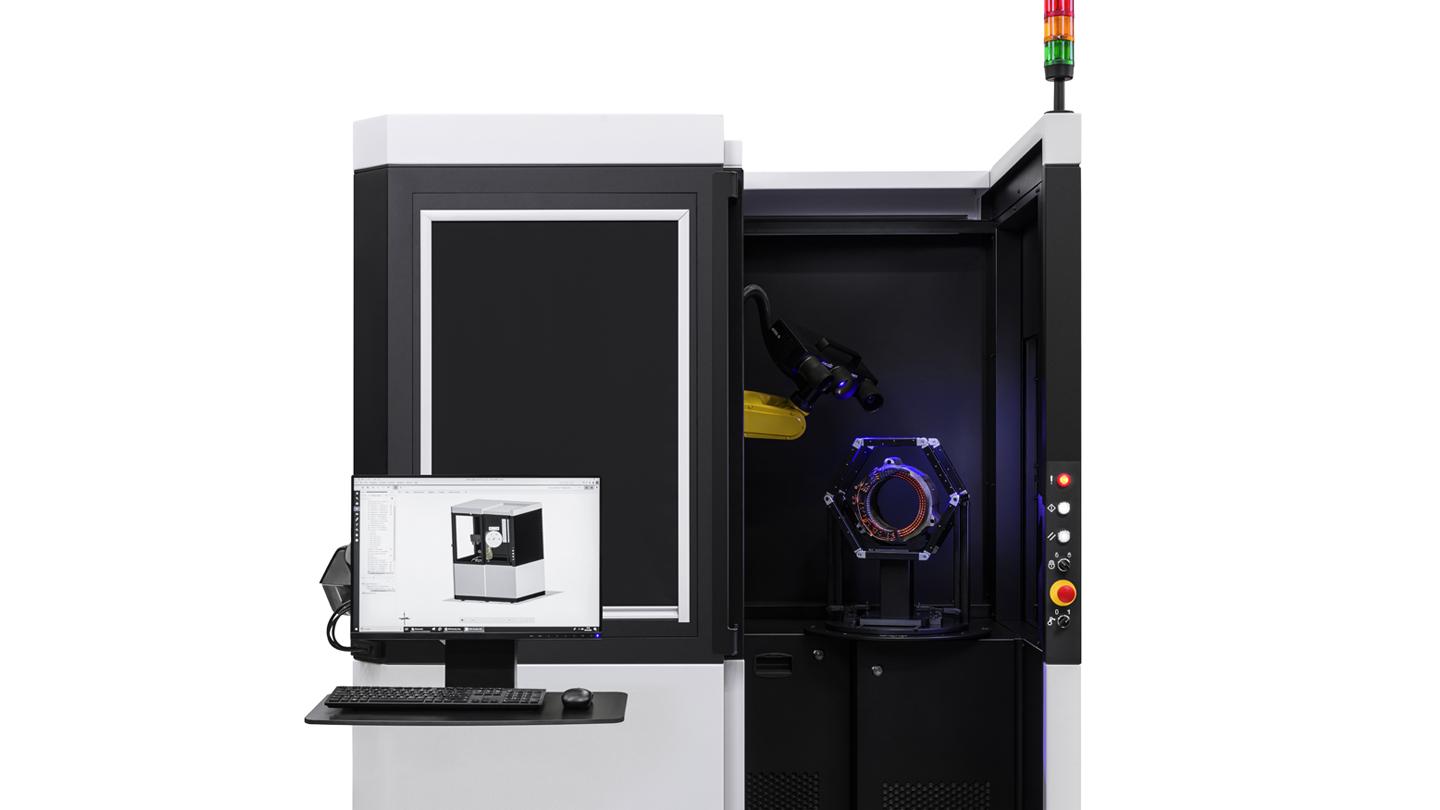

    ZEISS ScanBox 4105 for eMotors enables the fully automated digitization and inspection of hairpins and stators.

Virtual Measuring Room in ZESS INSPECT

Virtual measuring room in ZEISS Inspect Pro

Real environment in a virtual simulation

The virtual measuring room (VMR) is the central control and measurement planning software for all elements of the optical 3D measuring machines. It represents the real environment in a virtual simulation. The VMR consists of a robot with one sensor, the programming, including the kinematics of the robot paths, the part and the measurement plan. Thanks to the VMR, the user does not need any special robot skills. All robot movements are simulated in the virtual measuring room before execution and checked for safety.

Get A Free Automation Consultation.

Discuss your automation goals with an expert — get a tailored demo and pricing based on your requirements.

See why efficiency-driven manufacturers choose ZEISS ScanBox for automated, reliable 3D inspection.

Free consultation - No commitment - Just expert guidance.
