Industrial CT Scanning Services Near Me

Looking for industrial CT scanning services near you? You're in luck! These advanced imaging services are becoming more widely available, offering powerful inspection and analysis capabilities for various industries.

Industrial CT scanning uses X-rays to create detailed 3D images of objects, allowing you to see inside without damaging the part. This technology is useful for checking product quality, finding hidden defects, and measuring internal and external features. This technology is a non-contact solution for parts with complex geometries, difficult dimensions, time-intensive inspections, and more.

Many companies now offer industrial CT scanning services to help businesses improve their products and processes.
Consider their equipment, expertise, and turnaround time when searching for a service provider.

Some facilities use high-energy CT systems to scan dense materials, while others specialize in smaller, more precise scans.
ZEISS metrology services offer the right balance of accuracy and versatility for your needs.

Key Takeaways
• CT scanning creates 3D images of objects without damaging them
• Different providers offer various scanning capabilities and specialties
• Consider factors like equipment, expertise, and turnaround time when choosing a service

The Basics of Industrial CT Scanning

Industrial CT scanning uses X-ray technology to create detailed 3D images of objects. This non-destructive method allows you to see inside parts without damaging them.

Understanding CT Scanning and X-Ray Technology
CT scanning works by capturing 360 degrees of data from an object. X-rays pass through the item and create 2D images. A computer then reconstructs these images to build a 3D model.

The process starts with an X-ray source and a detector. As the object rotates, the X-rays capture 2D radiographs. This data forms a 3D image showing both external and internal features.

ZEISS metrology services offer high-resolution CT systems for precise 3D imaging. These systems can reveal tiny details like defects inside complex parts.

Advantages of Computed Tomography in Industry
Industrial CT scanning offers many benefits over traditional inspection methods. You can check internal structures without cutting or breaking parts.
CT scans provide:
• Detailed 3D views of internal and external features
• Accurate measurements of complex geometries with full GD&T capabilities
• Flaw detection, like cracks, voids, inclusions, leak paths, or points of failure
• Assembly analysis and reverse engineering

This technology helps in quality control, failure analysis, product development, R&D, and production. The data even supports dimensional inspection by comparing scanned parts to CAD models for accuracy.

CT scanning is helpful in many industries. It can inspect electronics, analyze materials, and check aerospace components. The 3D data helps improve designs and manufacturing processes.

Applications of Industrial CT Scanning

Industrial CT scanning offers powerful inspection and analysis capabilities, allowing you to see inside parts without destroying them. This technology has many uses across different industries.

Defect and Failure Analysis
Industrial CT scanning helps find internal defects in manufactured parts. With high-resolution data, you can spot cracks, voids, and other flaws that other methods might miss. These advantages are key for quality control.

CT scan data shows the internal structure of materials. You can check for porosity analysis in metal castings or composites. This helps ensure parts meet strength and safety standards. Voids or pores can be quantified to determine their volume and exact position within the part. The high-resolution 3D images let you measure wall thickness accurately. You can find areas that are too thin or too thick. ZEISS metrology services offer tools to compare scans to CAD models. The resulting heatmap allows deviations to be visualized so they can be spotted quickly.

CT scanning helps check assemblies, too. You can see how parts fit together without breaking them apart, saving product development and troubleshooting time.

Inspecting failed parts, understanding the failure modes, and measuring the part in its assembled state are key in root cause analysis for failures. CT scan data can provide this with data from one scanning session, saving countless hours of troubleshooting. This method does not add extra variables, such as heat or vibration, and keeps the part intact. CT scan data can also be used to create digital twins to compare a part in its original form against its used form for an exact comparison.

Reverse Engineering and Metrology
CT scanning is great for reverse engineering complex parts. You get precise 3D models of internal and external features. This method works even for parts with hidden internal geometry.

CT scanners capture millions of data points that can be turned into CAD models for design or manufacturing. 3D metrology from CT data is very accurate and works well for parts that are hard to measure with other tools.

First Article and Dimensional Inspection
CT scanning is ideal for first article inspection of new parts. You can check critical dimensions quickly and thoroughly. This helps catch problems early in production.

This advantage is also key for mold validation, intelligence quotient (IQ), and operational qualification (OQ) in the medical industry. By applying CT scanning, the time spent inspecting batches of parts can be reduced exponentially.

Dimensional inspection with CT is fast and precise. You can measure hundreds of features in one scan. This works for both internal and external dimensions.
CT scanning finds issues that other methods might miss. You can check wall thickness, flatness, and geometric tolerances. ZEISS software generates color-coded deviation maps that allow you to visualize where parts have fallen out of spec.

Industry-Specific CT Scanning Solutions

CT scanning offers tailored solutions for different industries. Aside from being a solution to challenges specific to these industries, CT scanning helps ensure quality, analyze components, and evaluate materials across various sectors.

Aerospace and Automotive Quality Control
CT scanning plays a crucial role in aerospace and automotive quality control. You can use it to inspect complex parts without damaging them. This technology finds hidden flaws in engine components, turbine blades, and structural elements.

For the automotive industry, CT technology checks for defects in brake systems, transmissions, and fuel injectors. This method helps spot issues early, improving safety and performance. The benefits of CT for the automotive industry extend to electric vehicles, with battery inspection and electric motor stators being top applications. ZEISS also has Giga casting x-ray solutions for the casting world, providing quick 2D scans for voids with automatic void detection.

In aerospace, CT scanning is valuable for turbine blade inspection. In this application, CT scanning works as a non-destructive method of inspecting and analyzing these high-value components' internal and external geometries. This saves time and money usually lost to cutting up blades for inspection.

ZEISS metrology services offer high-resolution CT scanning for both industries—this data results in detailed 3D models and precise measurements.

Electronic Components and Medical Devices Analysis
CT scanning is vital for analyzing electronic components and medical devices. For example, CT scanning allows you to see inside electrical connectors without separating them.

In the electronics industry, CT scans reveal:
• Solder joint quality
• Component placement
• Internal wiring issues

In medical devices, CT scanning ensures product safety and functionality. It’s often used to check for defects in pacemakers, implants, and surgical instruments.

CT technology can detect:
• Microscopic voids and porosity
• Improper assembly
• Material inconsistencies

CT scanning for the medical industry helps prevent device failures and ensures patient safety. CT scans can verify complex internal structures in small medical components.

Evaluation of Composite Materials and Batteries
CT scanning is essential for evaluating composite materials and batteries, providing a non-destructive way to examine these complex items.

For composites, CT scans reveal:
• Voids and inclusions
• Delamination issues

This information helps improve material strength and performance. You can use it to optimize designs for aerospace, automotive, and other industries.

In battery analysis, CT scanning shows:
• Electrode structure
• Overhang Measurements
• Cathode/Anode Orientation
• Voids/Inclusions
• Ageing• FOD/Delamination

These insights help develop better, safer batteries. You can spot potential issues before they cause problems when they are used. CT technology also tracks battery degradation over time. This aids in creating longer-lasting power sources for various applications.

Advanced Techniques in Industrial CT Scanning

Industrial CT scanning is always advancing. New developments deliver clearer images and more detailed information about parts. Let's look at some cutting-edge CT scanning techniques.

High-Resolution and 3D Computed Tomography
ZEISS metrology services offer scans that can see features as small as a few micrometers. This level of detail allows you to check small parts and find tiny flaws.
3D CT gives a complete view of a part from all angles. You can look at cross-sections or see through outer layers. This visual data helps find hidden problems or check how parts fit together.

Non-Destructive Testing for Part to CAD Comparison
CT technology is a fast, accurate alternative to destructive testing and many traditional NDT methods. This approach allows the entire part to be digitized without the limitations of traditional NDT methods.

You can use CT scan data to perform a nominal-actual CAD comparison. With a digital twin derived from CT scan data, you can easily identify:
• Differences between nominal CAD vs actual part
• Warping
• Oversized/undersized features
• Missing features

The process is fast and accurate. You get color-coded maps showing where parts don't match the design intent.

Wall Thickness Analysis and Inclusion Detection
CT scans measure wall thickness in complex parts, a key advantage for plastic bottles or metal pipes. Another benefit is that you don't need to section the part or touch both sides of the wall to get the measurement. In addition, color is not a limitation with CT technology, making clear parts easy to measure.
With a color map of thickness across the entire part, you can check if the walls are too thin or too thick.

CT also finds inclusions - bits of unwanted material inside a part.

These might be:
• Air bubbles in plastic
• Sand in metal castings
• Foreign objects

Scans show where these are and how big they are. This insight helps you decide if a part passes quality control checks.

Choosing the Right CT Scanning Service Provider

Choosing the best industrial CT scanning service is crucial for getting accurate results. The benefits extend to many industries, from consumer products to defense, so finding a partner experienced in your industry is essential.

Key Factors to Consider
Check the provider's experience and equipment when looking for CT scanning services. You want a company with a track record in your industry. Ask about their scanning resolution and accuracy.

Look at turnaround times. Fast results can speed up your product development, but don't sacrifice quality for speed.

Check if they can handle your part sizes. Some scanners work best with small parts, while others can manage large parts.

Consider the software they use for analysis. Good software helps identify issues quickly. The CT software should give you clear, detailed reports.

Pricing is important, but value matters more. Cheap CT scanning might miss critical flaws. Ask about their quality control process.

Capabilities of ZEISS CT technology

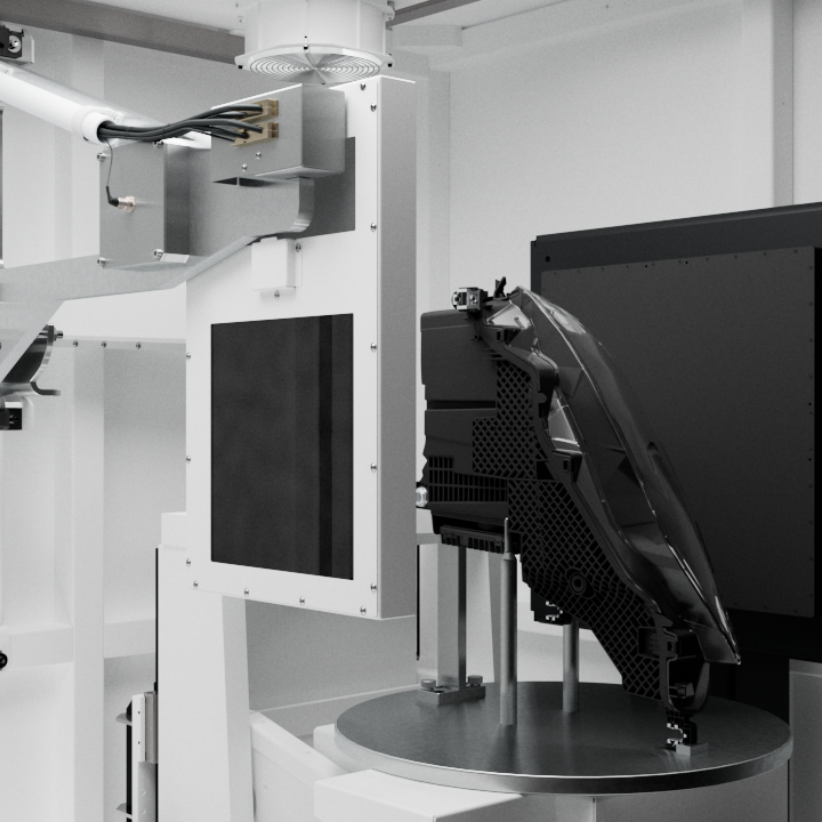

The ZEISS METROTOM family of CT scanners offers high-precision scans for various industries. It can handle both small and large parts with ease.
This high-resolution CT scanner provides detailed 3D models that are helpful in rapid prototyping and quality control by allowing you to see inside complex parts without damaging them.

The ZEISS METROTOM works well for consumer products and defense components because it finds tiny flaws that other methods might miss.

ZEISS INSPECT X-RAY software makes CT data analysis easy, allowing you to check dimensions quickly and accurately for a faster inspection.

The ZEISS METROTOM CT achieves impressive precision, measuring features smaller than a human hair. This level of detail is vital for high-tech industries.

Frequently Asked Questions

Industrial CT scanning offers powerful inspection capabilities for many industries. Let's explore some common questions about this technology and its applications.

How much does it typically cost to use industrial CT scanning services?
The cost of industrial CT scanning services can vary widely. Prices typically start at $285 per scan and increase based on certain factors. Factors affecting cost include part size, complexity, resolution needed, and turnaround time. CT scanning project prices typically start at $700 and go up depending on the scope.

What are the primary applications of industrial CT scanning?
Industrial CT scanning has many uses. It can detect defects and inspect internal structures. You can use it for reverse engineering, quality control, and failure analysis. CT scanning also helps with dimensional measurements of complex components.

In what ways does industrial CT scanning differ from medical CT scanning?
Industrial CT uses higher-energy X-rays than those used in the healthcare industry. This allows for the penetration of dense materials like those used in the aerospace industry. Industrial CT offers higher resolution and more detailed 3D images than medical CT. The scanning process takes longer for industrial applications.

What industries most commonly use CT scan technology for inspection purposes?
Aerospace, automotive, and medical device industries frequently use CT scanning. It is also used in electronics, oil and gas, and consumer products. ZEISS metrology services support many of these sectors with advanced CT capabilities.

Can CT scanning be utilized to analyze mechanical part assemblies?
CT scanning works well for assemblies, allowing you to see how parts fit together without taking them apart. You can check for proper assembly, find interference issues, and measure internal clearances. Industrial CT scanning is beneficial for complex mechanisms.

What is the highest resolution available in modern industrial CT scanners?
Today's top industrial CT scanners can achieve resolutions down to a few micrometers. Some specialized systems, such as the ZEISS Versa Advanced 3D X-ray Microscopes (XRM), can even reach sub-micron levels.

The exact resolution depends on the part size, material, and specific scanner model.
