ZEISS Nano Primes

Small Lenses. Big Look.
Find a Dealer

Designed for full frame mirrorless cameras, ZEISS Nano Primes feature the ZEISS Supreme look in a smaller and more economical lens package for all kinds of productions.

Discover ZEISS Nano Primes

NANO PRIME BEAUTY REEL 2025

Third-party Content Blocked

The video player is blocked due to your cookie preferences. To change the settings and play the video, please click the button below and consent to use of "Functional" tracking technologies.

High-End DNA

Featuring the ZEISS Supreme Look

ZEISS Nano Primes have been conceived as the smaller siblings of the popular Supreme Primes, sharing the same DNA: in a smaller package and more accessible, Nanos feature the ZEISS Supreme look. Characterized by a smooth fall-off with gentle sharpness and beautiful bokeh, this look has been widely put to use in countless productions all around the globe.

Explore the Nano Prime Range

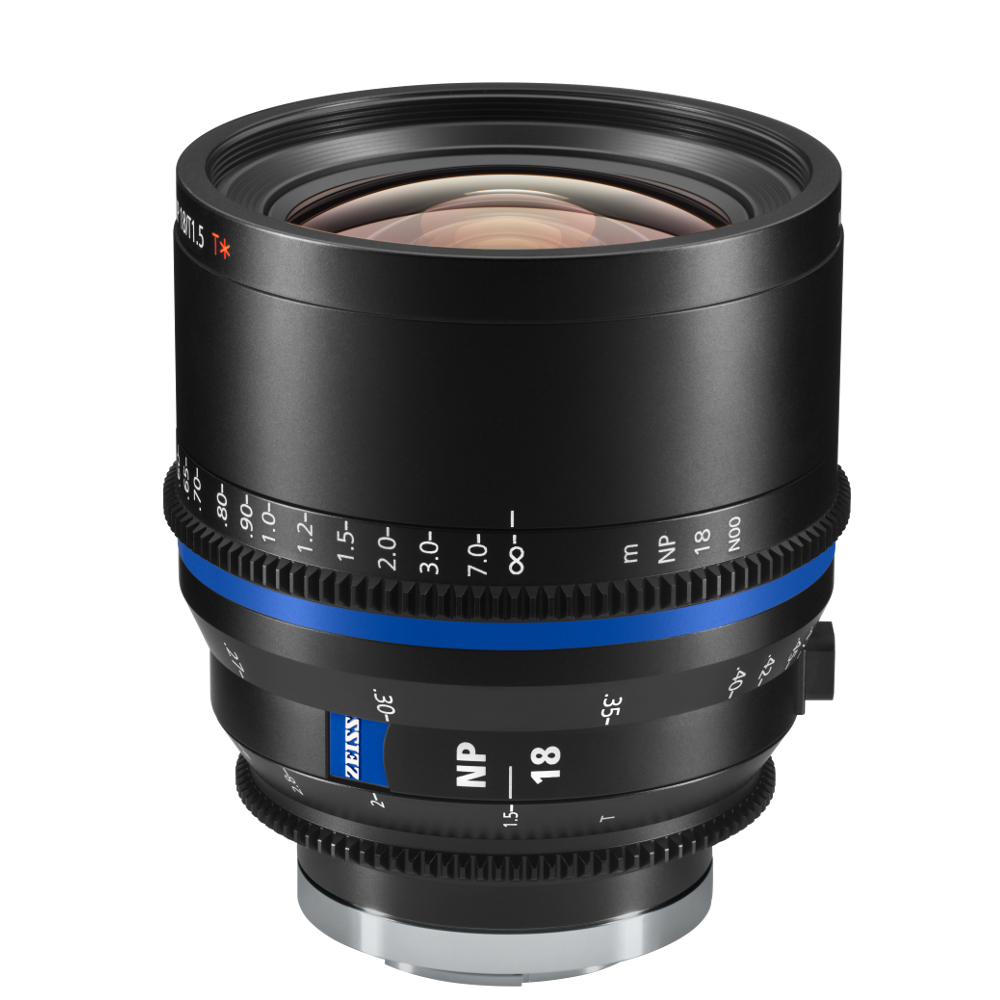

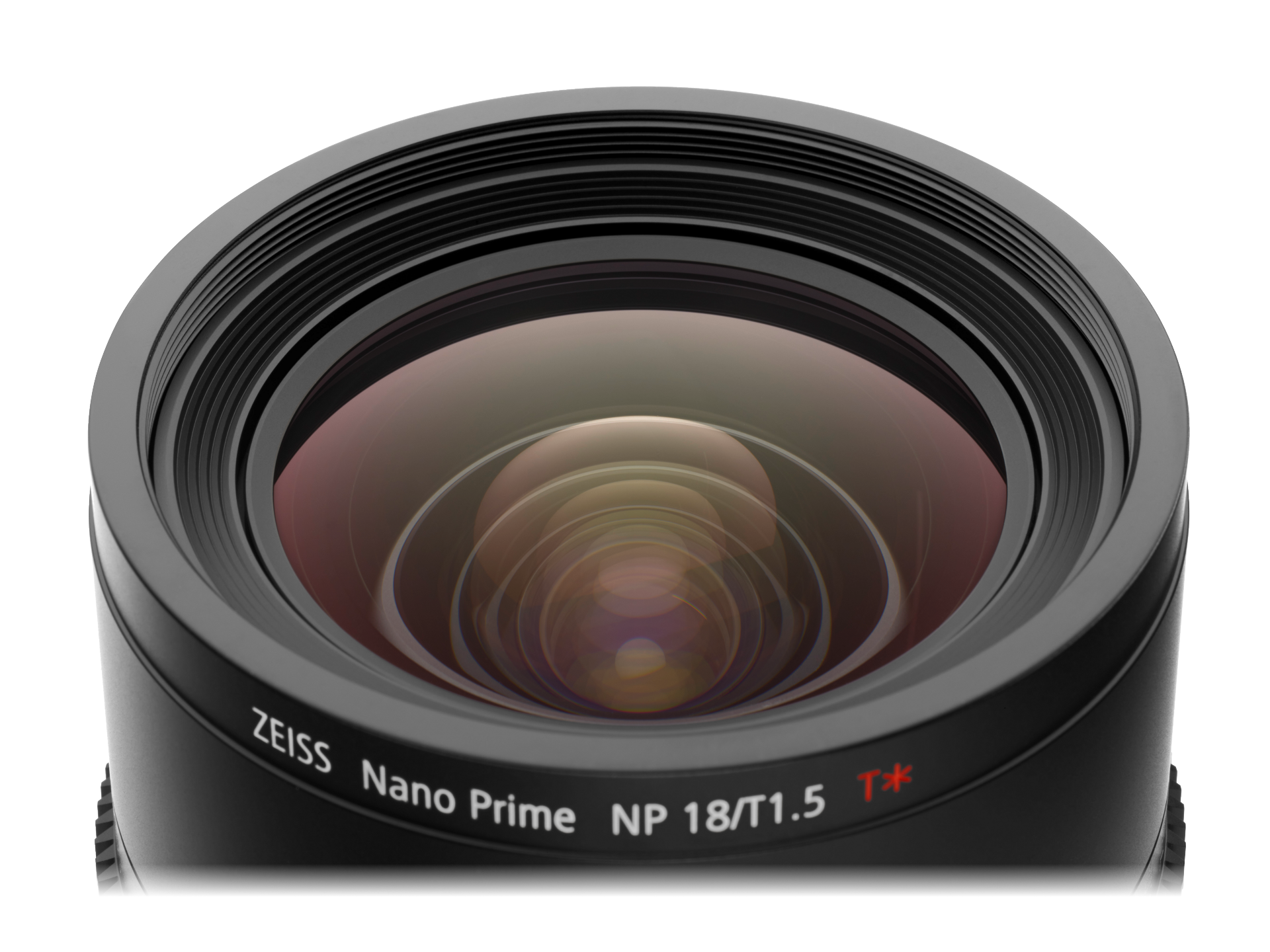

  •                     18 mm

         Aperture T1.5 to T16
    Close Focus1 0.25 m | 9.8"
    Length2 112 mm | 4.4"
    Front Diameter 95 mm | 3.7"
    Screw-in Filter M86 x 1
    Weight 1.19 kg | 2.62 lbs
    Angle of Focus Scale 280°
    Horizontal Angle of View3 90.3°
    Mount4 E (native); RF, Z, L (third party)

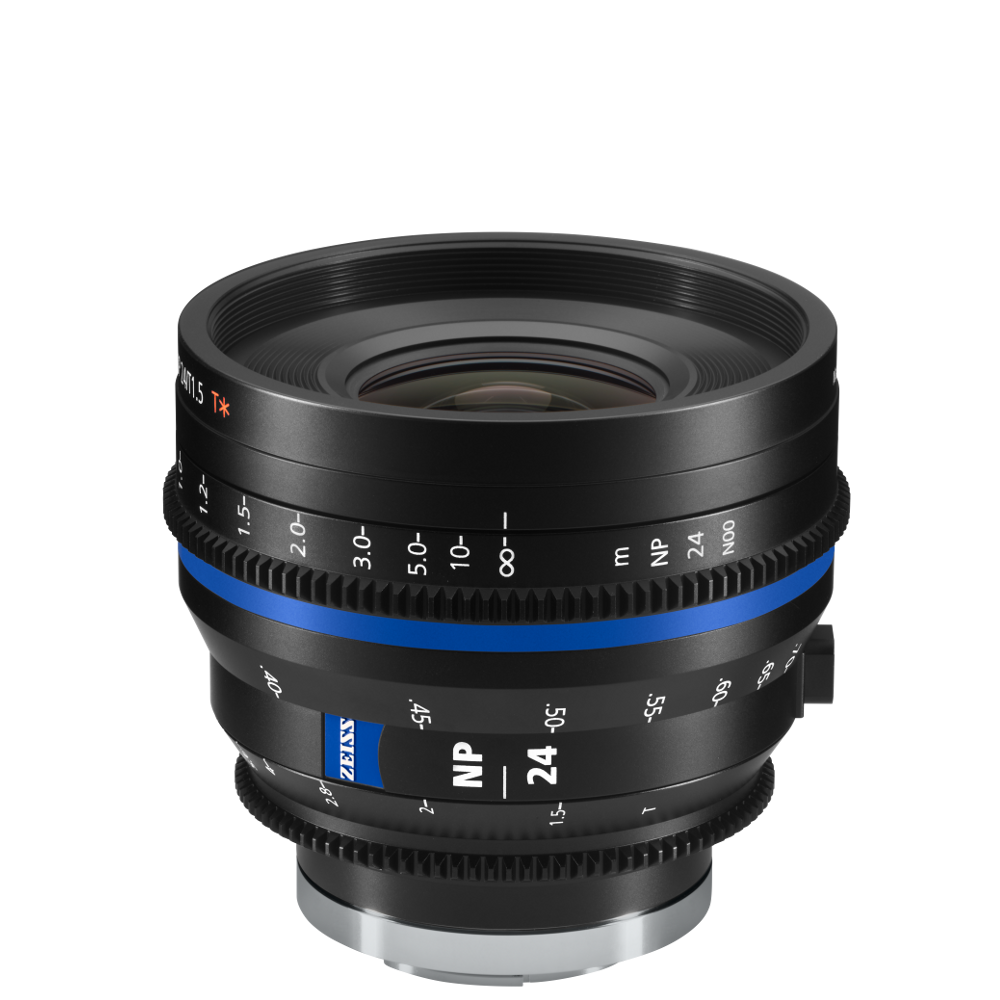

  •                     24 mm

         Aperture T1.5 to T16
    Close Focus1 0.35 m | 13.8"
    Length2 89 mm | 3.5"
    Front Diameter 95 mm | 3.7"
    Screw-in Filter M86 x 1
    Weight 0.87 kg | 1.93 lbs
    Angle of Focus Scale 280°
    Horizontal Angle of View3 74.2°
    Mount4 E (native); RF, Z, L (third party)

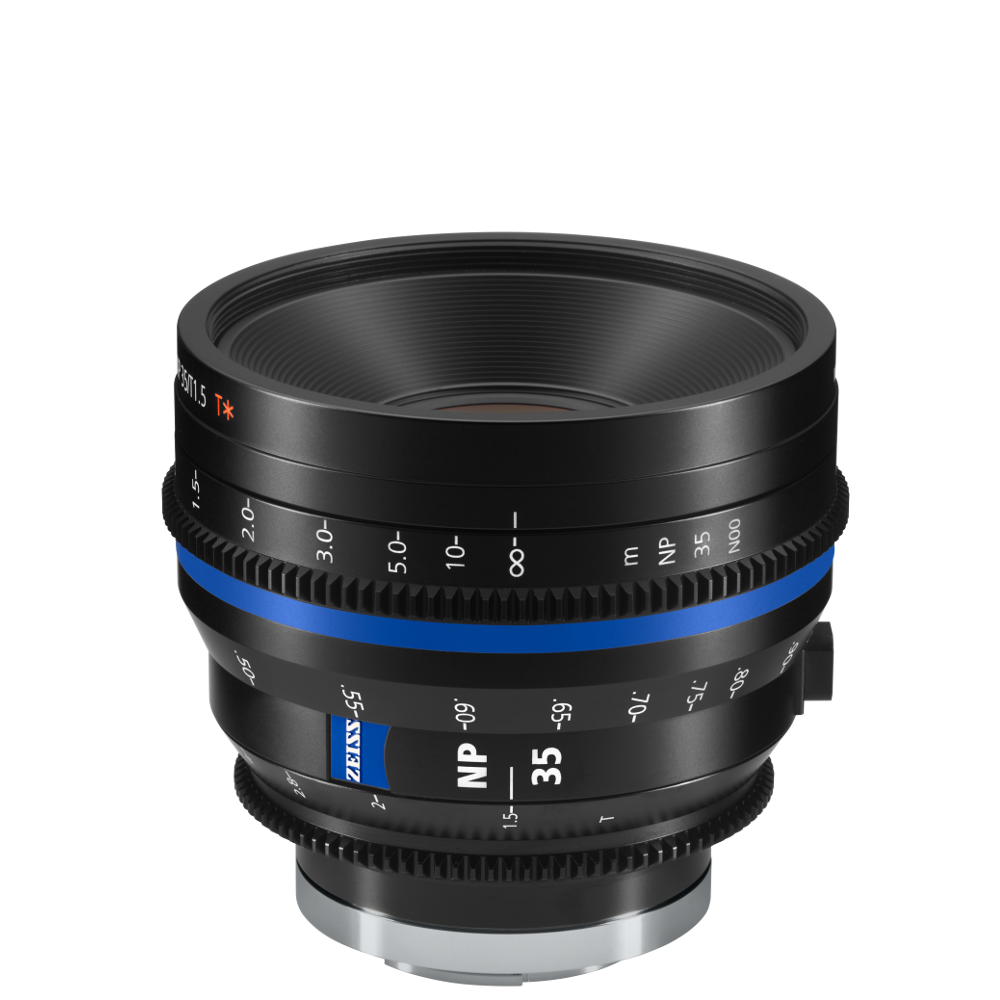

  •                     35 mm

         Aperture T1.5 to T16
    Close Focus1 0.45 m | 17.7"
    Length2 89 mm | 3.5"
    Front Diameter 95 mm | 3.7"
    Screw-in Filter M86 x 1
    Weight 0. 87 kg | 1.92 lbs
    Angle of Focus Scale 280°
    Horizontal Angle of View3 53.8°
    Mount4 E (native); RF, Z, L (third party)

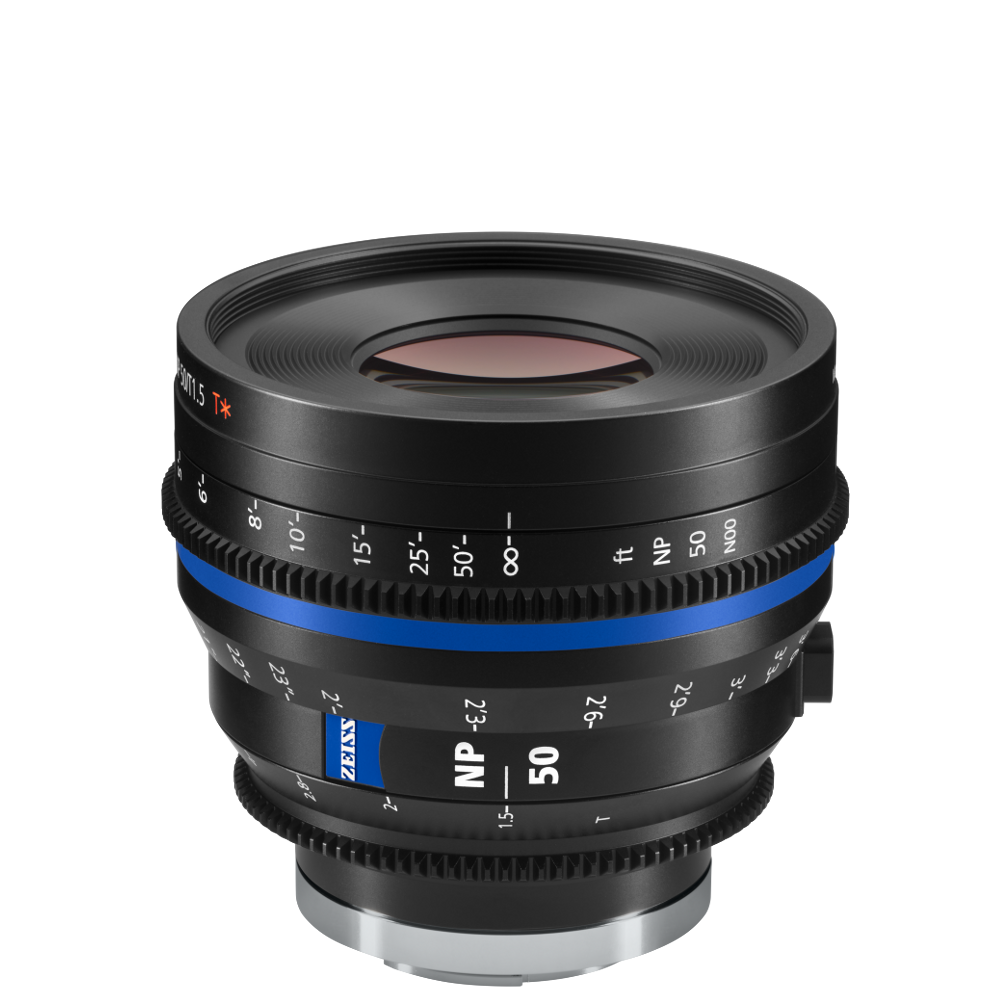

  •                     50 mm

         Aperture T1.5 to T16
    Close Focus1 0.50 m | 19.7"
    Length2 89 mm | 3.5"
    Front Diameter 95 mm | 3.7"
    Screw-in Filter M86 x 1
    Weight 0. 92 kg | 2.04 lbs
    Angle of Focus Scale 280°
    Horizontal Angle of View3 40.4°
    Mount4 E (native); RF, Z, L (third party)

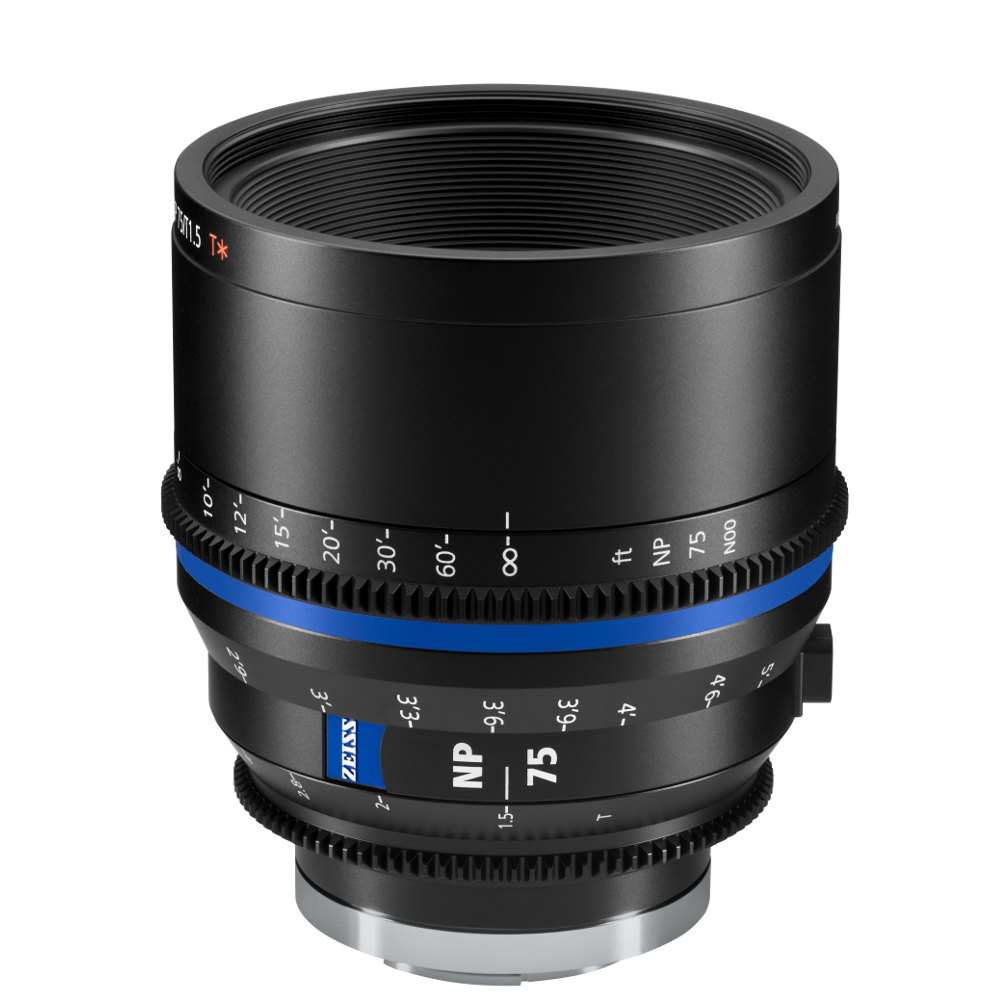

  •                     75 mm

         Aperture T1.5 to T16
    Close Focus1 0.75 m | 29.5"
    Length2 112 mm | 4.4'
    Front Diameter 95 mm | 3.7"
    Screw-in Filter M86 x 1
    Weight 1.13 kg | 2.48 lbs
    Angle of Focus Scale 280°
    Horizontal Angle of View3 27.7°
    Mount4 E (native); RF, Z, L (third party)

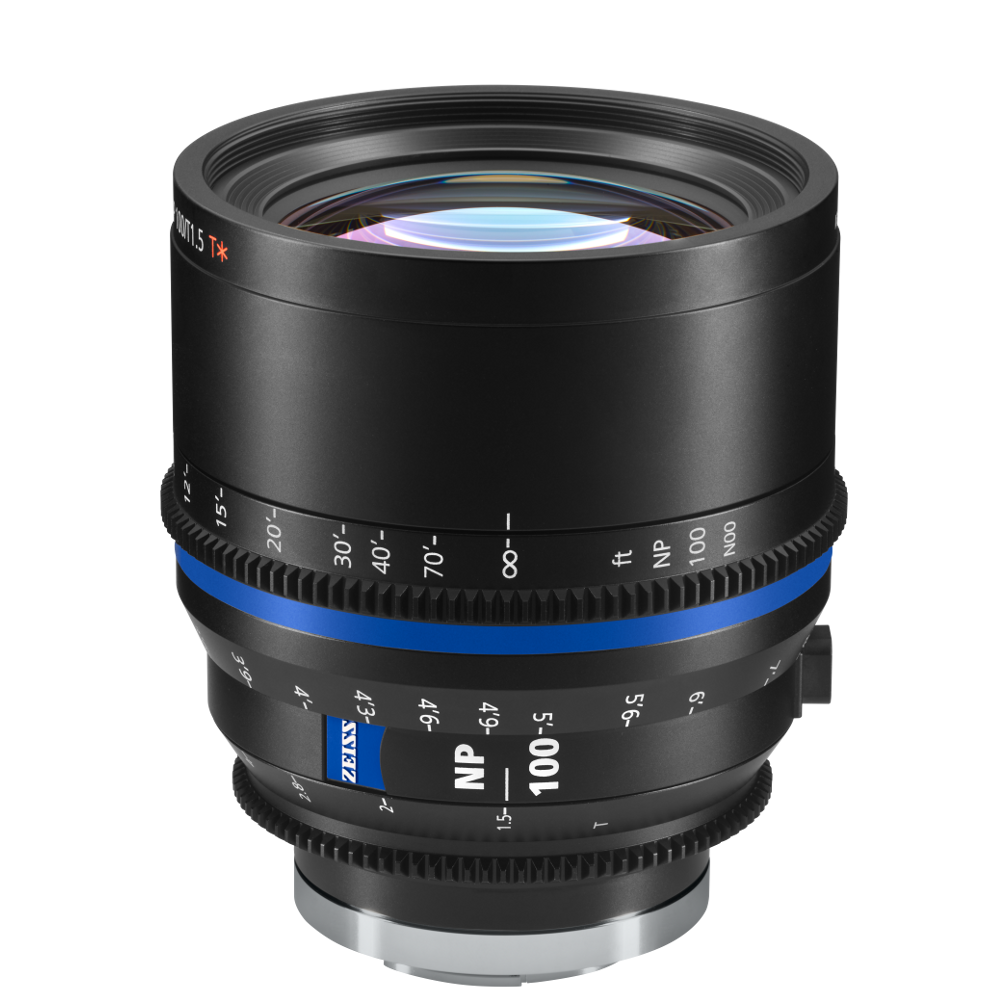

  •                     100 mm

         Aperture T1.5 to T16
    Close Focus1 1.00 m | 39.4"
    Length2 112 mm | 4.4'
    Front Diameter 95 mm | 3.7"
    Screw-in Filter M86 x 1
    Weight 1.26 kg | 2.77 lbs
    Angle of Focus Scale 280°
    Horizontal Angle of View3 20.7°
    Mount4 E (native); RF, Z, L (third party)

1) Minimum marked distance, measured from the image plane
2) Front to E-mount flange
3) Horizontal angle of view for a full frame camera (aspect ratio 1:1.5, dimensions 36 mm x 24 mm / 1.42“ x 0.94“)
4) Interchangeable by the user

A Versatile Look and Gentle Sharpness

The Nano Primes possess a look, which ensures freedom in creating the look you want to achieve. With captivating clarity, they ensure that you can capture every detail in the expression on an actor’s face to convey and emphasize emotion. Especially when capturing crucial textures such as skin tones, the quality of the Nano Primes is a gentle sharpness that renders a crisp but organic look.

Aesthetic Fall-off and Elegant Bokeh

A very smooth transition between in-focus and out of focus areas characterize the look of the Nano Primes. This adds richer texture and greater depth to the image. They maintain dynamic range and micro contrast levels finetuned to bring out details in the shadows and the mids.

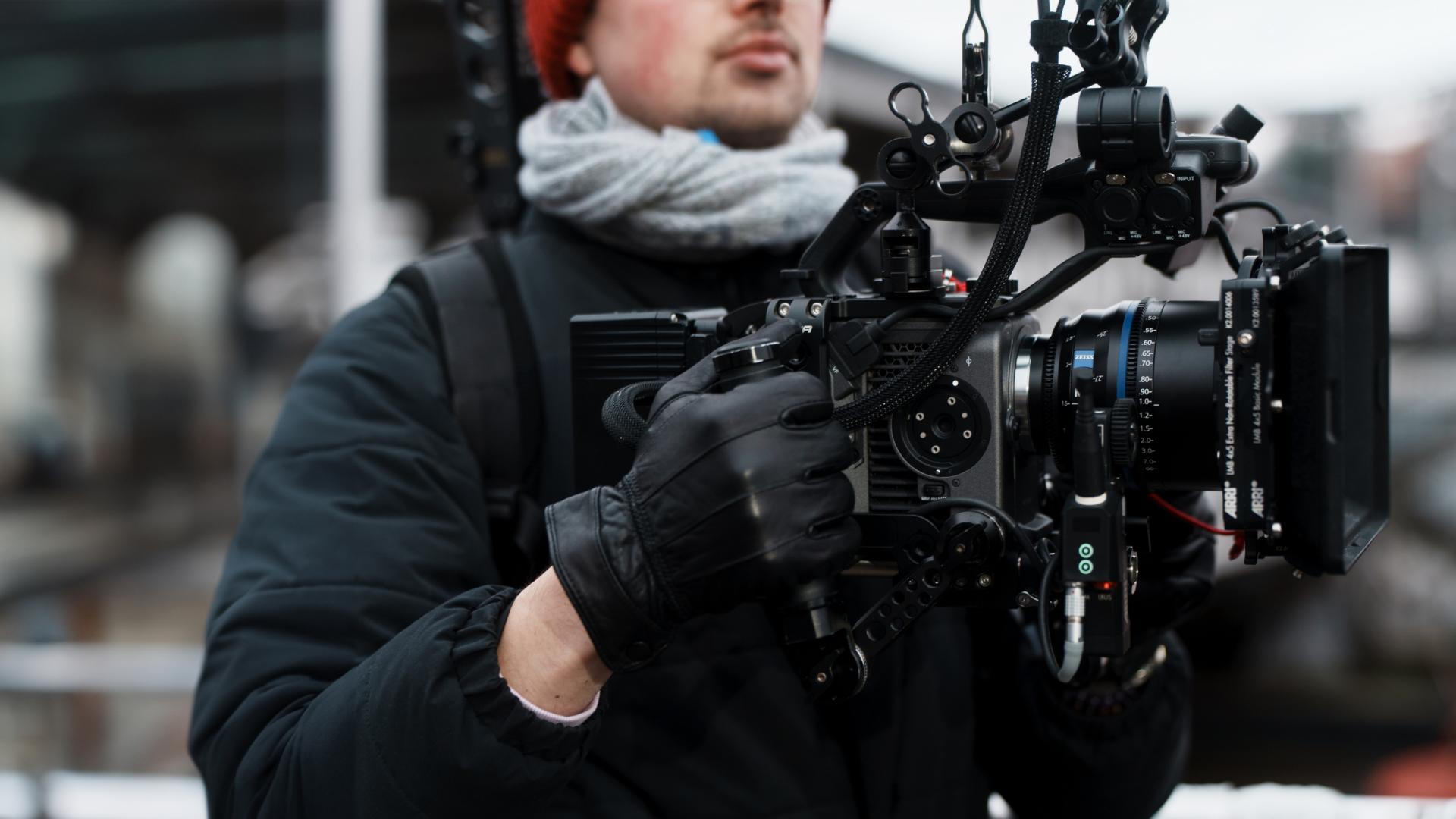

Full Cine Ergonomics in a Small Package

Nano Primes excel in precision and durability. Featuring a compact design with a 95 mm front diameter and an 86 mm screw-in filter thread, they seamlessly integrate with gimbals and drones. The consistent position of focus and iris rings streamlines lens changes while offering easy-to-read calibrated scales, a smooth 280° focus rotation, and a 90° iris ring rotation for precise control.

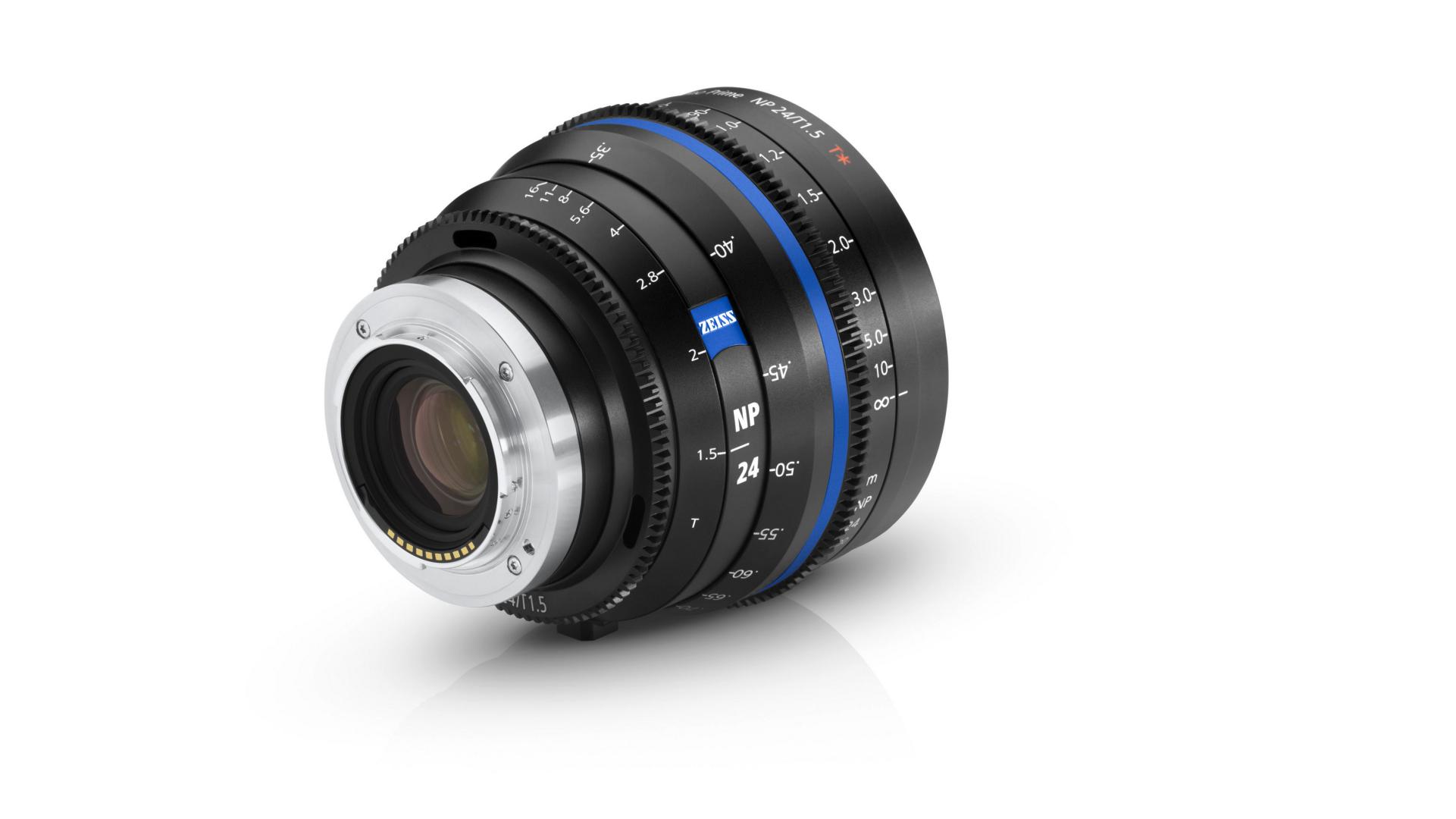

Interchangeable Mount

The Nano Primes come standard with an E-mount, but thanks to the proven ZEISS IMS (Interchangeable Mount System), they can easily be swapped by the user for RF, Z, or L-mounts available from third parties (e.g., KipperTie).

Real-Time Lens Data

Thanks to the integrated electronic interface on the E-mount, the Nano Primes transmit real-time metadata such as focal length, focus distance and aperture to the camera. Further lens data for distortion and vignetting is available in the ZEISS CinCraft ecosystem and thus for post-production (CinCraft Mapper) as well as in the recently introduced CinCraft Scenario camera tracking system.

Precision Manufacturing & Worldwide Service

ZEISS Nano Prime lenses are assembled by hand and engraved with individually calibrated scales. Serviceability is a top priority starting in the initial stages of the development process. ZEISS has built up a global service network in the recent years with authorized service stations offering service according to factory standards in the US, Europe and Asia.
