In Vitro Fertilization

Elevate your IVF success rates with our cutting-edge microscopy solutions
Sample Prep & Education/Routine
Get in touch
  • microscope icon
    Clarity That Drives Confidence

    In IVF, precision isn’t optional. ZEISS delivers unmatched resolution and contrast so every cell, every structure, every decision is crystal clear.

  • Target icon
    Comfort That Keeps You Focused

    ZEISS microscopes are designed for all-day comfort with ergonomic viewing angles and intuitive controls that support your workflow not strain it.

  • consistency and trust icon
    Consistency That Builds Trust

    IVF success relies on reproducibility. ZEISS microscopes are engineered for stability and consistent imaging, procedure after procedure because your results should speak for themselves.

Precision Imaging for Every Stage of Fertilization With clinically relevant techniques such as differential interference contrast (DIC) and polarization contrast, as well as compatibility with micromanipulators and heating plates, ZEISS microscopes empower embryologists to visualize key structures with clarity and confidence. From assessing oocyte quality and visualizing the meiotic spindle to performing intracytoplasmic sperm injection (ICSI) and embryo evaluation, ZEISS imaging solutions support critical decisions throughout the IVF workflow. By delivering precise, high-resolution imaging at every stage, ZEISS helps improve outcomes, optimize protocols, and advance the success of assisted reproductive technologies.
Microscopy Solutions for Fertilization

Visualize critical structures for ICSI, IMSI and embryo assessment

MICROSCOPY SOLUTIONS FOR SEMEN ANALYSIS

Streamline semen analysis with high-resolution imaging, smart documentation, and versatile contrast modes

ZEISS Axiovert 5

Select the best sperm for injection with high-contrast DIC imaging for IMSI

ZEISS Axiolab 5

Visualize clear oocyte spindles with polarization contrast

ZEISS AXIO OBSERVER

Classify embryo morphology

Achieve precision in IVF with ZEISS imaging tools designed for assisted reproductive technology (ART) procedures biology studies

  • The IVF Process: Precision and Attention at Every Stage

    Image video for Assisted Reproductive technologies (APAC)

Clinical Microcopy Applications

Empowering Key Moments in IVF
Including circular polarization, PlasDIC and iHMC, while maintaining temperature stability and ergonomic control throughout ICSI, IMSI, and embryo assessment.
Assisted Reproductive technologies (APAC)
Image subject to the copyright of Virtus
Especially the nucleus, nucleoli, and nuclear shape within embryos
Human embryos (four-cell stage)
S. Mittmann, IVF-Labor, Göttingen, Germany.
With non-invasive spindle imaging

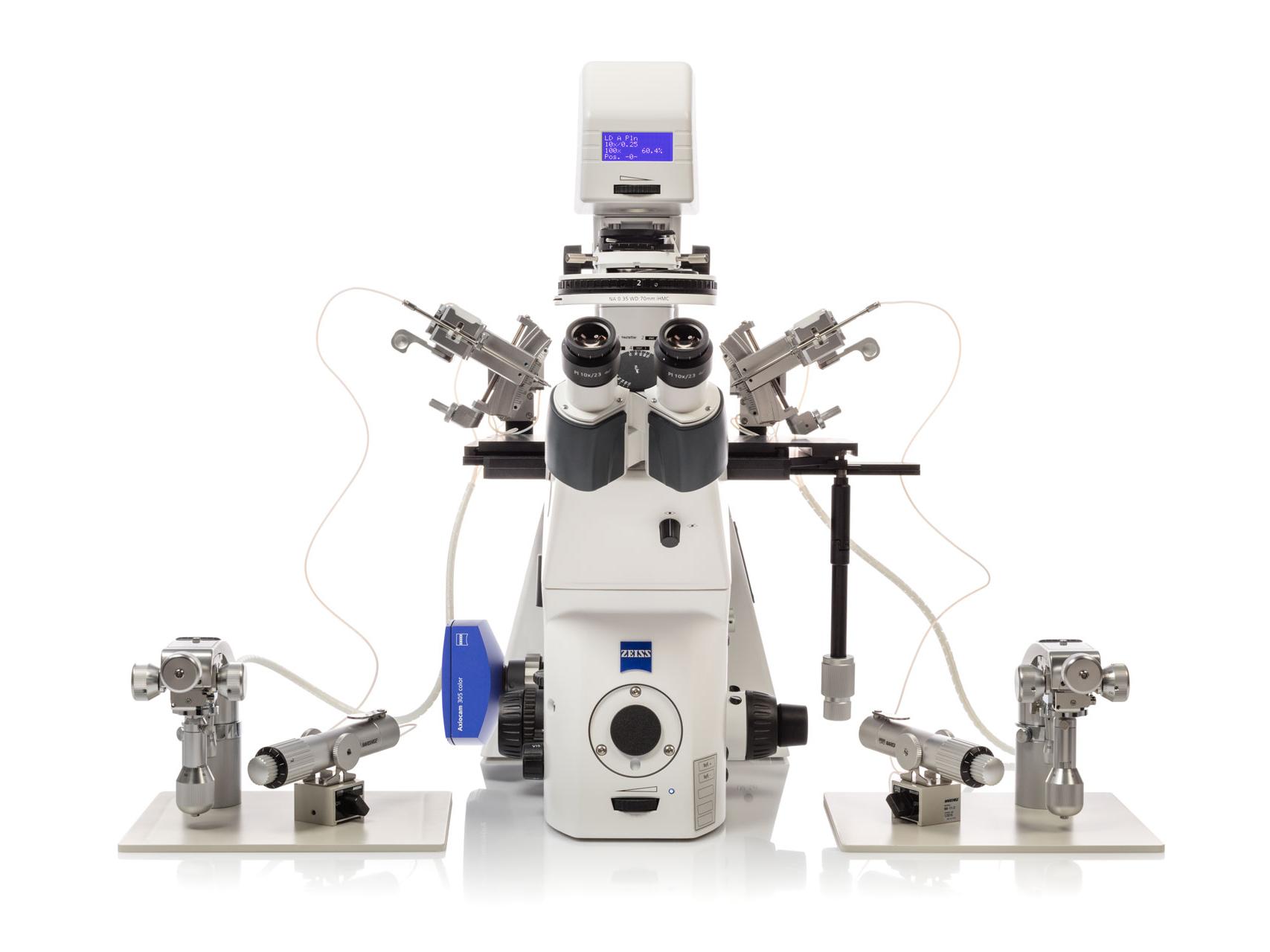

Fertilization, assisted reproductive technology, ICSI, oocyte, Axio Observer, Narishige micromanipulation
With high-resolution imaging, smart documentation, and versatile contrast modes so you can work faster, with greater confidence.
Immobile Sperm Eosine Y Vitalaity Test

Recommended Products for IVF Research

  • Inverted Microscope Platform with AI Assisted Experiment Startup

    ZEISS Axio Observer

    ZEISS Axio Observer is a powerful inverted microscope often used in IVF labs for in vitro fertilization (IVF) procedures. Compatible with micromanipulators, it's known for known for its ability to visualize and manipulate oocytes and sperm, crucial for successful IVF outcomes.

    Request a Quote

    Product features

    • Brilliant contrast options, such as
iHMC, PlasDIC, DIC, fluorescence,
circular polarization for spindle
visualization and others
    • Compatible with many heating plates
    • Encoded for reliable and improved
usability
    • Suitable for visualization of ICSI, IMSI,
embryo biopsies
and quality control
of embryos
    • Rock solid inverted light microscope

    Explore the Axio Observer

  • Compact and Easy to Use Upright
Light Microscope

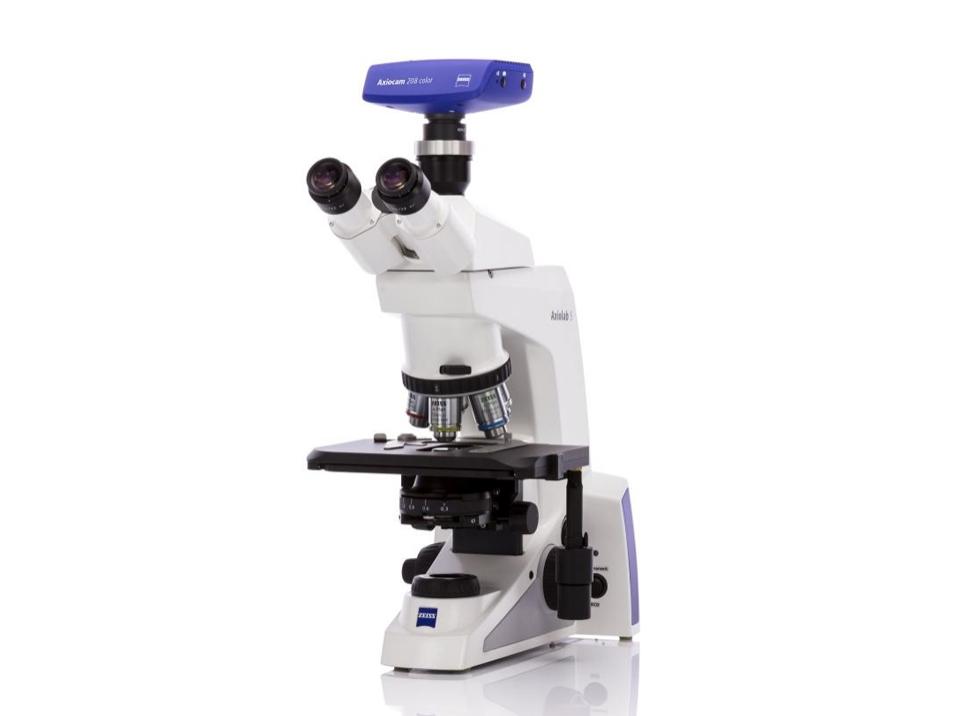

    ZEISS Axiolab 5

    ZEISS Axiolab 5 is designed for clinical and biomedical laboratories and routine laboratory work, including applications in In vitro Fertilization (IVF) research.

    Get a Quote or Buy Now

    Product Features

    • Phase contrast, brightfield, darkfield
and fluorescence possible
    • Optimal visualization of sperm cells
through positive and negative phase
contrast, even available in one
objective
    • Easy documentation via smart
microscopy
    • Fast high contrast, high resolution
(4k) images for visualization of fine
details
    • Suitable for routine semen analysis
    Explore the Axiolab 5

  • Greenough Stereo Microscope with 8:1 Zoom

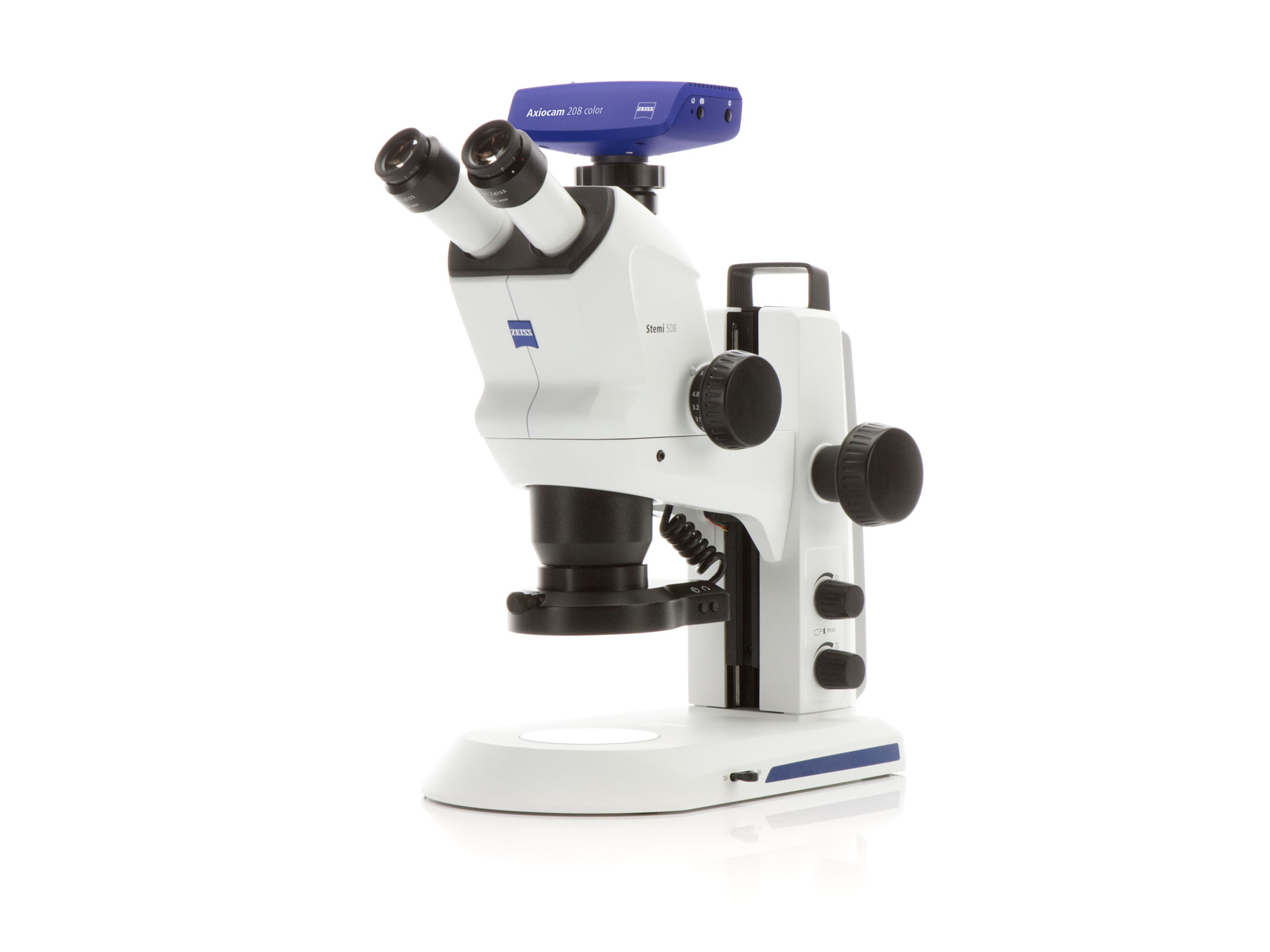

    ZEISS Stemi 508

    ZEISS Stemi 508 provides high-resolution imaging capabilities, which are crucial for observing gametes (sperm and oocytes) and embryos. The microscope's optics allow researchers to visualize fine details, such as the morphology of oocytes and the development stages of embryos, which are essential for assessing quality and viability.

    Get a Quote or Buy Now

    Product features

    • Compact design – easily fits in
laminar flow box
    • Large working distance for
comfortable and ergonomic handling
    • Brilliant 3D visualization of oocyte
and embryo details through
apochromatic optics
    • Wi-Fi compatibility for easy live
sharing of sample images e.g.
retrieved oocytes with the patient
    Explore the Stemi 508

  • Your Smart Microscope for Cell Culture and Research

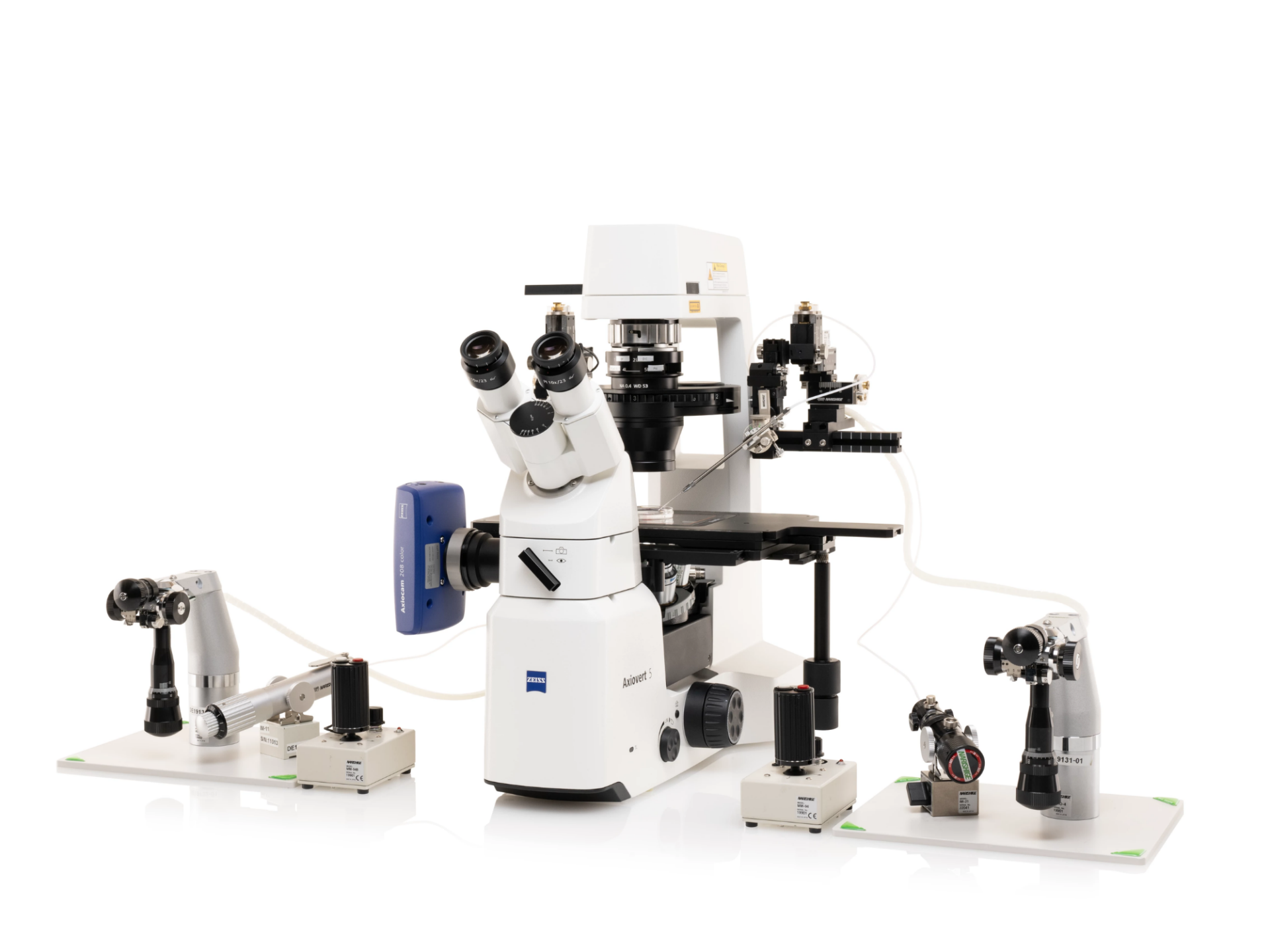

    ZEISS Axiovert 5

    ZEISS Axiovert 5 inverted microscope thas provides a comprehensive and advanced platform for IVF protocols. This setup enhances the ability to observe, manipulate, and analyze gametes and embryos, ultimately contributing to improved techniques and success rates in assisted reproductive technologies.

    Get a Quote or Buy Now

    Product Features

    • Inverted microscope design
    • High-quality optics that provide excellent image clarity and contrast
    • The integration of micromanipulators allows for precise manipulation of gametes and embryos
    • Versatile imaging options
    • Customizable setup
    Explore the Axiovert 5

  • Crisp and Brilliant Images throughout the Whole 8:1 Manual Zoom Range

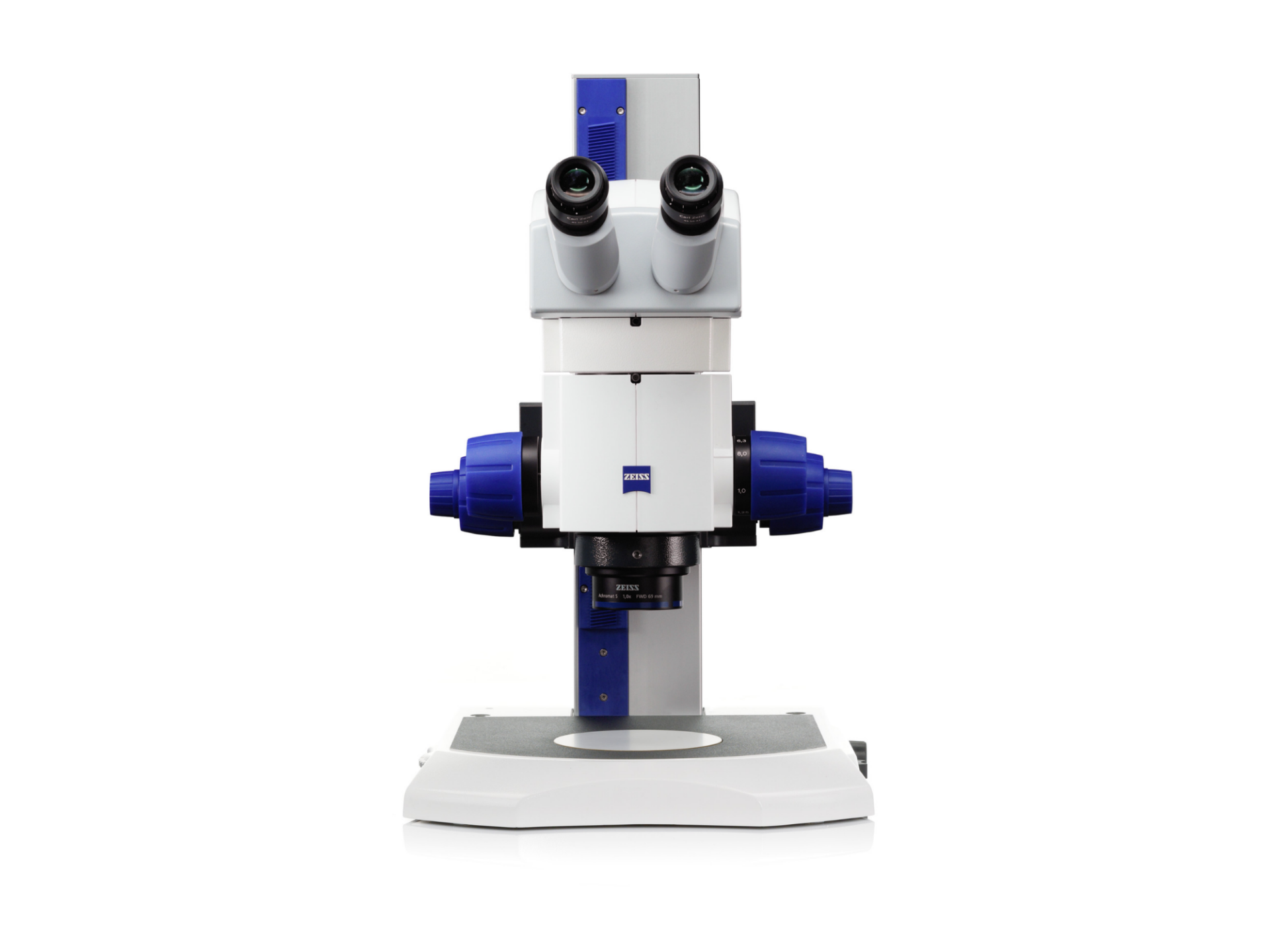

    ZEISS SteREO Discovery.V8

    Prepare and manipulate your samples - especially in developmental biology and quality assurance - thanks to the three-dimensional image perception. Acquire crisp and brilliant images throughout the whole 8:1 zoom range. The selectable click-stops for discrete magnification steps allow you to calibrate pixel sizes in the imaging software ZEN.

    Get a Quote or Buy Now

    Product features

    • Prepare and manipulate your samples
    • Profit from the 8:1 zoom range
    • Get a three-dimensional image perception
    • Digitally measure and record your sample
    • Extract maximum information from your sample with variable illumination options
    Explore the SteREO Discovery.V8

  • Your All-in-One Cell Imaging System

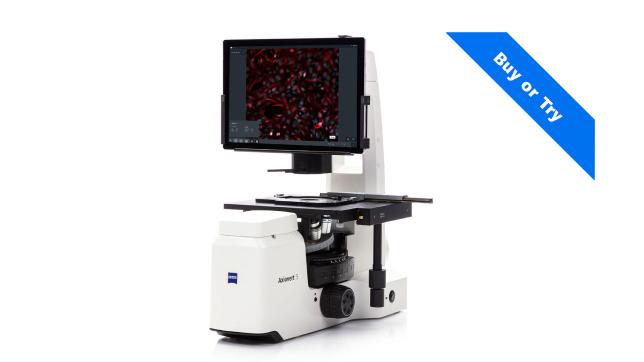

    ZEISS Axiovert 5 Digital

    The ZEISS Axiovert 5 Digital is an innovative inverted microscope designed for life science and biomedical research labs. It features high quality long working distance optics for phase contrast, powerful LED illumination, an integrated color or monochrome camera, and more.

    Get a Quote or Buy Now

    Product features

    • Long lasting, stable LED illumination and efficient multi-band filters are integrated for fluorescence imaging
    • Intuitive touch screen control and ergonomic design provide a user-friendly and adaptable workflow
    • Single image acquisition as well as multi-channel fluorescence image acquisition of up to 5 channels
    • AI cell counting and confluency workflow: acquire images and get them analyzed instantly
    Explore the Axiovert 5 Digital
Get to know more products

Complete your lab

with our new solution bundles

Unlock the potential of IVF with ZEISS bundled solutions.

Configure your Axiovert 5

What types of microscopy techniques are available for IVF procedures?

  • Look for high-resolution optics, advanced contrast modes (e.g., DIC, circular polarization), ergonomic design, and compatibility with micromanipulation systems and heating plates. ZEISS microscopes are engineered with these IVF-specific needs in mind.

  • Yes. ZEISS systems are fully compatible with a range of heating plates and third-party micromanipulators, ensuring stable environmental control and seamless workflow integration.

  • ZEISS offers a wide range of contrast methods, including DIC, iHMC, PlasDIC, Phase Contrast and circular polarization, which are ideal for visualizing the meiotic spindle, assessing oocyte maturity and identifying sperm abnormalities during IMSI.

  • ZEISS offers expert technical support, training, and maintenance services to keep your lab running smoothly and to ensure your team gets the most out of your investment.

  • Several microscopy techniques and technologies are used in fertility treatments, such as widefield microscopy and stereo microscopy. Widefield microscopy allows the analysis of sperm samples, assessing parameters such as concentration, motility, vitality, and morphology. Widefield microscopy is also used in the evaluation of oocyte quality by visualizing detailed structures, such as the oocyte meiotic spindle. Stereo microscopy is only used for oocyte preparation and during thawing freezing embryo. These microscopy techniques enhance the accuracy and precision of the IVF process by enabling embryologists to select and prepare the healthiest sperm and oocyte for fertilization to optimize the chances of successful embryo development.

  • Advanced microscopy techniques provide accurate visualization and assessment of sperm, oocytes, and embryos, allowing embryologists to select the healthiest cells for fertilization and implantation. This optimized selection process increases the chances of successful embryo development and ultimately improves IVF success rates. With improved success rates, patients undergoing fertility treatment have a better chance of achieving a successful pregnancy.
