Spectrometer Systems

ThinProcess® Family In-line monitoring spectrometer system

ThinProcess® from ZEISS is an end-to-end solution to control and monitor the quality of large-area coating processes with lab accuracy. ThinProcess® is ideal for horizontal/vertical glass coating, roll-to-roll film, in vacuum or under atmosphere.

  • Lab-like certainty
  • High measurement frequency

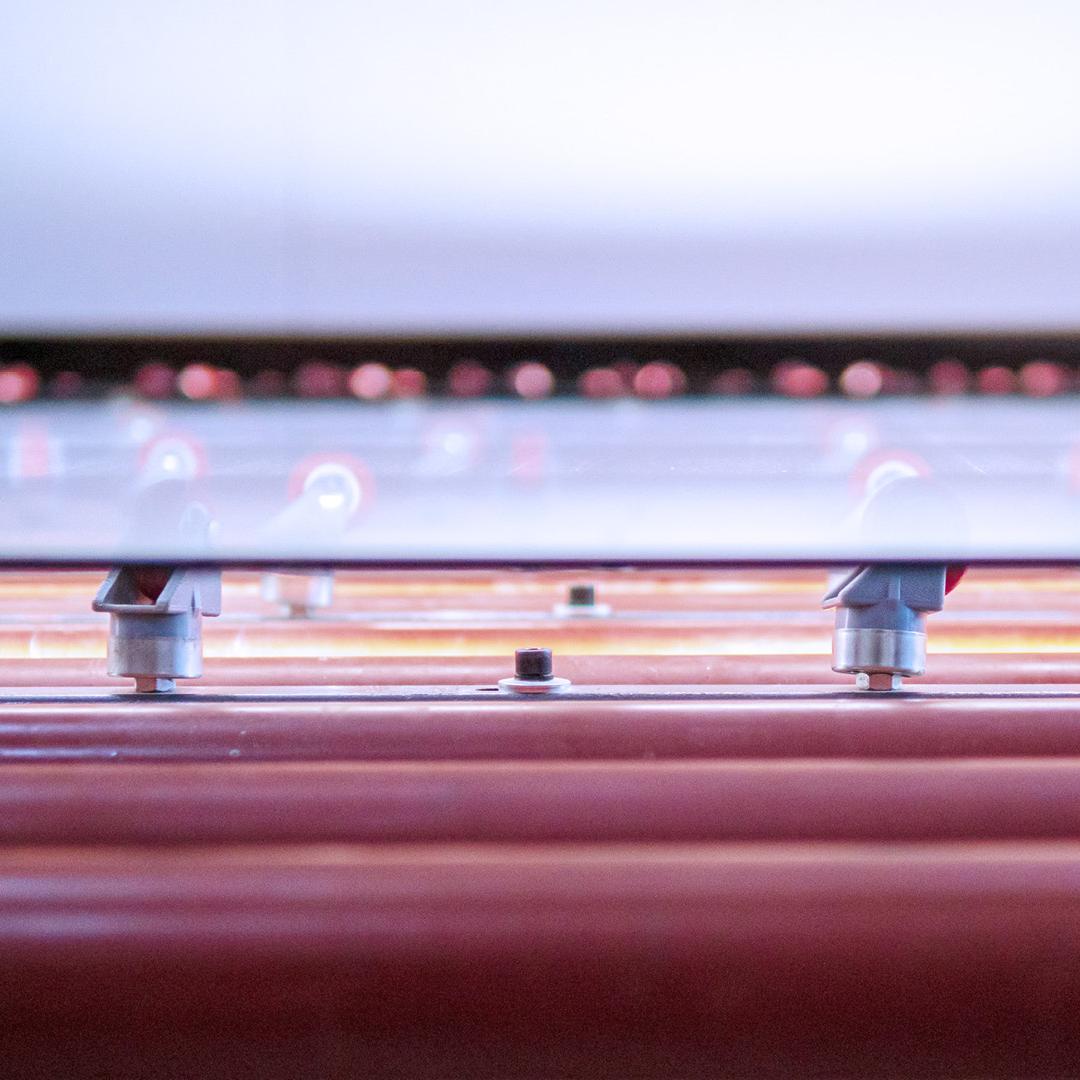

close up of glass sheet on rollers in glass factory

At the top of the line ThinProcess® solutions for in-line process monitoring

ThinProcess® gives you everything you need to monitor the quality of your large surface area coating production – with lab-like certainty. Our state-of-the-art software uses the latest ZEISS measuring hardware solutions which can be integrated into a large number of production lines due to their configurable hardware and the use of different fieldbuses. ThinProcess® provides the highest levels of accuracy under process conditions calculating key figures, such as color values, coating thicknesses and other characteristics in the spectra.

ThinProcess® offers solutions for in-line process monitoring of all large surface coating processes:
✔ Horizontal or vertical glass coating
✔ Roll-to-roll film coating
✔ In vacuum or atmosphere

Click on the circle markers on the image to open the information box with more details.

Discover the details
exemplary process illustration with all products of the thinprocess family
ThinProcess® P

ZEISS ThinProcess® P  is a single or multichannel measurement system that determines the optical properties following one or multiple coating steps. The discrete substrates are automatically identified and the gaps are used for automatic triggering and referencing. The measurement can be performed in vacuum or atmosphere.

✔  Measurements of the spectral transmittance and reflectance from 360 nm to 1050 nm
✔  Calculations and analyses of color, coating thickness, spectra evaluation, absorbance / absorptance, solar characteristics and more
✔  Extended wavelength range up to 1650 nm
✔  Sheet resistance measurements

ThinProcess® Q

ZEISS ThinProcess® Q  is a traversing measuring system that determines the optical and spectroscopic properties of the finished product. The system provides you with multiple automatic scan modes for measuring predefined positions on the final product.

✔  Measurements of the spectral transmittance and reflectance from 360 nm to 1050 nm
✔  Calculations and analyses of color, coating thickness, spectra evaluation, absorbance / absorptance, solar characteristics and more
✔  Extended wavelength range up to 1650 or 2150 nm
✔  Color measurements with an inclination angle of 55°

ThinProcess® R

ZEISS ThinProcess®  R  is a single or multichannel measurement system which determines the optical properties following one or multiple coating steps.
The system can be controlled by digital I/O or fieldbus signals to activate the measurement and the referencing.
Thus it is ideal if gaps between panes are too small or the process speed is too high for automatic detection.
The measurement can be performed in vacuum or atmosphere.

✔  Measurements of the spectral transmittance and reflectance from 360 nm to 1050 nm
✔  Calculations and analyses of color, coating thickness, spectra evaluation, absorbance / absorptance, solar characteristics and more
✔  Extended wavelength range from 365 nm to 1650 nm or 2150 nm
✔  Sheet resistance measurements

ThinProcess® WEB

ZEISS ThinProcess®  WEB  is a single or multichannel measurement system that determines the optical properties following one or multiple coating steps in coil coating plants. The measurement regime can be completely integrated into the automation strategy of the machine. The measurement can be performed in vacuum or atmosphere.

✔  Measurements of the spectral transmittance and reflectance from 360 nm to 1050 nm
✔  Calculations and analyses of color, coating thickness, spectra evaluation, absorbance / absorptance, solar characteristics and more
✔ Extended wavelength range from 340 nm to 1,650 nm or from 365 nm to 2150 nm
✔  Sheet resistance measurements

Expand your possibilities

With the right software for your hardware

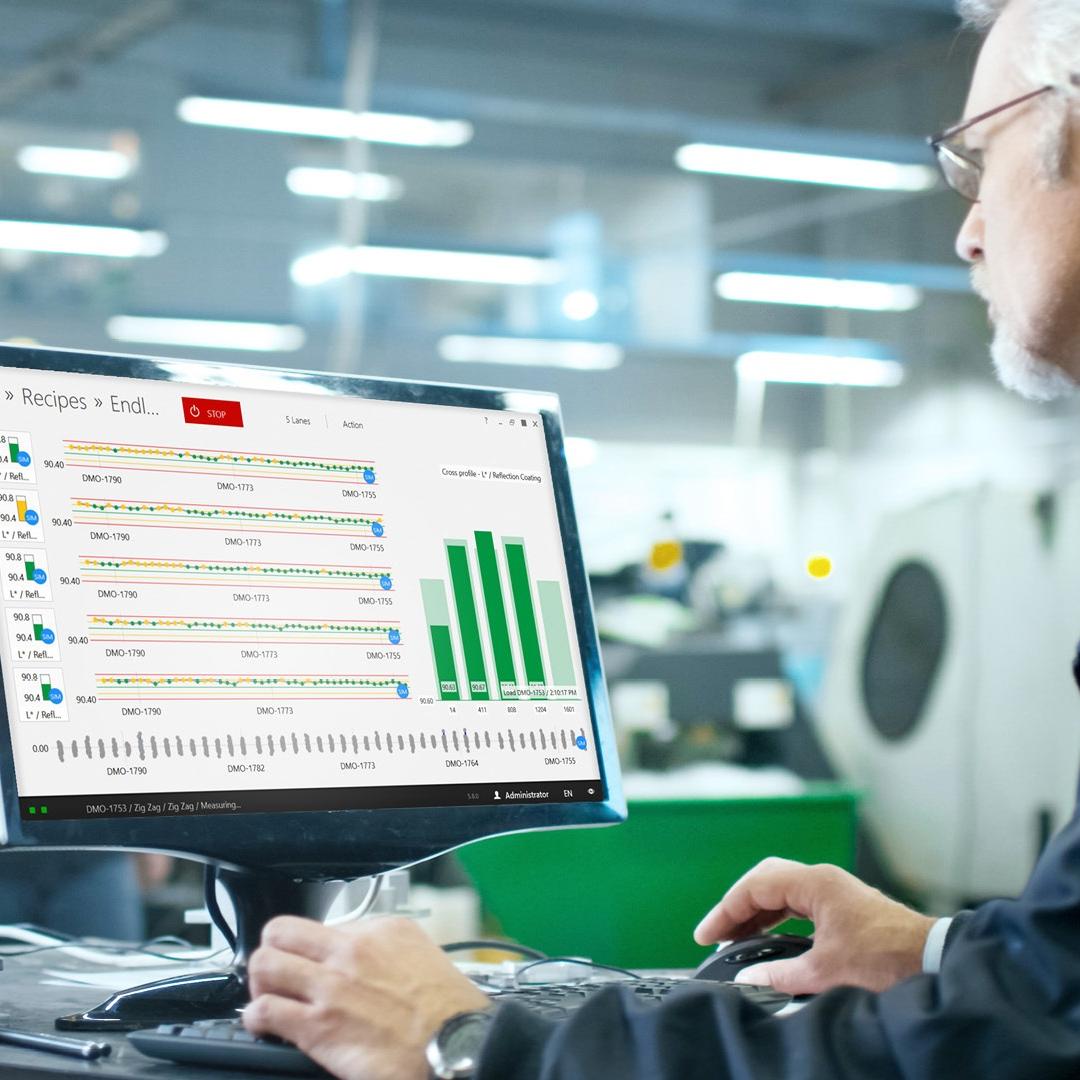

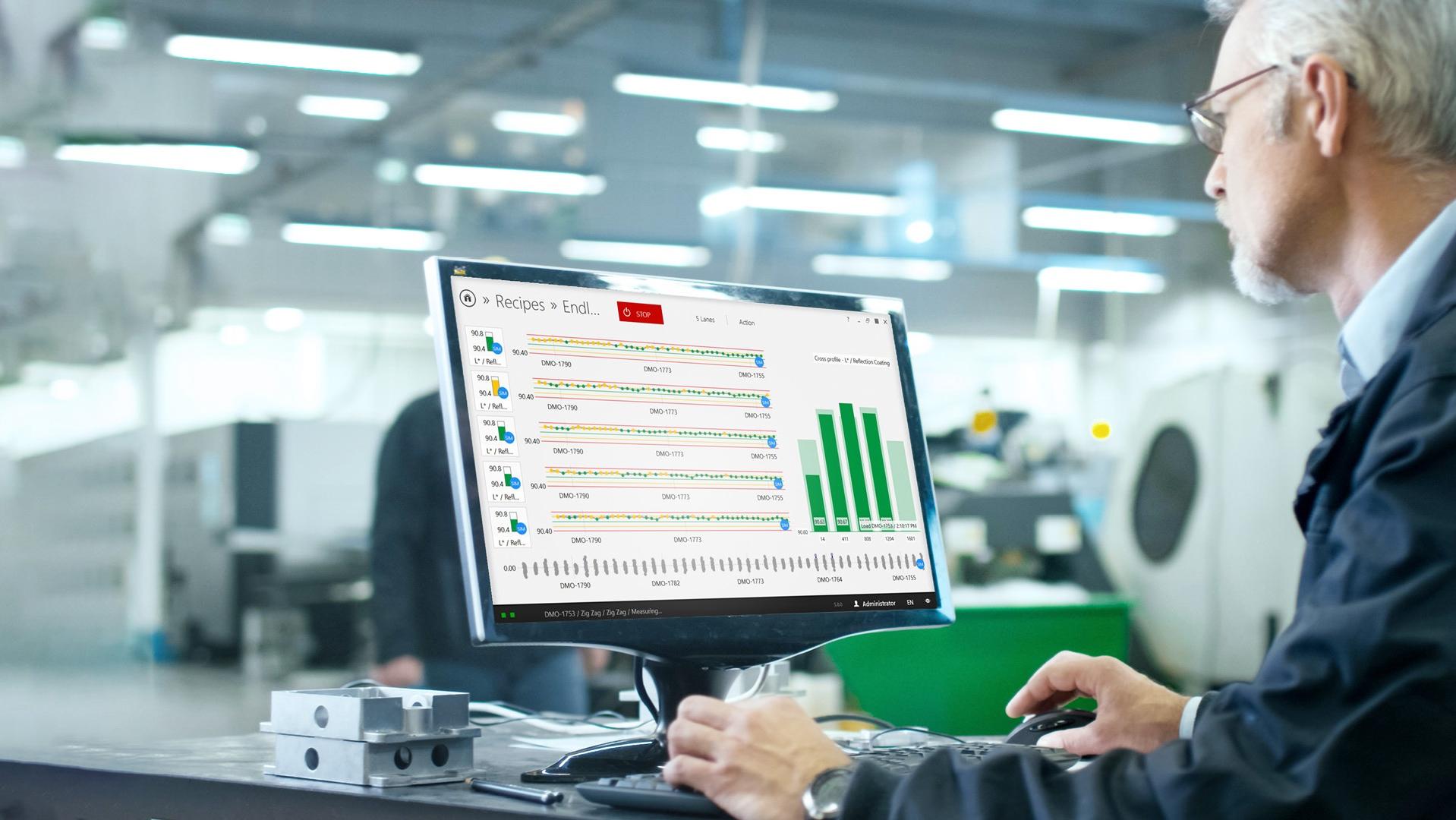

engineer sits in front of the computer in a production environment in his office, the screen show the interface of the thinprocess software

Software especially for ThinProcess®

ThinProcess® software is specifically designed for the ThinProcess® spectrometer family. Keep an eye on process information and reference values with data visualization and communication with higher-level control systems via ProcessLinker.
From color and thickness to spectral evaluation and absorbance, ThinProcess® software performs various calculations and measurements and can be customized to suit your exact needs.
