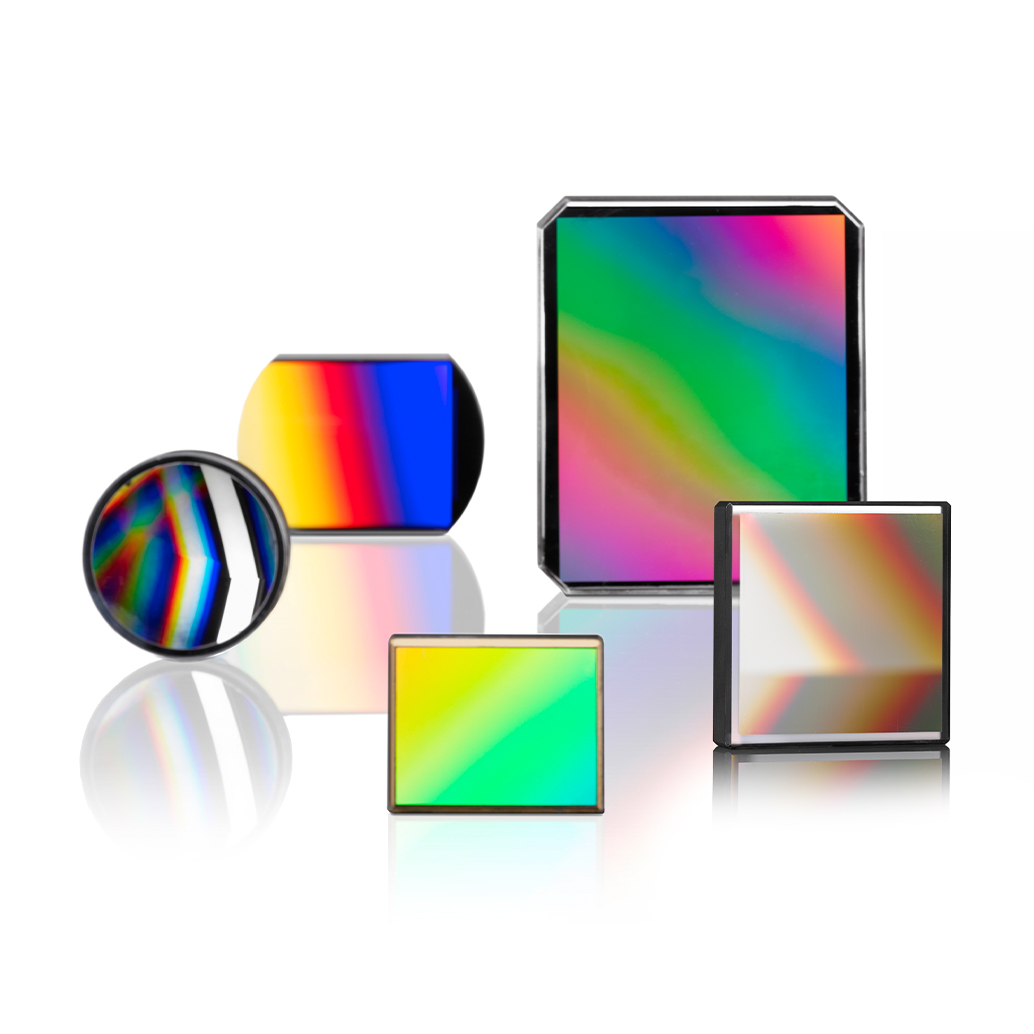

Collage of different optical gratings by ZEISS Spectroscopy
Products

ZEISS Optical Gratings

Expand your success

High performance, aberration corrected ZEISS optical gratings offer preeminent precision for your analytical devices. Regardless of your application needs, our standard and customized solutions enhance your systems and drive your success. At ZEISS, we work together with you as partners to develop exactly the right grating solution for your needs.

  • Custom design options
  • Advanced manufacturing
  • Optical and mechanical features suiting your requirements
  • Customer-focused
  • Wide range of applications

ZEISS Optical Gratings The right grating for every type of spectrometer

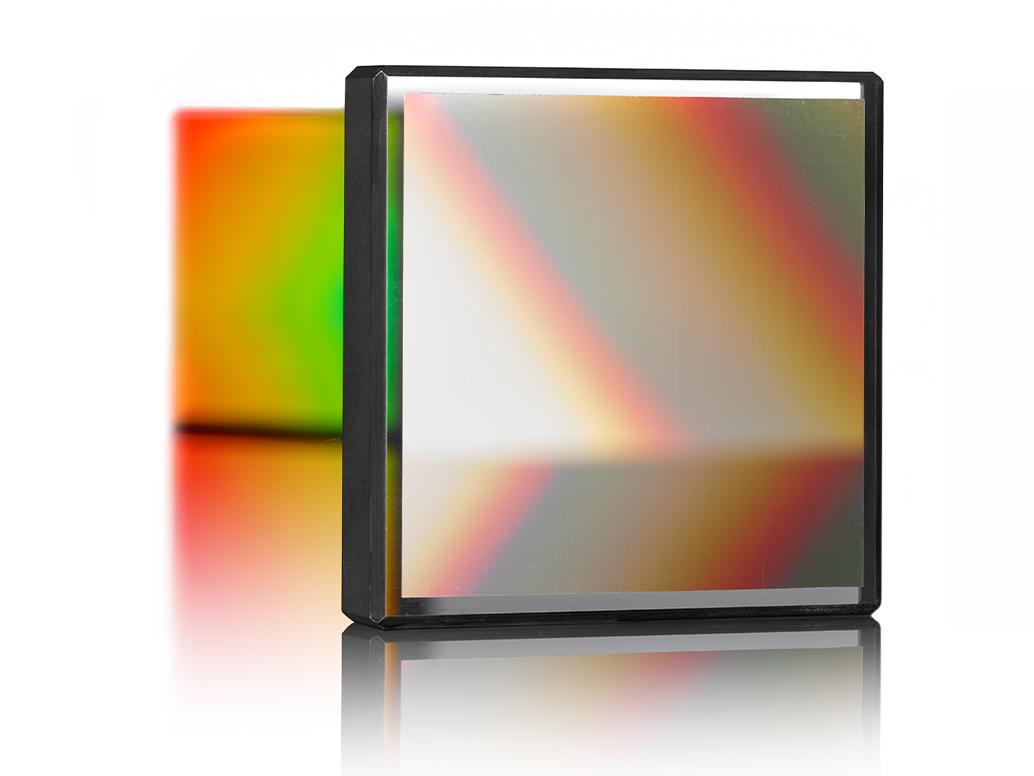

Plane grating product picture

Plane gratings

Plane diffraction gratings for many applications in various industrial fields

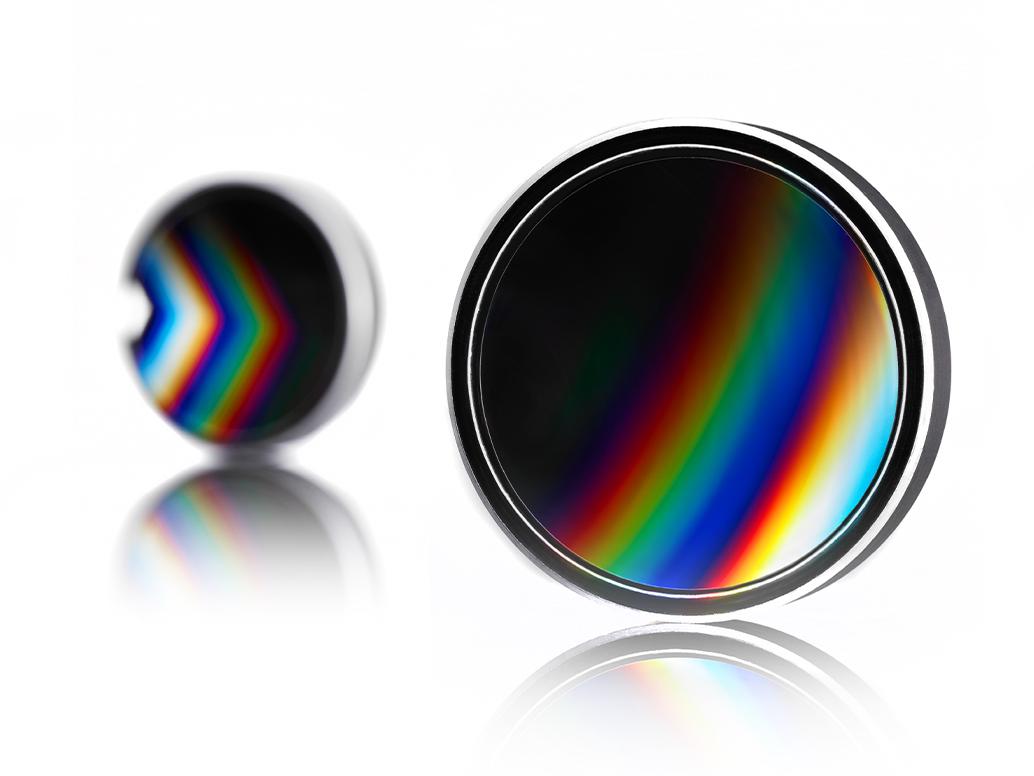

Rowland circle grating product picture

Rowland circle gratings

Concave gratings for Rowland circle spectrometers

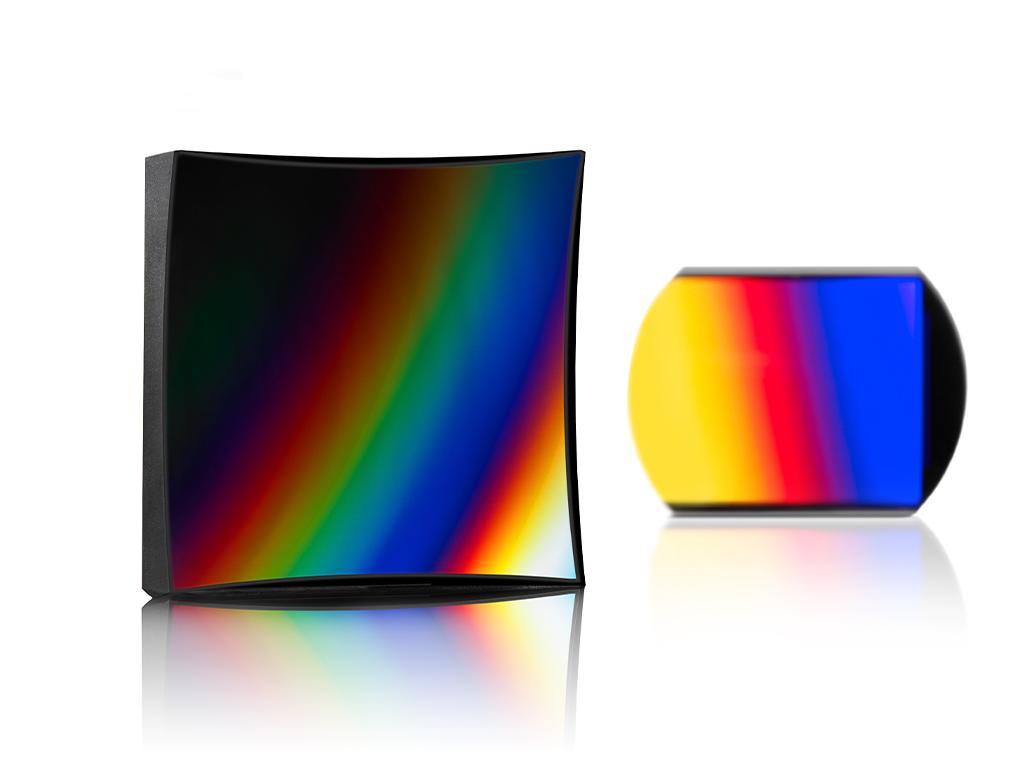

Mono- & Polychromator grating product picture

Mono- & Polychromator gratings

Aberration corrected concave gratings for polychromator and monochromator setups

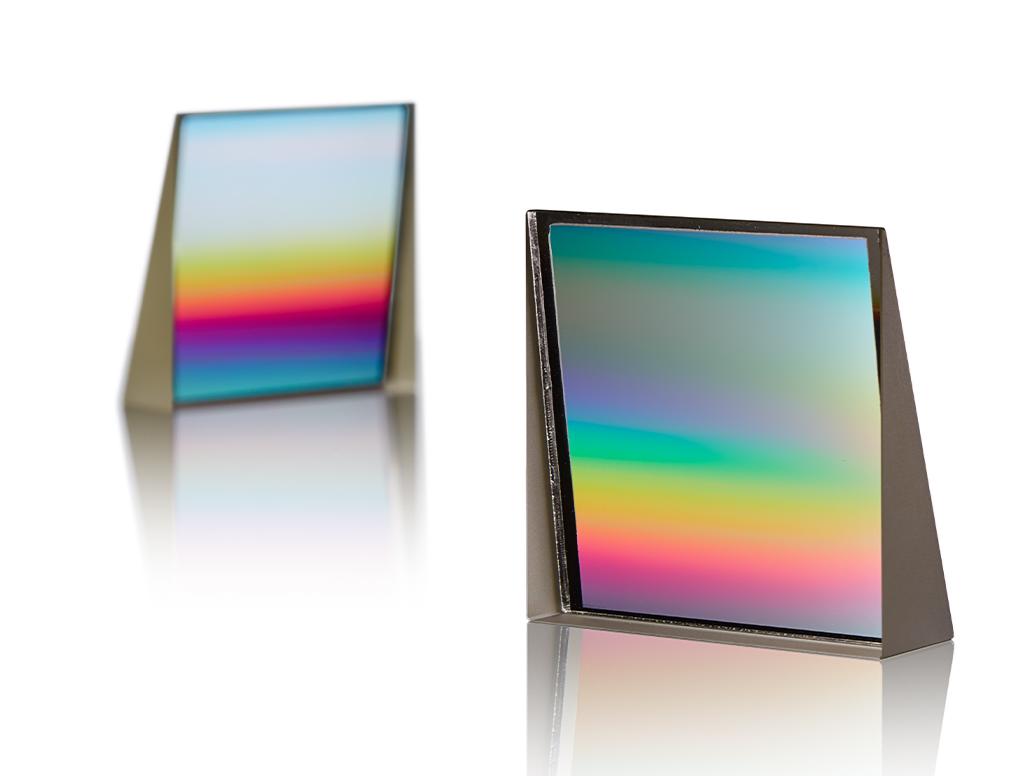

Grism product picture

Grisms

Combining gratings and prisms (Grism) as components for your individual spectrometer design

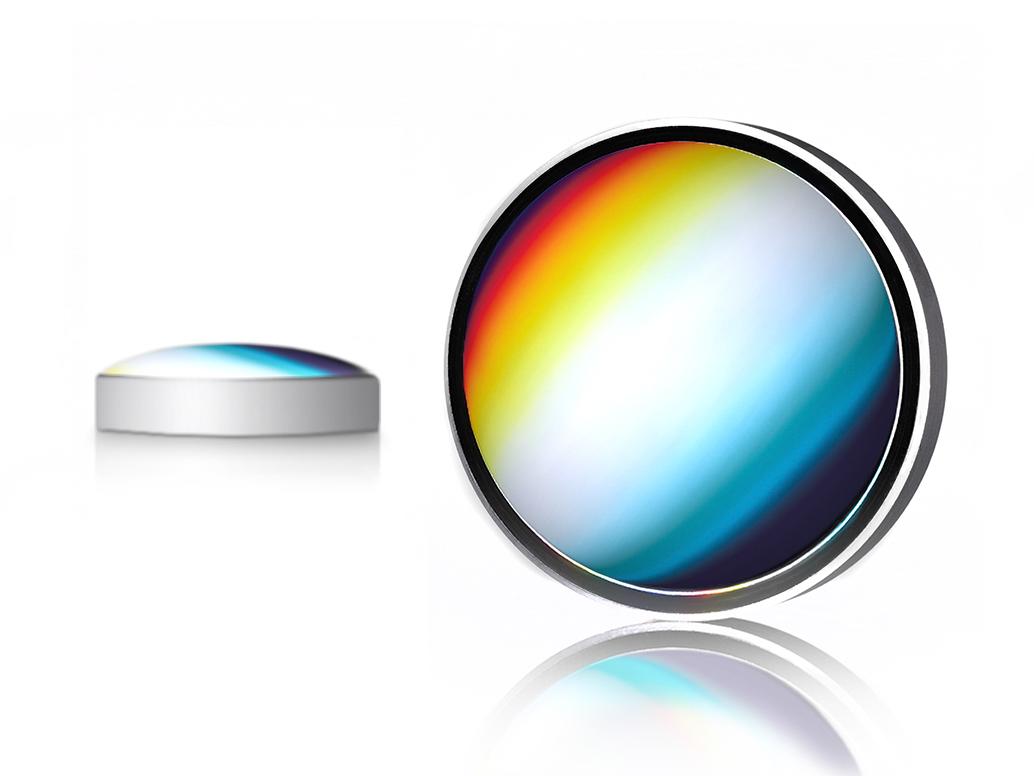

Offner grating product picture

Offner gratings

Convex aberration corrected gratings for hyperspectral imaging

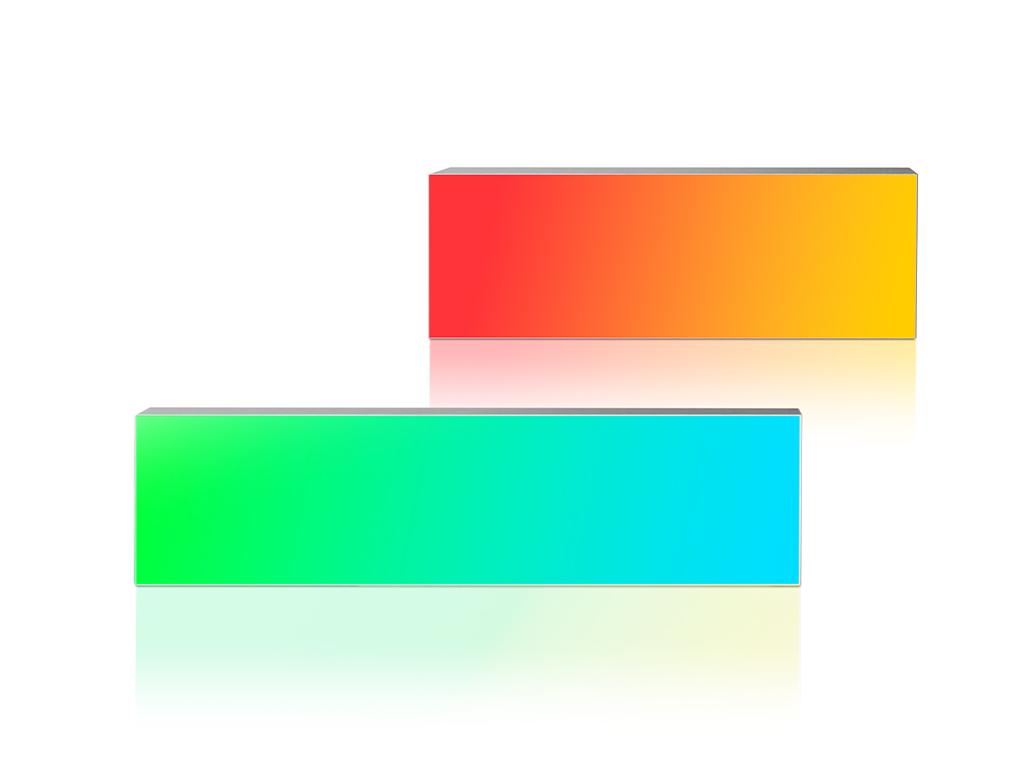

Laser grating product picture

Laser gratings

High efficiency plane gratings for sophisticated laser system applications

Highlights

  • > 80 years

    manufacturing competence in optical gratings

  • > 2 million

    gratings manufactured

  • > 200

    different standard gratings

Downloads

  • ZEISS Optical Gratings - Compendium

    ZEISS Optical Gratings - Compendium

    Pages: 54
    File size: 40 MB
  • ZEISS Optical Gratings - Product Line

    ZEISS Gratings Product line - an overview

    Pages: 12
    File size: 1 MB
