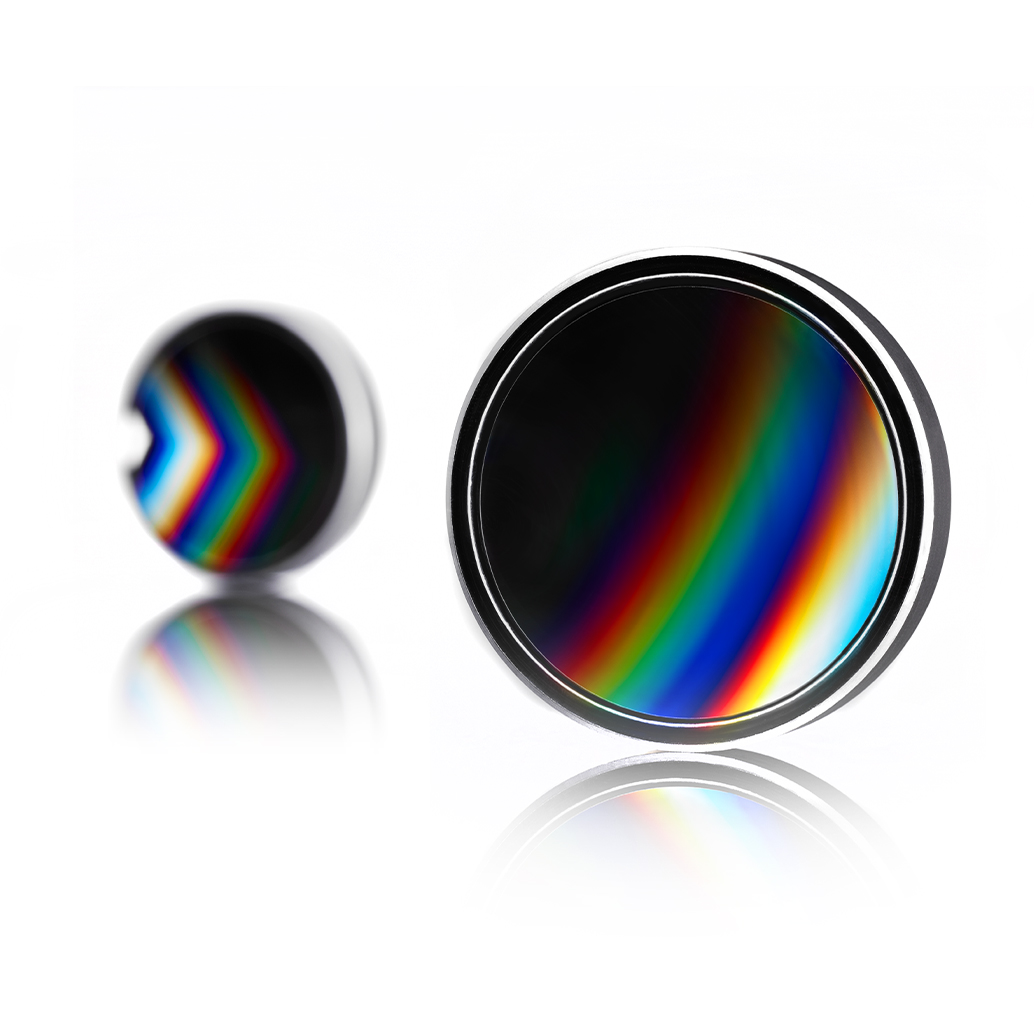

Rowland circle grating product picture
Diffraction Gratings

Rowland circle gratings Highlighting your spectrometer

Rowland circle gratings for Rowland type spectrometers provide the highest optical quality with excellent resolution, extremely low stray light, good efficiency and accurate groove frequency.

  • Holographically made
  • Equidistant line spacing
  • Low stray light
  • High VUV efficiency
  • Serial production ready
  • Available at short notice
man holding a Rowland circle grating in his hand

Minimal aberration, maximum application

These gratings are used in mountings based on the Rowland circle, which has a diameter equal to the radius of curvature of the grating. Useful for wide spectral ranges, ZEISS Rowland gratings achieve high resolution with low wavefront aberration and can improve a spectrometer’s signal-to-noise-ratio due to low stray light. Optimized for UV applications, they are easy to use and just work when you need them.

Dispersive elements in Rowland circle spectrometers

Rowland gratings are concave gratings designed for the illumination of a Rowland circle. Thus concave diffraction gratings possess both dispersing and imaging properties.

The basic form of imaging gratings is the Rowland circular grating. ZEISS concave gratings are always holographically manufactured and the radii can be selected over a wide range. This means that aperture ratios of up to 1:1 can be achieved. Rowland circle gratings combine imaging properties with UV and VUV spectral range applications to enable the lowest resolution and best signal-to-noise-ratio. ZEISS supports you with customized gratings tailored to your application.

Rowland circle gratings catalogue

Groove density [l/mm]

Dimensions [mm2]

Nominal blaze wavelength [nm]

Catalogue number

Download

Request quote / information


3600

Ø 63.5 x 12

170

792050-0000-000

Data on request

2160

Ø 63.5 x 12

180

792052-0000-000

Data on request

1440

Ø 63.5 x 12

600

792054-0000-000

Data on request

3600

Ø 63.5 x 11.8

180

792034-0000-000

Data on request

3600

Ø 63.5 x 11.8

250

792035-0000-000

Data on request

3600

Ø 63.5 x 11.8

355

792036-0000-000

Data on request

2400

Ø 63.5 x 11.8

180

792032-0000-000

Data on request

2400

Ø 63.5 x 11.8

250

792033-0000-000

1800

Ø 63.5 x 11.8

400

792031-0000-000

1500

Ø 63.5 x 11.8

300

792029-0000-000

Data on request

1200

Ø 63.5 x 11.8

800

792030-0000-000

3600

Ø 63.5 x 11.8

225

792040-0000-000

2700

Ø 40 x 12.2

220

792039-9901-000

Data on request

1800

Ø 63.5 x 11.8

600

792045-0000-000

Data on request

1400

Ø 40 x 12.2

650

792057-0000-000

Data on request

3600

Ø 80 x 15

180

792048-0000-000

2400

Ø 50 x 9.3

180

792044-0000-000

Data on request

2400

Ø 35 x 12.1

180

000000-1990-229

Data on request

1800

Ø 50 x 9.3

505

792055-0000-000

3600

Ø 40 x 8

220

792104-0000-000

Data on request

1200

64 x 64 x 8

225

792006-0000-000

Data on request

3600

Ø 32 x 7.05

250

792061-0000-000

Data on request

Downloads

  • ZEISS Optical Gratings - Compendium

    ZEISS Optical Gratings - Compendium

    Pages: 54
    File size: 40 MB
  • ZEISS Optical Gratings - Product Line

    ZEISS Gratings Product line - an overview

    Pages: 12
    File size: 1 MB
