Analyze volume data efficiently

Visualize and analyze your parts down to the inner core using CT data. No matter which CT hardware you use, the powerful ZEISS INSPECT software will help you visualize and analyze the data. Evaluate defects, structures, and assembly situations, and bundle your results in easy-to-understand reports – even with video.

  • Automated inspection of multiple parts
  • Full integration of powerful metrology features
  • Consistent and streamlined workflow

The highlights of ZEISS INSPECT X-Ray


Better orientation through Multiview

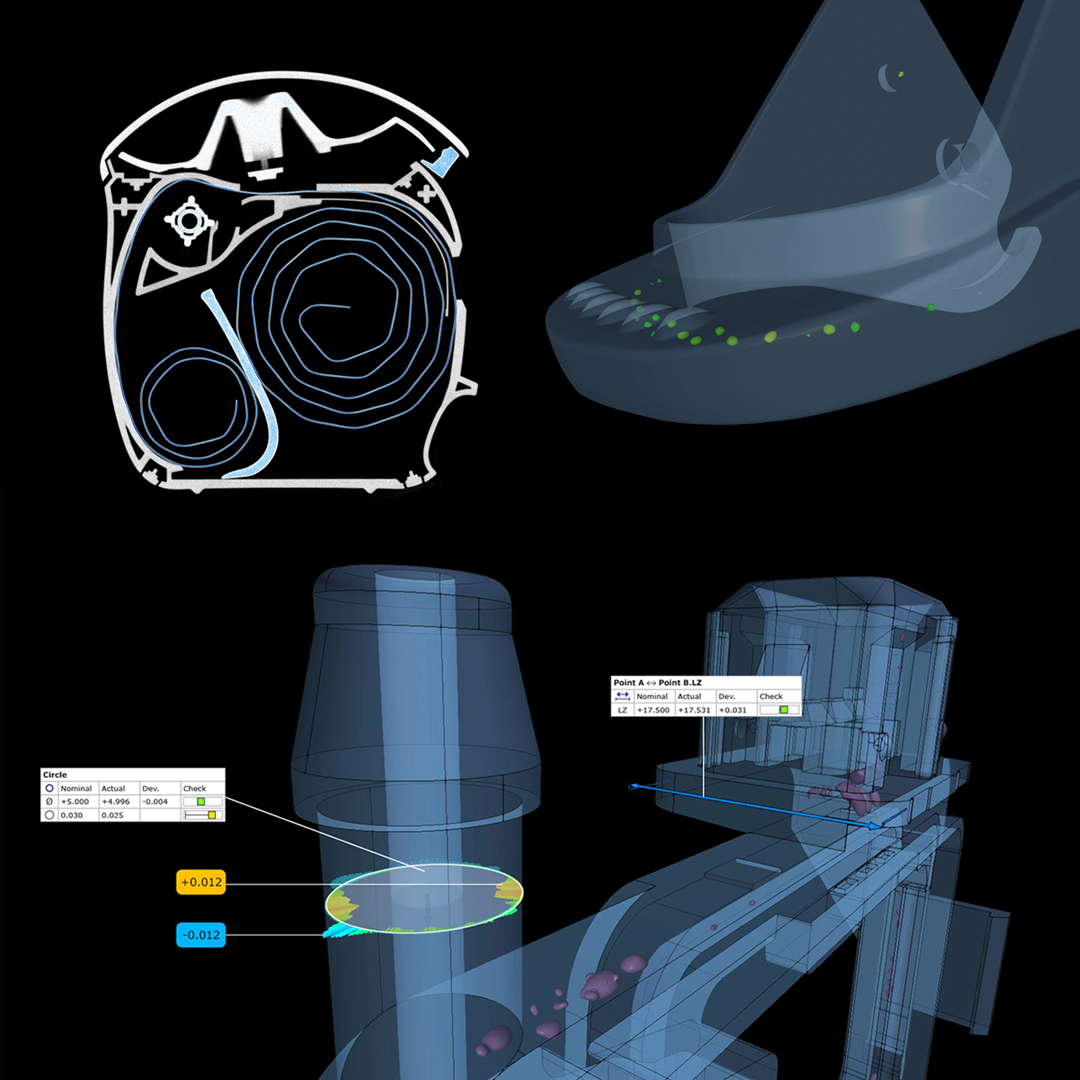

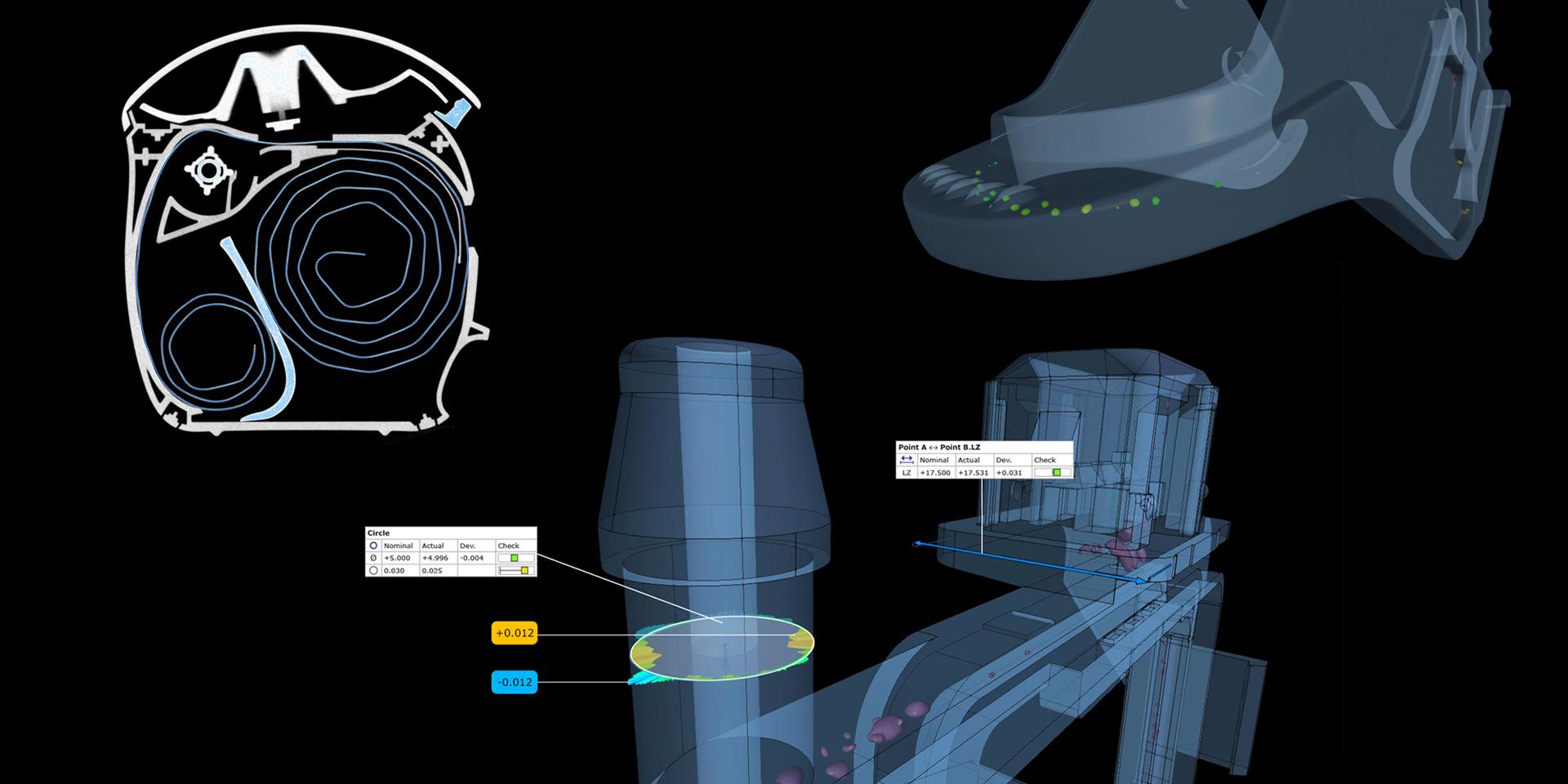

Divide the software UI into several work areas. This way, you can move through your part in different perspectives. Depending on the requirements and your own preferences, you can combine sectional views with 3D representations or tables and other views. Surveying or inspection of defects is possible in any working area. This is Multiview on a new level.


Detect defects in 2D and 3D

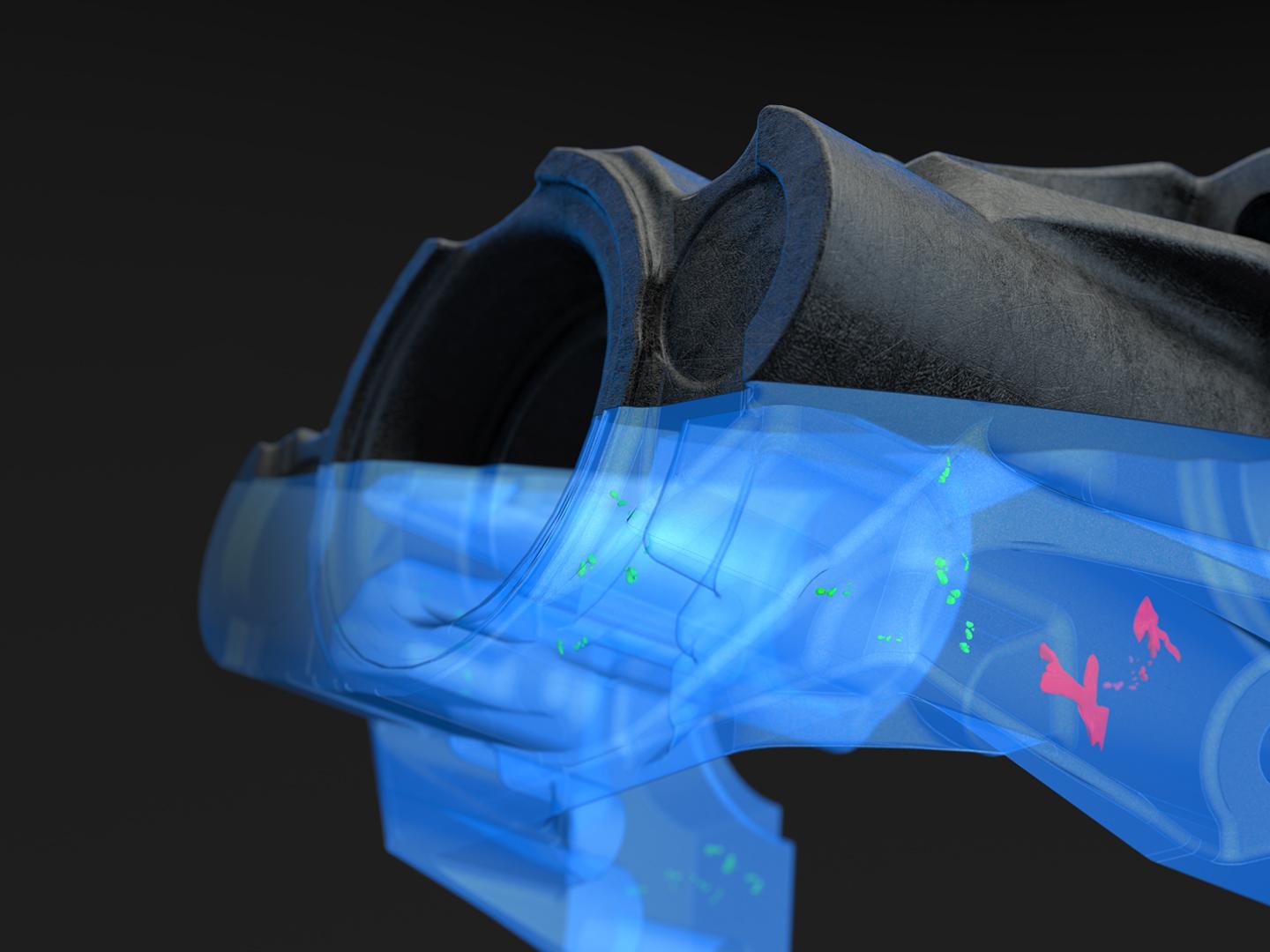

Even if your data are not optimal, you can reliably evaluate pores or inclusions with ZEISS INSPECT. Do you need a special evaluation – for example, according to P203 or P202? These functions are available as a supplementary app – simply install them later.


Batch scan for increased efficiency

The CT scan of individual parts costs time. Make your work easier by scanning several parts of a series at the same time, separating them again via the software, and evaluating them automatically.


Treat different part sections individually

Especially when analyzing complex parts consisting of several elements, you can benefit from the division into different regions. This allows you to digitally undo the assembly and analyze different areas with individual tolerances in each case – thereby saving considerable time.

ZEISS INSPECT X-Ray at a glance

Intuitive operation and high performance: CT data analysis has never been easier. ZEISS INSPECT guides you through the complete workflow – from data import to report generation. Clever functions make it easier for you to analyze your CT data.

  • Display volume data interactively

    Whether 2D or 3D: Choose the representation that you like.

  • Analyze internal defects

    Detect voids, cracks, inclusions, porosity, and other defects – even automatically.

  • Evaluate multiple parts

    Automatically evaluate multiple parts in a project, set one as a reference, and analyze the differences.

  • Check metrologically

    Check your parts three-dimensionally – for example, for geometric dimensioning and tolerancing.

  • Present results in a comprehensible way

    Recognize deviations using a quickly understandable color scale.

  • Easily automate processes

    Record your operations and run them as a Python script, or use additional apps for process automation.

ZEISS INSPECT in use for X-ray applications

  • Battery check

    Battery check

    Goal: Inspect critical parts on a battery and identify defects.

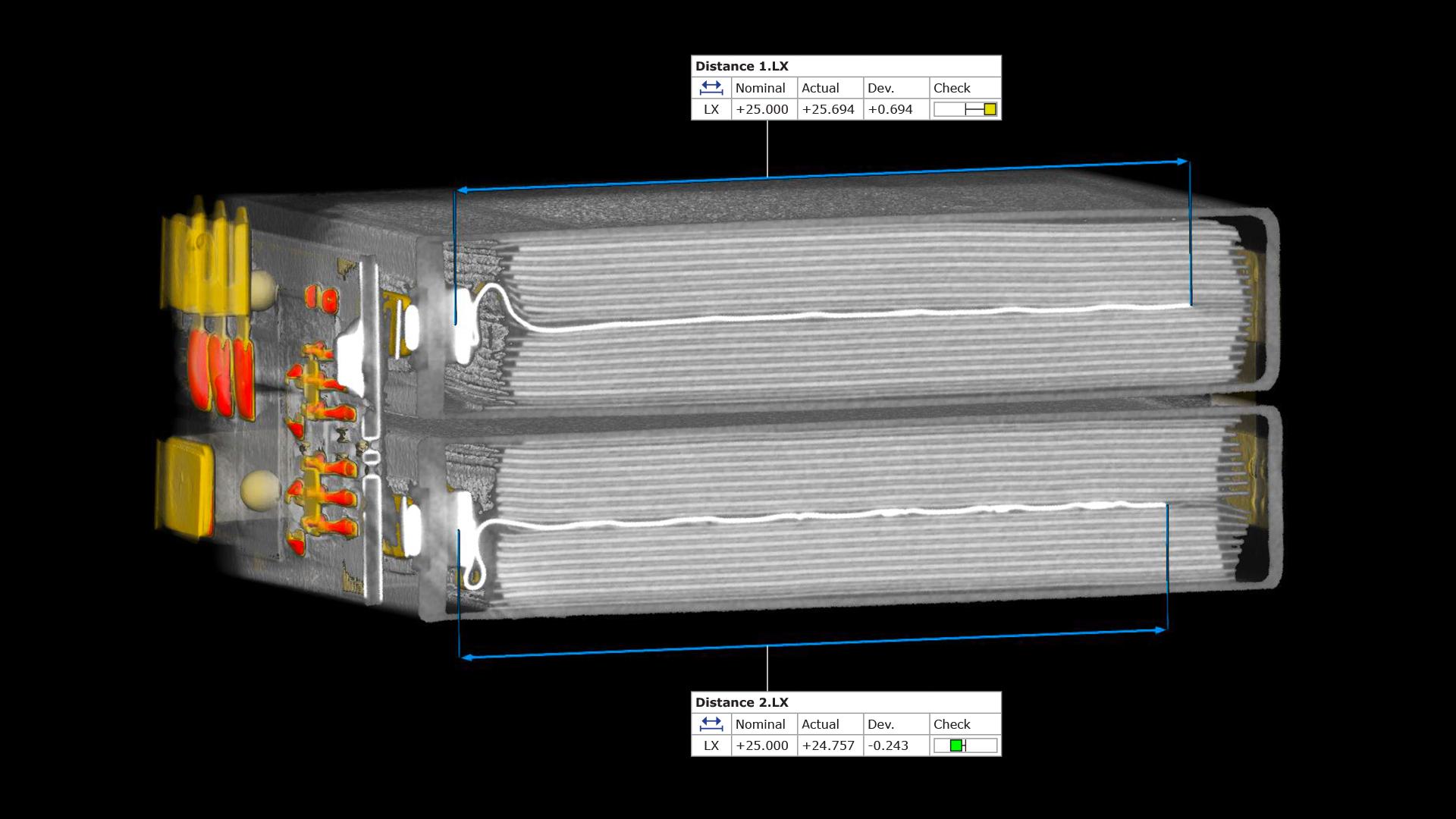

    Solution: After the battery has been acquired with a computed tomography scanner, the CT data are evaluated in ZEISS INSPECT: The software generates digital sectional images at any points on the battery, and you can determine the image section and contrast individually. In this way, you can detect the finest details and material differences; you can also reliably detect typical problem areas on the anode overhang, foreign material inclusions, or defective spot welds.

  • Metrological defect analysis

    Metrological defect analysis

    Goal: 3D inspection of an injection-molded part in order to check GD&T.

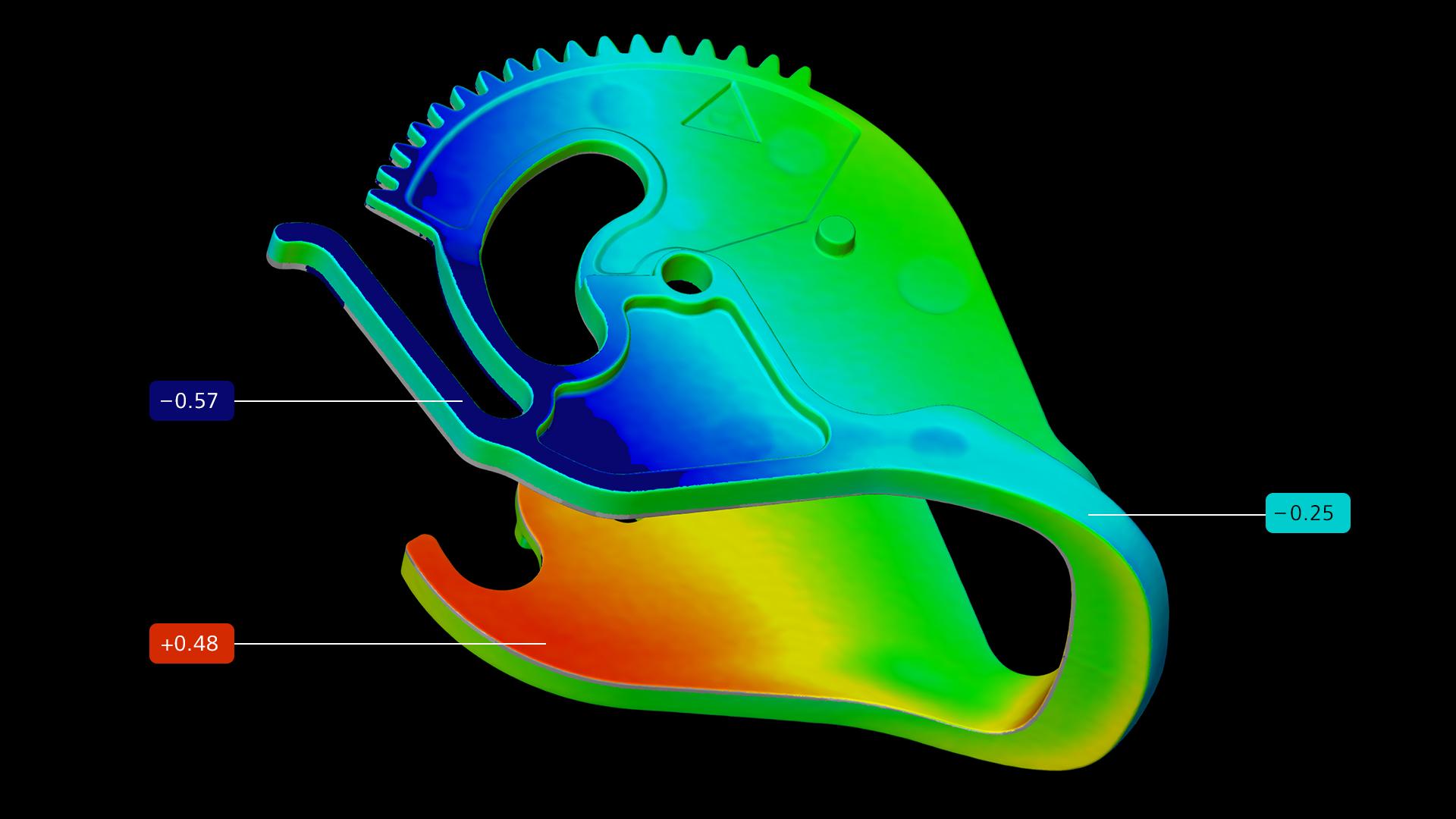

    Solution: The import of the CT data of the part as well as its CAD data are the basis for further analysis. These include a nominal-actual comparison plus wall thickness analysis in order to assess part quality and optimize tools. The software visually displays dimensional deviations from the nominal part using a color scale. The inspection of the part for geometric dimensioning and tolerancing also on internal elements as well as comprehensive reporting complete the inspection.

  • Defect analysis on a plastic part

    Defect analysis on a plastic part

    Goal: Analyze internal defects in a targeted manner.

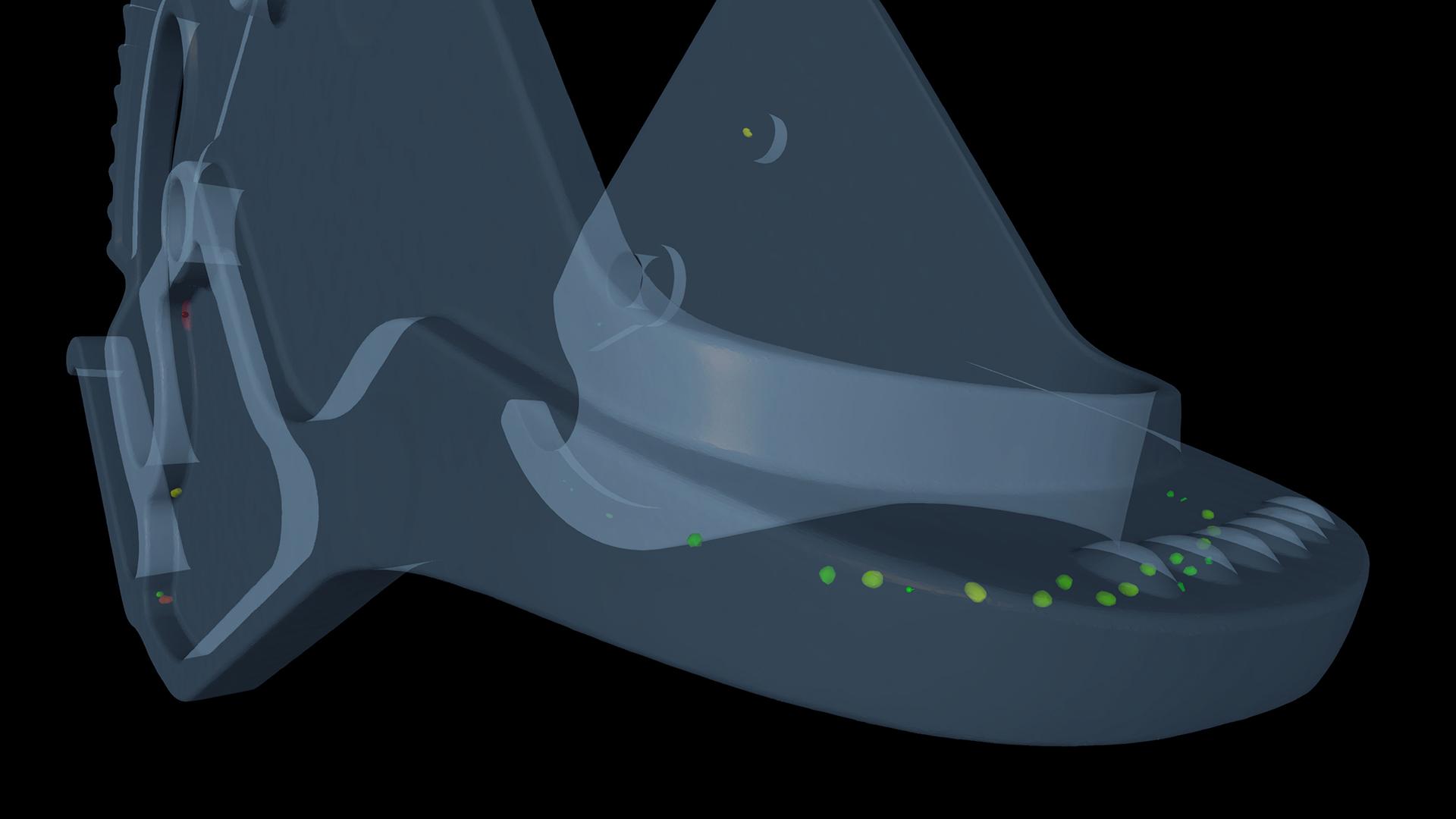

    Solution: The analysis includes not only the detection of air pockets and cavities inside the part but also metrological examination. For this examination, ZEISS INSPECT offers functions that allow you to analyze porosity, defect size, or distance to the outer shell. This allows you to evaluate defects and their effects efficiently and reliably.
