Vision Care for Eye Care Professionals
i.Terminal® 2
ZEISS FOR EYE CARE PROFESSIONALS

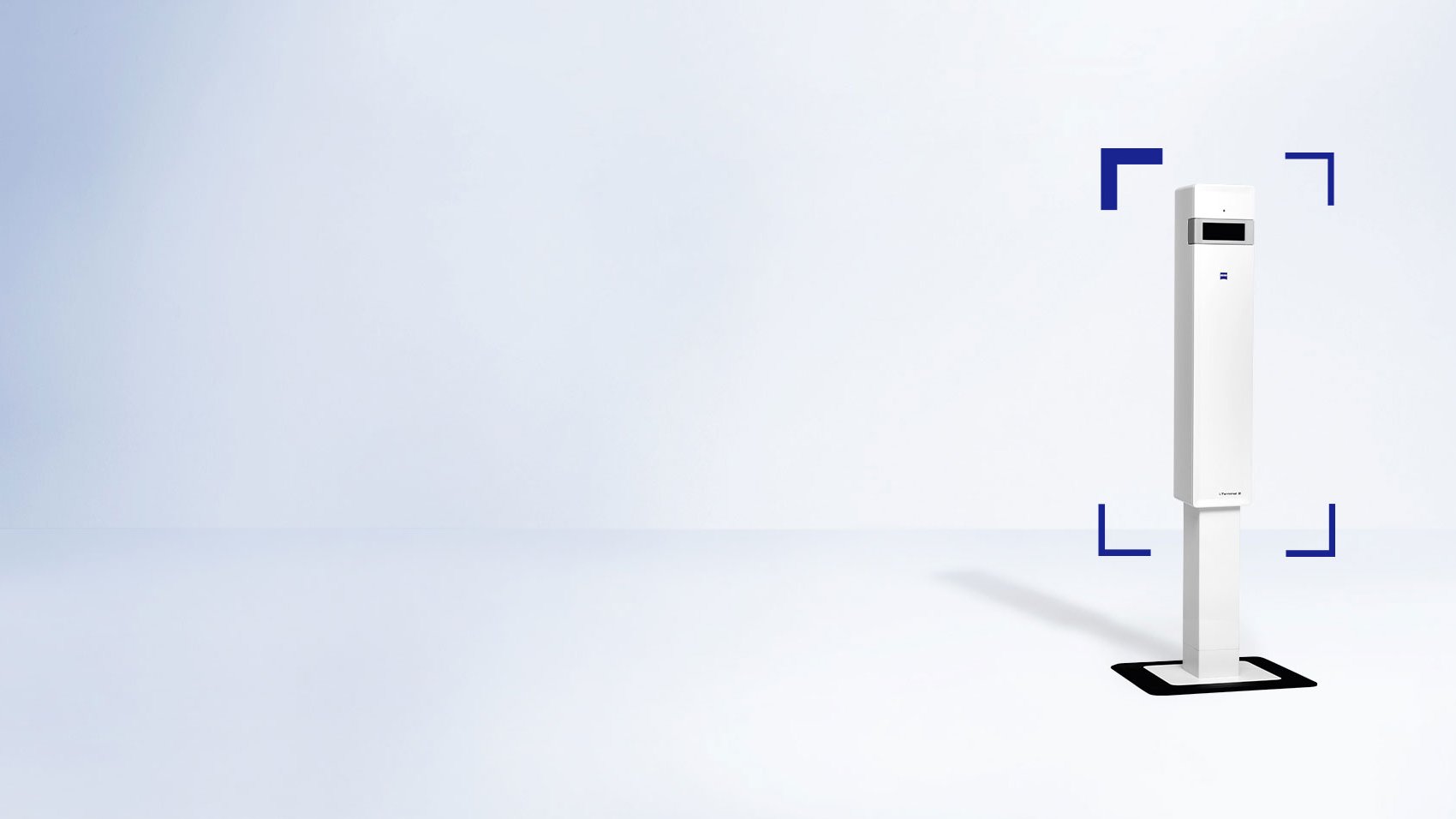

ZEISS i.Terminal 2 Strive for excellence in centration

Benefit from a centration solution using a patented convergence control technology allowing an enhanced patient experience. Very user-friendly and fast, offering precise centration results.

  • Capture, evaluate and explain the best possible solution for each patient
  • Provide fast and precise centration results with a precision of 0.1mm
  • Decide for the proven centration solution enhancing patient experience

Patients request excellent and individualised service.

Patients are becoming more demanding every day, asking for more attentive service and individual optical solutions. ZEISS makes it easy, providing you with the expertise and high-quality devices that will make your centration stand out.

Take advantage of our expertise to benefit from higher precision and an easier workflow.

Take advantage of our expertise to benefit from higher precision and an enhanced patient experience.

With the help of ZEISS i.Terminal 21 , lens fitting becomes comfortable and enjoyable for your patients, leading to increased patient satisfaction. It captures and calculates your patient´s individual parameters with the click of a button and a high precision - which can result in a decreased complaint rate, reduced non-adapts and relaxed vision.

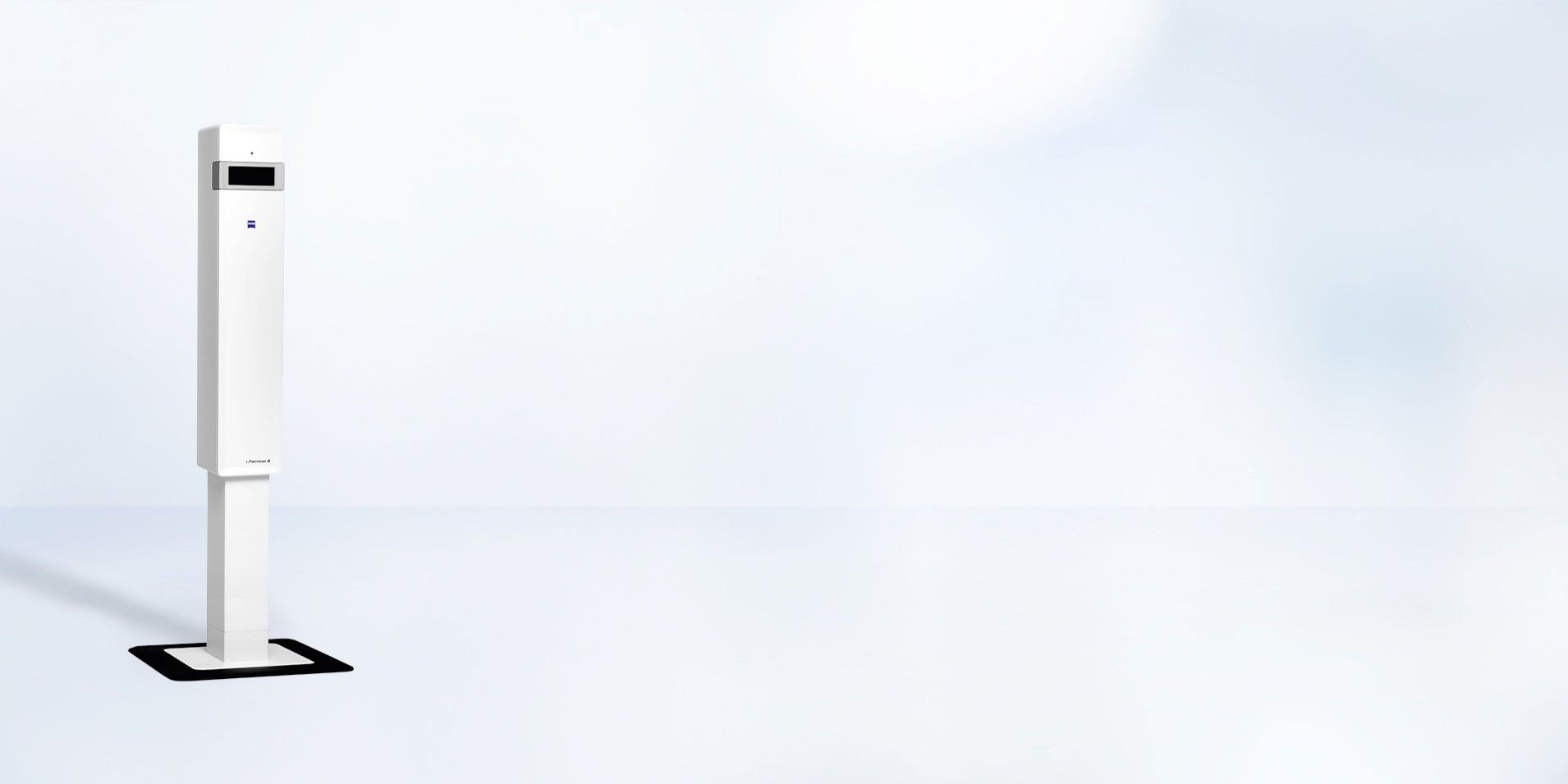

ZEISS i.Terminal 2: High reliability thanks to ZEISS patented laser technology.

ZEISS i.Terminal 2 offers high reliability thanks to the convergence control of the laser speckle - a patented ZEISS technology2. It is very user-friendly and fast, offering precise centration results. ZEISS i.Terminal 2 captures and calculates your patient’s individual parameters with the click of a button and a precision of 0.1mm.

ZEISS i.Terminal 2 benefits at a glance.

  • High reliability thanks to convergence control based on ZEISS patented laser technology.
  • Provide your patients with fast and precise centration results, capturing and calculating individual parameters with the click of a button.
  • Comfortable to use even with children and wheel-chaired patients, due to the flexible height range of between 120 – 208 cm.
  • Experience easy workflow, as ZEISS i.Terminal 2 can be fully integrated into your Patient Management System via ZEISS VISUCONSULT 5003.

Flexibility without compromise.

ZEISS i.Terminal mobile is a digital centration solution operated with an iPad® tablet for intuitive handling, high flexibility and efficient operation in your practice. It is also recommended for stores with limited space for stationary solutions.

Technical specifications

ZEISS i.Terminal 2

  • Mains voltage
    100 V to 240 V AC
    Supply frequency
    50 Hz to 60 Hz
    Mains fuses F1, F2
    T2.0A/E 250V 5x20 IEC 60127-2/3
    Protection class
    I
    Overvoltage category
    II
    Pollution degree
    II
    Laser class
    I according to CFR and IEC 60825-1
    Ambient conditions for intended use
    Temperature:+10°C to +40°C
    Rel. humidity: 30%...85% (no condensation)
    Max. height (MSL):2000 m
    Transport and storage conditions (in original packaging)
    Temperature:-40°C to +70°C
    Rel. humidity:10%...85% (no condensation)
    Max. height (MSL):2000 m
  • Dimensions base
    60 cm x 60 cm
    Instrument (height x width x depth)
    1250–2100 mm x 600 mm x 600 mm
    Weight
    approx. 47 kg
    Min. ceiling height
    2.1 m
    Range of movement:
    Minimum eye height: 110 cm (corresponds to approx. 120 cmbody height)
    Maximum eye height: 195 cm (corresponds to approx. 208 cm body height)
    Lifting range: 85 cm
