ZEISS EyeMag Medical Loupes

Treating with flexibility

Medicine today requires meticulous attention to detail. Seeing tiny anatomical structures isn’t possible without correct magnification and high quality optics. Clarity and precision enable successful treatments and high quality care. EyeMag^® medical loupes from ZEISS offer premium optical performance for first-time and experienced users in e.g. dentistry, neurosurgery, spine surgery, ENT and P&R surgery.

Optics and Illumination
Flexibility
Ergonomics

For users with basic magnification requirements

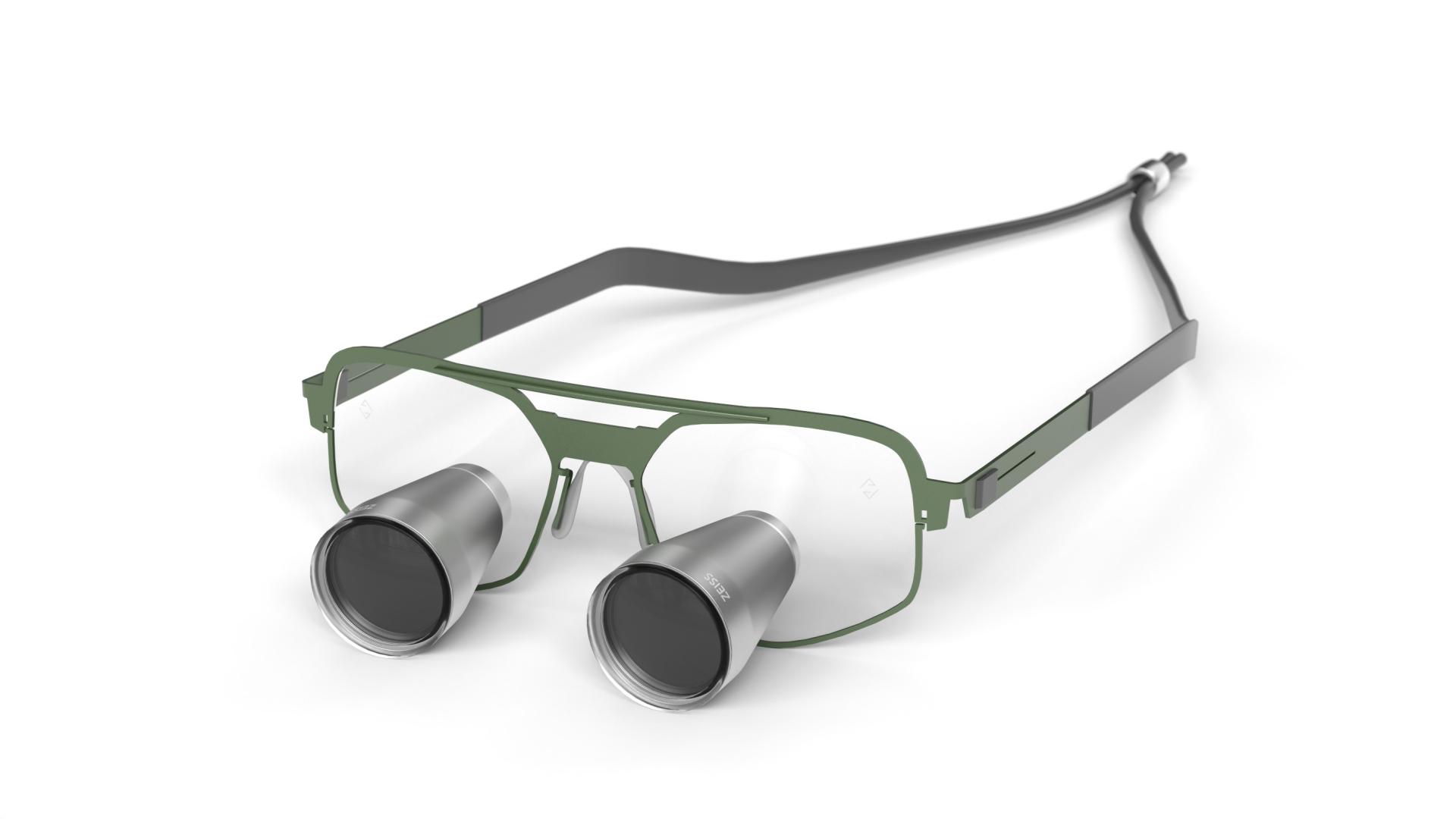

ZEISS EyeMag Smart

ZEISS EyeMag Smart medical loupes provide images with good color rendition of anatomical structures. A good choice for users requiring a compact and easy-to-operate medical loupe.

Magnification level: 2.5x
Advanced visualization for professional applications

ZEISS EyeMag Pro F and ZEISS EyeMag Pro S

With various magnification levels, ZEISS EyeMag Pro medical loupes provide high-end contrast stereoscopic images with edge-to-edge sharpness. Experienced users will appreciate the advanced visualization capabilities.

Magnification level: 3.2x - 5x

See all specifications

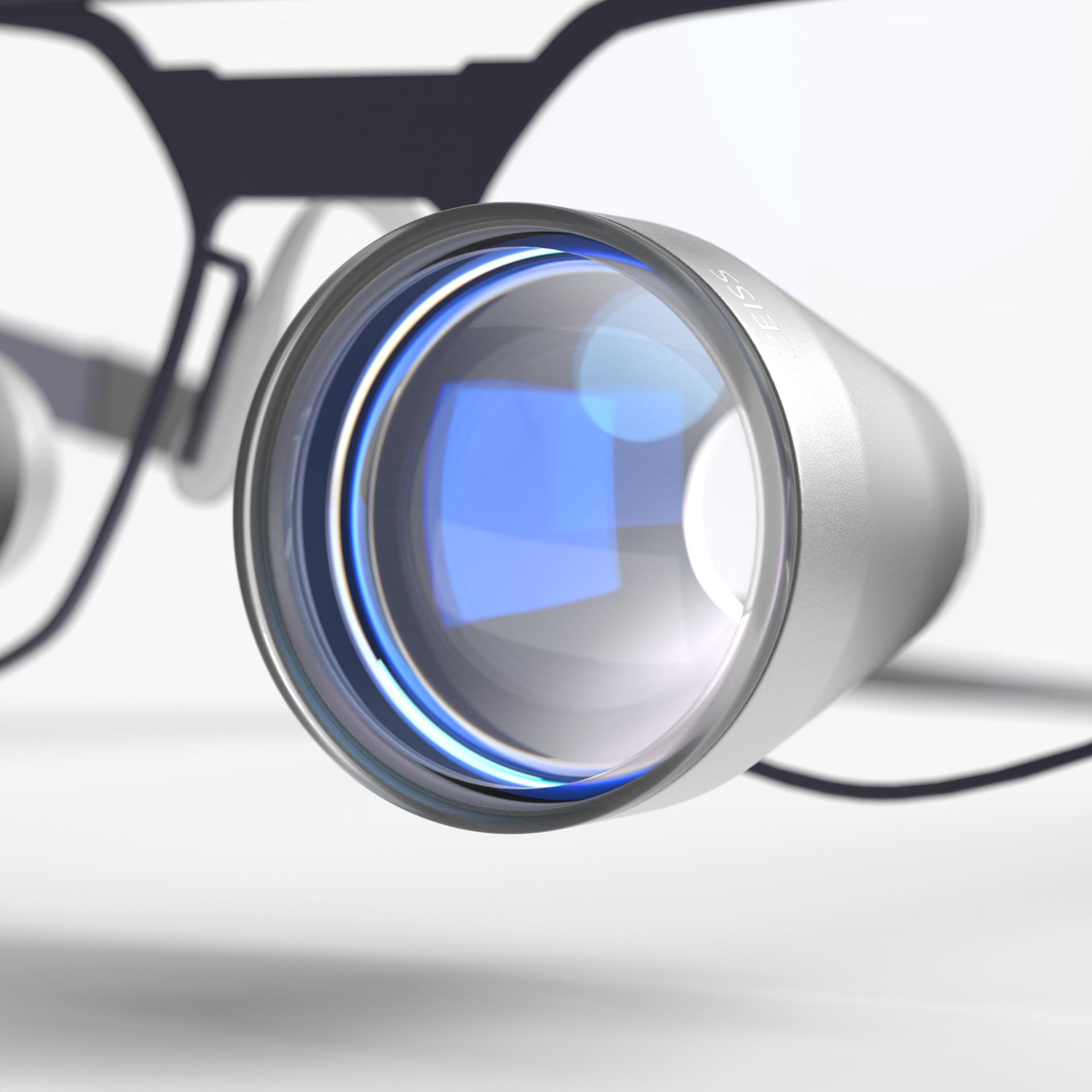

Optics and Illumination

ZEISS EyeMag medical loupes offer premium optical performance for first-time and experienced users. Equipped with LED illumination, the advanced visualization tools provide great image clarity and depth of field over the entire treatment area.

Application image courtesy of Dr. Claudia Cia Worschech, Sao Paulo, Brazil

Select the combination of magnification and field of view that best suits your application
Application image courtesy of H.M. Mayer MD PhD, Munich, Germany

Select the combination of magnification and field of view that best suits your application

Optical properties of ZEISS EyeMag Smart and Pro

The following fields of view are possible depending on the working distance and the desired magnification. These determine the selection of your individual medical loupes.

	Optical properties
Working Distance (mm)	300	350	400	450	550
Working Distance (inches)	12	14	16	18	22
Magnification	2.5x	2.5x	2.5x	2.5x	2.5x
Field of View (mm)	67	77	86	96	115
Field of View (mm)	❶	❷	❸	❹	❺

	Optical properties
Working Distance (mm)	300		350		400		450		500
Working Distance (inches)	12		14		16		18		20
Magnification	4x	5x	3.6x	4.5x	3.5x	4.3x	3.3x	4x	3.2x	4x
Field of View (mm)	56	44	71	56	86	68	100	81	115	93
Field of View (mm)	❷	❶	❹	❷	❻	❸	❽	❺	❾	❼

Possible fields of view with ZEISS EyeMag Smart
Possible fields of view with ZEISS EyeMag Pro

ZEISS EyeMag Light II

Lighting the way

The powerful lighting of the ZEISS EyeMag Light II provides illumination intensity for high detail recognition and an unaltered view of tiny structures:

In combination with ZEISS EyeMag medical loupes, ZEISS EyeMag Light II offers almost coaxial light, resulting in minimal shadow formation.
Unlike illuminations with conventional lens configurations, ZEISS EyeMag Light II offers with its clearly defined illuminated field even and powerful illumination across the entire field of view of your ZEISS loupes.
Perfect fit for all ZEISS EyeMag medical loupes.
Swing-in orange filter for ZEISS EyeMag Light II prevents premature curing of composite materials for dental applications.
Two rechargeable battery packs come with a convenient charging cradle for practically interruption-free work.

See all specifications

Flexibility

ZEISS EyeMag medical loupes feature a range of settings for flexible tilt and angle views. When magnification is not needed, the loupe can simply be flipped up, offering the wearer an unobstructed view. Different carriers are available for ZEISS EyeMag medical loupes.

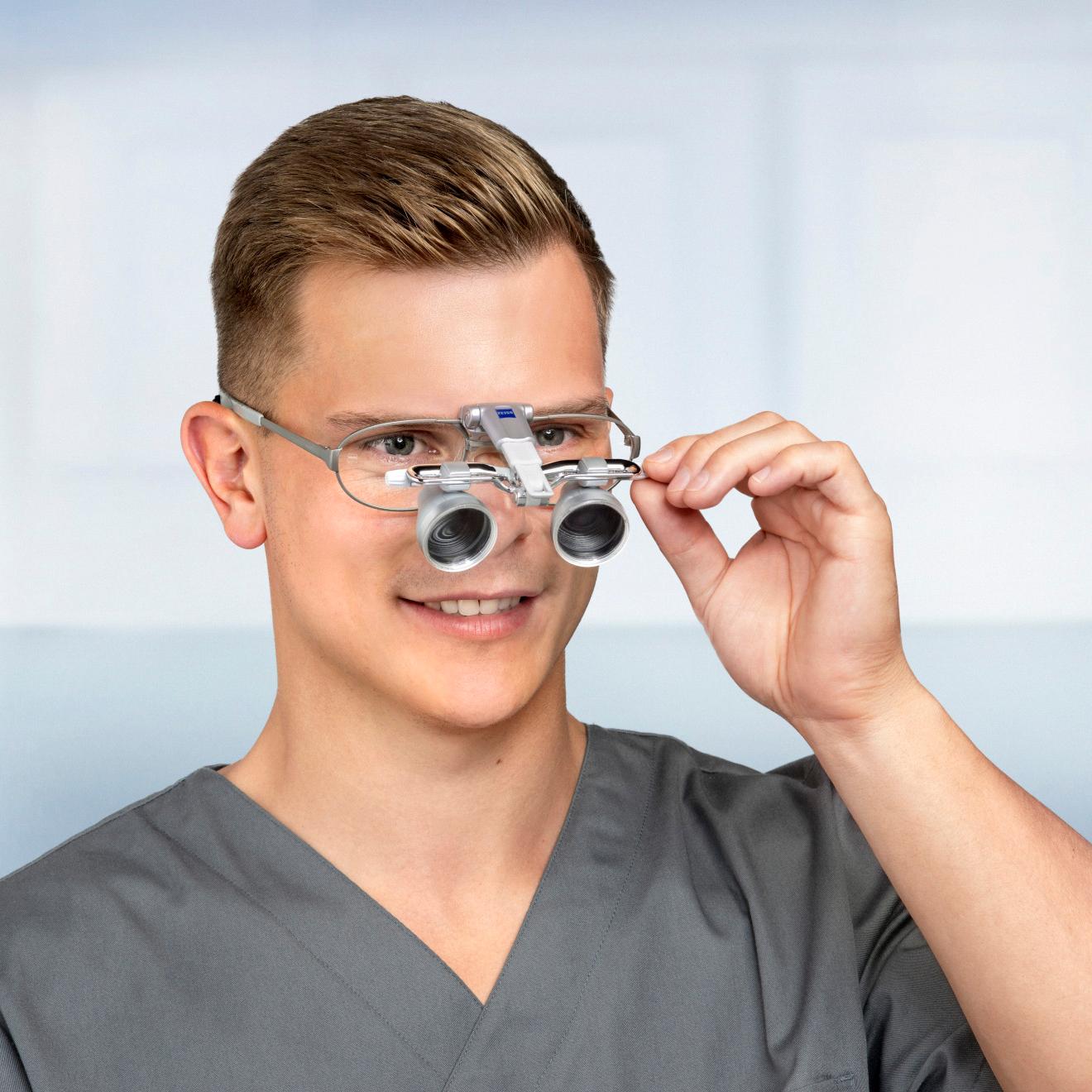

Adjustment and flip-up function

ZEISS medical loupes offering flexible adjustment:

Quick positioning of the eyepieces with a single adjustment.
Fast adjustment to desired viewing angle – even in extreme treatment positions.
Unobstructed vision and eye contact with your patients with a single adjustment.

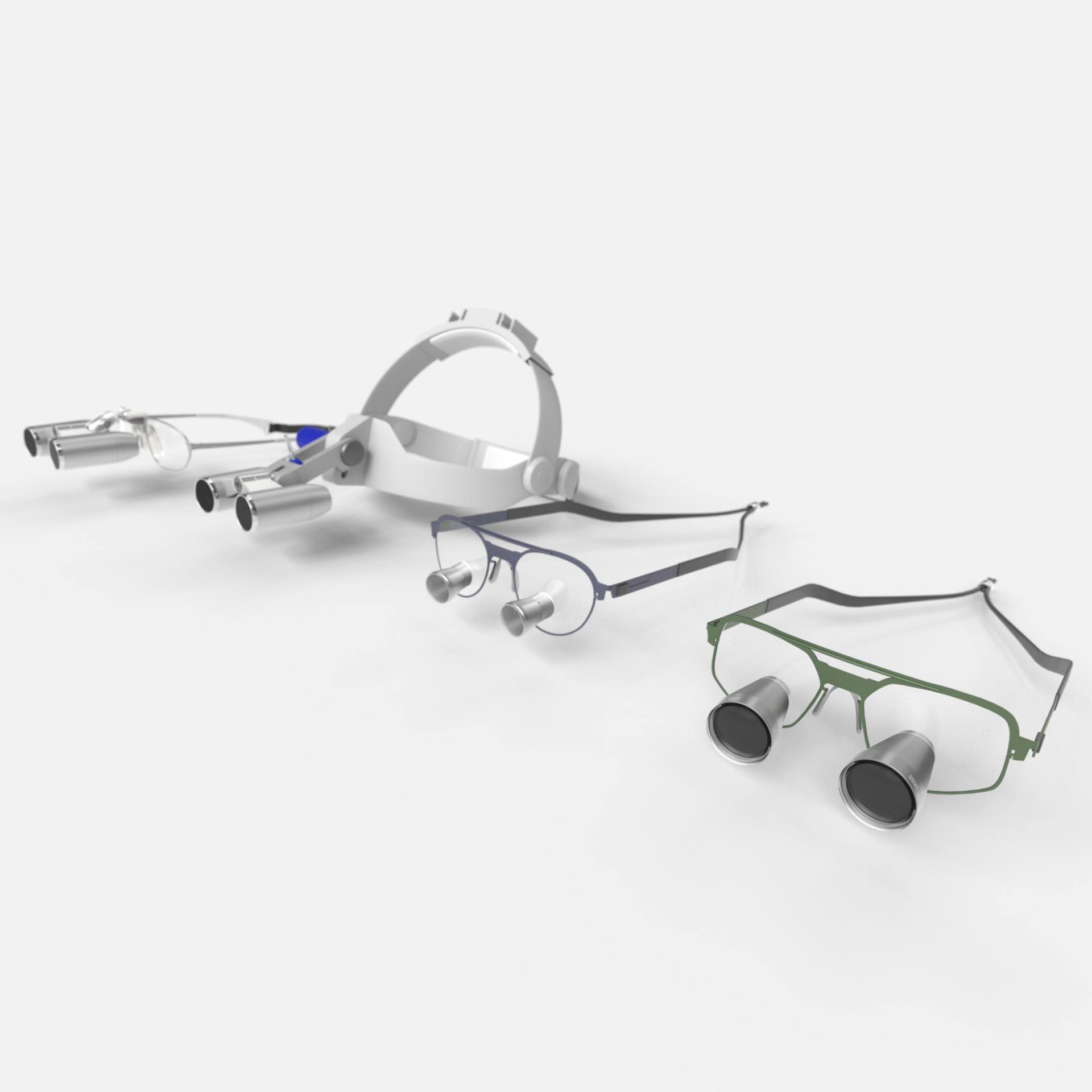

Available with different carriers

ZEISS EyeMag Smart with titanium eyeglass frame, sports frame or laser protection¹

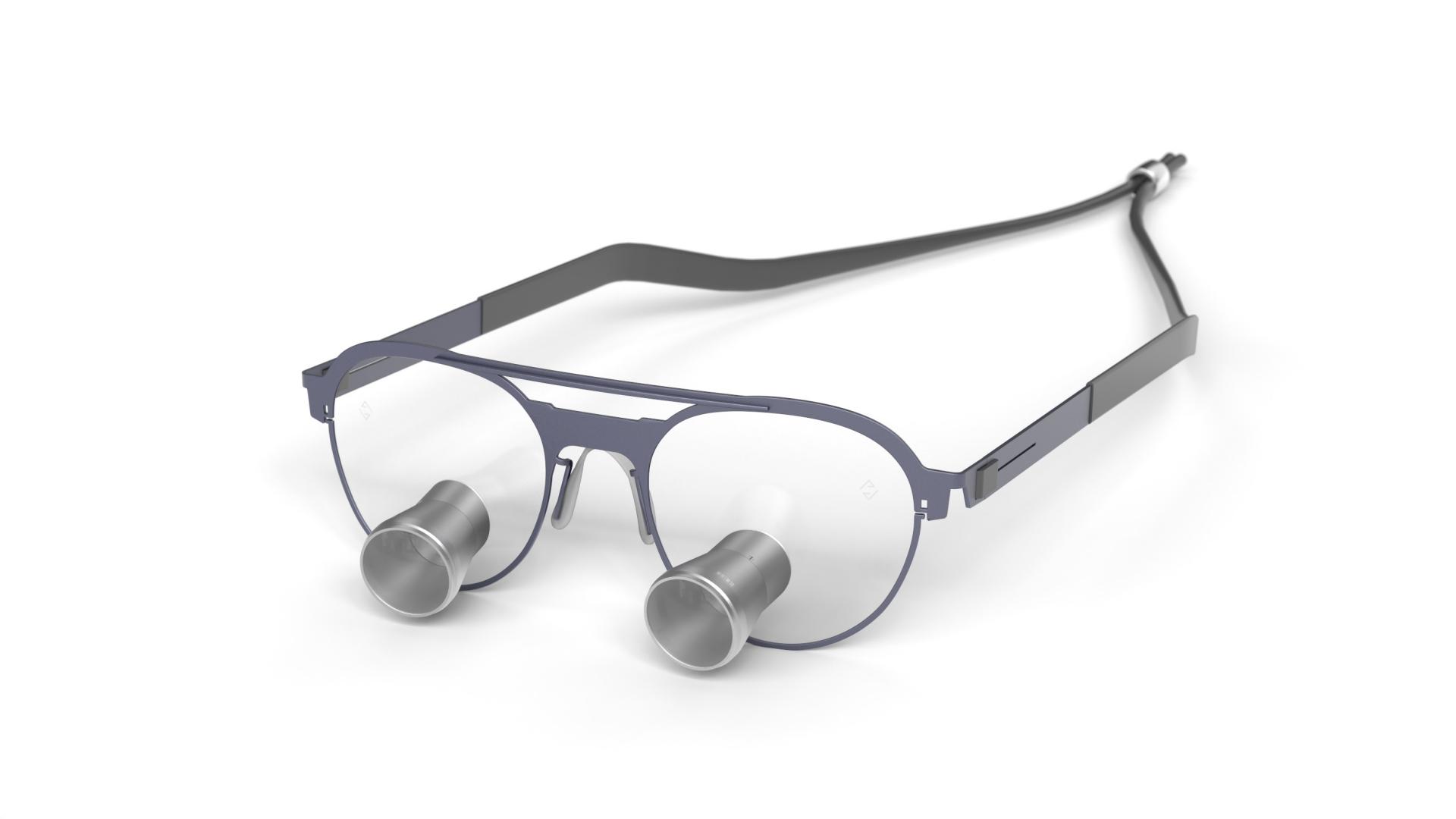

ZEISS EyeMag Pro F with titanium eyeglass frame

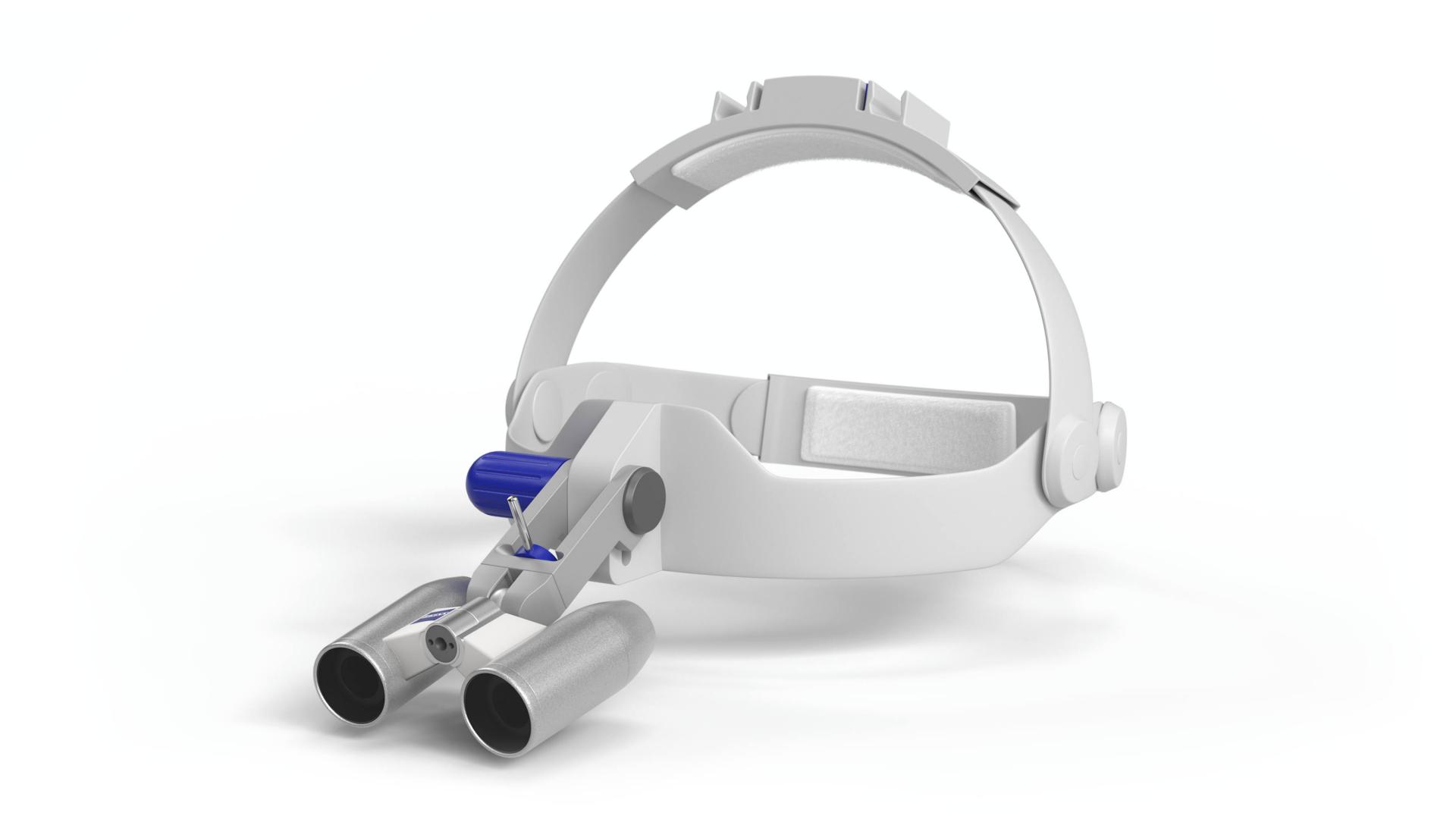

ZEISS EyeMag Pro S with carrier system S

All designs are compatible with ZEISS EyeMag Light II LED illumination.

Ergonomics.

ZEISS EyeMag medical loupes are supporting a comfortable, ergonomic working position.

Easy to use and comfortable to wear

The compact, portable, and ergonomic design optimizes comfort for daily use across a wide range of procedures.

Images show an ergonomic example without and with ZEISS EyeMag Pro in a dental application.
