Minimal wear due to maximum quality

Automotive supplier Pankl Racing Systems successfully meets the increasing demands on precision with diamond scanners from ZEISS.

Several months ago, Pankl Racing Systems in Austria equipped its coordinate measuring machines with a solid-diamond stylus. This has proved to be the right decision: Pankl reports reduced wear, greater precision and less machine downtime. The Austrian company has also started using a diamond-coated stylus from ZEISS and has nothing but good news to report.

Automotive supplier scans parts with diamond styli

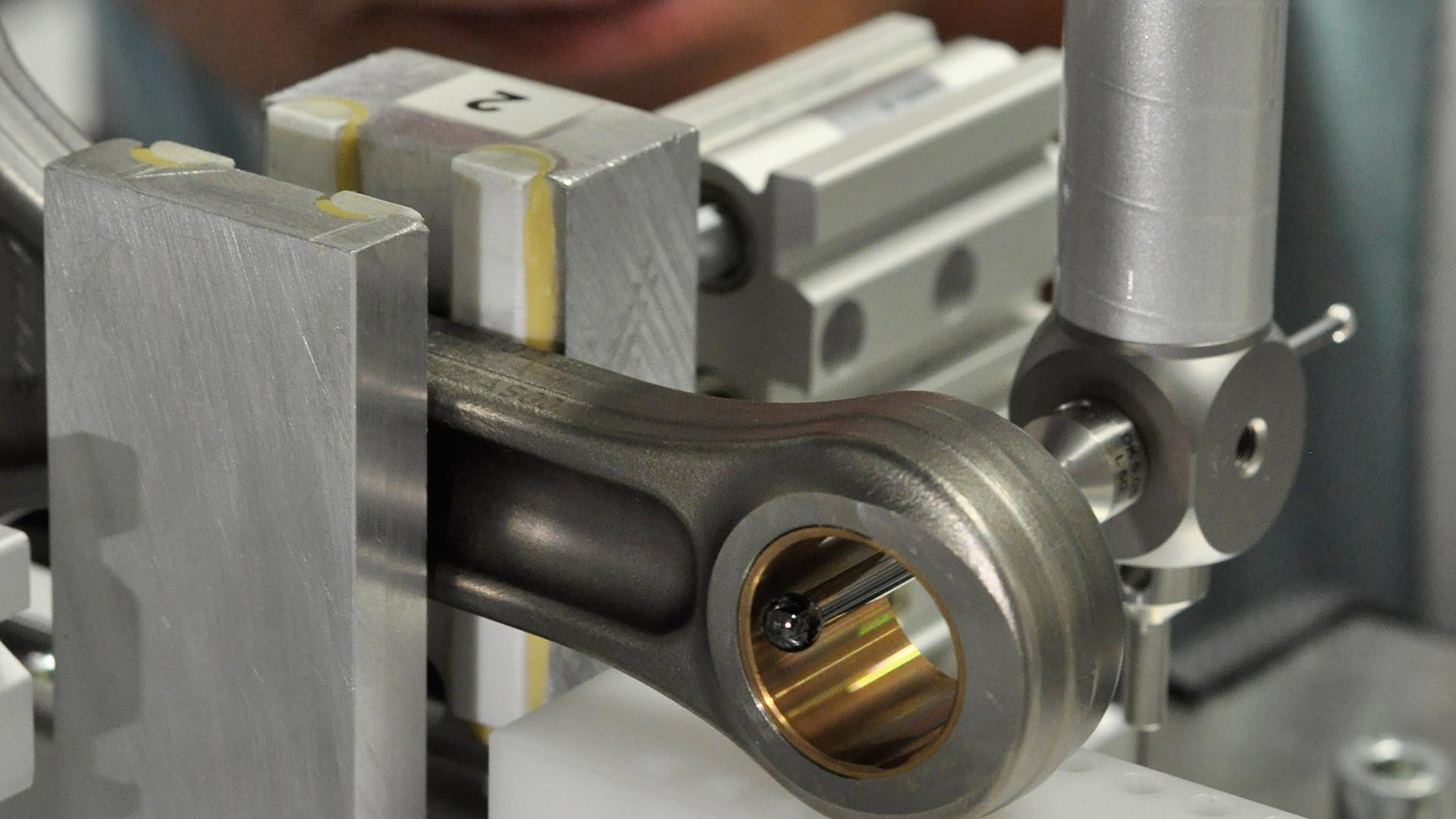

Measuring a connecting rod with a diamond-coated stylus

Measuring a connecting rod with a diamond-coated stylus

The challenge: even greater precision

Engineers are always pushing the limits of what is technically feasible, placing even more exacting demands on precision from one year to the next. Several years ago, this prompted the automotive supplier Pankl, whose portfolio includes connecting rods for race cars, to switch from discrete-point measurements to precise scanning. But since they were in constant contact with the workpieces being measured, the silicon nitride stylus tips were wearing down at a rate of up to one micrometer per day – too much to ensure the precision of the measurement results without additional testing. Thus Pankl requalified its scanning styli twice daily, and each time this meant the coordinate measuring machine was out of action for 15 minutes. Moreover, replacing an old stylus with a new one once per day was not an uncommon occurrence.

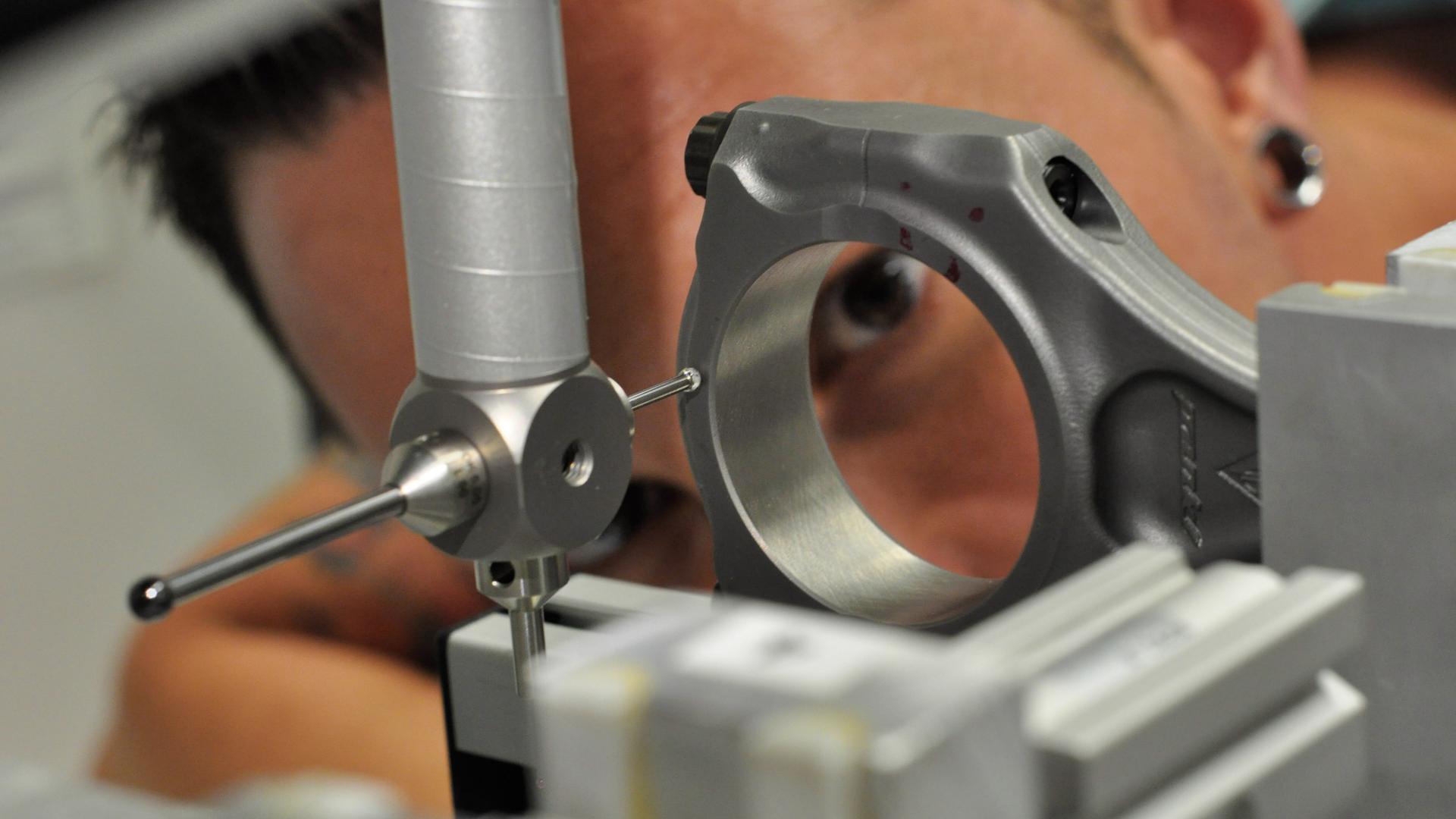

Check of diamond scan styli

René Hautz, who works in the technical quality assurance area at Pankl, performing final inspection on a connecting rod for a race car engine. The bearing on the crankshaft is measured with a ZEISS diamond stylus.

The solution: diamonds for scanning

Even though continually qualifying and changing the styli had become the norm over the years, Mario Pichler, Head of Strategic Metrology at Pankl Racing, thought this process was suboptimal. Hearing about new styli with a diamond coating from the field staff at ZEISS Industrial Metrology piqued Pichler's interest. At the end of 2015, he ordered a loaner stylus – initially the more expensive, solid-diamond version – for one of the two ZEISS PRISMO systems used for the final inspection of connecting rods. Since then, Pankl has started using one of the diamond-coated styli as well. An additional measuring machine for in-process checks will soon be fitted with a solid-diamond stylus. However, for those process steps where no scans are performed, everything will stay just as it is for the time being.

We haven't noticed any wear thus far. The switch has definitely paid off.

Mario Pichler

Head of Strategic Metrology
Diamond styli macro

Scanning with diamond styli increases reliability

The benefit: increased measuring machine uptime

The company first started using a diamond stylus on 17 November 2015 for the final inspection of all connecting rods for race car engines. A scan lasts three minutes and provides far more measurement values than with a discrete-point measurement, thereby increasing the reliability of the results. And how are the new styli holding up? After more than a year, Pichler reports: "We haven't noticed any wear thus far." This also means there is no longer any time-consuming qualification and no need to replace out unusable styli. Pichler reports that "switching to the diamond-coated and solid-diamond styli has definitely paid off." This has got him thinking about the future: he is currently considering using these styli in the gearbox manufacturing area.

About Pankl Racing Systems

Headquartered in Kapfenberg in Austria, Pankl Racing Systems AG develops, produces and sells engine and drive systems as well as chassis parts for race cars, luxury cars and helicopters. Pankl manufactured its first connecting rods for race cars back in 1985. Today, the company's Racing division is the market leader for engine and drive systems. The engine systems are built in Bruck an der Mur, Austria, and Irvine, California, while the drive systems are assembled in Kapfenberg and Bicester in the UK. Pankl has a global workforce of around 1,300 employees.
