ZEISS Axiocam 820 color
Cameras

ZEISS Axiocam 820 color

Your Sensitive 20 Megapixel Microscope Camera for Demanding, True Color Imaging of Large Fields of View

This 20 megapixel color camera combines high sensor resolution, color accuracy and a large sensor size for the most challenging samples. Its live image is 30 frames per second, providing navigation with the PC that is as smooth as looking through the eye pieces. The small pixels allow the use of low magnifications for high speeds and large fields of view without losing resolution. Scan large areas faster than ever before due to its large 17.5 mm square sensor. This makes Axiocam 820 color the ideal choice for demanding color imaging in cytology, pathology, materials research, and life science applications.

Mouse intestine. Sample courtesy of A. Feuchtinger, Helmholtz Zentrum München, Germany

ZEISS Axiocam 820 color is Recommended for

  • The most demanding color applications in life sciences, materials research, and geoscience
  • Co-observation with a fast, high resolution, live image in high quality color with a very large field of view
  • Large sample area imaging in pathology, cytology, and materials samples
  • Fast tile scanning applications
  • The broadest range of intensities and exposure times

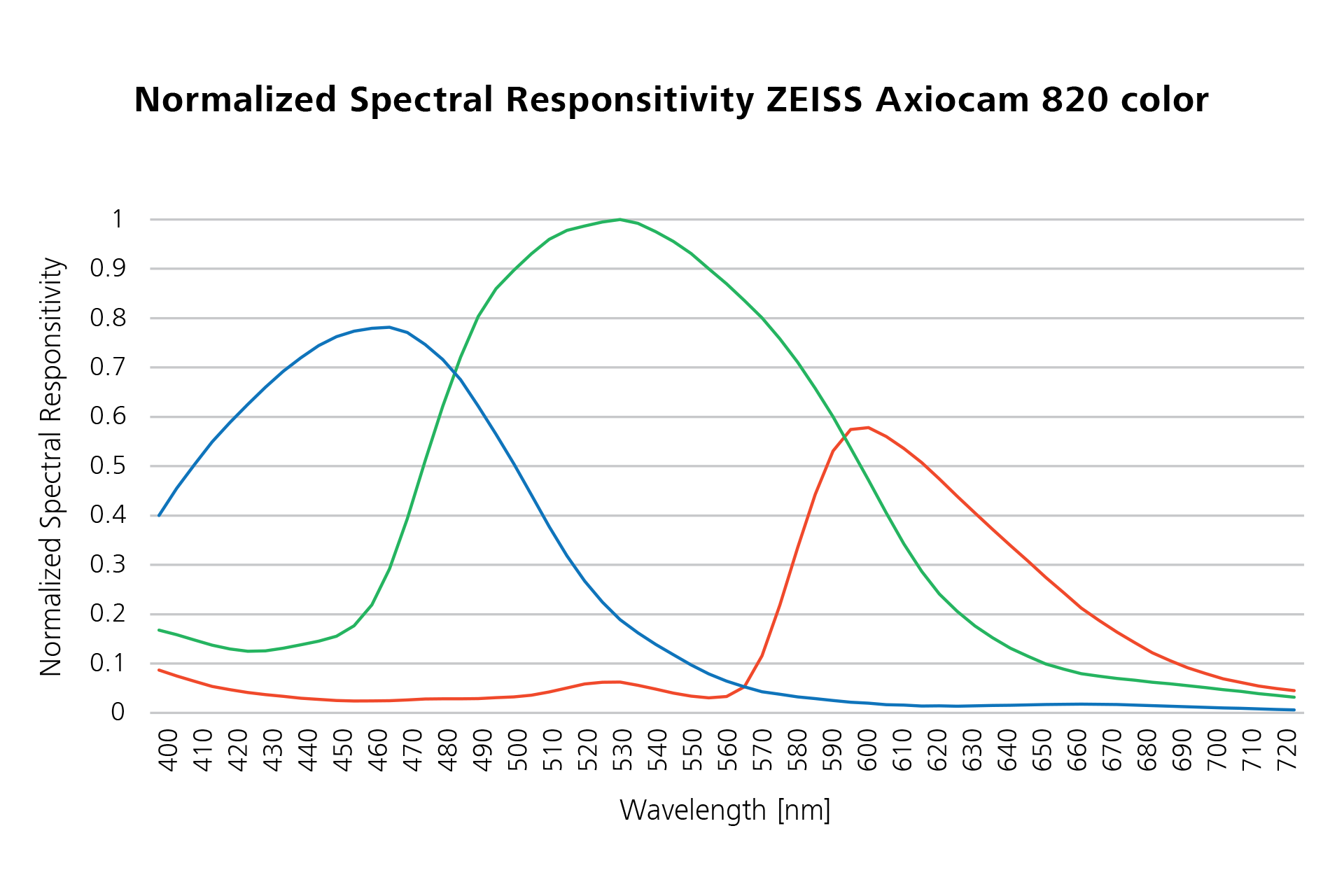

Normalized spectral responsivity
Normalized spectral responsivity

Normalized spectral responsivity

Normalized spectral responsivity

Highlights of Axiocam 820 color

  • 20 megapixel square CMOS sensor with 17.5 mm diagonal
  • 28 full-resolution color images per second
  • Small 2.74 micron pixels for resolving the finest details at all magnifications
  • High-quality noise inhibition technology
  • Fast quad-port read-out with global shutter architecture for distortion-free images
  • Best-in-class color rendition
  • Color and monochrome imaging modes
  • 30 frames per second in live image mode
  • Reproducible image quality due to active thermal stabilization of the sensor
  • Robust, very fast and easy-to-use dual USB 3.0 connection
  • Dynamic range of 1:25,000 in high-dynamic range (HDR) mode
  • Hardware triggering

Application Examples

Mouse intestinal goblet cells

Mouse intestinal goblet cells Neutral (red) and acid (blue) mucine staining imaged with 20x/0.5 objective.

Mouse intestinal goblet cells
Sample courtesy: A. Feuchtinger, Helmholtz Zentrum München, Germany

Neutral (red) and acid (blue) mucine staining imaged with 20x/0.5 objective.

Mouse intestinal goblet cells

Neutral (red) and acid (blue) mucine staining imaged with 20x/0.5 objective.

Sample courtesy: A. Feuchtinger, Helmholtz Zentrum München, Germany

Human cancer tissue

Human cancer tissue

Human cancer tissue
Sample courtesy: A. Feuchtinger, Helmholtz Zentrum München, Germany

Anthracosis with focal areas of carbon pigment deposits (black) in human cancer tissue (red).

Human cancer tissue

Anthracosis with focal areas of carbon pigment deposits (black) in human cancer tissue (red).

Sample courtesy: A. Feuchtinger, Helmholtz Zentrum München, Germany

Downloads

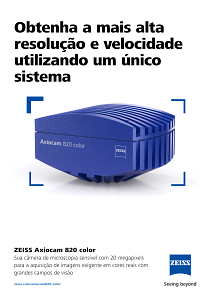

    • ZEISS Axiocam 820 color

      Your Sensitive 20 Megapixel Microscope Camera for Demanding, True Color Imaging of Large Fields of View

      Pages: 4
      File size: 1 MB
    • ZEISS Axiocam Family

      Your Guide to Microscope Camera Technology from ZEISS

      Pages: 40
      File size: 14 MB
    • ZEISS Axiocam 820 color

      Zorlayıcı Geniş Görüş Alanlarının Gerçek Renkli Görüntülemesi İçin Hassas 20 Megapiksel Mikroskop Kameranız

      Pages: 4
      File size: 1 MB

Find the Perfect Camera for Your Applications

Axiocam Selector
ZEISS Axiocam Selector

Your Interactive Guide to the ZEISS Axiocam Family

Find the right microscope camera according to your field of work. Use filters either by application or camera specifications.
