ZEISS Axioscope for Materials

Microscope for Research and Routine in the Materials Lab

The upright light microscope ZEISS Axioscope was designed specifically to meet the most common optical imaging requirements of materials laboratories. It is the right choice if your routine inspection tasks place high demands on usability, reproducibility and automation – and you also need advanced optical microscopy for materials analysis and metallography. Being a complete material laboratory solution, Axioscope is also the first choice from an economic point of view.

  • Turnkey solution for materials research and metallography
  • Affordable high performance with outstanding usability
  • Reliable results thanks to advanced light management
  • Digital integration from device control to archiving
  • Full motorization of the motion axes for automated imaging
Affordable High Performance

Affordable High Performance

Axioscope – with its outstanding usability and advanced automation features – is ideal for demanding routine tasks. And, even at its attractive price, it also offers powerful capabilities commonly associated with more advanced research light microscopes.


Reliable Results

Reliable Results

With coded components and advanced light management, Axioscope delivers trustworthy, reproducible results. Moreover, the motorized Axioscope 7 gives you the ability to fully automate investigative workflows – so it is quick to become the lab favorite.

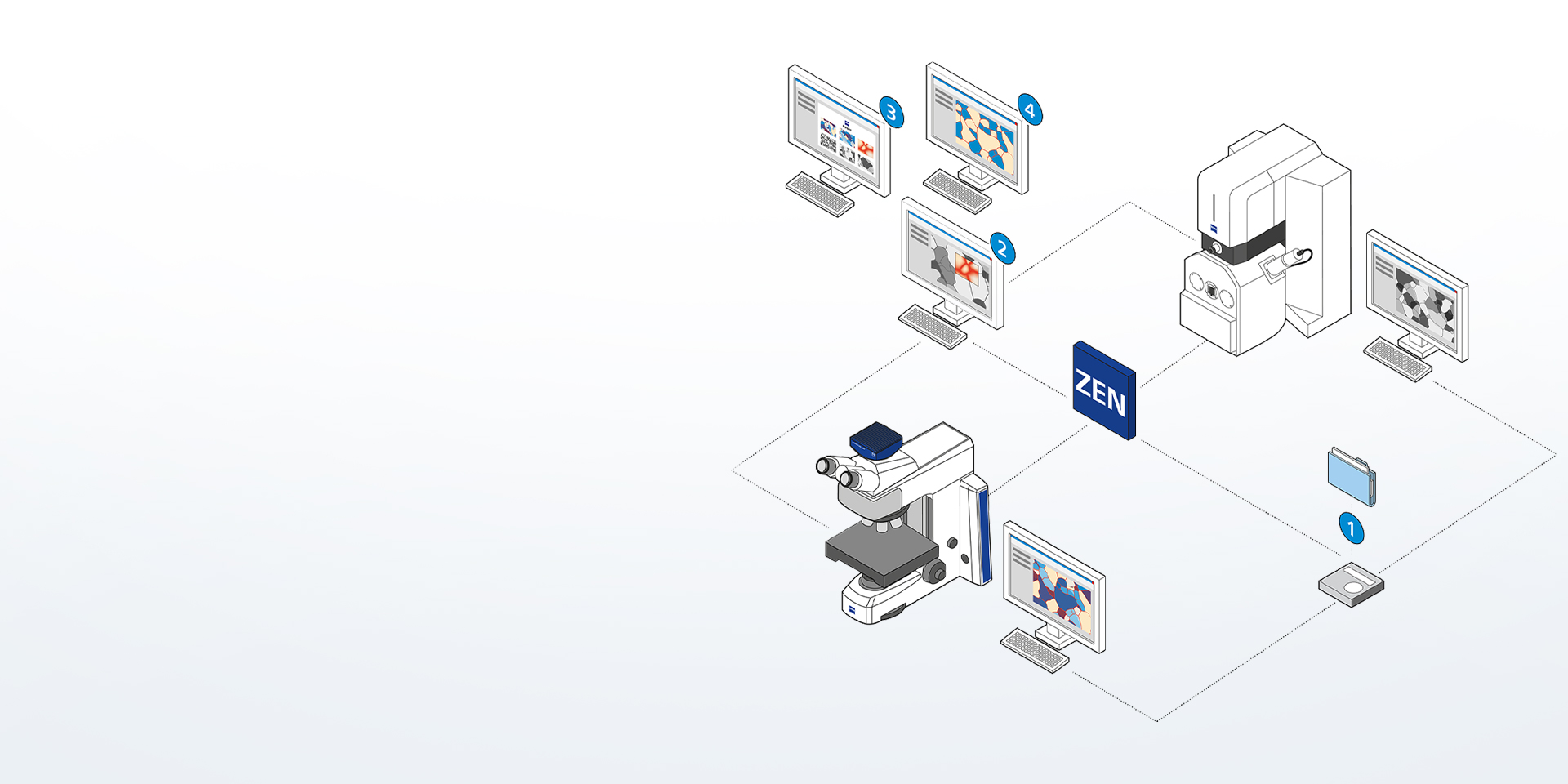

Digital Integration

Digital Integration

With the Axiocam camera portfolio and ZEN core imaging software, Axioscope becomes a powerful digital documentation system. From device control – to image capture, analysis and documentation – to archiving your analytics, Axioscope delivers a fully digitized workflow.

The ZEISS Axioscope Product Family

Manual microscope with coded components for reproducible and reliable results in the analysis of material cuts, thin sections, and fracture surfaces.

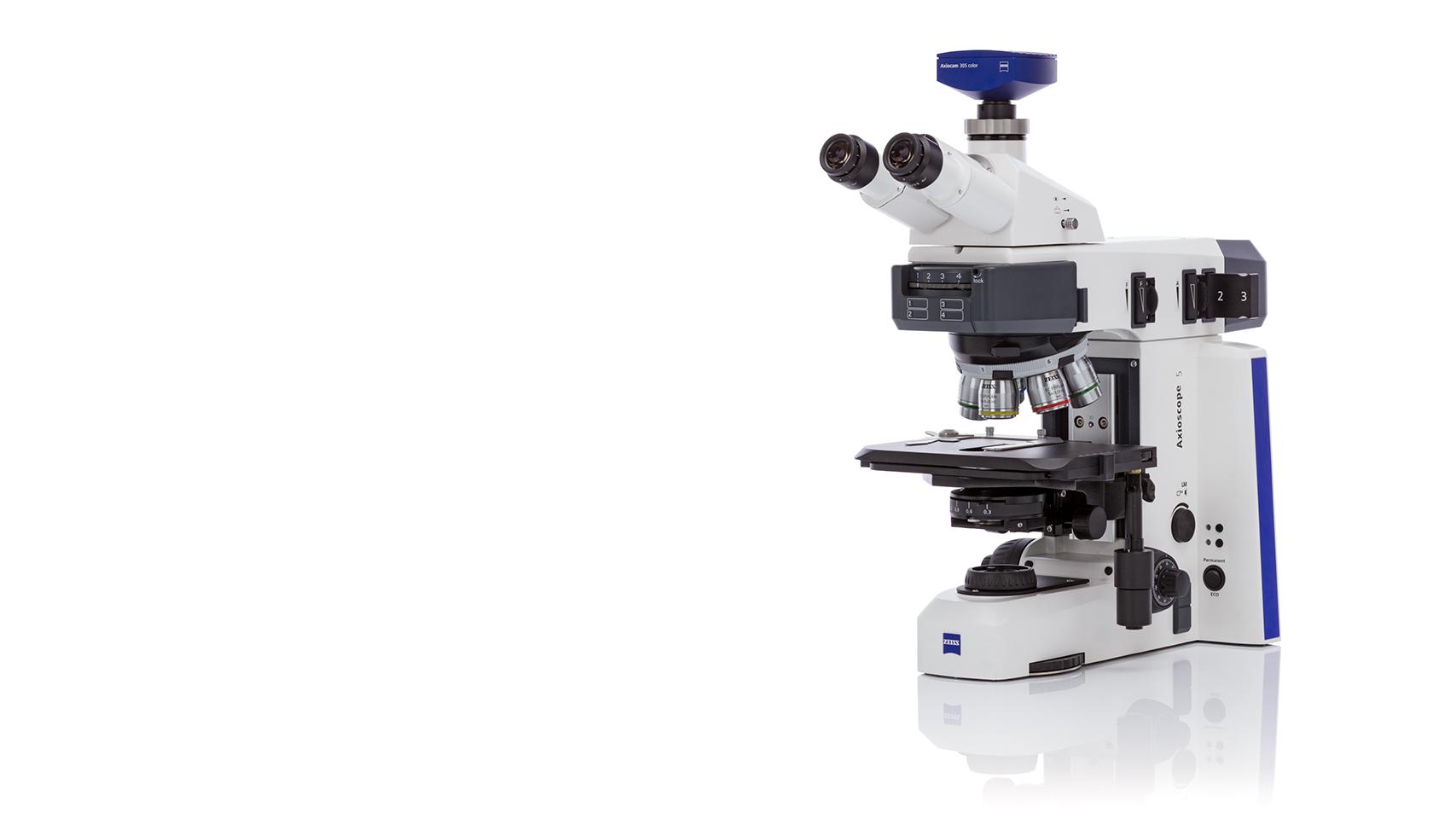

Axioscope 5
Manual microscope with coded components for reproducible and reliable results in typical applications for polarization microscopy: geology, mineralogy and metallography
Axioscope 5 Polarization

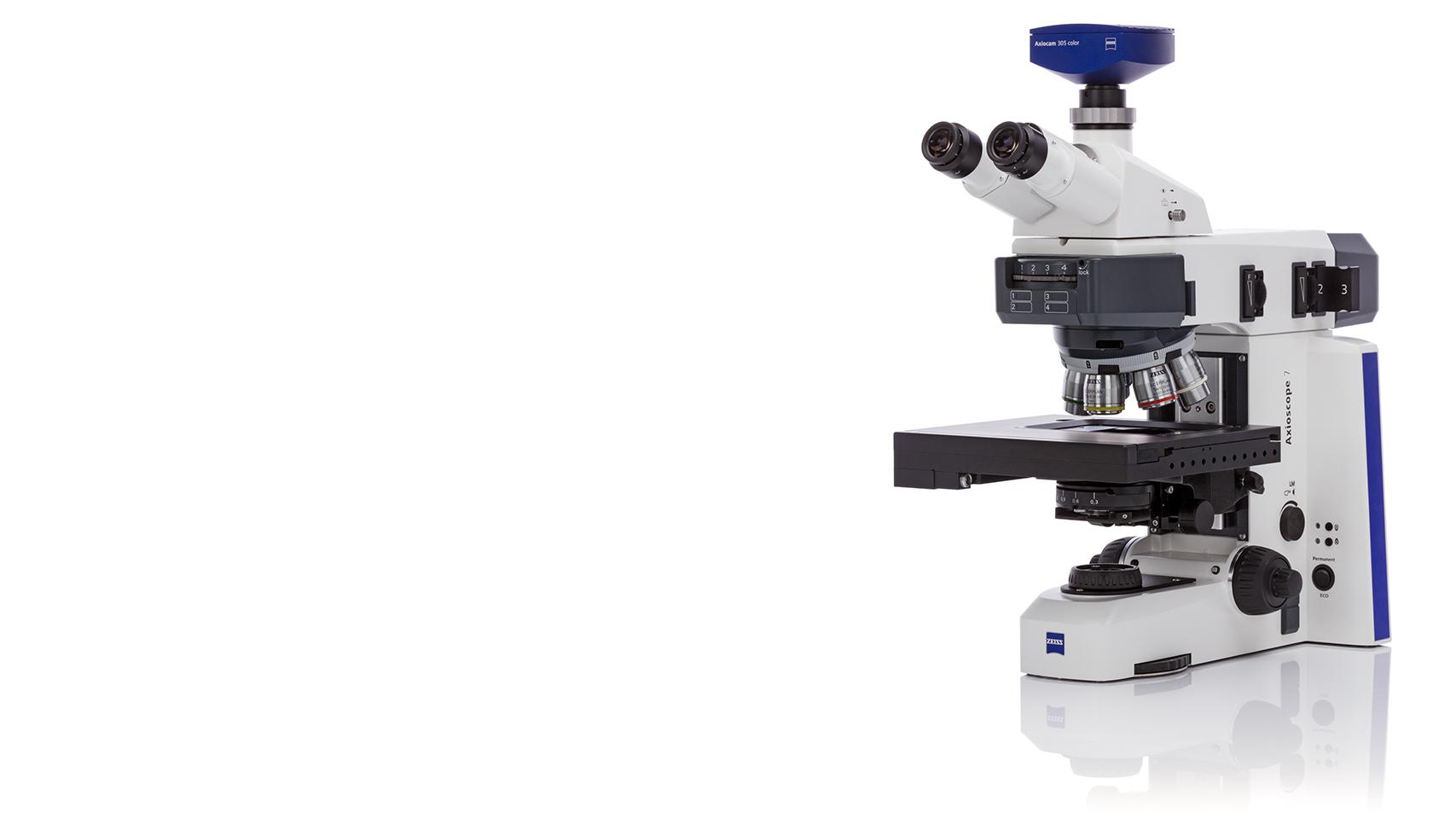

Microscope with coded and motorized components for material microscopy tasks that require advanced imaging capabilities and workflow automation
Axioscope 7
Flexible material microscope, designed for reflected-light and fluorescence applications, with extended specimen space that accommodates large objects up to 380 mm.

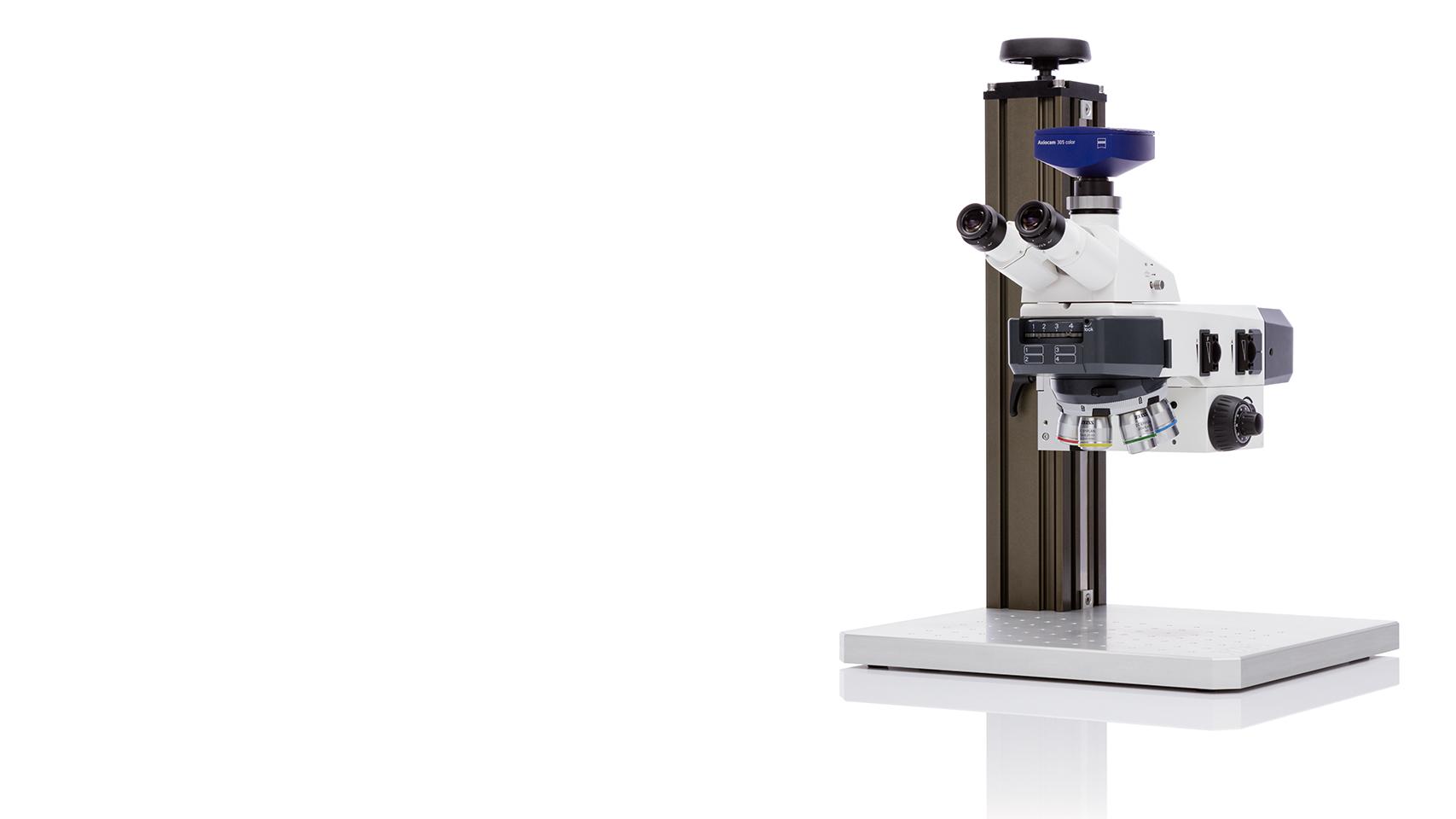

Axioscope Vario

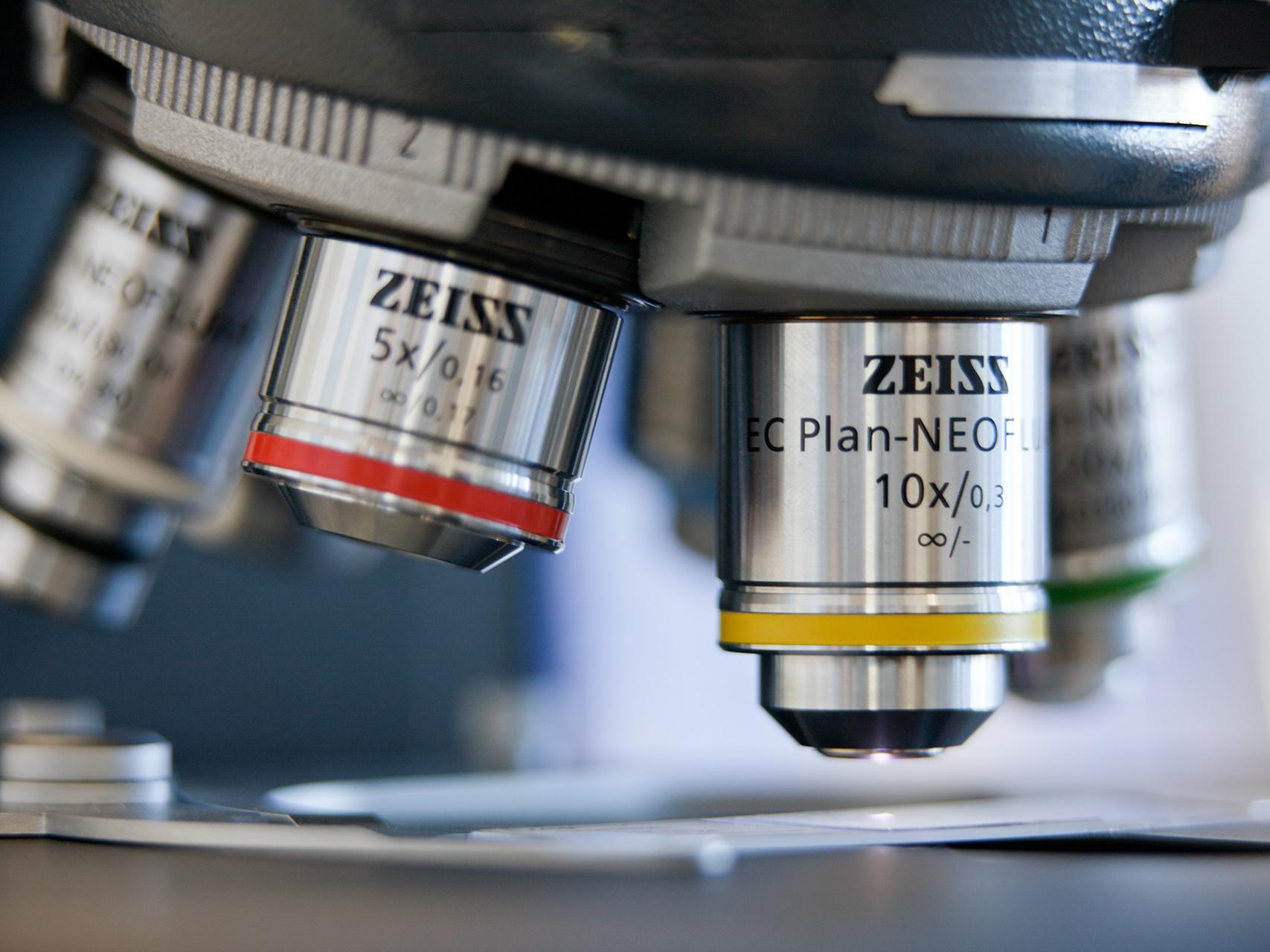

  • ZEISS objective lenses

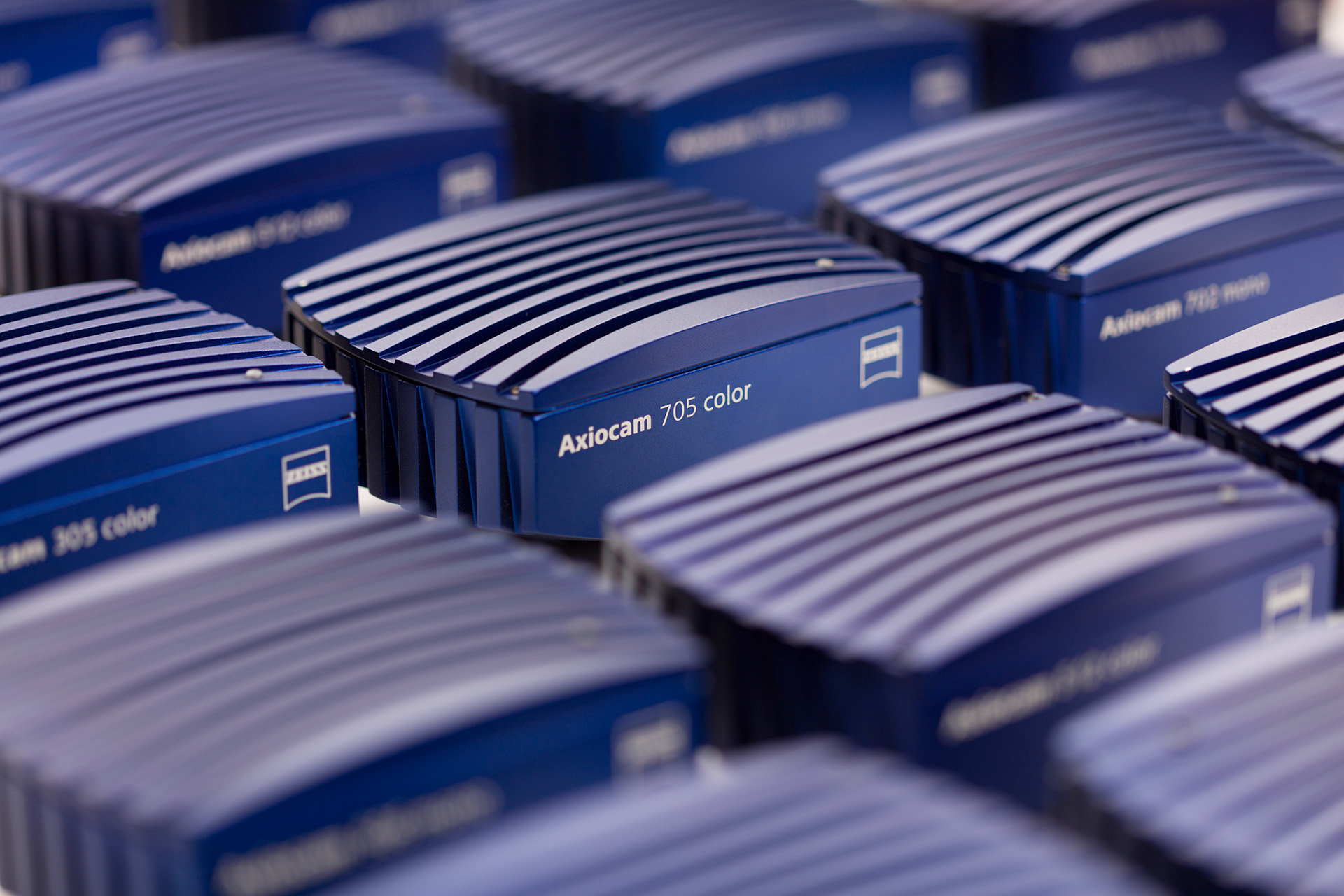

  • ZEISS Axiocam cameras​
  • Cast iron analysis with ZEISS ZEN core​

    Cast iron analysis with ZEISS ZEN core


  • ZEISS objective lenses

    ZEISS objective lenses

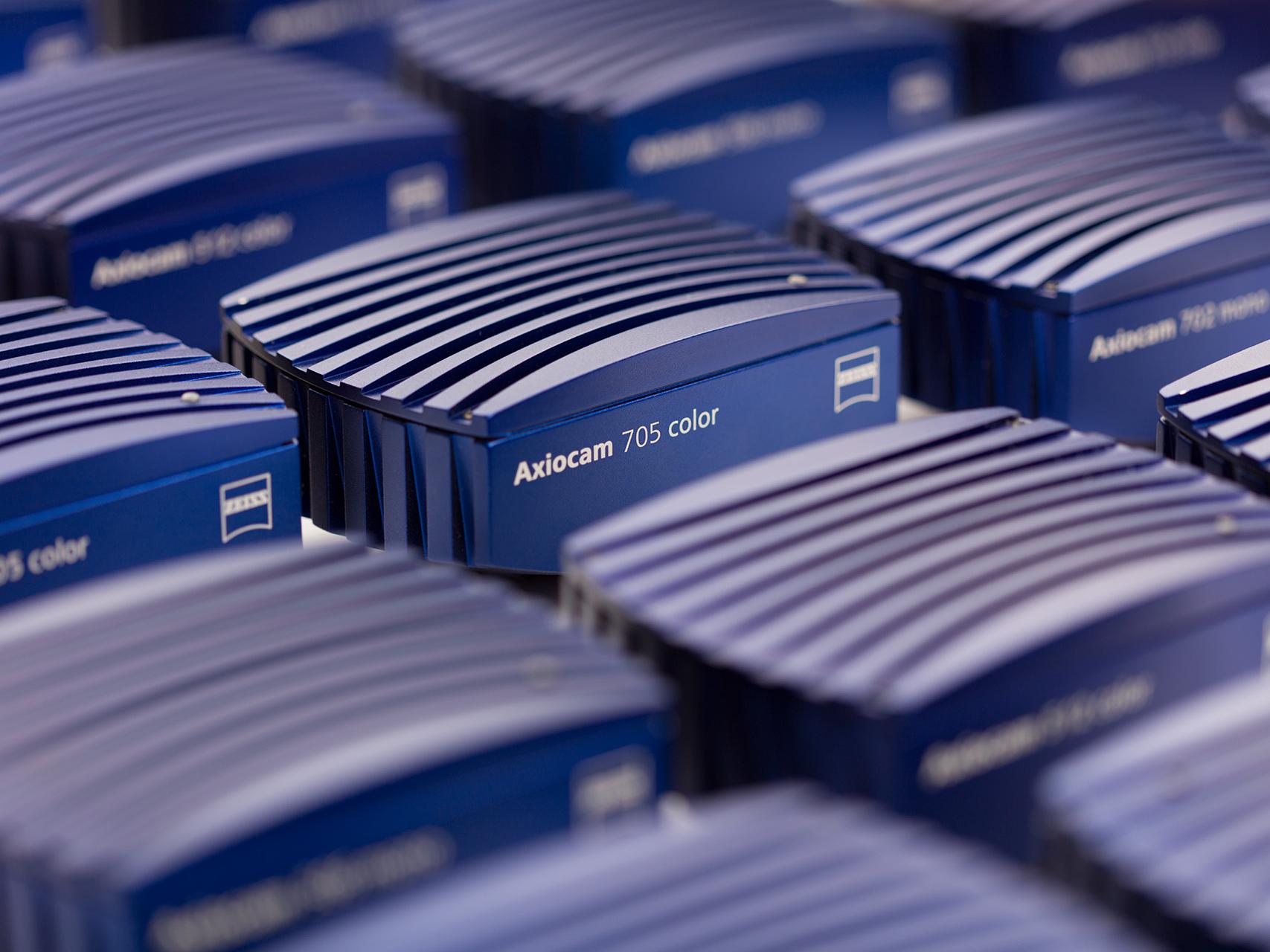

  • ZEISS Axiocam cameras​

    ZEISS Axiocam cameras​

  • Cast iron analysis with ZEISS ZEN core​

    Cast iron analysis with ZEISS ZEN core​

A Turnkey Metallography Solution

Axioscope is performance-ready, with all features working in concert to deliver a complete metallography solution for the materials laboratory: cameras as the most important interface for digitizing your sample data, lenses with application-specific properties, and an imaging software specially developed for materials research and metallography.

  • Cast Iron Analysis - Segmentation of graphite particles​
  • Grains Size Analysis - Intercept Method​
  • Porosity Analysis - With Multiphase Module​
  • Layer Thickness Measurement
  • Comparative Diagrams - Sample comparison with wall charts​

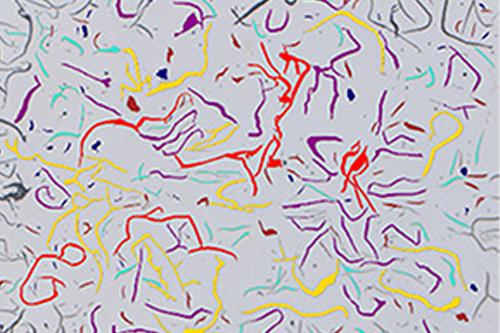

  • Cast Iron Analysis - Segmentation of graphite particles​

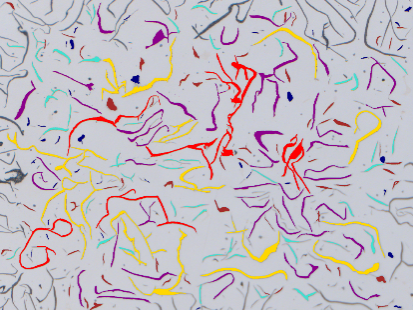

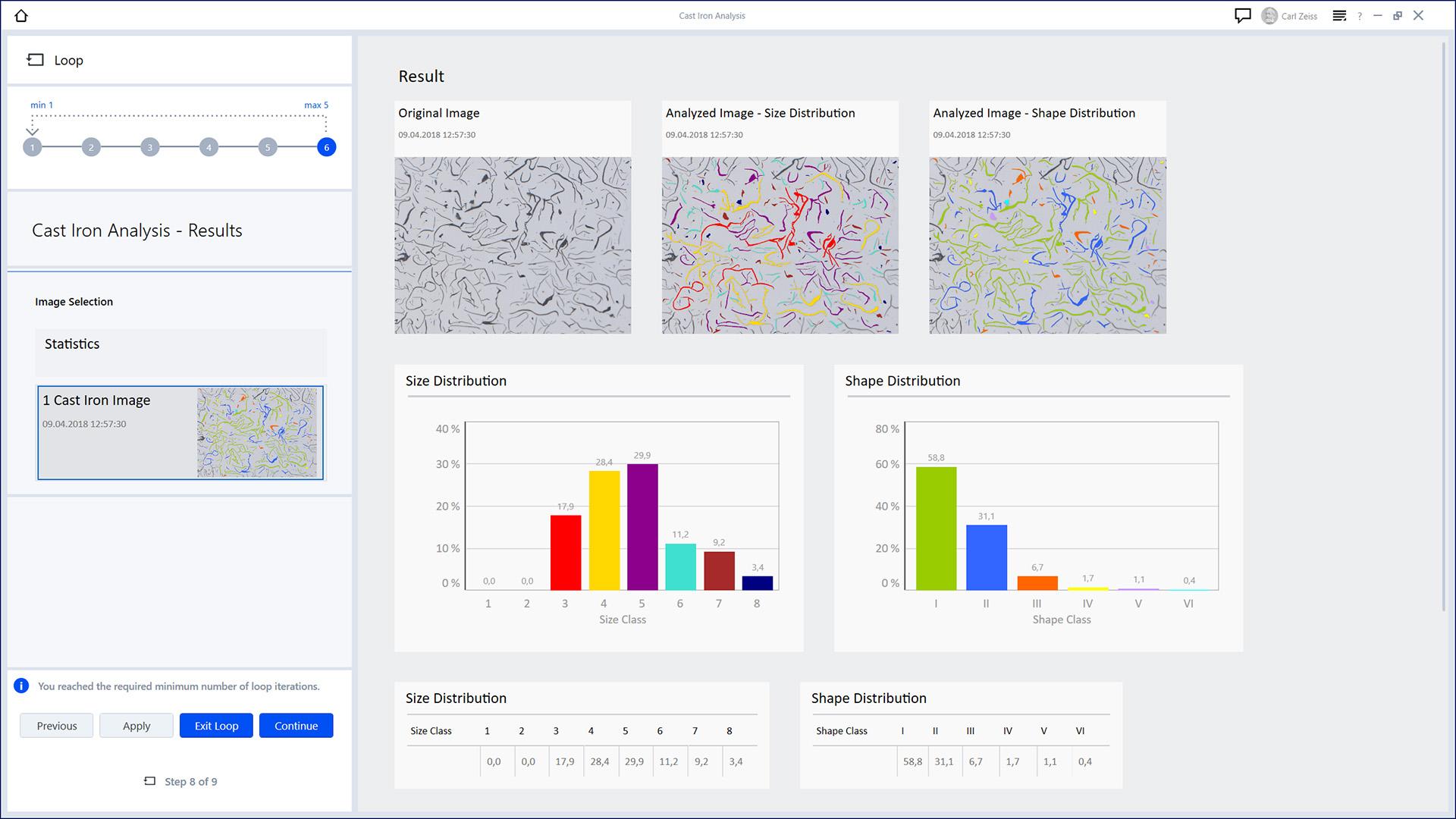

    Cast Iron Analysis - Segmentation of graphite particles​

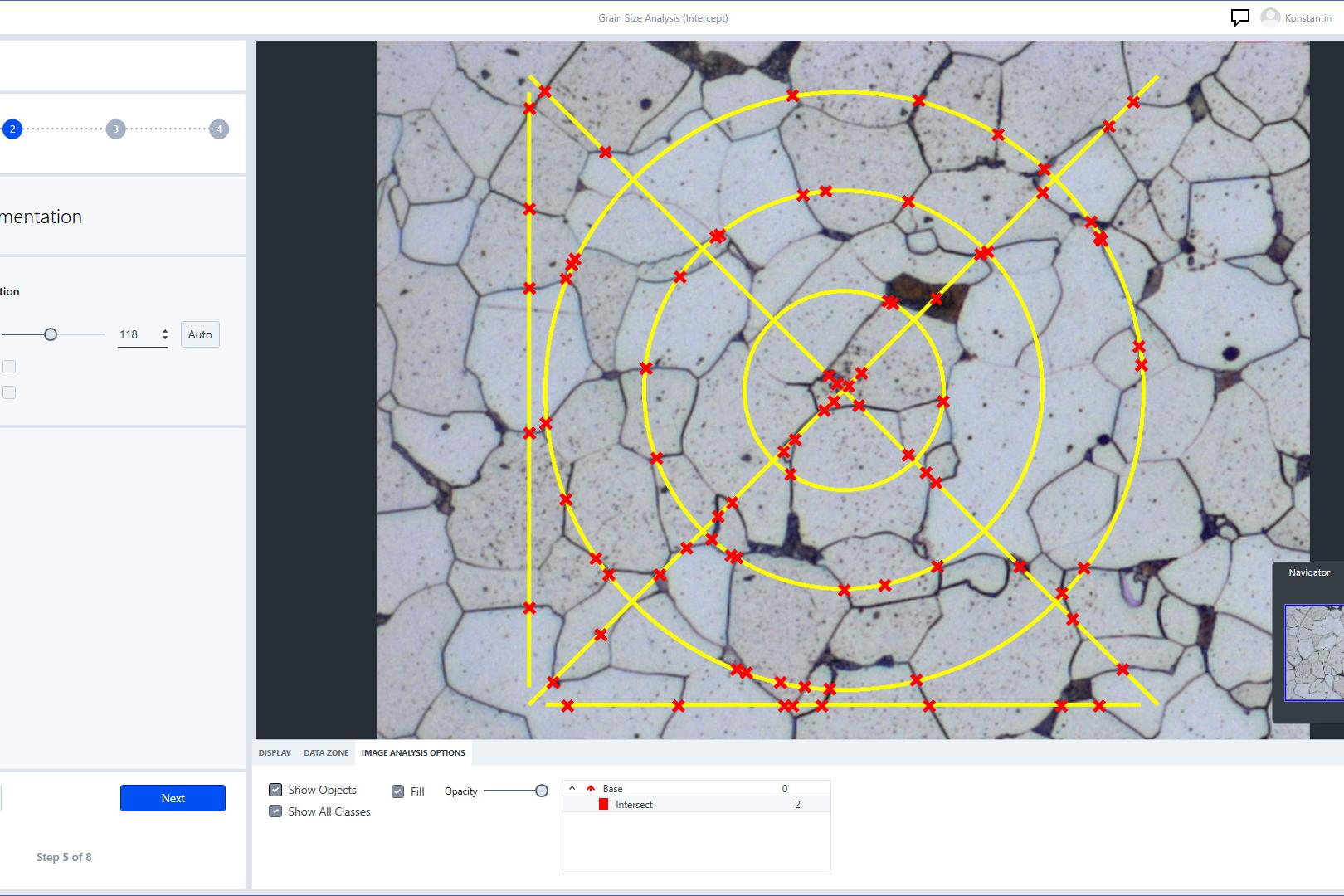

  • Grains Size Analysis - Intercept Method​

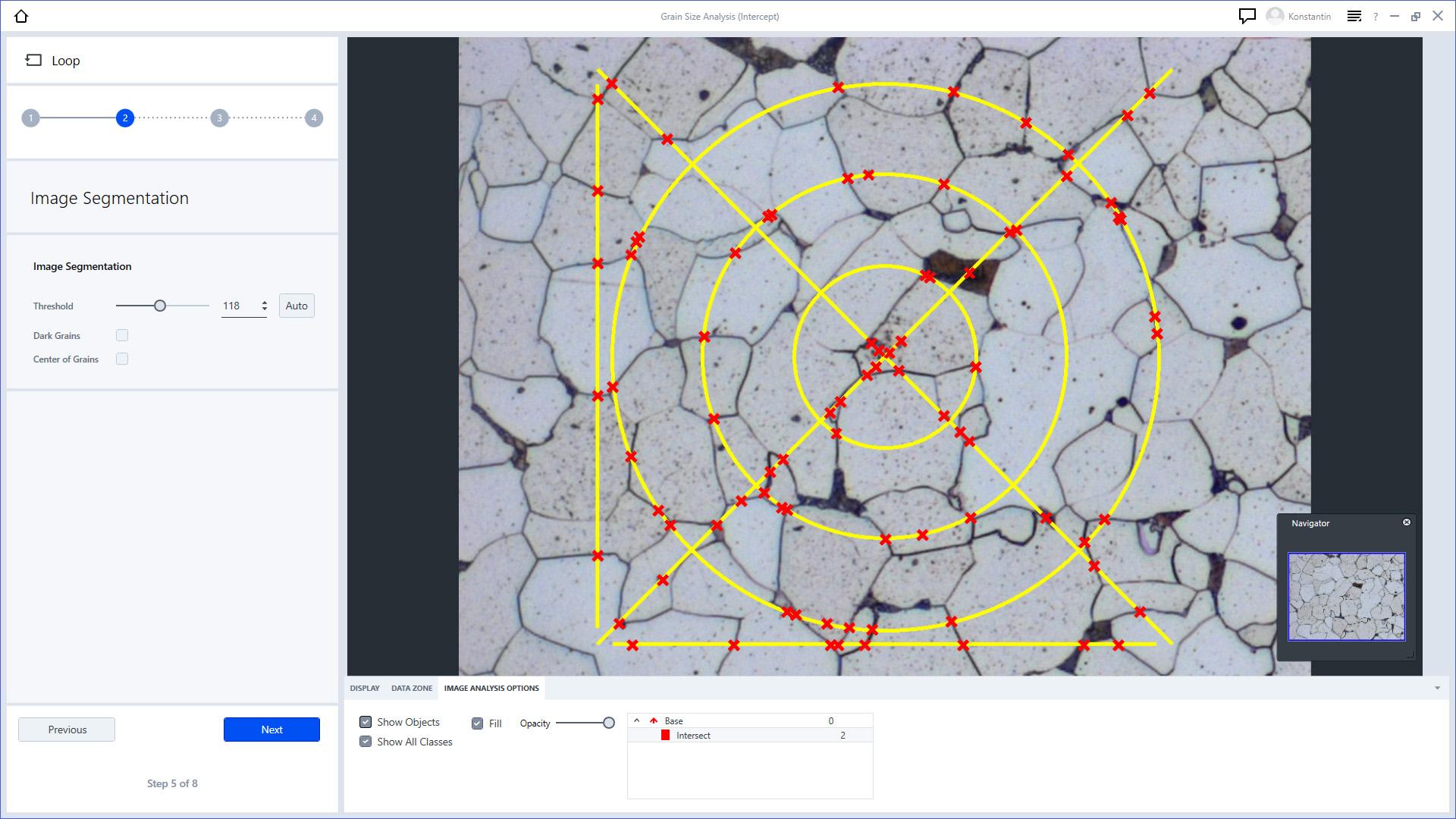

    Grains Size Analysis - Intercept Method​

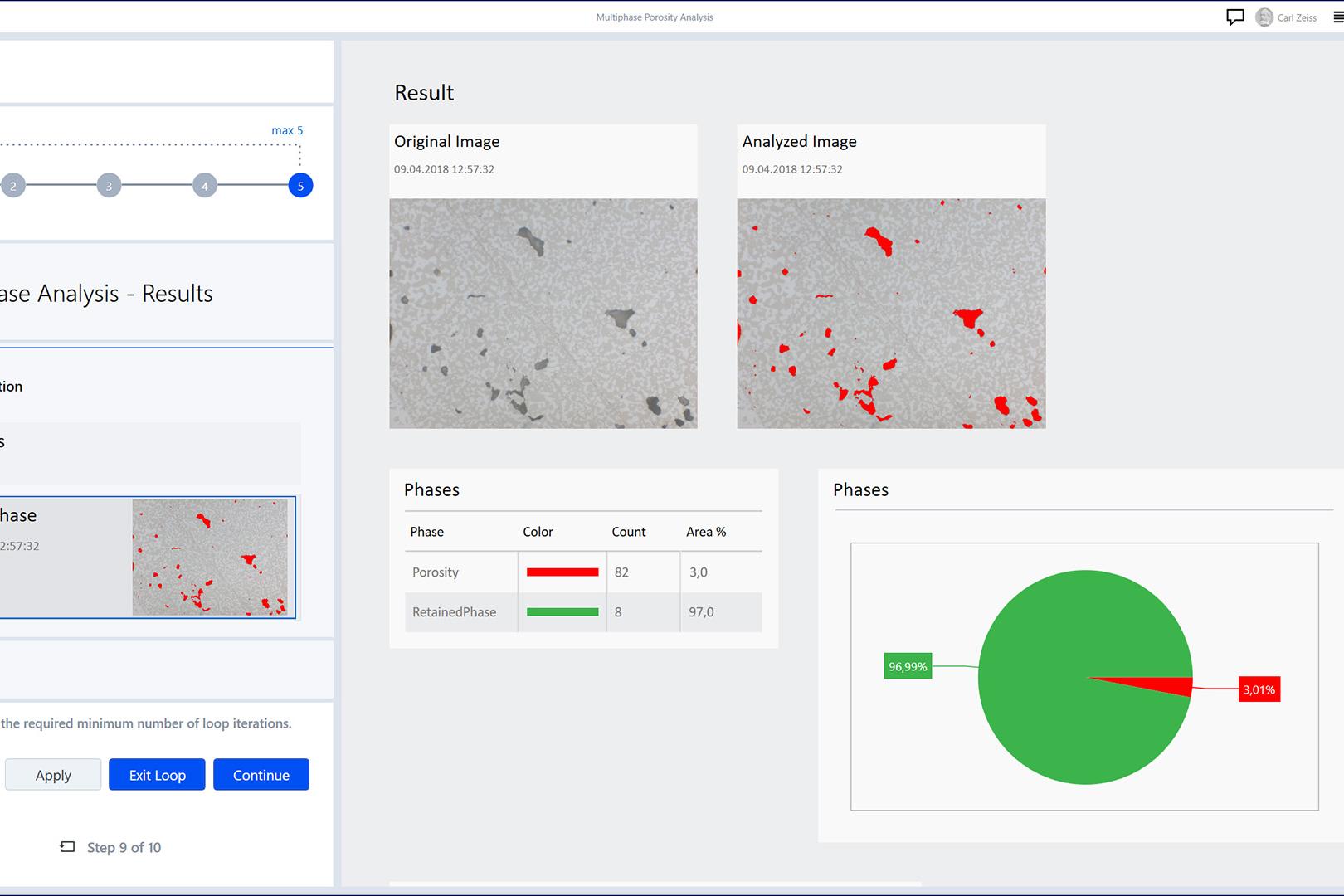

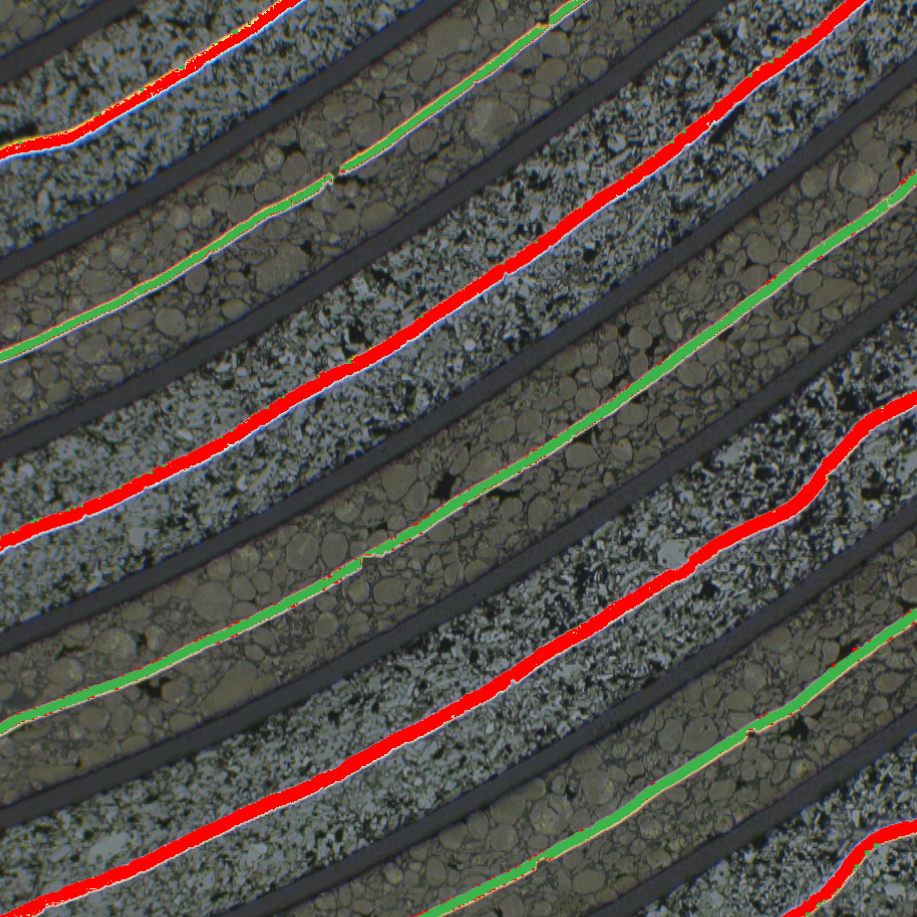

  • Porosity Analysis - With Multiphase Module​

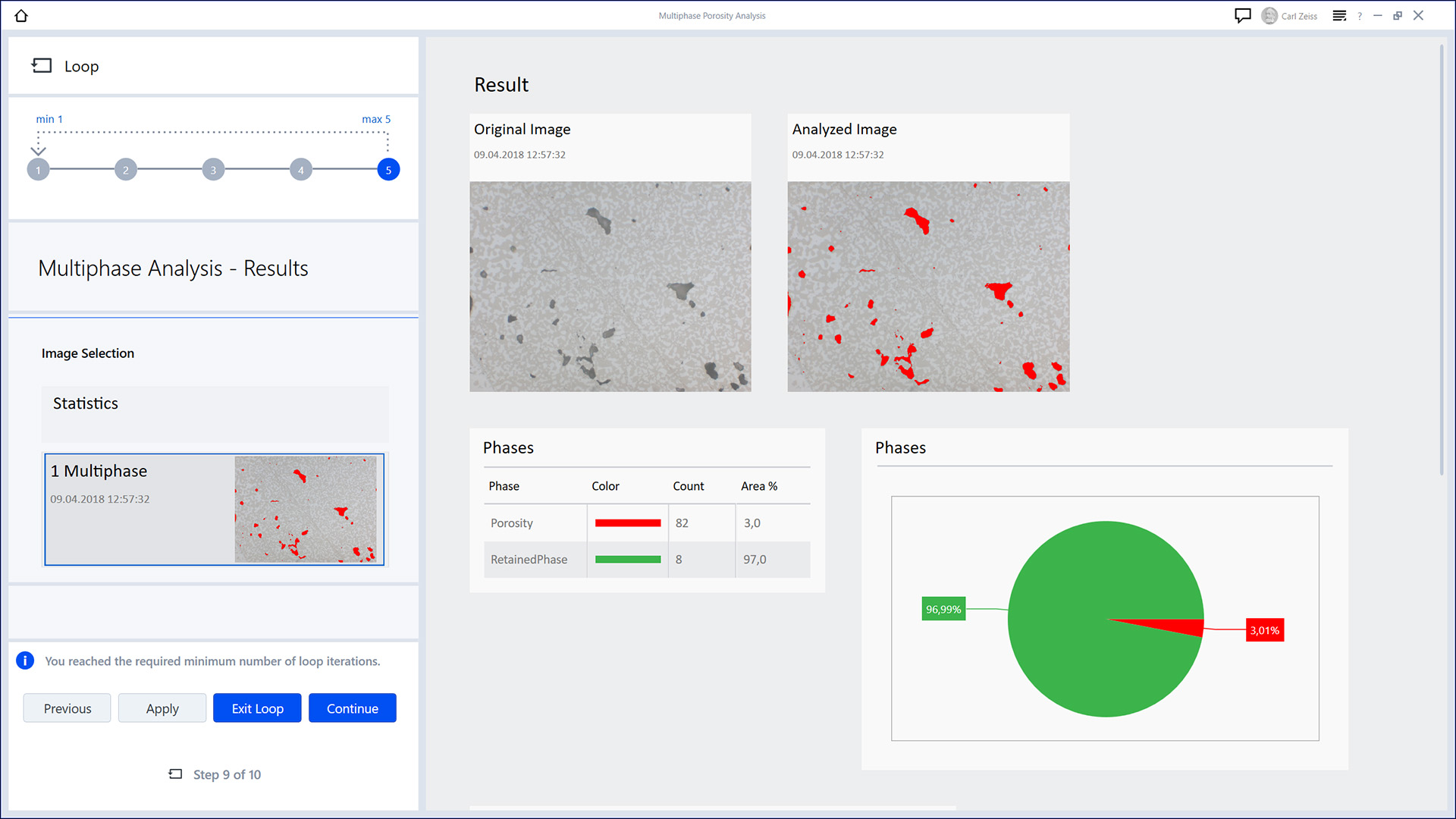

    Porosity Analysis - With Multiphase Module​

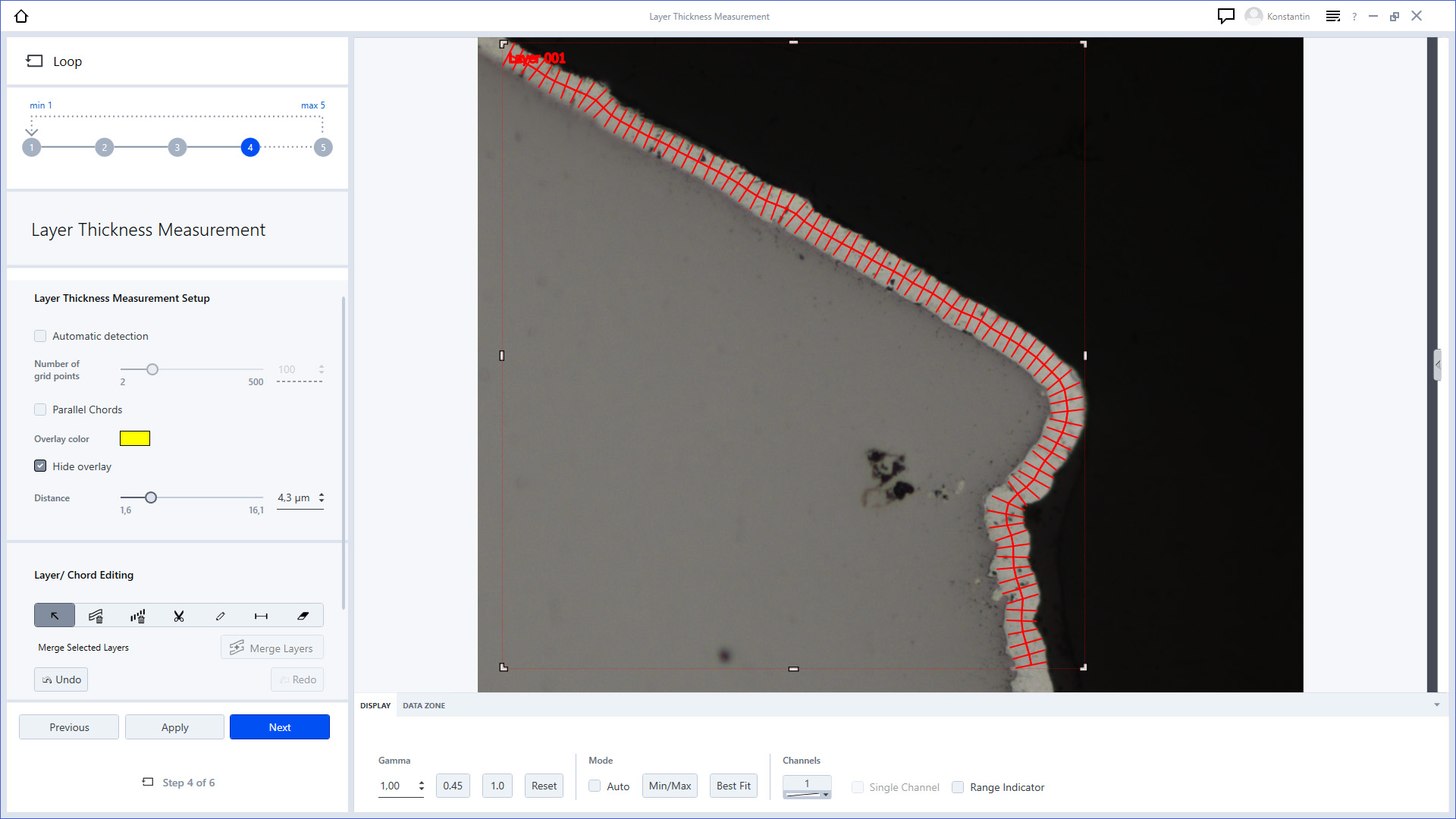

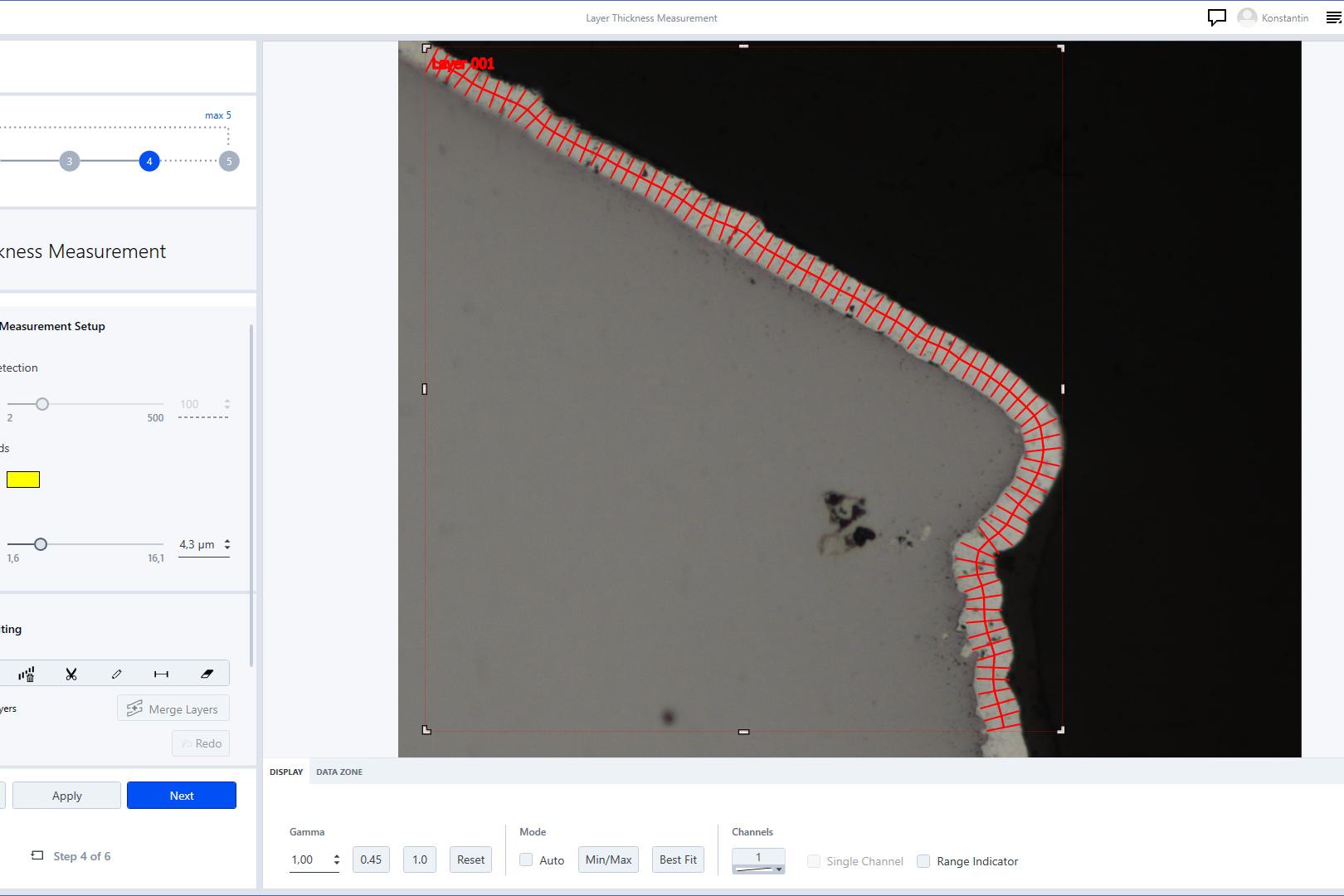

  • Layer Thickness Measurement

    Layer Thickness Measurement

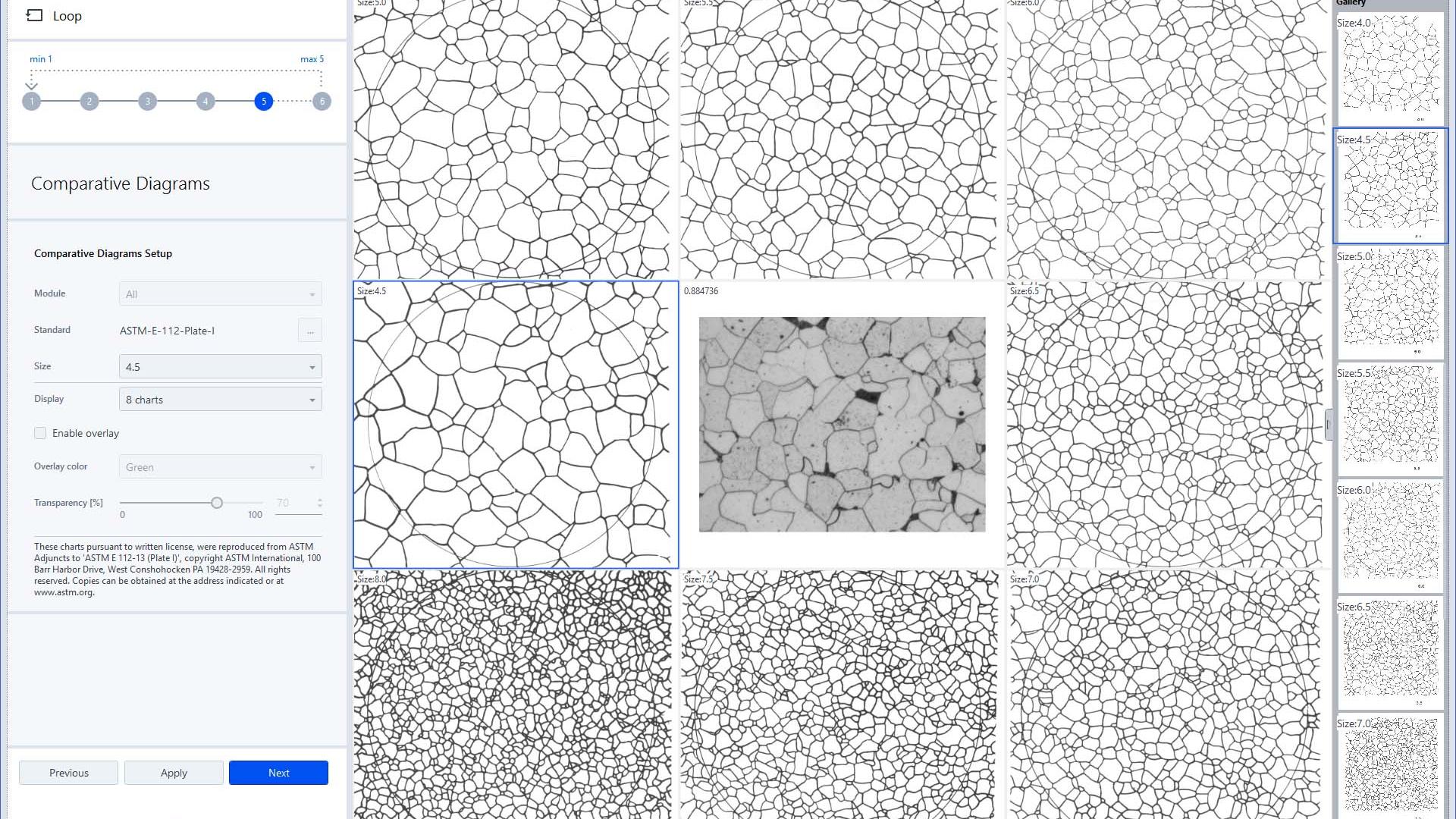

  • Comparative Diagrams - Sample comparison with wall charts​

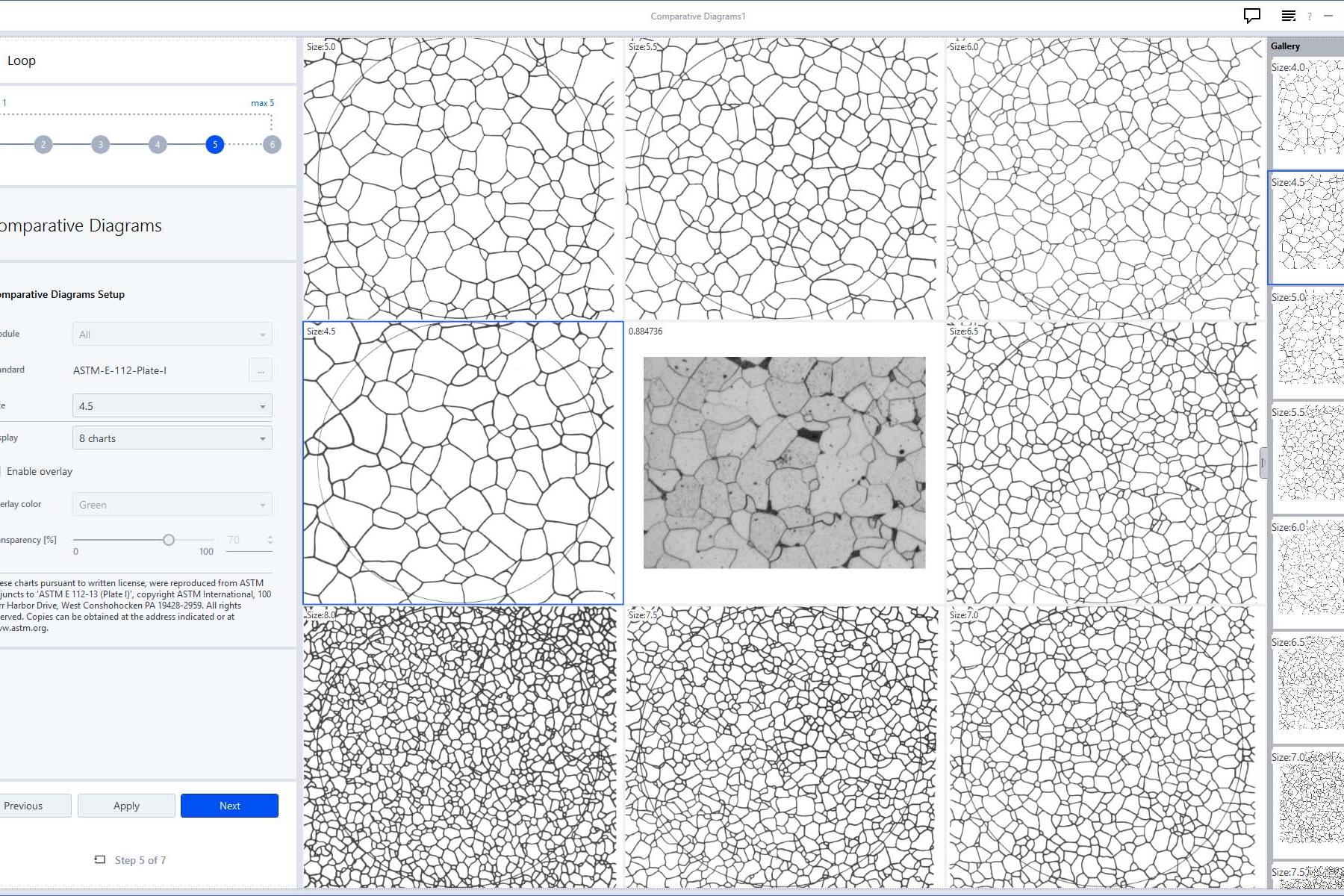

    Comparative Diagrams - Sample comparison with wall charts​

Imaging Software with Integrated Materials Modules

ZEN core is your command center for automated imaging and analysis functions. Modules for the determination of grain sizes, phases and layer thicknesses, as well as for the classification of graphite particles, enable Axioscope to provide all meaningful metallographic applications under a uniform user interface.


  • ZEISS objective lenses
  • Easy to Use for Powerful Workflow Efficiencies

Easy to Use for Powerful Workflow Efficiencies

Axioscope is designed to make everyday operations as comfortable and safe as possible.

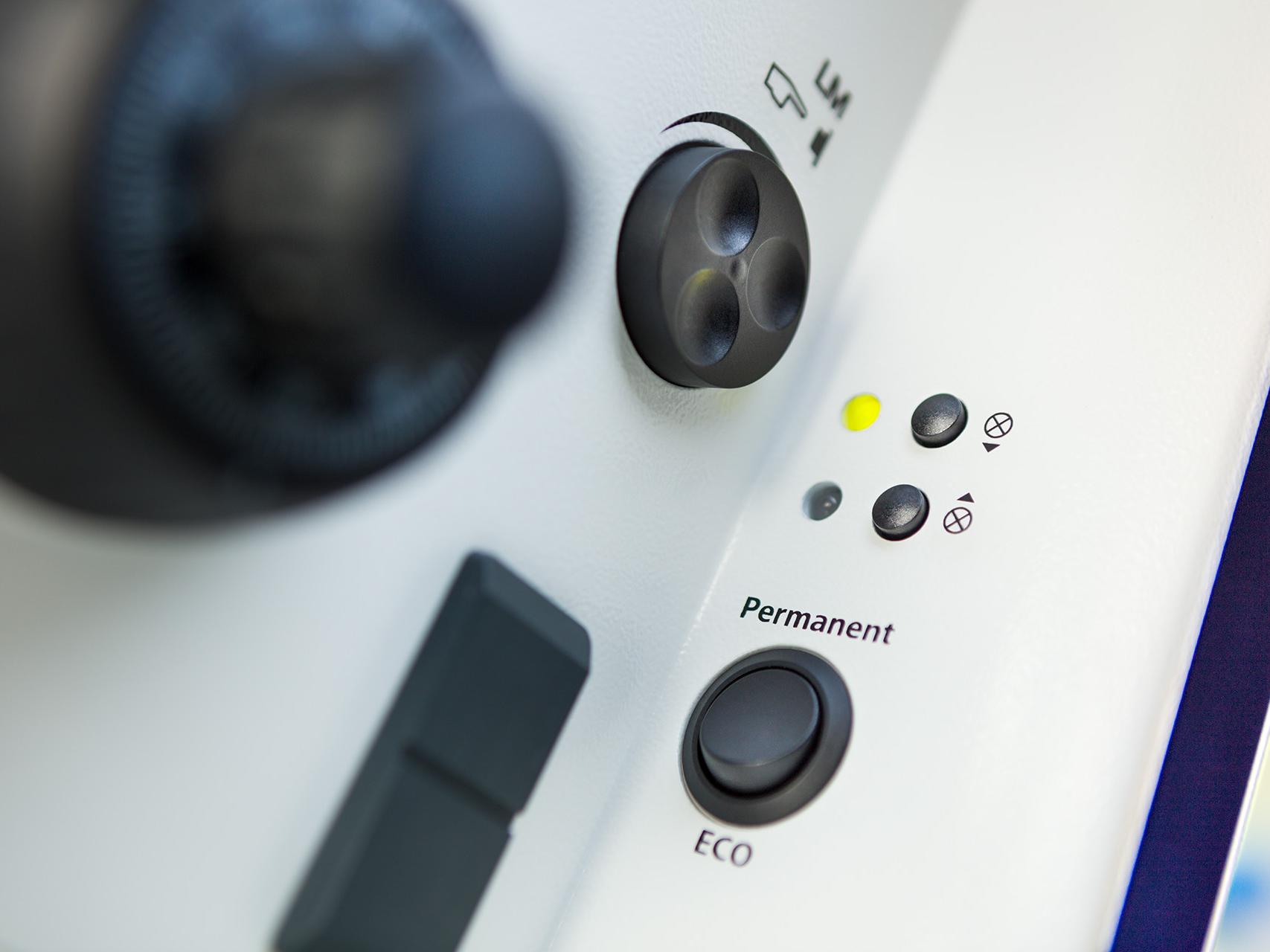

  • Ergonomic Operating Concept: Axioscope is designed to make everyday operations as comfortable and safe as possible. Important controls – like focus drive, stage drive, light manager and image capture – are arranged on both sides such that they can be operated without overworking either hand.
  • Easy Image Acquisition: Simply press the ergonomically located snap button, and acquire images while maintaining control over position, magnification or contrast. In this way, the microscopic examination can be fully documented, while you always keep the sample in view.

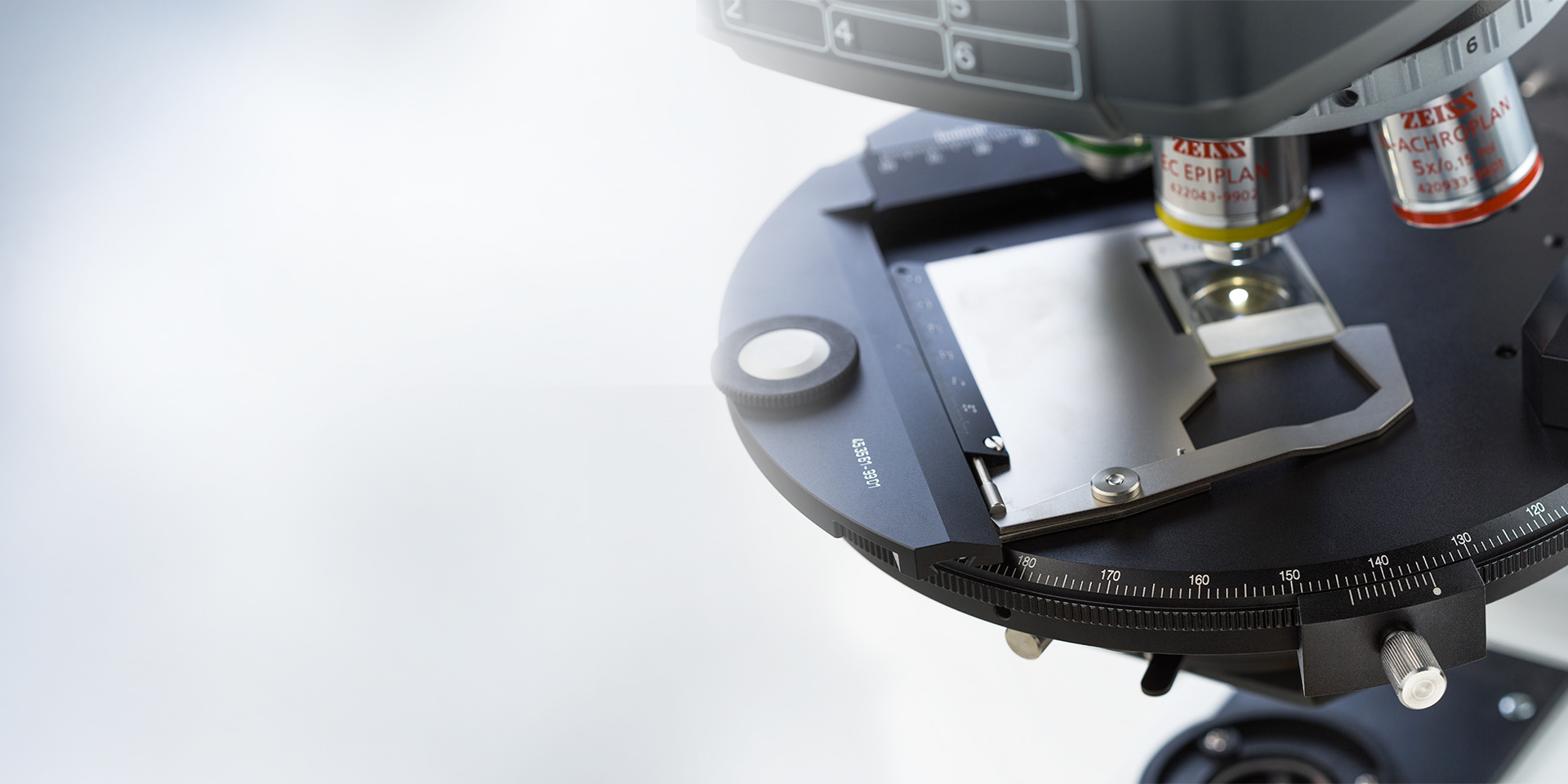

  • Perfect Control of All Stage Axes: The operating concept of Axioscope 7, the motorized product version, gives you full control over all stage movement, without having to take your hands off the microscope. Switch the focus drives between Z-axis control and XY stage control with a simple press of a button.
