ZEISS FOR EYE CARE PROFESSIONALS

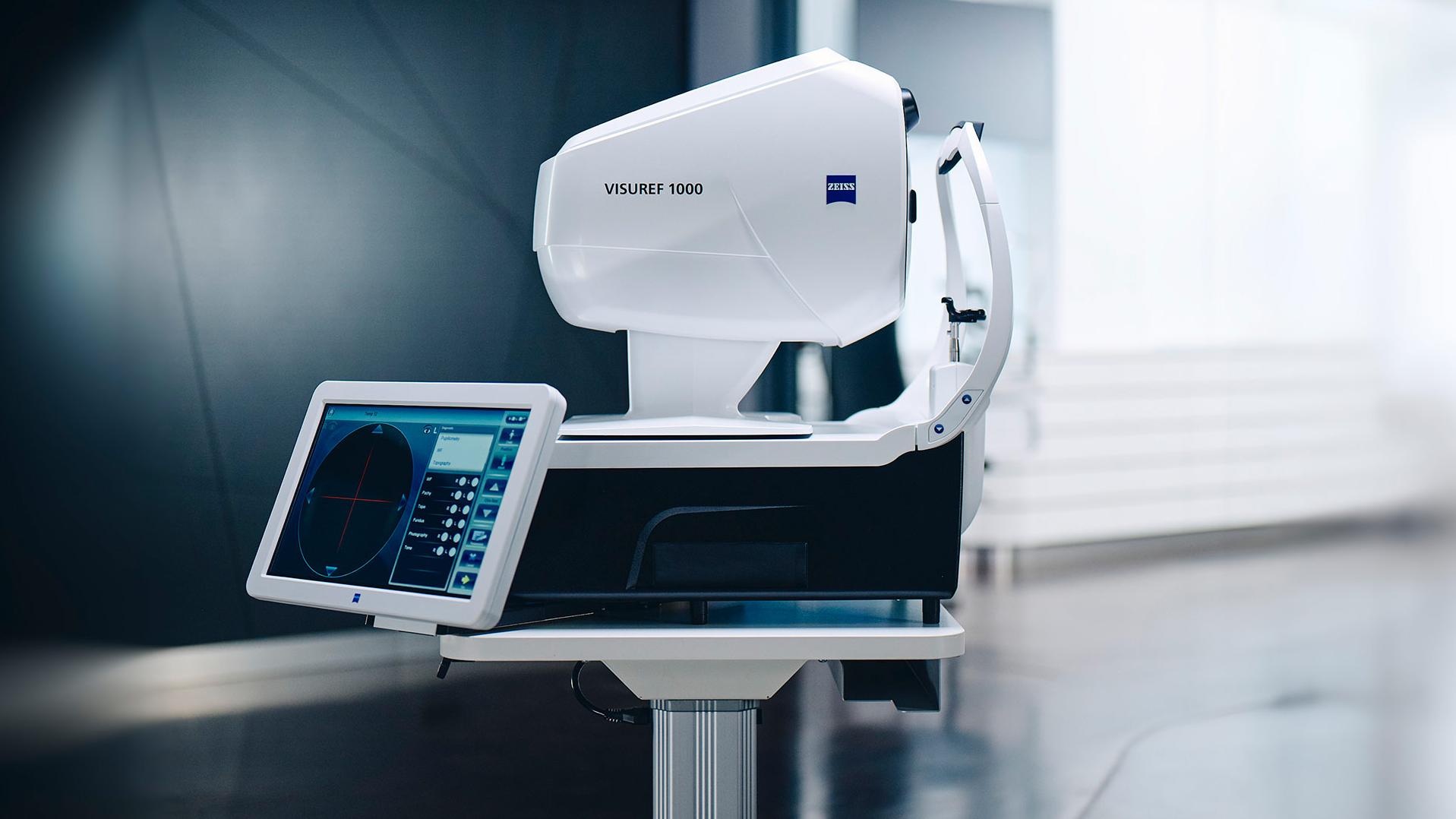

ZEISS VISUREF 1000

Make the invisible visible. Comprehensive care. Individual clarity.

VISUREF® 1000 from ZEISS – a fully integrated solution that enables ECPs to deliver a comprehensive eye exam at the push of a button. It integrates advanced objective wavefront refraction and multiple measurement functionalities. The result: comprehensive eye care in a single, streamlined device.

Get in touch
  • Comprehensive and precise
  • Personalised care with individual solutions
  • Streamlined and efficient
Page Content
Get in touch

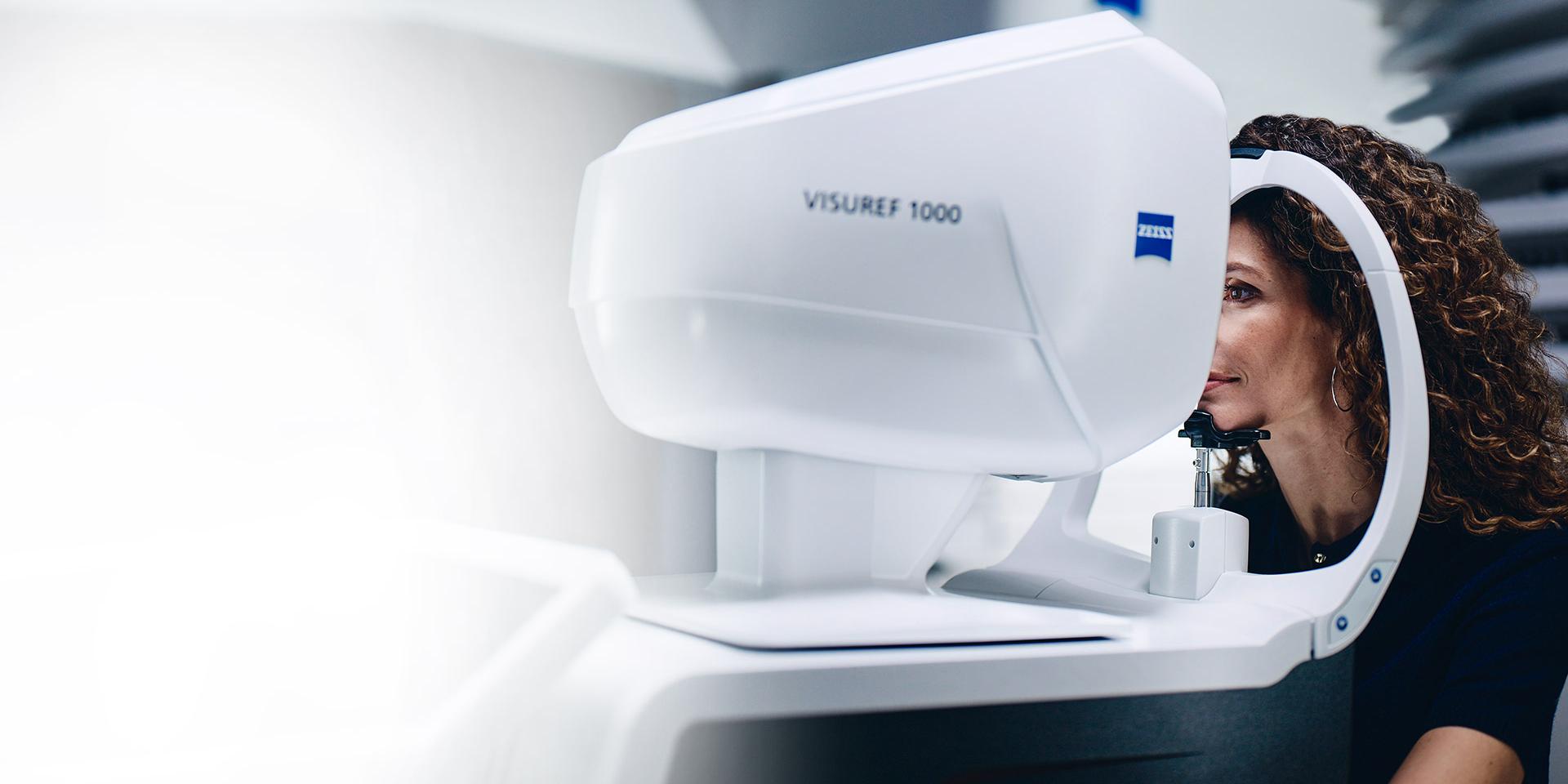

A woman looking through the ZEISS VISUREF 1000.

Comprehensive screening solution

ZEISS VISUREF 1000 is a high-end refraction device that combines several functions in a single platform. It integrates Wavefront aberrometry measurements, keratometry, pupillometry, corneal topography, tonometry, fundus photography, pachymetry and NIBUT measurement into one comprehensive system.

Learn more

Comprehensive screening solution

A close up of an eye.

Anterior segment analysis

ZEISS VISUREF 1000 gives you essential tools to assess the anterior segment of the eye, so that you can efficiently capture images and obtain crucial information about the eye’s structures.

Advanced objective refraction:

  • Objective day and night refraction measurements
  • Shack-Hartmann Wavefront Aberrometry
  • Measures lower-order and higher-order aberrations

Additional measurement capabilities:

  • Corneal topography
    • Including keratoconus probability index (KPI) and corneal aberrometry
  • Retroillumination
    • For visualisation of lens opacity
  • Non-Invasive break-up time (NIBUT)
    • Measurement and analysis of tear film quality and stability
  • Colour image
    • With grading scales for meibomian gland area assessment and tear meniscus height measurement

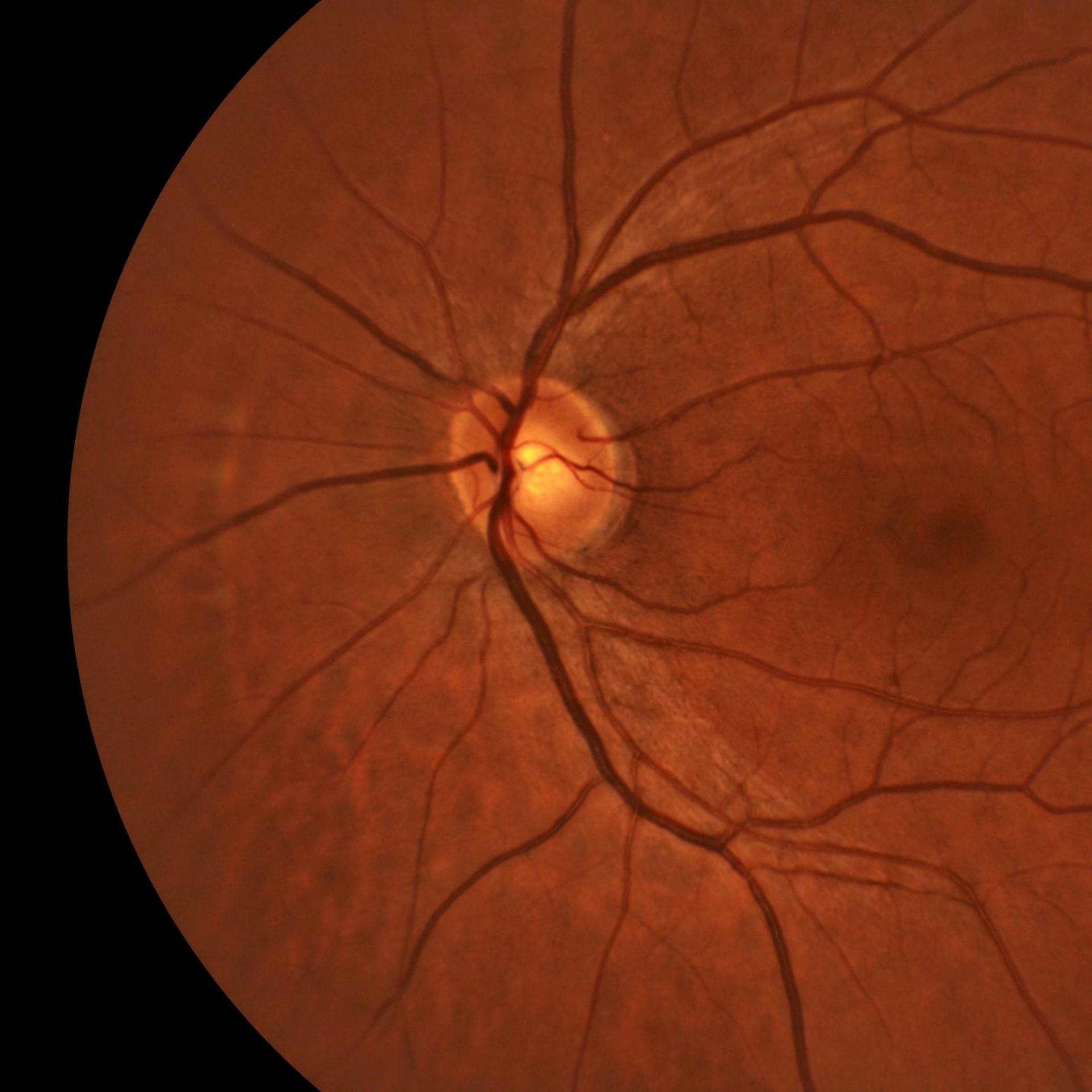

Posterior segment analysis.

Posterior segment analysis

The ZEISS VISUREF 1000 includes advanced posterior-segment functions, allowing for high-resolution imaging and detailed assessment of the retina and optic nerve head. This aids in the diagnosis and monitoring of various retinal conditions such as glaucoma, diabetic retinopathy, or age-related macular degeneration, among many others.

Measurement Capabilities:

  • Non-contact tonometer
    • Measurement of Intraocular Pressure (IOP)
  • Scheimpflug camera for pachymetry
    • Measuring and displaying of corneal thickness and the iridio angle; automated IOP correction
  • Non-Mydiatric fundus imaging
    • 45° angle of view with cup/disc (C/D) ratio measurement
Two women looking at the screen of the ZEISS VISUREF 1000.

Personalised care with individual solutions

ZEISS VISUREF 1000 opens the door to additional custom-tailored solutions for your customers. In addition to lenses optimised with ZEISS i.Scription, the system gives you insights that can help you select the right contact lenses, make appropriate referrals, screen for dry eyes, and more. ZEISS enables precise, accurate detection – and you the right solution for each detected issue.

  • 85%

    of customers say that individual treatment is a key driver for them.1

  • 95%

    of wearers prefer lenses optimised with ZEISS i.Scription technology over ZEISS free-form lenses without ZEISS i.Scription.2

  • Icon eye with fingerprint in front of it.

    Individualised i.Scription lenses by ZEISS

    With ZEISS VISUREF 1000, your practice can provide premium lens prescriptions optimised with ZEISS i.Scription technology. Each individual receives a unique lens solution that gives improved vision, day and night. ZEISS lenses made with ZEISS i.Scription reduce glare, add brilliance, and sharpen contrast.

    Learn more
  • Icon eye with waterdrop in front of it.

    Dry eye screening

    Dry eye is a common condition, and with increased screen time, advancing population age, and various environmental factors, it is becoming even more common. VISUREF® 1000 incorporates various measurements used to screen for Dry Eyes: Non-Invasive Break-Up Time (NIBUT), Scleral picture with Efron Grading Scale for Meibomian Gland Assessment, grading of level of redness and overall quality of the eye and lids and measurement of tear meniscus height.

  • Icon eye with contact lens in front of it.

    Contact lens fitting

    ZEISS VISUREF 1000 provides corneal topography results for precise contact lens fitting. Use this along with the unit’s dry eye assessment capability to make fine-tuned contact lens recommendations for each customer.

Two women looking at a tablet.

Streamlined and efficient

Seamless integration into the ZEISS Ecosystem
ZEISS VISUREF 1000 can be seamlessly integrated into the ZEISS Ecosystem for a more efficient and less error-prone workflow. This will save time and ensure that your data is always accurate and up-to-date. Say goodbye to tedious management tasks and hello to a more streamlined and enjoyable consultation process.

Connected to ZEISS VISUCONSULT 500
Managing your customer journey has never been easier. The ZEISS VISUCONSULT 500 system connects all your ZEISS devices, helps you manage your practice’s data, and simplifies your consultation process. Full integration means more efficiency – and better results.

Your optimised consultation workflow doesn’t just benefit you. The ZEISS Ecosystem is built for eye-care professionals to work together, so you can efficiently provide access to all the preventive and treatment benefits of collaborative care.

Try out our AR-Model

AR-Model ZEISS VISUREF 1000

Explore ZEISS VISUREF 1000 in your practice:

Engage with the VISUREF® 1000 in your environment and discover the most suitable location for your individual needs.

Features and details

An image of the ZEISS VISUREF 600 from the side.
Light shield (optional)

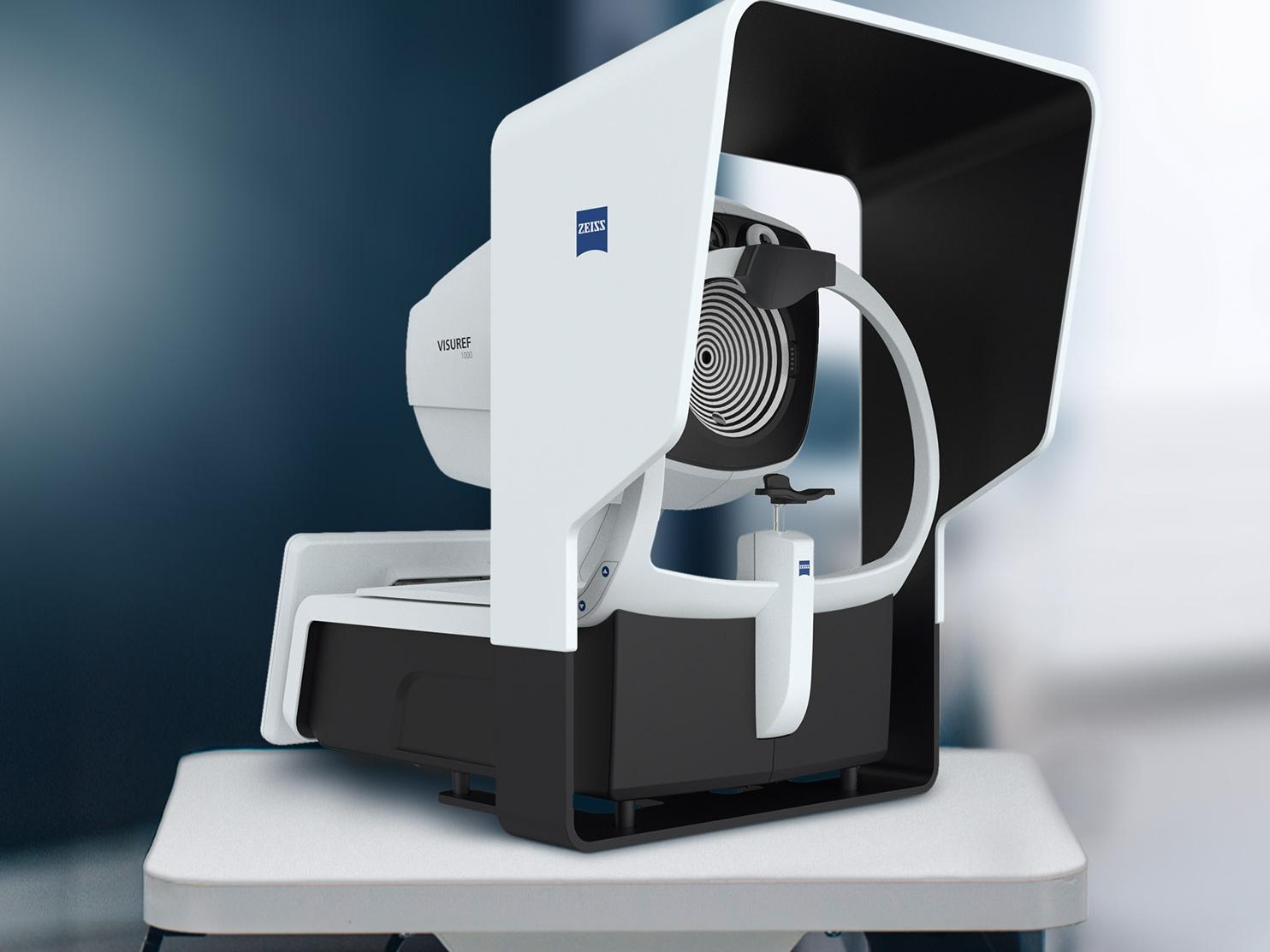

ZEISS VISUREF 1000 with light shield.

An optional Light Shield in a matching ZEISS design is available to improve lighting. This ensures reliable measurement results even when the lighting is not optimal.
ZEISS ecosystem

The interface to ZEISS VISUCONSULT 500 ensures quick and easy transfer of lens-specific measurement data.
Additional services

A wide range of additional measurements enables you to offer a variety of additional services. Specific measurements for contact lenses and dry eye management are supplemented by screening-specific measurements such as tonometry and fundus photography. This provides an ideal basis for integration with the ZEISS EyeCare Network.
Easy to use

A large, swivel-mounted touch display allows the user to operate the system from three sides.
Wavefront autorefractor

Gives precise objective refraction data on a wavefront basis for ZEISS lenses with i.Scription® technology.
Automatic measuring process

All measurement steps are carried out automatically after the start of the measurement process. Helpful tips on how to guide the customer appear during measurement.

  • Third-party Content Blocked

    The video player is blocked due to your cookie preferences. To change the settings and play the video, please click the button below and consent to use of "Functional" tracking technologies.

Technical data

  • Size (W x L x H)

    420 mm x 660 mm x 560 mm

    Weight

    32 kg

    LCD Screen

    Screen Type

    LCD

    Size

    15.6“ Full HD Resoluion (1920 x 1084 pixels)

    Output

    RS232 / USB / VGA / LAN / HDMI / DP

    Operating Conditions

    Temperature

    +10ºC to +35ºC

  • Method

    Shack-Hartmann

    Measuring pupil range

    2.0 mm – 7.0 mm (3 zones)

    Number of Measuring Points

    1400 points for 7 mm pupil (emmetropic)

    Spherical Power Range

    -20D to +20D (VD = 12 mm)

    Cylinder Power Range

    0D to +8D

    Working Distance

    94 mm

  • Number of Rings

    42

    Number of Measuring Points

    6144

    Number of Analysed Points

    > 100,000

    Diameter of Covered Corneal Area at 43D

    From 0.75 mm > 10 mm

    Measurement range

    37.5 to 56D

    Method

    RED light Placido Disk (650 nm)

  • Method

    Non-contact air puff applanation tonometry

    Calibrated Range

    (7mmHg – 44 mmHg)

    Accuracy

    +/- 2 mm/Hg

  • Method

    Static Scheimpflug / Scan Scheimpflug

    Pachymeter Range

    150-1300 μm

    Accuracy

    < 5 microns

    Measurement wavelength

    455 nm no UV

  • Measurement wavelength

    850 nm

    Method

    Retro LED

  • Method

    Digital Fundus Photography

    View Angle

    45°

    Resolution

    6 Mpix

    Optical Resolution

    > 60 lines per mm

    Sphere Correction

    -20D to +20D

    Minimum Pupil size

    3.5 mm

    Centering

    With IR centering LEDs

    Illumination Wavelength

    IR
    White flash

    Image Displayed

    12 Bits ADC

  • Method

    Digital Camera

    Illumination

    2 white LEDs

    Resolution of Image

    Full HD (> 1024 x 768)

    Field of View

    40 mm
