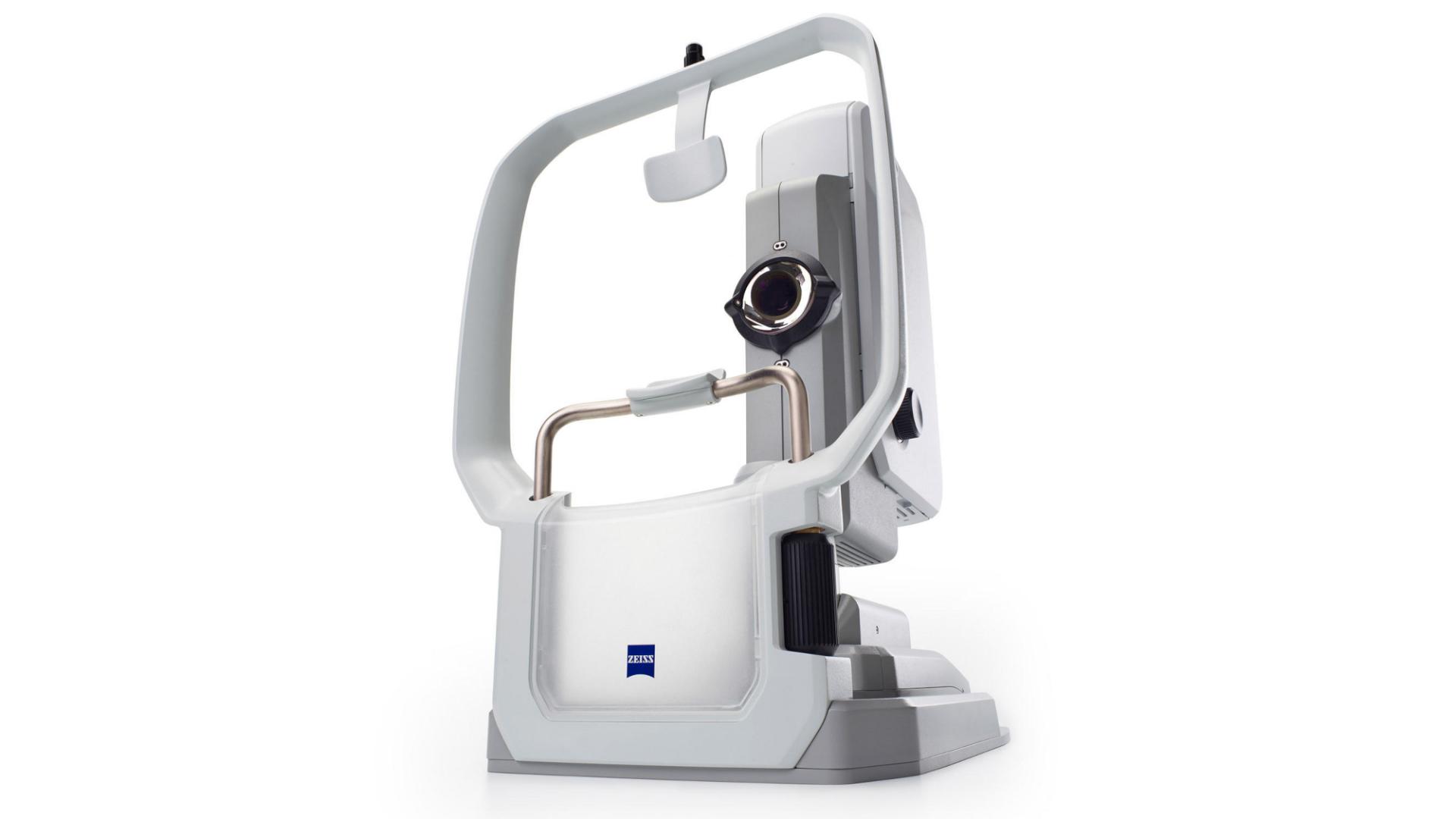

ZEISS CLARUS 700

Technical Specifications

Specifications

ZEISS CLARUS 700

Imaging Modes
True Color (with Red, Green and Blue channel separation)
Fluorescein Angiography
Autofluorescence-Green
Autofluorescence-Blue
Infrared reflectance
External eye image (ocular surface)
Stereo
Field of View (measured from the center of the eye):

Widefield (one image): 133°

Ultra-widefield (two-images): 200°

Montage (up to six images): up to 267°

Resolution:
Optical: 7.3 μm
Minimum Pupil Diameter:
2.5 mm
Working Distance:
25 mm (patient's eye to front lens)
Compensation for ametropia:
- 24 D to + 20 D continuous
Light Sources:
Red LED: 585 - 640 nm
Green LED: 500 - 585 nm
Blue LED: 435 - 500 nm
Infrared laser diode: 785 nm
Automatic Operations:
Auto-focus
Auto montage
Auto-gain
Auto-laterality
Aqusition Speed:
Live IR Preview
10 frames/second
Image Capture
< 0.2 seconds

Instrument specifications

Acquisition device weight:
~23.6 kg
Acquisition device dimensions (W x D x H):
362 mm x 546 mm x 676 mm
Instrument table:
Description: Wheelchair accessible, electronic lift
Table dimensions (W x D x H): 916 mm x 615 mm x 711 - 925 mm
Weight: ~38 kg
Instrument input power:
External power supply: 100-240 VAC, 50/60 Hz
Electrical class: IEC 60601-1 Class I

At-Instrument Computer

Monitor
22" Full HD MVA LCD with LED backlight
Touch screen

Capacitive, Multi-Touch

Resolution
1920 x 1080
RAM
32 GB
Processor
Intel® 6th Generation Core i5-6500TE
Input/output
USB 3.0 x 4; RS-232 x 2; 1.5 kV
Isolated Gigabit ethernet port x 2; HDMI; and DisplayPort
Hard drive
2 TB (minimum 200,000 images)
Operating System
Windows 10
Dimensions (W x D x H)
21.5'' (54,6 cm) x 2.5'' (6.4 cm) x 13,75'' (34.9 cm)
Weight
~8.5 kg
Mounting
VESA 75/100 mm

Downloads

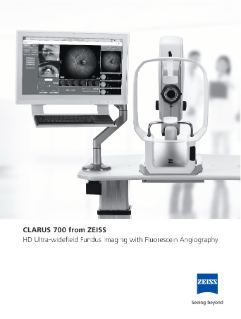

    • CLARUS 700 from ZEISS

      Pages: 12
      File size: 10 MB

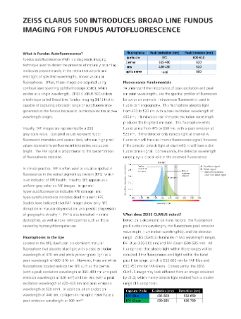

    • Broad Line Fundus imaging for Fundus Autofluorescence
