ZEISS OPMI Lumera T
PRODUCT

ZEISS OPMI Lumera T Excellence in illumination

The OPMI Lumera® T from ZEISS delivers excellence in optics and Stereo Coaxial Illumination (SCI) reveals the fine details for better decision making. With the External Data Injection System (EDIS) you can see overlays on the live image in the eyepiece. For flexibility in the OR the ZEISS OPMI Lumera T can be equipped with a completely integrated assistant’s microscope. Effortless positioning with magnetic brakes provides handling comfort – quality made by ZEISS.

Get in contact with us
  • See the details
  • Effortless positioning
  • Independent second view

See the details

Instant red reflex brightly illuminates the eye – due to Stereo Coaxial Illumination (SCI) from ZEISS – even with mature cataracts.

Integrated Superlux® Eye xenon illumination allows you to view the structure of the eye in great detail.

ZEISS OPMI Lumera T

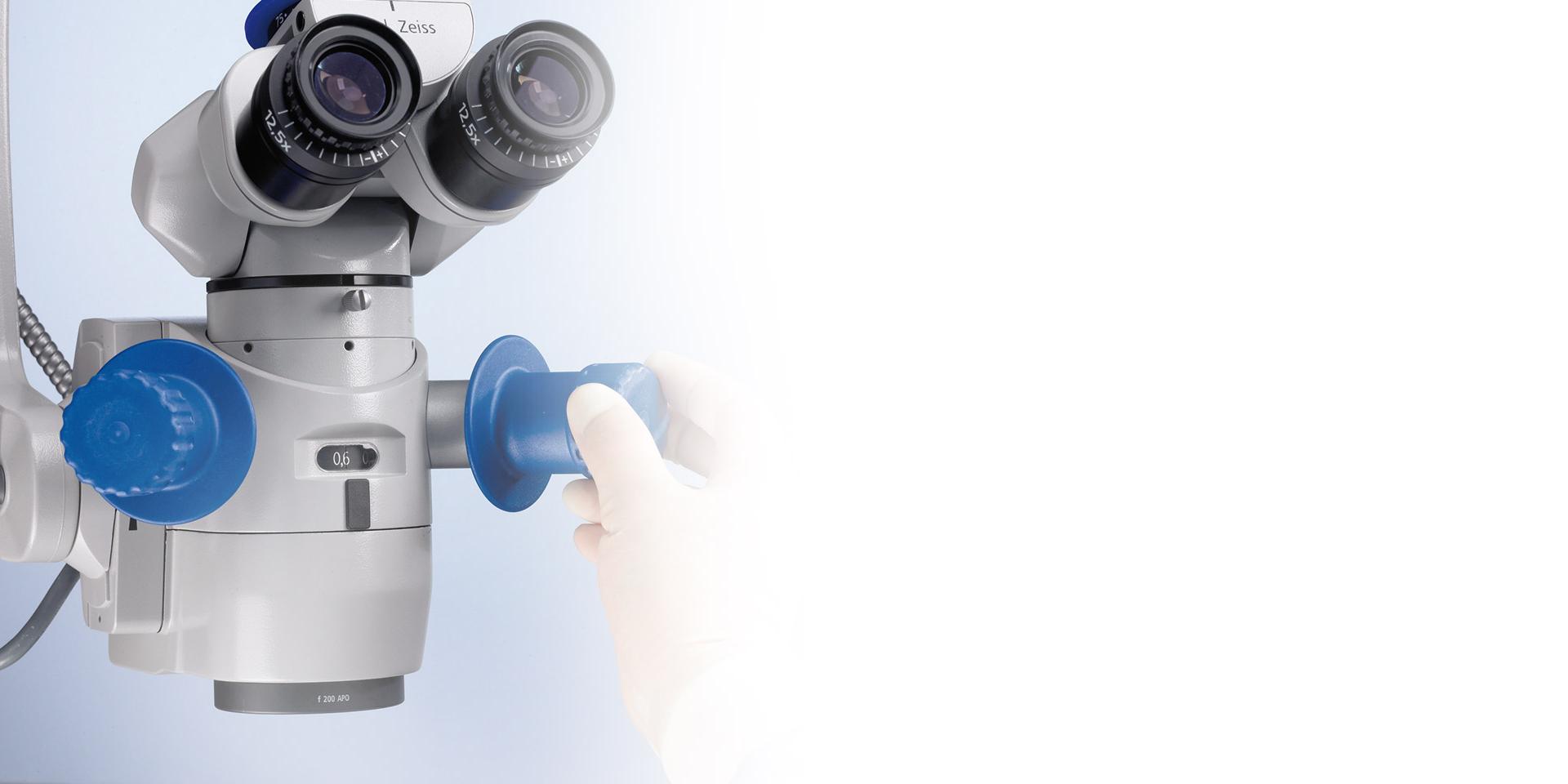

Effortless positioning

When the brakes are released the system smoothly glides into a new position. When locked, the surgical microscope remains firmly in place.

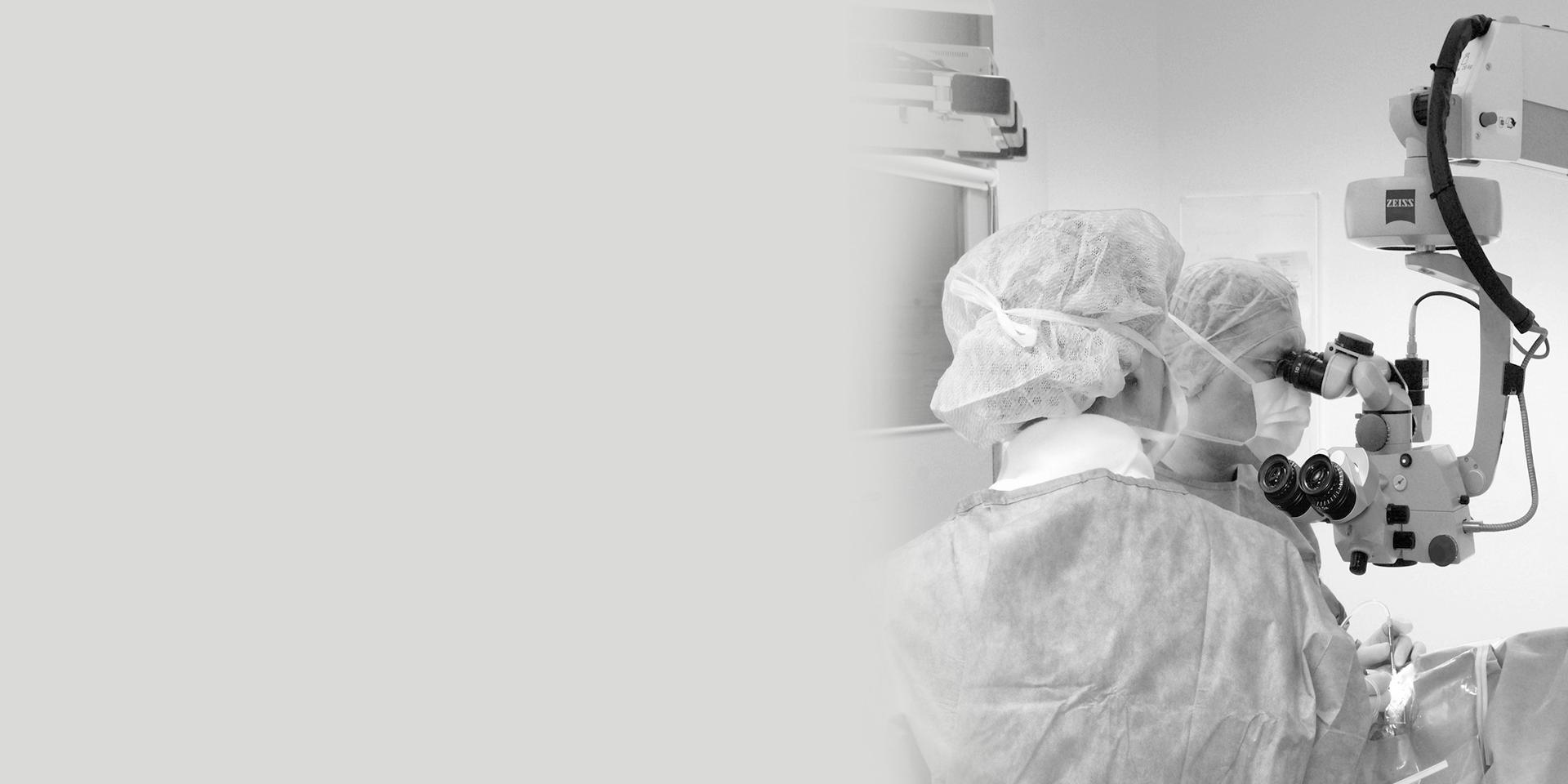

Independent second view

The ZEISS OPMI Lumera T surgical microscope can be equipped with a completely integrated assistant’s microscope. The second surgeon selects the focus and magnification independently of the primary surgeon, thus enabling active assistance.

ZEISS CALLISTO eye

ZEISS CALLISTO eye

Computer assisted cataract surgery

CALLISTO eye® from ZEISS provides surgeon-controlled assistance functions, projected directly in the surgical field. Overlays in the eyepiece support markerless toric IOL alignment and convenient data management meets demanding requirements in documentation.

Options & accessories

Foot control panel

Foot control panel

Give you and your team more cable-free space in the OR. The foot control panel offers positioning flexibility and the ability to configure functions based on your preferences. The ergonomically designed foot panel allows you to control your surgical microscope – intuitively and reliably.



TRIO 610 HD camera system

TRIO 610 HD camera system

The high definition camera system with apochromatic video optics provides surgical microscope images generated with enhanced resolution and color rendition. To support all requirements or wishes for customized video solutions, external components can be mounted to the surgical microscope system.

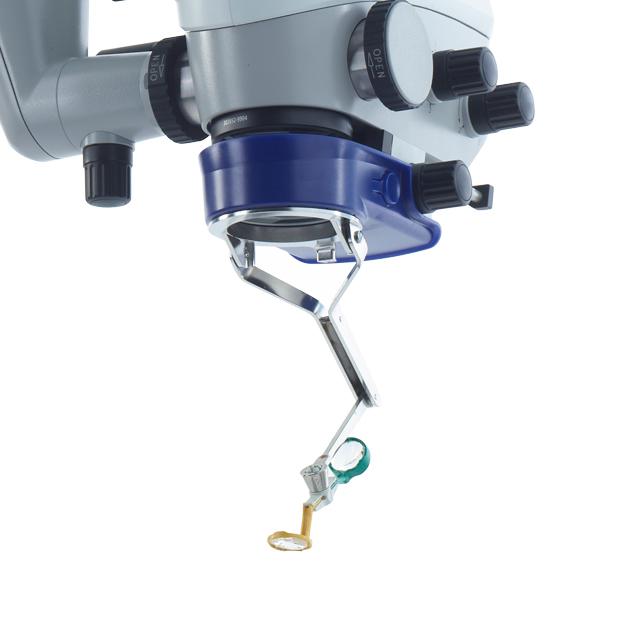

ZEISS RESIGHT 700

ZEISS RESIGHT 700

Hands-free focusing with the RESIGHT® 700 from ZEISS fundus viewing system provides a clear view of every detail of the retina and allows more focus on the patient. Fast, convenient and sterile access to a second lens to view between wide field and high magnification.

Invertube ZEISS OPMI Lumera T

Invertertube

The Invertertube can be used for all types of procedures, considerably reducing reconfiguration. The function of the inverter is already integrated into the binocular tube. An ergonomic design allows the surgeon to sit upright and work in comfort.

Downloads

  • Preview image of OPMI Lumera T Brochure EN

    OPMI Lumera T Brochure EN

    Pages: 8
    File size: 838 KB
    Download

Specifications

S88 / OPMI Lumera T
Surgical microscope
Apochromatic optics
Motorized zoom system, 1:6 zoom ratio,
magnification factors = 0.4 to 2.4
Focusing range: 50 mm
Binocular tube: Invertertube®
(optional 0-180° tiltable tube)
Eyepieces: 10x (12.5x optional)
Objective lens f = 200 mm (f = 175 mm optional)
DeepView: depth of field management system
Integrated assistant’s microscope
Fully stereoscopic
Illumination
SCI: red reflex illumination and surrounding field
illumination, both dimmable, patent pending
Retinal protection device
Fiber optic illumination
Light source
Superlux Eye xenon light source with manual bulb change
HaMode filter
Optional: 12V, 100W halogen light Source with fully automatic bulb
change in case of lamp failure
Option: dual halogen light source
Optional: xenon / halogen combi light source
Integrated 408 nm UV barrier filter
Blue-blocking filter
Optional: fluorescence filter
X-Y coupling
40 mm x 40 mm adjustment range
Button for starting positions of the X-Y coupling and focus
Weight
13.7 kg (30.2 lb)
(with Invertertube, integrated assistant’s microscope, objective lens and eyepieces)
Suspension system
S88 floor stand
Maximum load: 20 kg (44.1 lb) (complete microscope equipment, including accessories)
