CUSTOMIZE YOUR SOFTWARE

ZEISS INSPECT X-Ray: Product Options

Choose from flexible, modular solutions for visual inspection, metrology, and NDT – tailored to your quality assurance needs.

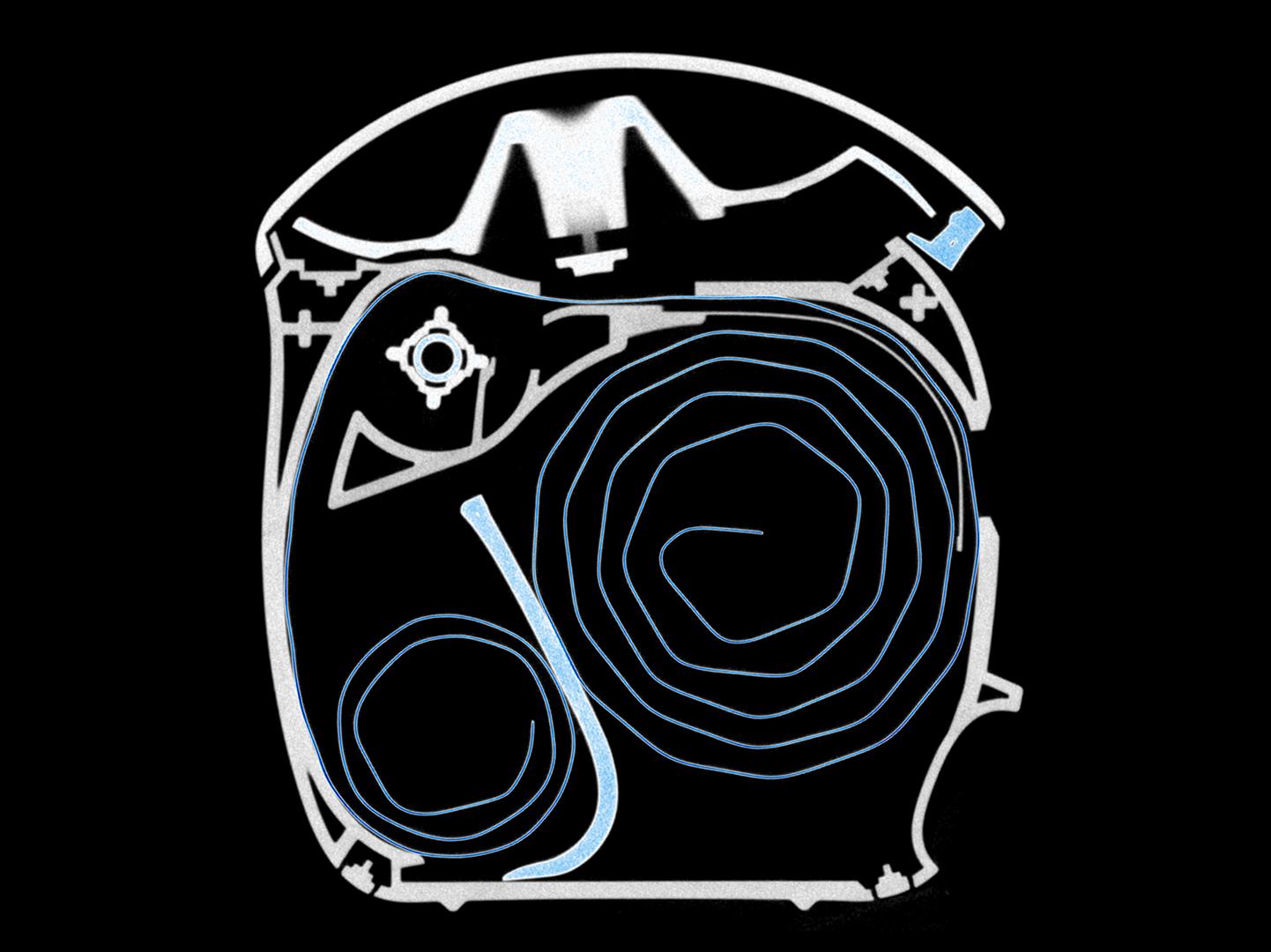

ZEISS INSPECT X-Ray for visual inspection

Your foundation for powerful inspection of 3D x-ray data. Gain unparalleled insights into your components by visually inspecting both surface and internal structures.

Visual inspection

Dimensional metrology

Ensure precision in every measurement and benefit from powerful metrology functions.

Dimensional metrology

Automated nondestructive testing (NDT)

Detect defects with confidence. Optional AI solutions enable fast, precise, and reliable inspections.

Automated NDT

Explore your options

While the ZEISS INSPECT X-Ray license offers the basis for visual inspections you can flexibly extend the software and benefit from powerful functions for metrology and NDT.

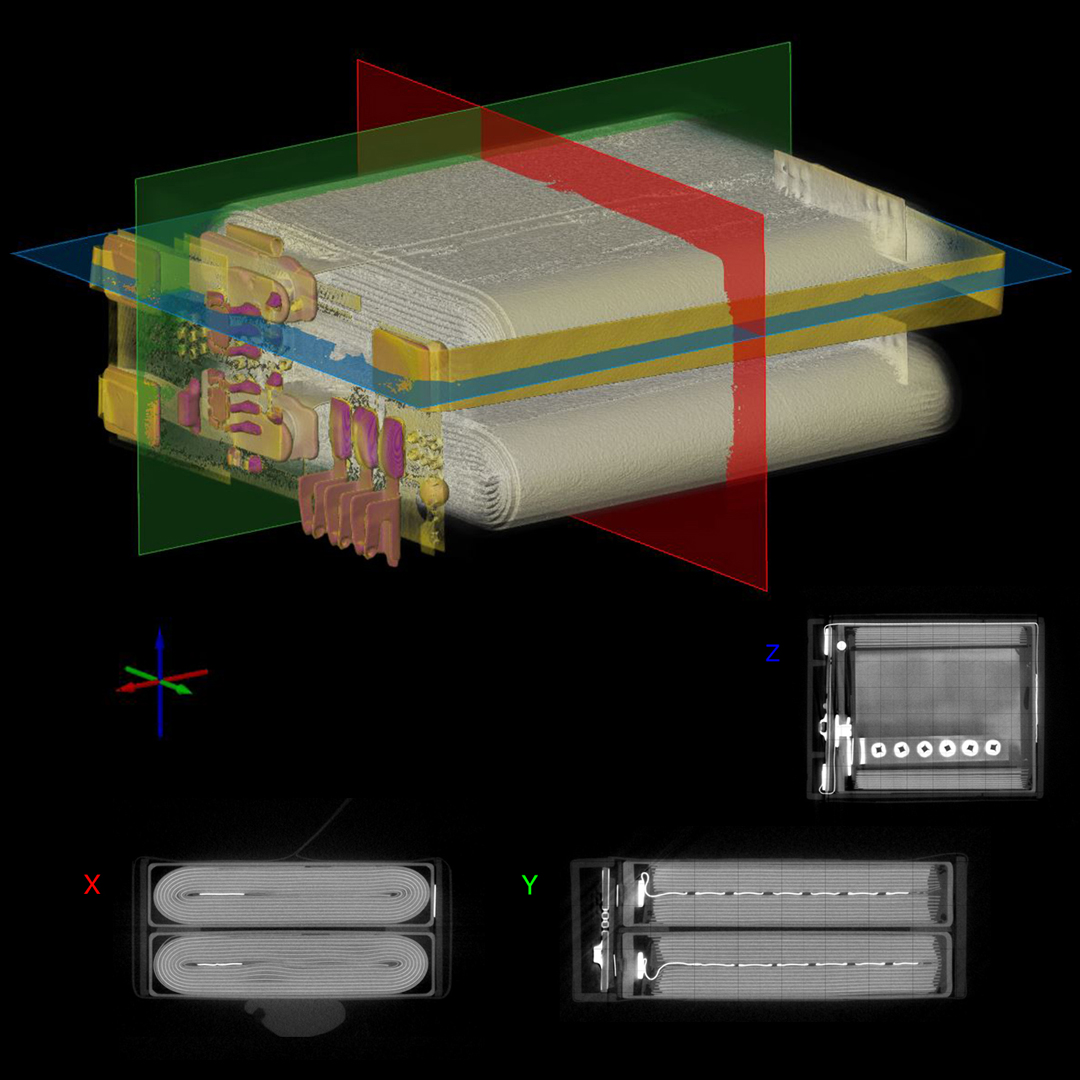

VISUAL INSPECTION

Set the foundation and see the inside with precision

The ZEISS INSPECT X-Ray license delivers powerful visual inspection functionality, including orthogonal views, 3D path navigation, rotation, and unroll section views – it is your foundation for CT data analysis.

What's included?

All ZEISS INSPECT pro functionalities, e.g. python scripting, stage projects and meshes
Import of CT data
Complete visual inspection with multiview
Basic polygonization for alignment and simple measurements
Volume segmentation
Automation
Export of results with video or image stacks

Request now or get a free trial

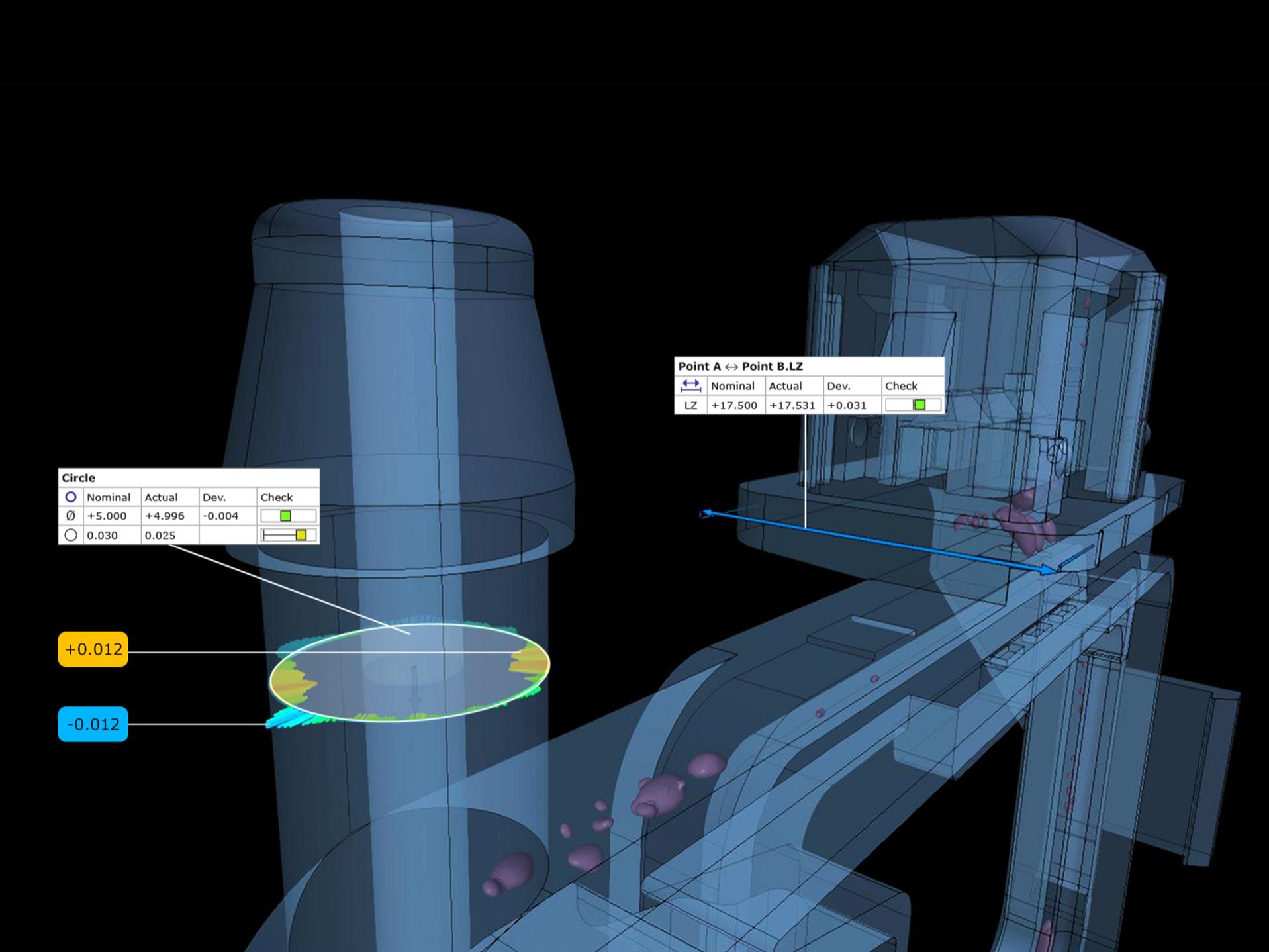

ADVANCED METROLOGY

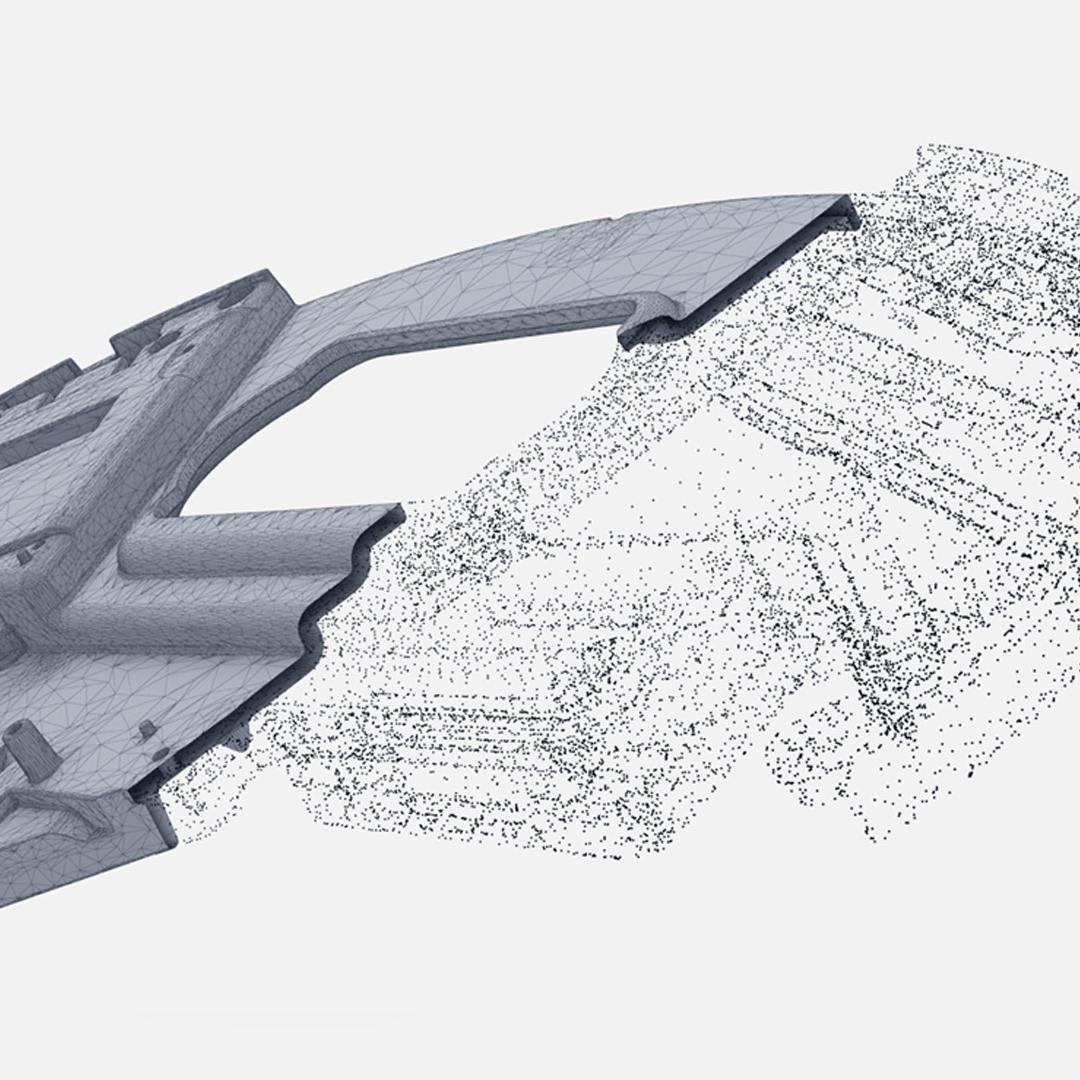

Advanced polygonization for precise dimensional metrology

The Advanced X-Ray Metrology app ensures precision in every measurement with verified single and multi-material polygonization. Create accurate meshes as a foundation for detailed analyses, even for complex CT scans with non-uniform gray values. The advanced solution delivers reliable results, supporting precise dimensional metrology workflows.

What's included?

Advanced polygonization which is the foundation for:

Guided GD&T inspection
Actual-nominal comparison
Wall thickness, warpage and trend analysis
Full surface inspection and internal structures
Point-by-point measurement
Sections and curves

Request now or get a free trial

AUTOMATED NDT

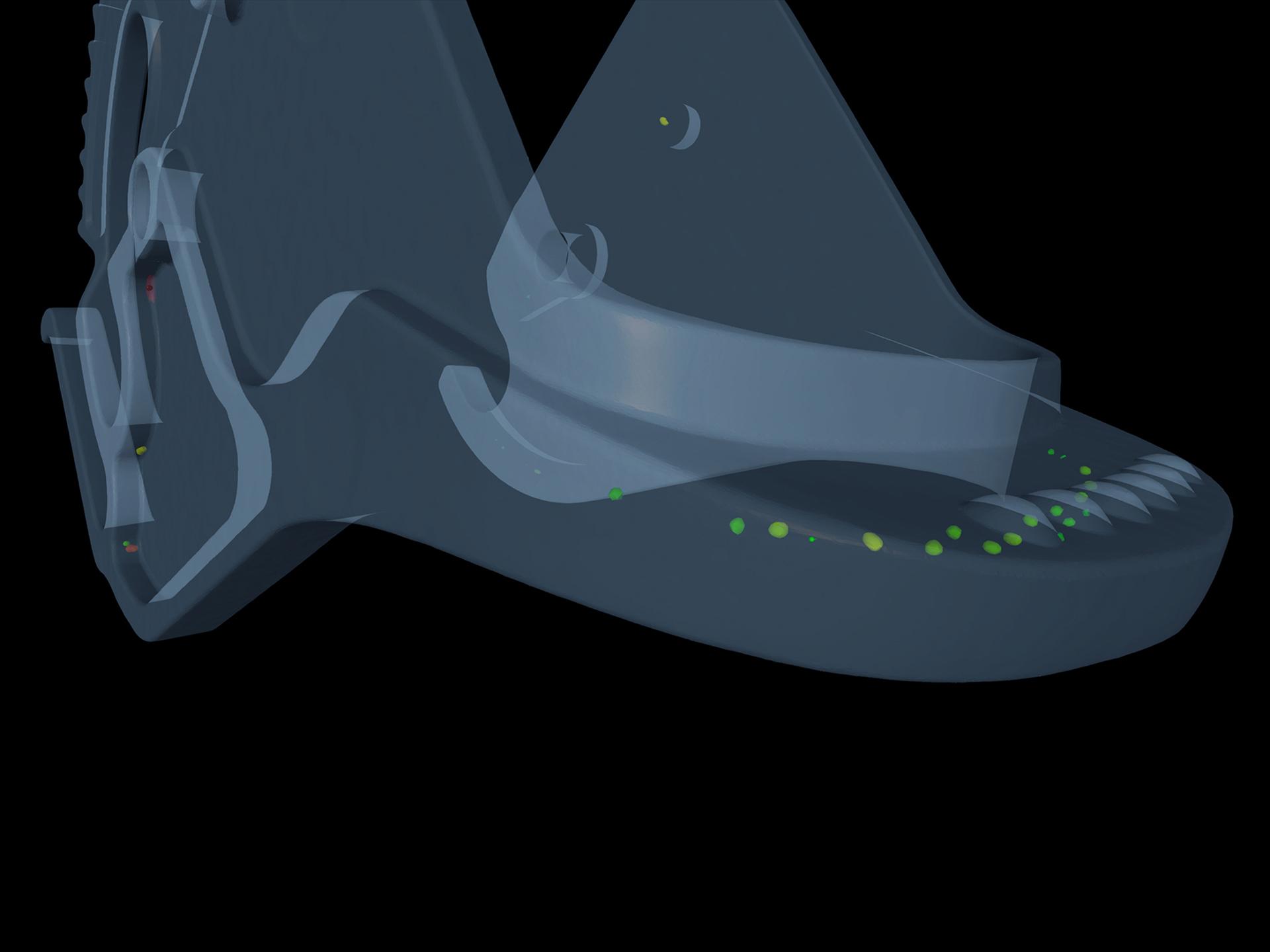

Advanced defect detection and evaluations

Detect defects with confidence. Perform comprehensive internal inspections, including advanced P202 and P203 porosity analyses, to identify pores, cracks, and residues without damaging components. Optional AI functionalities enhance speed and precision, while ensuring the highest safety and reliability for your quality assurance processes.

What's included?

Advanced defect analysis of the whole part and in details (e.g. for defect volume or diameter, distance to outer surface or sphericity)
Guided analysis according to BDG directives P202 and P203 available in the ZEISS Quality Software Store
Find open pores and pores close to the outer hull
Detect voids, cracks, inclusions and residues of foreign particles
Analyze gaps, struts and hollows

Request now or get a free trial

Enjoy the free license

If you have already tested the pro version or want to use a long-term license, the free license of ZEISS INSPECT X-Ray offers you all functions for the most common evaluations. Free of charge and without detours.

Get the free license
