Xradia Versa Upgrades
Service & Support

Xradia Versa Upgrades

For an Increased Life Time
and Extended Functionality

Accessories

Upgrade Your Microscope with Additional Accessories to Enhance Your Microscope’s Capability

Sample Holder

Securely Mount a Broad Range of Sample Sizes and Types

ZEISS sample holders are designed with kinematic principles in mind for accurate and repeatable placement on the sample stage. Each design offers unique gripping techniques to accommodate your sample properly for imaging. In addition, the designs are proven for X-ray imaging stability. Specify whether your mount is for standard use or to be compatible with the Autoloader.

Benefits:

  • Support stable mechanical and thermal mounting techniques
  • Easy on/off exchange
  • Automatic presence sensing (Autoloader compatible)

Product Flyer



CT Scaling Phantoms and Filter Options

Customize Your X-Ray Spectrum to Meet Your Imaging Application Needs and Correlate Your Grayscale Data against Appropriate Hounsfield Units

Ensure that your data is properly calibrated to Hounsfield units, in which air and water have values of 0 and 100, by using the ZEISS CT Scaling Phantom. Extend your range of low-energy and high-energy filters by exploring the additional filter options offered by ZEISS for higher energy filtering requirements and applications such as metallurgy.

Benefits:

  • Calibrate your grayscale data accurately
  • Benefit from a reduction of beam hardening artifacts
  • Improved transmission on dense or larger materials
  • Experience higher magnification

Product Flyer

Analysis & Software

Enhance the User Experience and the Depths of Your Analysis Workflow Using Advanced Hardware and Computational Software Available through ZEISS

ZEISS Advanced Reconstruction Toolbox

Better Image Quality, Higher Throughput

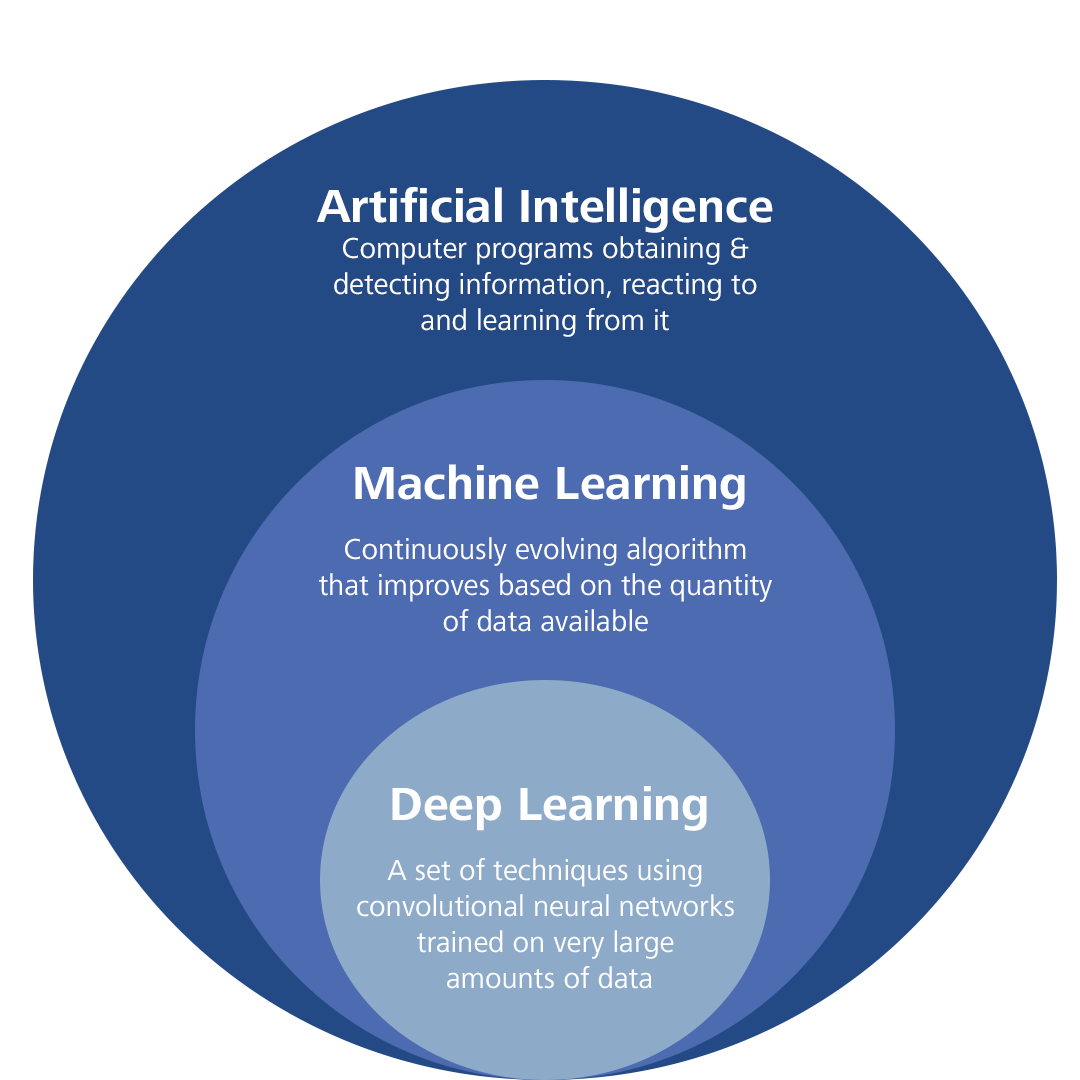

Advanced Reconstruction Toolbox (ART) introduces Artificial Intelligence (AI)-driven reconstruction technologies on your ZEISS Xradia 3D X-ray microscope (XRM) or microCT. A deep understanding of both X-ray physics and applications enable you to solve some of the hardest imaging challenges in new and innovative ways.

Discover how speed of data acquisition and reconstruction as well as image quality are enhanced without sacrificing resolution by using OptiRecon, two variants of DeepRecon and PhaseEvolve, the unique modules of ART.

Your Benefits at a Glance

With the Advanced Reconstruction Toolbox, you are able to:
  • Improve data collection and analysis for faster decision-making
  • Greatly enhance image quality
  • Achieve superior interior tomography or throughput on a broad class of samples
  • Reveal subtle difference through improved contrast-to-noise
  • Increase speed at an order of magnitude for sample classes requiring repetitive workflow

The optional modules are workstation-based solutions for easy access and usability:

  • DeepRecon Pro & Custom for Deep learning-based reconstruction
  • PhaseEvolve for contrast enhancement
  • OptiRecon for iterative reconstruction
  • ZEISS Advanced Reconstruction Toolbox

    3D X-ray dataset of a camera lens acquired using ZEISS Xradia 620 Versa and DeepRecon Pro

ZEISS DeepRecon Pro provides a straightforward, uncomplicated, and powerful application of AI and deep neural network technology for enhancing X-ray tomography results without prior knowledge on deep learning technology. [...] It helps us to reduce the scan time required for in situ fluid-rock interaction experiments when we need to work with long exposure times.

Dr. Markus Ohl

X-Ray microscopy | EPOS-NL MINT | Utrecht University, NL

Analysis Workstation

Configured and Proven for Visualization and Computational Performance

In order to maintain instrument uptime for imaging, many prefer streamlining their workflow via a secondary analysis workstation. The secondary workstation supports additional studies optimizing reconstruction, navigating and visualizing datasets, and post-processing results.

Benefits:

  • Maximize imaging uptime
  • Improve results throughput
  • Supports advanced visualization and analysis software packages
  • Extends data storage reliably

Product Flyer

ORS Dragonfly Pro

Easy to Use, Advanced Analysis and Visualization Software Solution

Available exclusively through ZEISS, ORS Dragonfly Pro offers an intuitive, complete, and customizable toolkit for visualization and analysis of large 3D grayscale data. Dragonfly Pro allows for navigation, annotation, creation of media files, including video production, of your 3D data. Perform image processing, segmentation and object analysis to quantify your results.

Benefits:

  • High definition graphics rendering
  • Create rich 3D videos
  • Object analysis
  • Machine learning segmentation
  • Macro recording for repetitive workflows
  • Python customization software packages

Product Flyer

Software Trial

SmartShield

Protect Your Sample to Optimize Experiment Setup

SmartShield is a simple solution that protects your sample and your microscope, working within Scout-and-ScanTM control system. SmartShield wraps a digital “envelope” around your sample with an easy click of a button. This automated solution allows you to confidently bring your sample even closer to the source and detector. With SmartShield, new and advanced users alike can experience an elegant sample setup workflow and efficient navigation of the Versa system.

Benefits:

  • Fully integrated rapid envelope creation within 5 minutes
  • 3D awareness for sample and instrument safety
  • Enhanced operator efficiency during setup

Product Flyer

In Situ Upgrades

Discover Add-on Integrated Tensile Testing Solutions for In Situ X-Ray Applications

In Situ Deben Stages

Multiple Custom Testing Stages for in Situ Imaging

A modular tensile & compression testing system can be installed within the Versa system to achieve clear visual interpretation of how the properties of materials and composites change under different loading conditions.

Benefits:

  • Integrated In Situ recipe control for Deben stages
  • In Situ  interface kit option

Product Flyer

In Situ Interface Kit

Optimize Your Set-up and Operation

The In Situ Interface Kit for Xradia Versa will optimize your set-up and operation, providing you with the results you're looking for faster and with a higher ease of operation.

Experience the highest level of stability, flexibility and controlled integration of several types of In Situ devices on the Xradia Versa, which benefit from an optical architecture that takes into account resolution in variable environmental conditions. Perform In Situ  and 4D (time dependent studies) to understand the impact of heating, cooling, wetting, tension, tensile compression, drainage and other simulated environmental studies.

Benefits:

  • Resolution at a Distance (RaaD) enables superior  In Situ imaging
  • Custom In Situ  flow interface kit by special order

Product Flyer

Modules & Components

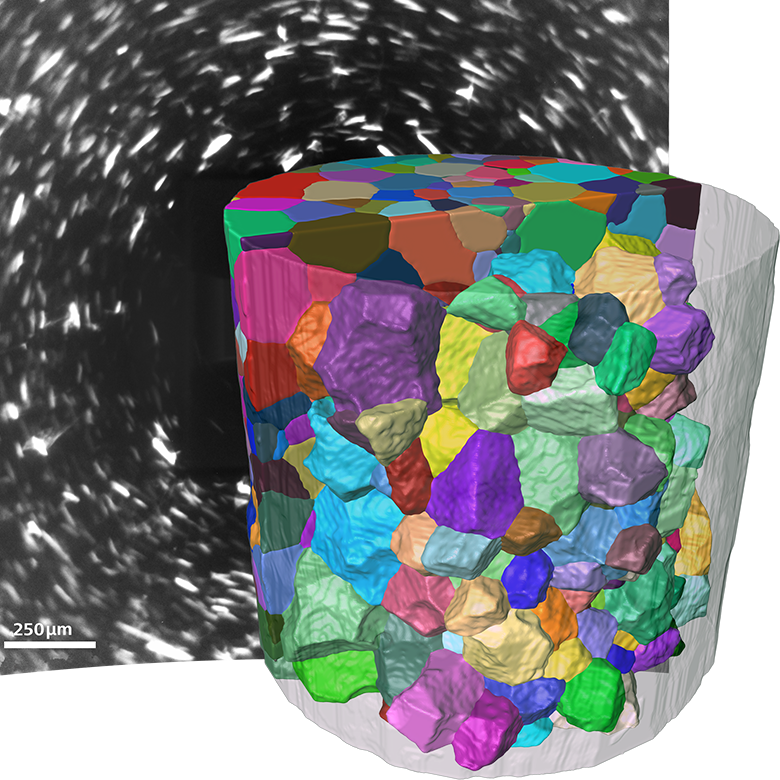

LabDCT

Unlock Grain Structure and Crystallographic Information from within Your Lab

Achieve direct visualization of 3D crystallographic grain orientation and morphology in a non-destructive tomography environment with the LabDCT advanced imaging module powered with GrainMapper3D software by Xnovo Technology. Achieve enhanced understanding of the fundamental materials science behind these processes with microscopic imaging features in three dimensions.

Benefits:

  • Acquire and reconstruct crystallographic information
  • Direct 3D visualization of grain orientation and morphology
  • Non-destructive grain structure information

Product Flyer

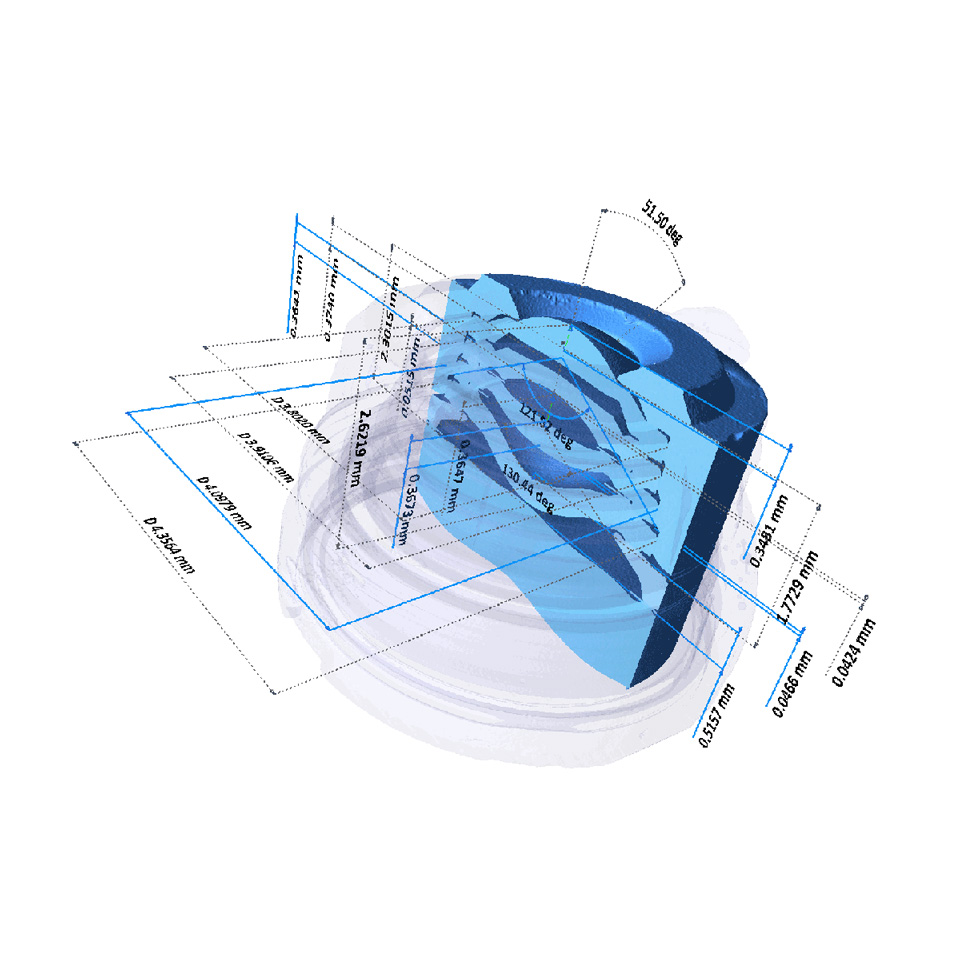

Metrology Extension

Reveal Smallest Dimensions - Measure Them Most Accurately

ZEISS introduced an entirely new realm of non-destructive insights into submicron details with Xradia Versa X-ray microscopes. Benefit from high-resolution X-ray imaging combined with high-precision metrology. Get verified measurement accuracy of small dimensions in reconstructed volumes of less than 125 mm3.

Benefits:

  • Small volumes at high resolution
  • Simple calibration workflow
  • Leading CT metrology accuracy

Product Info

Product Flyer

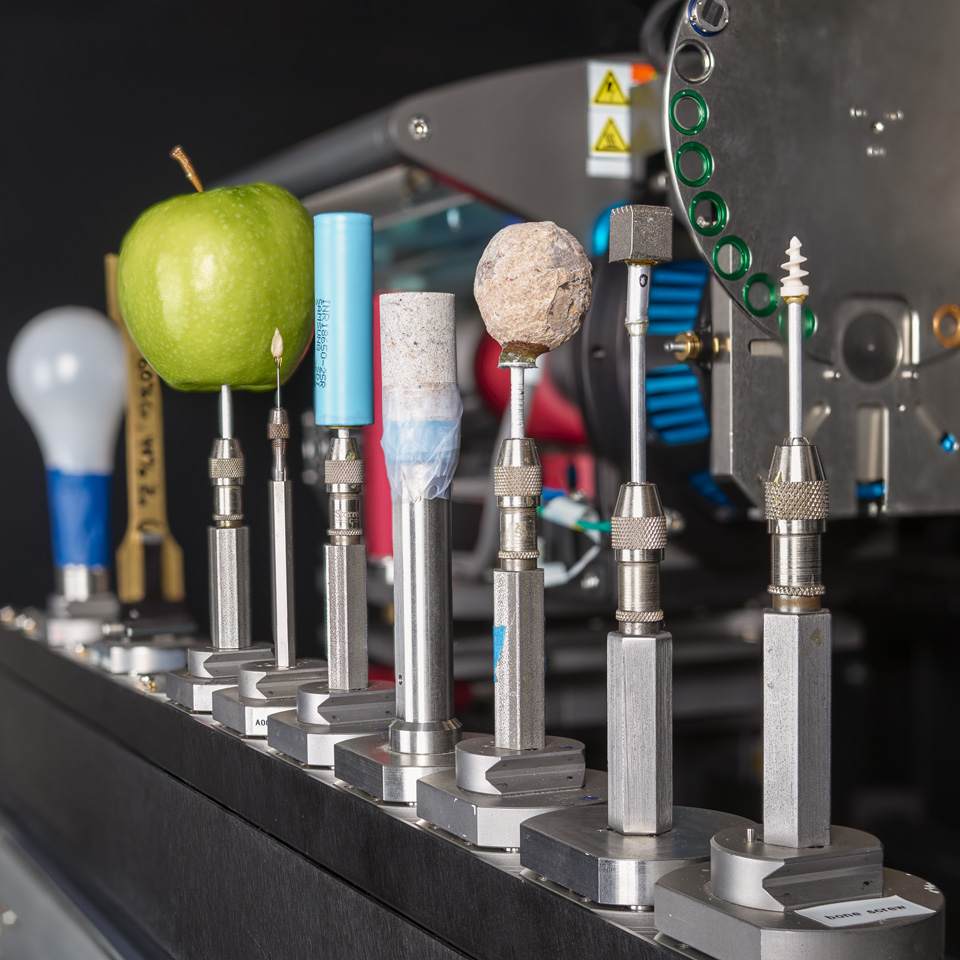

Autoloader

Increase Efficiency of Sample Handling and Repetitive Measurements by Using the ZEISS Autoloader

By adding the Autoloader to your configuration, you can set-up queues of imaging jobs across a shift or over a weekend. Receive automatic notification of job completion. Minimize user interaction in your research or industrial laboratory, industrial process development, service laboratory, or university central imaging laboratory.

Benefits:

  • Achieve precise and repeatable sample measurements
  • Flexible sample handing for multiple sample types
  • Automate measurements setup

Product Flyer

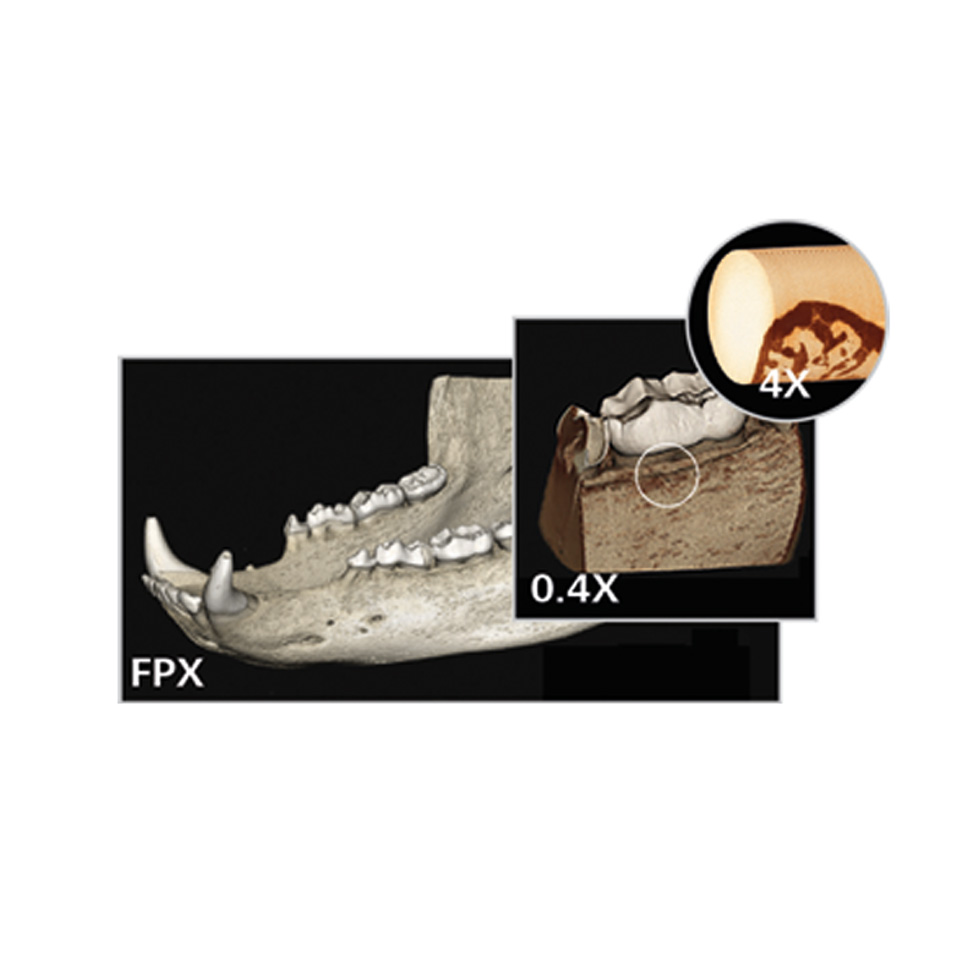

FPX (Flat Panel Extension)

Enhance Imaging Flexibility for Even Larger Samples

Image large samples and create workflow efficiencies with FPX for industrial and academic research. Rapidly scout large areas to identify a desired region of interest (ROI). Combine FPX with RaaD on Xradia 500-series and 600-series and benefit further from high resolution imaging for a variety of samples.

Benefits:

  • Image large samples with best-in-class quality
  • High resolution images for zoomed in ROIs
  • Full FOV for 5inch diameter samples with high throughput

Product Flyer

System Upgrades

Increase Your Instrument Performance and Capabilities by Upgrading to the Next Model

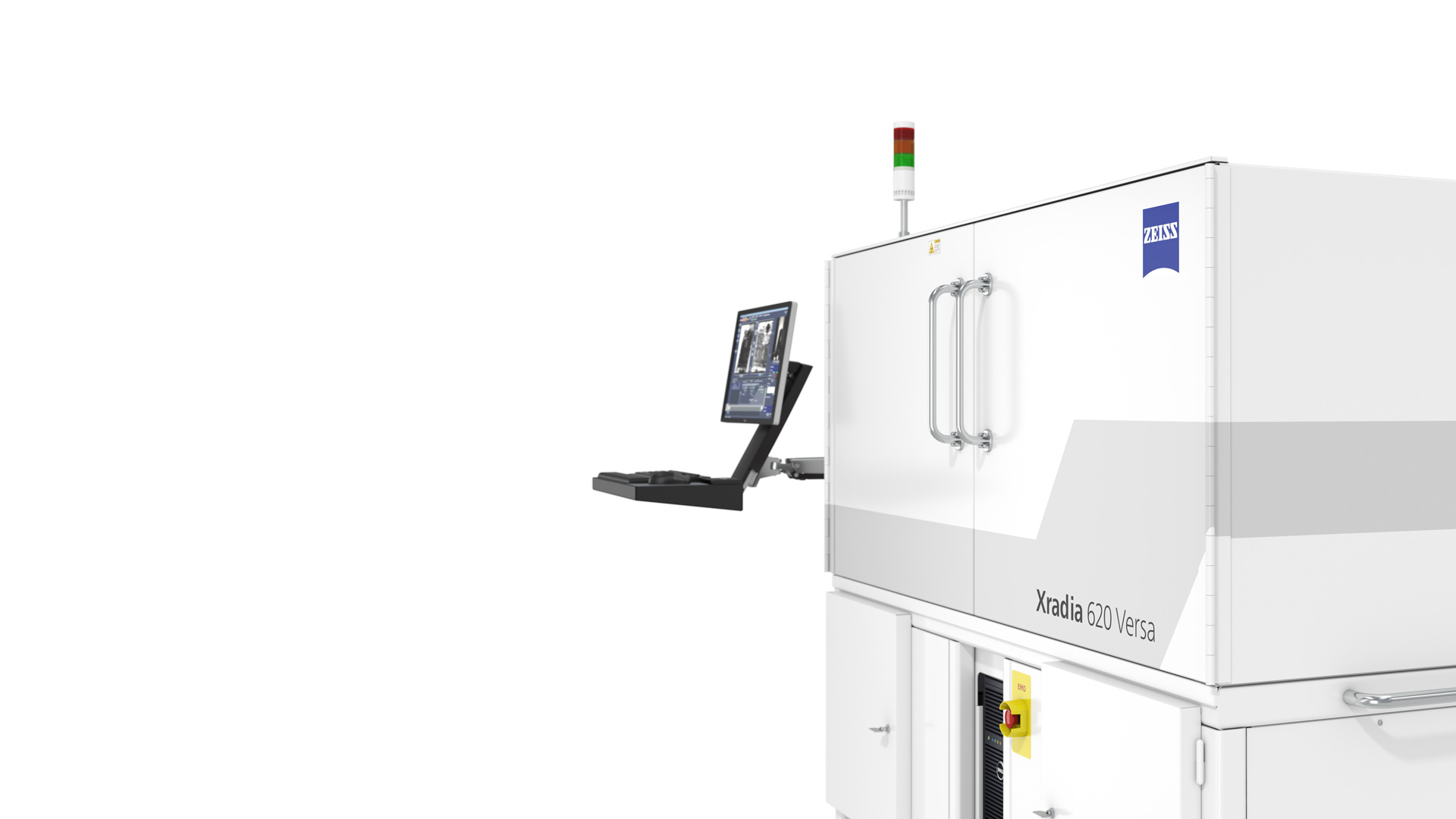

Xradia 510/520 Versa to Xradia 610/620 Versa

Upgrade to Ultimate Versatility

The ZEISS Xradia 620 Versa 3D X-ray microscope unlocks new degrees of flexibility for your scientific discovery. Building on industry’s best resolution and contrast, Xradia 620 Versa expands the boundaries of non-destructive imaging for break¬through flexibility and discernment critical to your research.

Benefits:

  • Attain down to sub-micron resolution
  • Advanced phase contrast techniques for image enhancements
  • Non-destructive characterization in-situ and in 4D
  • Higher X-ray flux and faster scans without compromising resolution

Product Flyer
