HALOS® for farmers

More insight with every pass

See what’s happening – and act instantly

HALOS^® delivers live nutrient and constituent data as you work. Whether you’re chopping silage, applying slurry or harvesting grain, the sensor gives you precise readings in real time – helping you adjust on the move to improve quality and reduce waste. No more guesswork or time-consuming lab samples. Just the information you need, when and where you need it.

NIR, perfected by ZEISS

Proven technology built on decades of experience

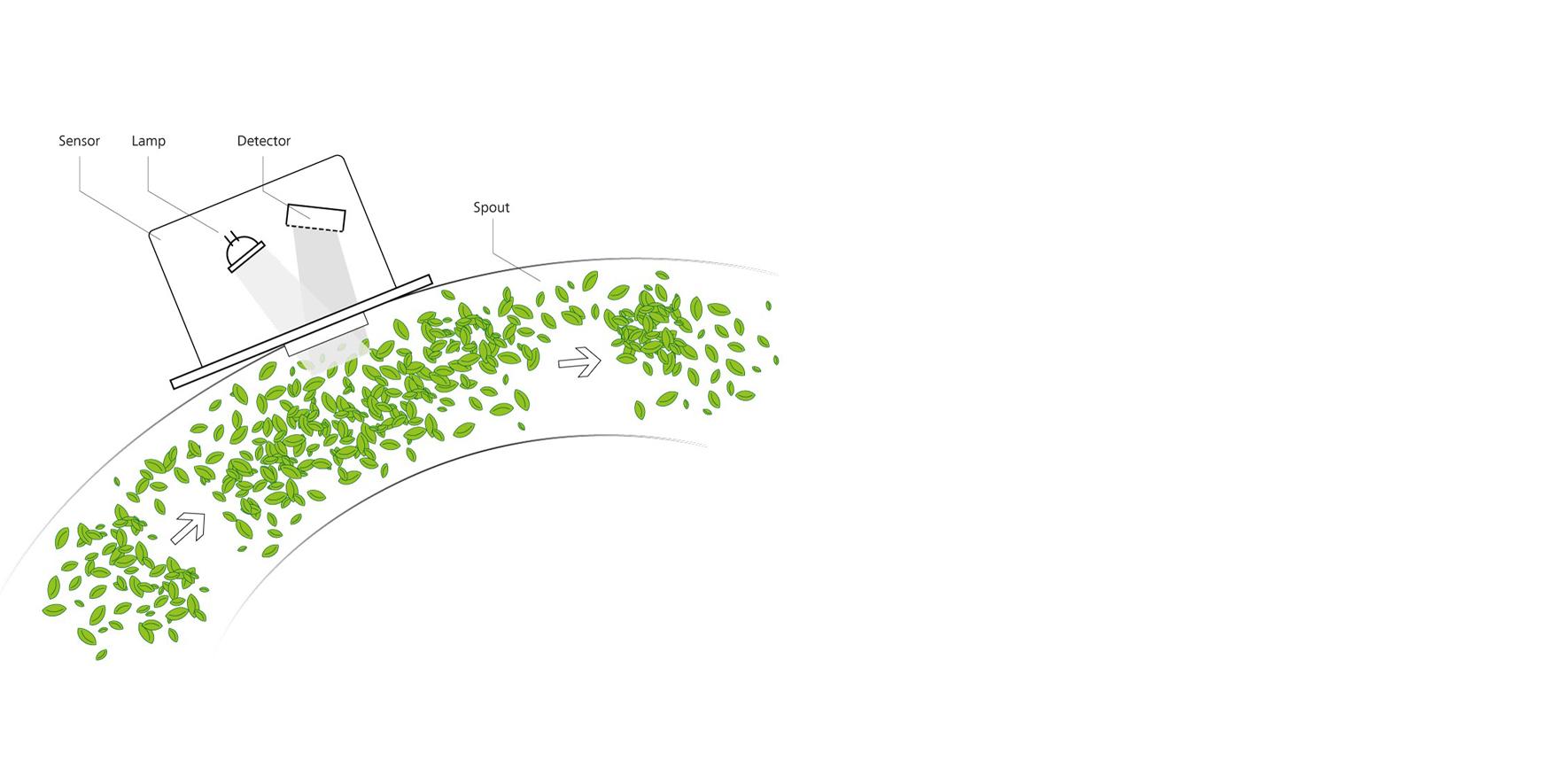

Sensor measures crops in a spout — The incoming light is manipulated by the sample through sample-specific reflection and absorption, allowing the ingredient to be analyzed.

Near-infrared (NIR) spectroscopy uses wavelengths between roughly 780 and 2,500 nanometers to capture and analyze the properties of materials. By examining how substances absorb and reflect light in this range, NIR sensors can determine key chemical and physical attributes, including moisture, fat content and nutrient composition, without damaging the material. This makes NIR especially valuable in industries like food, pharmaceuticals and agriculture.

ZEISS has been putting NIR technology to work for decades – not just in controlled environments, but on real agricultural machinery in real working conditions. From precision optics and calibration to software, integration and field validation, we develop the full range of technology in-house and understand exactly how each component interacts. HALOS® brings all of that expertise into one practical, rugged solution that’s easy to install, simple to use and built to last.

The sensor delivers continuous, accurate readings of dry matter, protein, starch, oil, moisture and more – all while the machine is in motion, under load and across changing field conditions. Backed by ZEISS calibration and engineering, the data is consistently accurate and ready to support daily decisions in the field.

Plant and soil with digital mineral nutrients icons

Smarter use of resources

Applied precision – for better performance at harvest

With HALOS^®, fertilizer and additive use is guided by combining real-time constituent data with GPS data. That means better coverage where it’s needed, less where it’s not. This saves money, improves outcomes and supports long-term soil health. Over time, consistent data also helps you identify yield trends and make strategic decisions across your fields.

Built to work where you do

Rugged, tested and ready for the field

HALOS^® is built to handle tough environments like shock, vibration, dust and challenging weather. Tested for years in real conditions, it fits right into your machine network and starts delivering value on day one. Whether it’s mounted on a spout, a pipe or used in a feed lab setup, it’s ready to go and easy to trust.

We greatly appreciate the quality and the reliable performance
of the ZEISS calibrations and the NIR sensor HALOS®.

Dr. Jörg Perner Managing Director U.A.S. Umwelt- und Agrarstudien GmbH

Click on the circle markers on the image to open the information box with more details.

Discover the details

See how HALOS® fits into your platform and your roadmap.

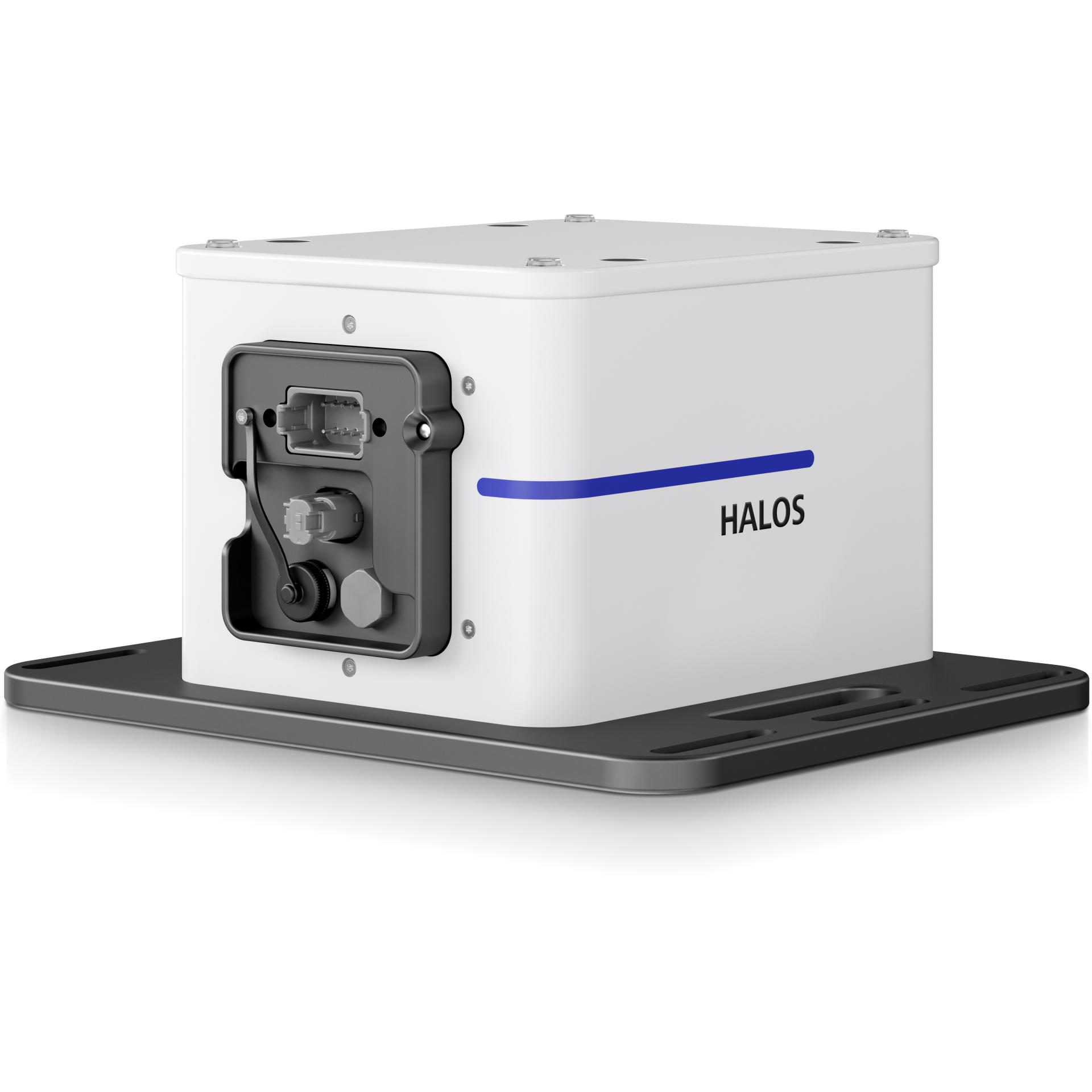

Robust housing and construction

HALOS® is designed to perform in the toughest agricultural environments.

• Tested and qualified for long life time
• Fully sealed, rugged housing with IP6k9k protection
• Operates from -15 °C to +55 °C, stores from -40 °C to +70 °C
• Tested for real-world shock and vibration: Random vibration per axis: 32 hours, 6 g rms
• Operating shock: 32 g (4 ms) / 50 g (11 ms) / 1,000 shocks
• Designed to integrate seamlessly with a wide range of OEM systems and connect easily with agricultural machine networks using multiple standard interfaces:
– CAN-Bus (J1939, ISOBUS)
– 100Base-T1 (100 Mbit/s) – 100Base-Tx

LED status display

A clear operational indicator ensures HALOS® is always ready and easy to monitor during use.

Security

A secure product design protects the sensor from manipulation and external interference — helping ensure reliability in connected agricultural systems.

Sapphire window

Virtually unbreakable and scratch-proof, the sapphire optical window is as hard as diamond, ensuring long-term optical clarity.

Predictive maintenance

HALOS® includes a range of internal sensors to monitor temperature, shock, voltage and current for intelligent self-monitoring. These enable:
• Remote diagnostics
• Condition analysis
• Preventive maintenance planning

Halogen lamp

Specially developed for long-term, shock-resistant use in demanding environments. Supports consistent measurements during extended field operation.

ZEISS free beam optics

Proven ZEISS free beam optics deliver fast, precise, and repeatable measurements – even under shock, vibration, and motion.

Service-ready

Designed for OEM servicing with easy lamp exchange and in-field re-referencing capabilities.

Accessories for HALOS®

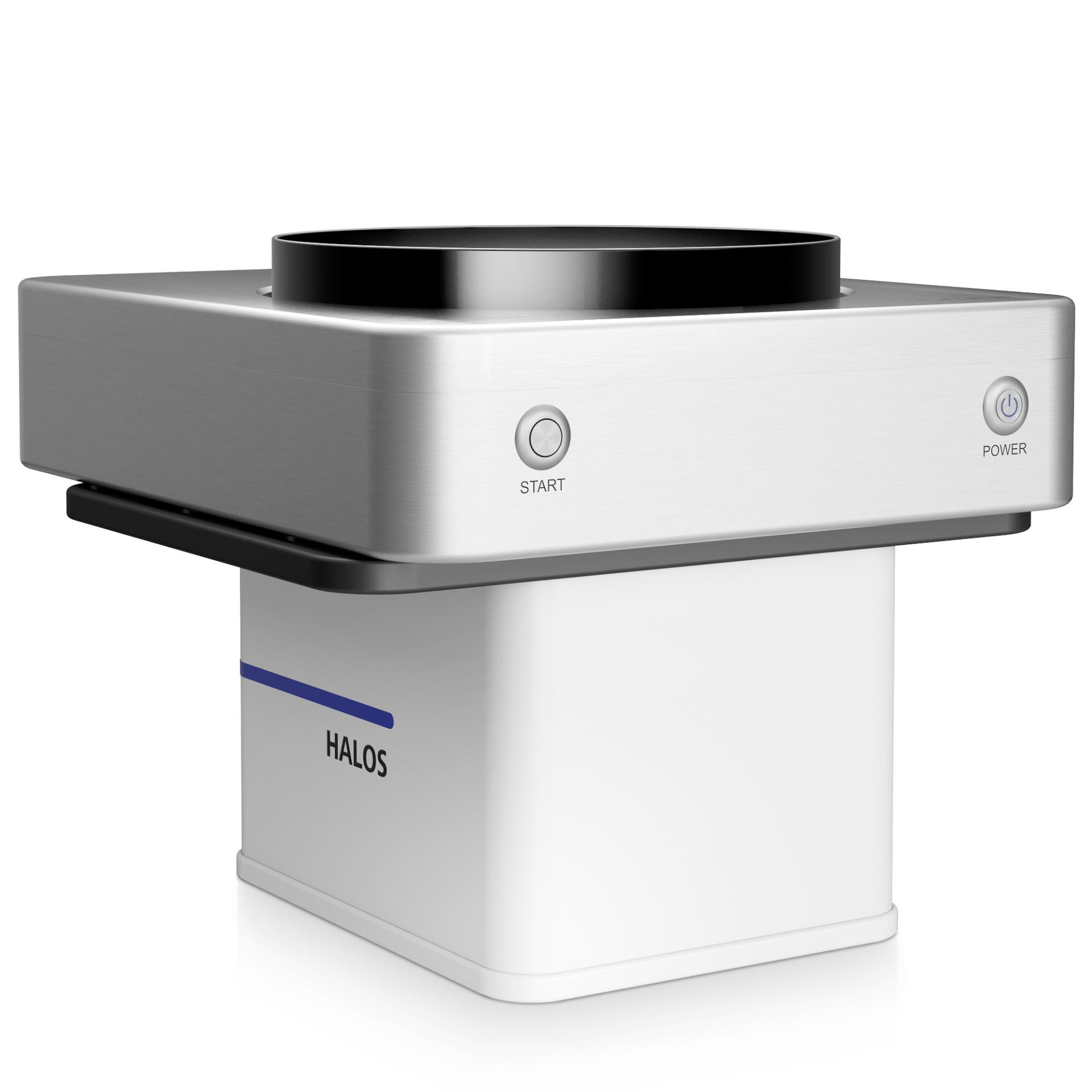

TURNSTEP

TURNSTEP is designed to rotate samples during measurement using a sample dish. This ensures more representative readings and allows HALOS® to be used in a standalone setup without being mounted on a machine. Ideal for feed analysis or for mixing supplements more precisely and efficiently, helping reduce waste and support targeted nutrition.

Air purge ring accessoire for Corona® process

Flanges

The standard flange and power flange are designed for different applications – from grain analysis to measuring constituents in manure (organic fertilizer).
