ZEISS INSPECT X-Ray 2026

Discover the ways to visualize and analyze complex geometries. Unroll cylindrical and conical sections into a flat view or follow a 3D path through your CT data. The improved visualization of volume slices with the brightness curve adds a new dimension to CT data visual inspection.

With the previous release we provide new methods for manual Region of Interest definition. The interactive creation of volume regions improves manual CT data segmentation workflows. With the Sub-parts concept parts of a multi-material or a multi-component data set share linked volume, alignments and ROIs which improves the user experience for multi-material projects and assemblies.

With the previous release we offer improved support for the most recognized standard for evaluating defects in light metal castings with CT – P203 adding the ability to use arbitrary-shaped ROIs for local evaluations and the Q-Factor.

With the previous release the latest ISO and ASME GD&T standards are supported for the whole project. The enhancements include new integrated GD&T expert filters for geometry primitives and PMI improvements like TED, data management & datum parsing.

With the previous release we provide performance improvements for many often-used CT features, including for example volume filtering which is now up to 50 times faster or polygonization which is now up to 20 times faster.

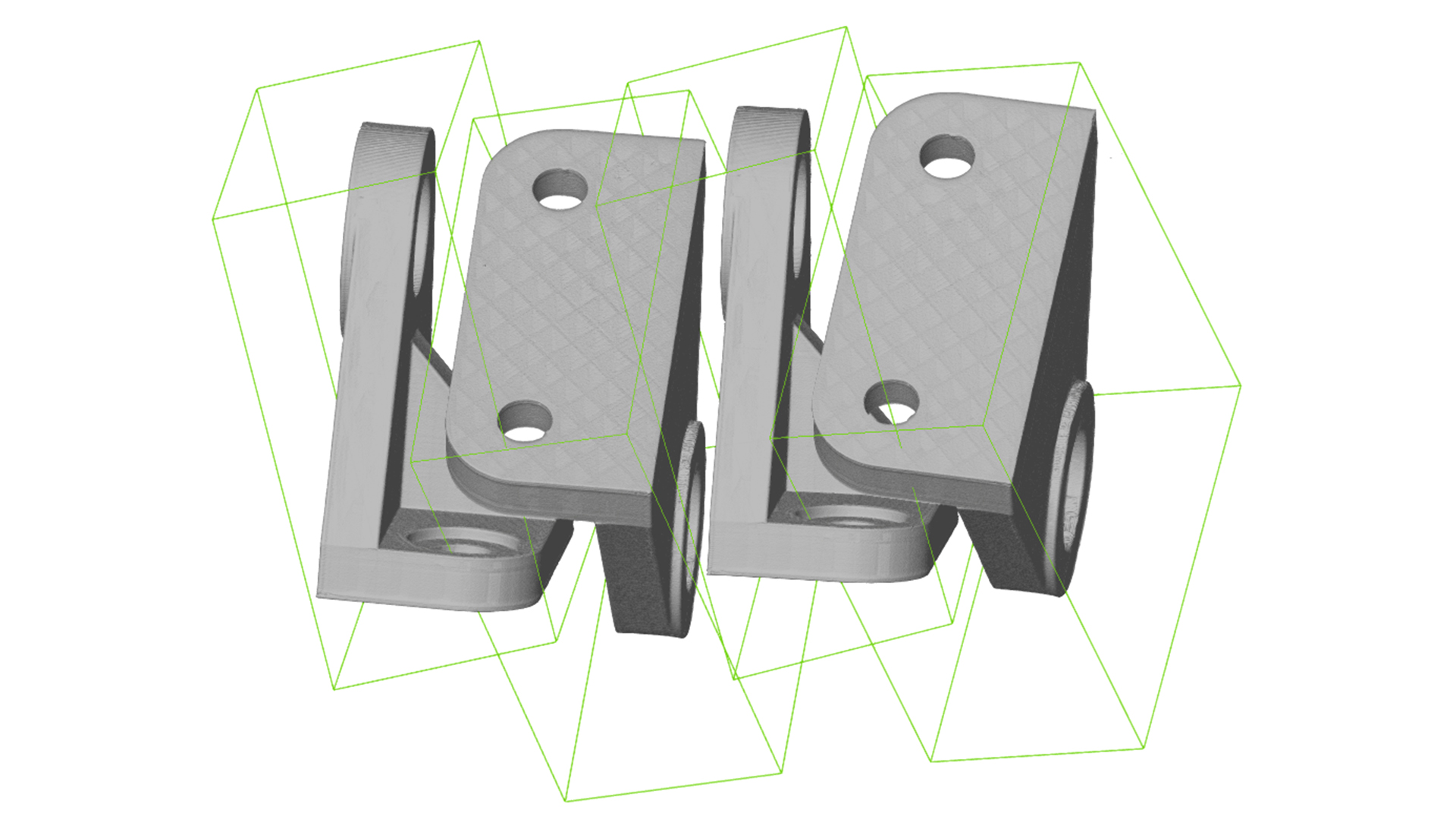

This year’s release offers new possibilities for the digital segmentation for volume processing. It is possible to inspect individual elements with specific tolerances or digitally segment assemblies into individual components. Get exact quality information for each element of interest, no matter how complex the part. No physical de-assembly or part destruction necessary.

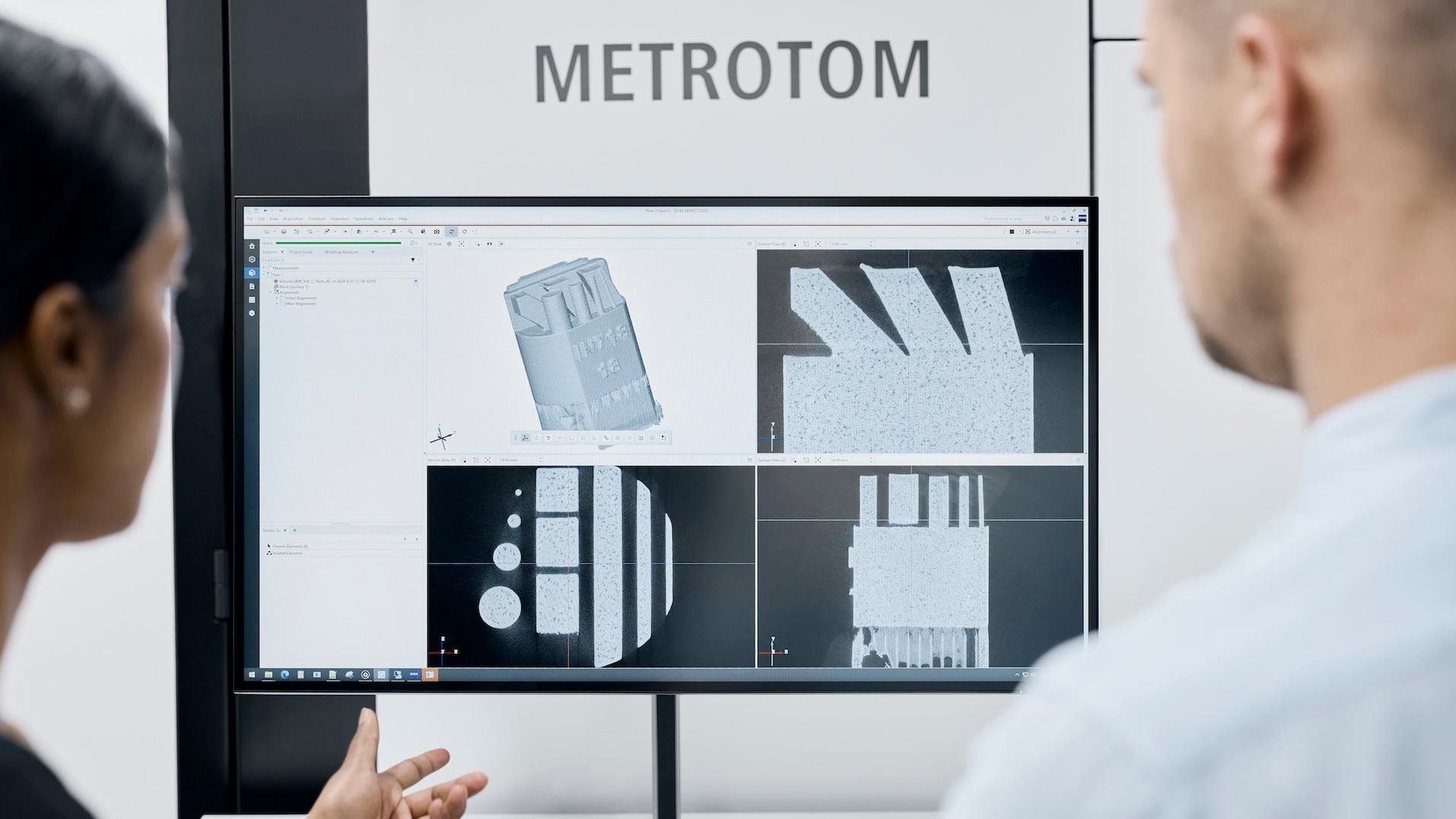

Get more efficient volume visualization with parallel visualization of multiple volume sections together with other elements. Move through parts in different perspectives or combine sectional views with 3D representations and tables.

This release includes also the evaluation of pores or inclusions, even if data are not optimal, with the defect detection approach based on Machine Learning with ZADD Segmentation for challenging applications.

Easier decision-making on the shop floor through central data storage. Capture, combine and analyze results from tactile, optical, manual or CT measurement. The open interface (API) offers the possibility for integration in your system environment for efficient tracking of production quality across all measuring machines.

Automatic numering of tolerance inspections was provided. It is also possible to use GD&T filters. Profile and areal filter methods according to ISO 16610 guarantee compliance with up-to-date ISO norms. Achieve a new level of flexibility in terms of data types. The software works with mesh and point cloud data.
