ZEISS O-DETECT

Entering the world of optical metrology

Intuitive operation, high-quality camera and flexible lighting for precise measurement in an instant. Suitable for a wide variety of components, but mainly for those that are best left untouched. Discover the new generation of optical metrology: ZEISS O-DETECT.

  • High image quality and excellent optics
  • Different illumination options for more flexibility
  • Easy to upgrade with optional tactile sensor
ZEISS O-DETECT
Contact

Features

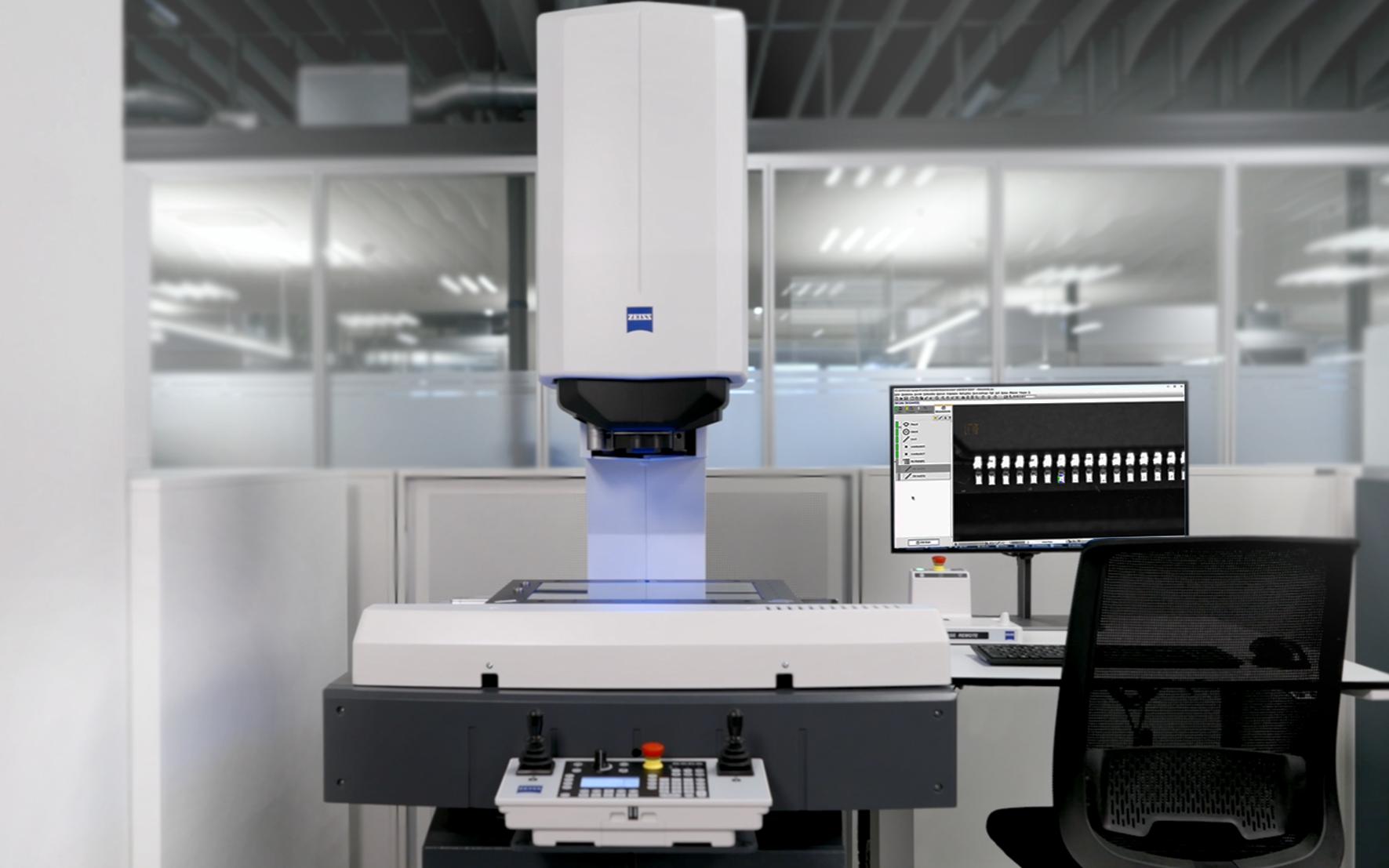

ZEISS O-DETECT optical measuring machine in a metrology laboratory.
Excellent optics

ZEISS Digital Zoom provides a large field-of-view at high resolution – increasing efficiency and capturing more details. The high-quality images are captured with a 5 megapixel camera and together with ZEISS processing technology, transform images into precise measurement results.
Versatile and easy to upgrade

The new exchangeable accessory platform enables the quick change of different toplight options for diverse applications and is done without service intervention.

Simple part navigation and visualization

The integrated 5 megapixel overview color camera locates the part quicker to start measurements. Controlled by the software, it reduces the need to use the joystick.
Stable precision

Calibrated to MPE E(3D) per ISO-10360, ZEISS O-DETECT promises reliability and ensures comparability worldwide, while delivering accurate 2D and 3D measurement data - valuable in high compliance markets.
Professional and actionable reports

ZEISS PiWeb reporting offers one-click documentation and visualization of your measurement data, giving you useful insights into your parts and processes.
Fast and precise tactile 3D measurements

If required, ZEISS O-DETECT can be equipped with the tactile single-point sensor ZEISS XDT, which enables combined multi-sensor measurements. This gives you even more flexibility when solving your measurement tasks.
Two software solutions – your choice​

Choose the software that best fits your requirements: ZEISS CALYPSO for precise measurement programming and efficient quality control, or ZEISS INSPECT for intuitive analysis and evaluation workflows across different measurement technologies.​

Excellent optics with different illumination options

  • High-end camera in the entry-level segment

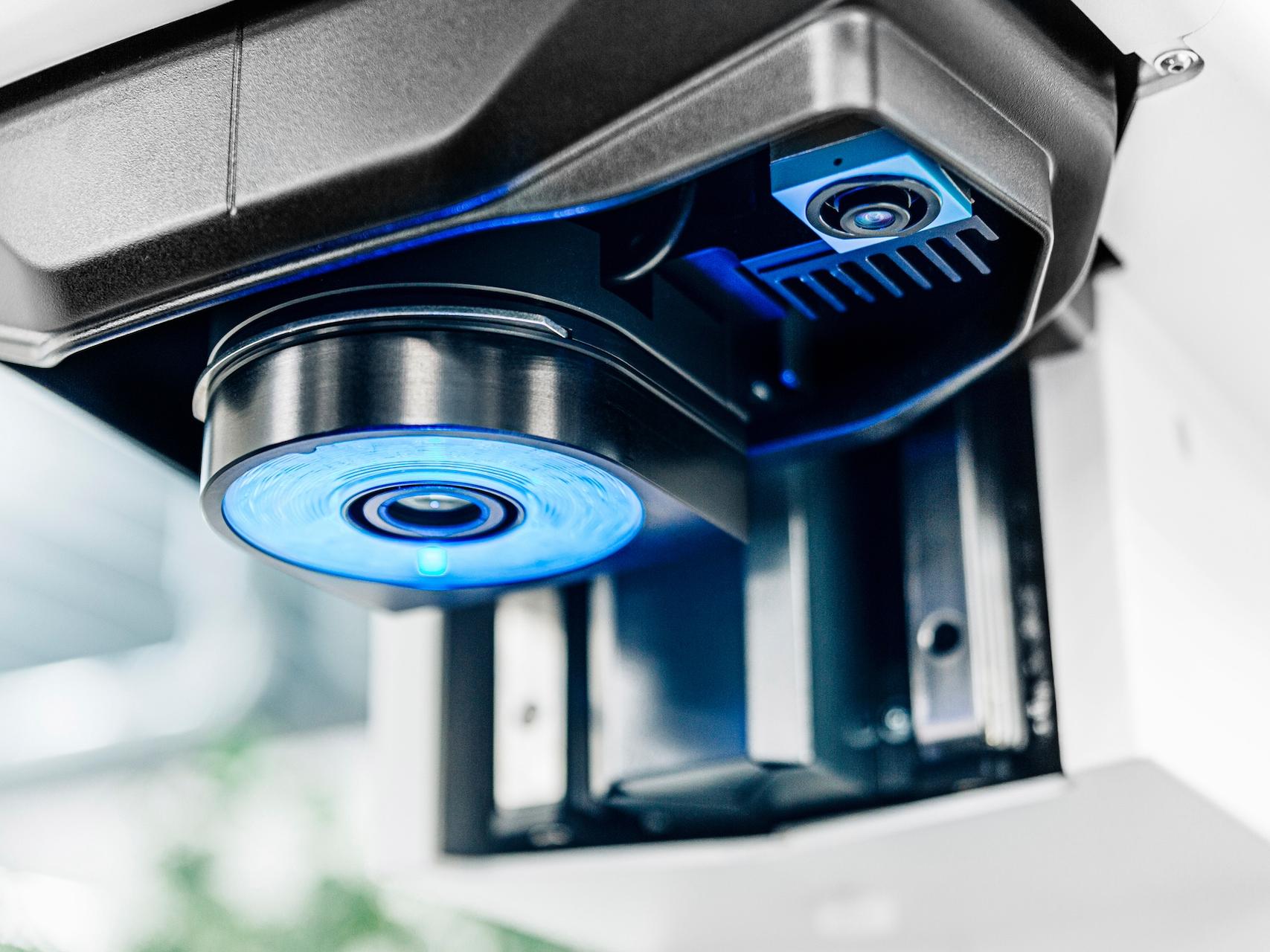

    ZEISS O-DETECT with blue ring light and auxiliary inspection high-quality camera.

    A key element of ZEISS O-DETECT is its high-quality camera. Thanks to sophisticated software and the new autofocus function, the image taken by the camera is transformed into precise measurement results.

    Quick, precise and intuitive – thanks to the overview camera

    Another essential component of ZEISS O-DETECT is the first in its class: an overview camera with integrated 5-megapixel camera sensor. The overview camera captures the entire measuring area including all workpieces that are placed on the measuring table. The acquired overview image is used to navigate the measurement camera to the appropriate position without having to use the control panel. This enables intuitive and fast programming.


  • Illumination options for every task

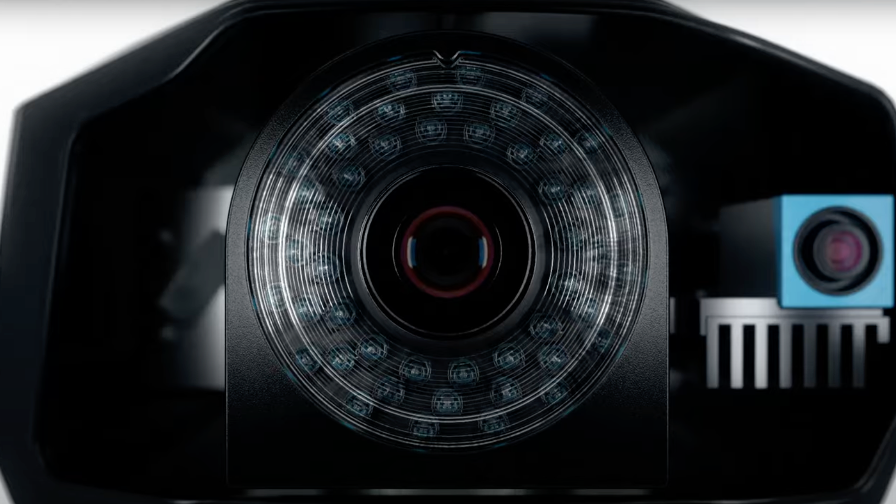

    ZEISS O-DETECT optical measuring camera with blue and white LED ring illumination.

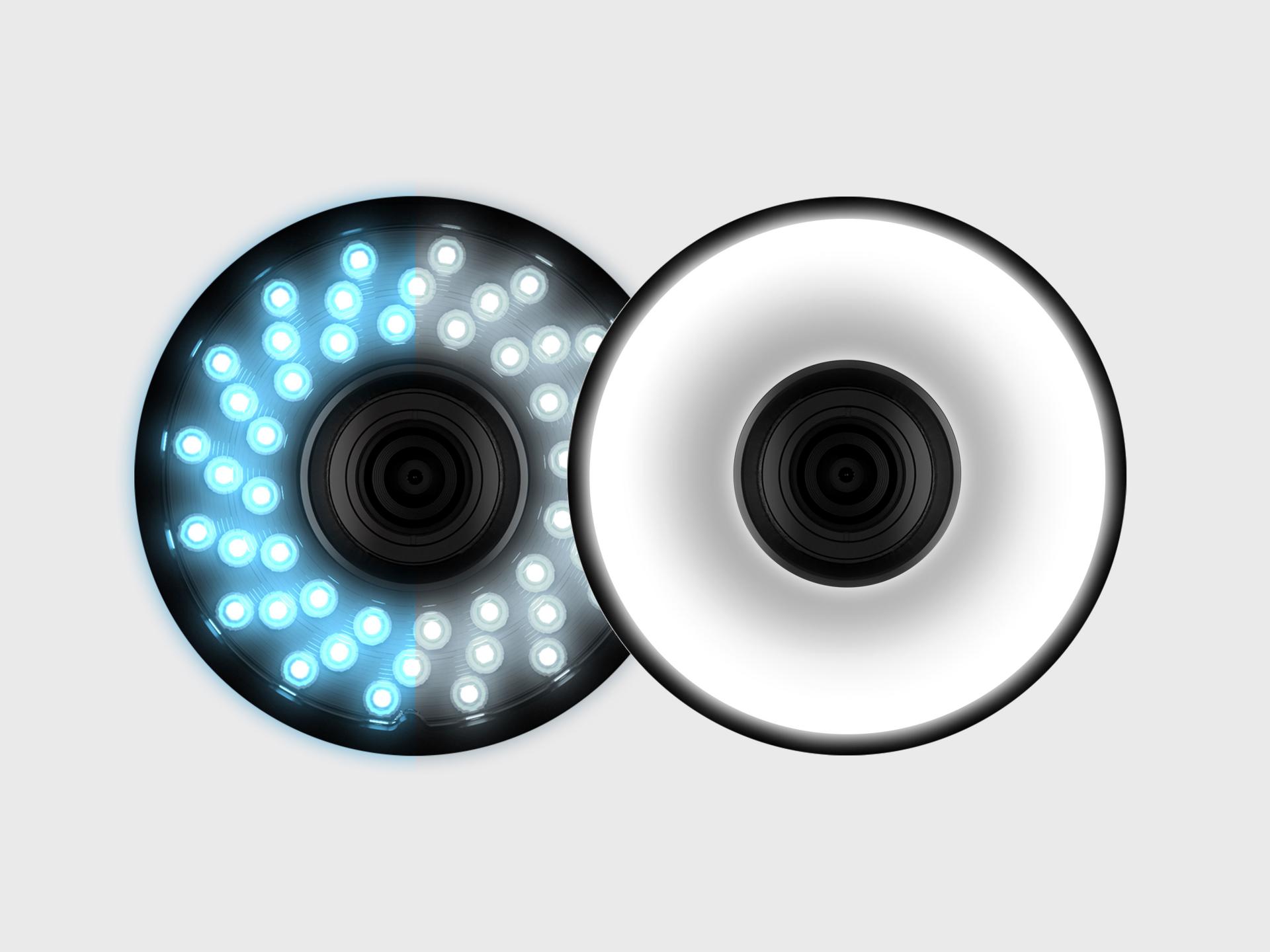

    ZEISS O-DETECT provides different illumination options for every challenge that you might face with some measuring tasks. A ring light with blue and white LED-segments for flexible illumination of general workpieces and a diffuse light option for shiny workpieces and challenging edges.

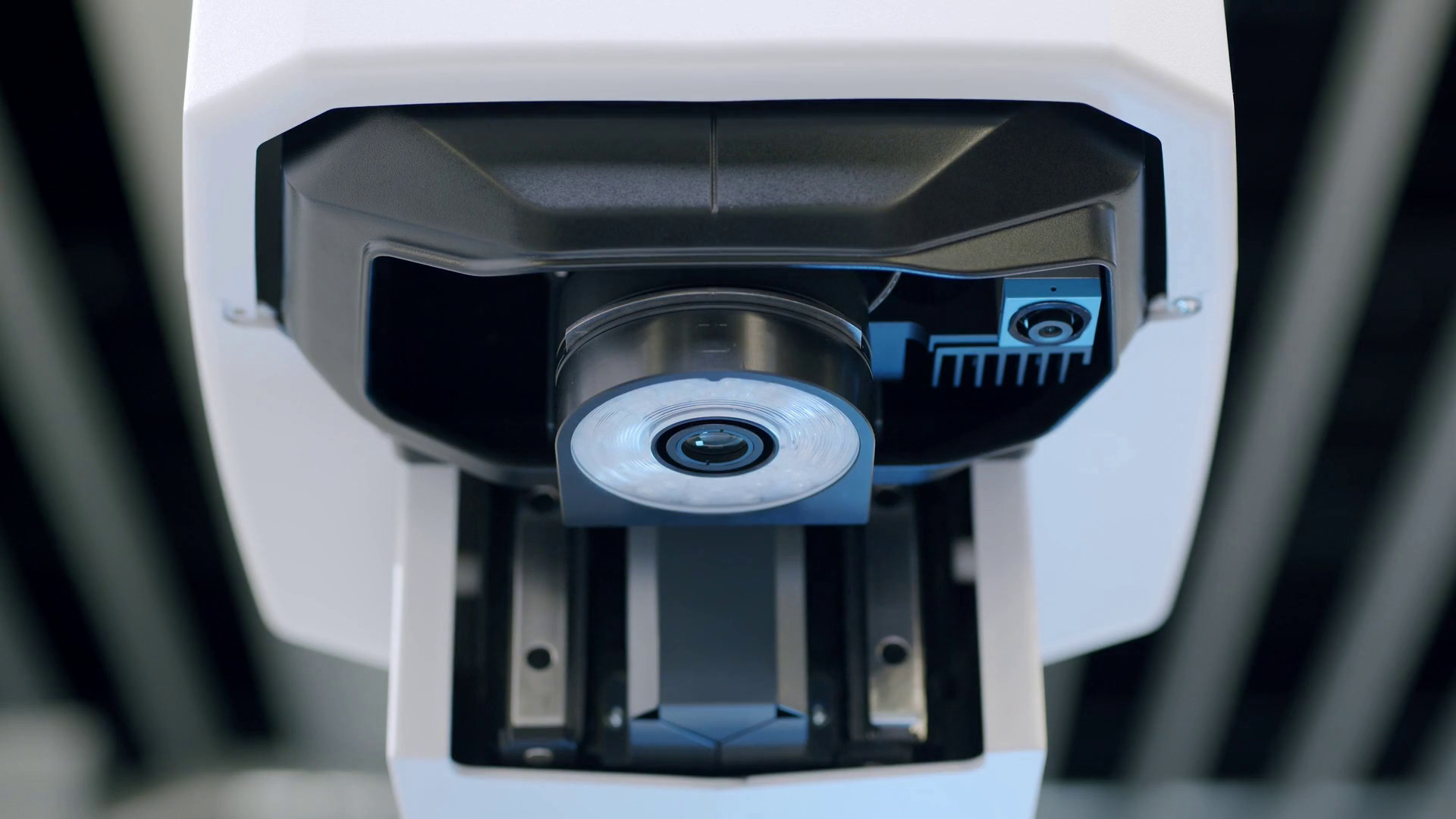

    Exchangeable toplights

    High-quality lighting plays a key role in achieving precise measurement results. The versatile and easily exchangeable ZEISS O-DETECT toplight provides the best conditions for this. The toplight operates automatically and according to user-defined settings.

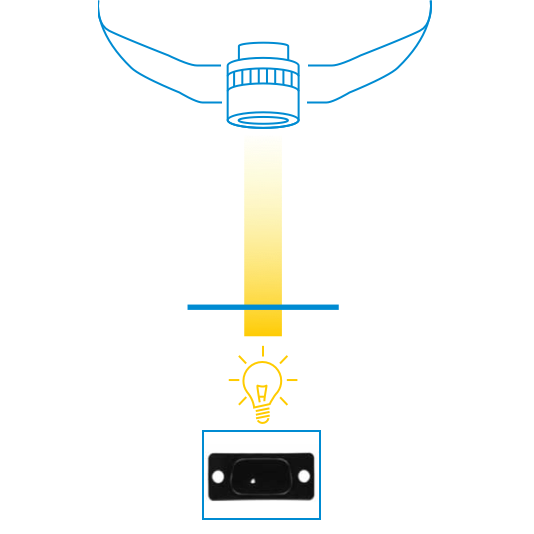

Optical measurement diagram showing backlight of the inspection camera.

Backlight

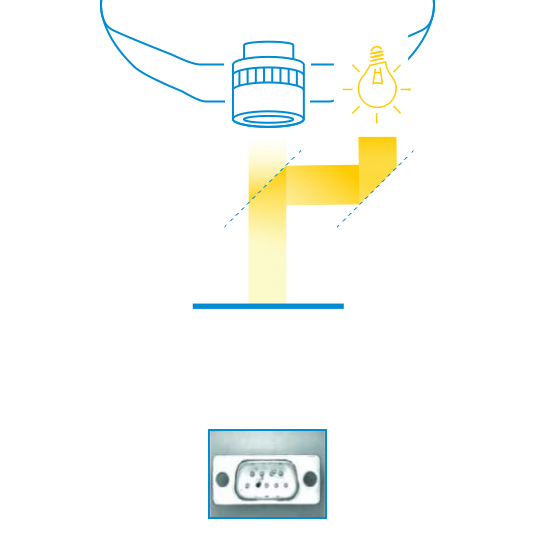

Optical measurement diagram showing coaxial light of the inspection camera.

Coaxial light

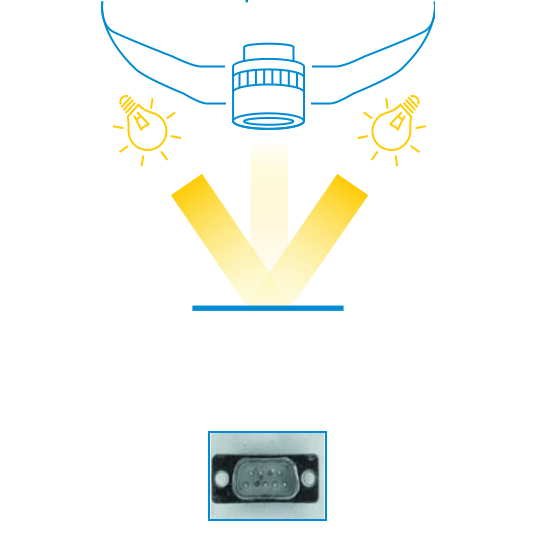

Optical measurement diagram showing top light of the inspection camera.

Top light

  • Thumbnail image for video "ZEISS O-DETECT"

    ZEISS O-DETECT: Easily capture things that are better left untouched

  • Thumbnail image for video "ZEISS O-DETECT Exchangeable toplights"

    Exchangeable toplights


  • Third-party Content Blocked

    The video player is blocked due to your cookie preferences. To change the settings and play the video, please click the button below and consent to use of "Functional" tracking technologies.
    Easily capture things that are better left untouched
    ZEISS O-DETECT

  • Third-party Content Blocked

    The video player is blocked due to your cookie preferences. To change the settings and play the video, please click the button below and consent to use of "Functional" tracking technologies.
    Exchangeable toplights

Multisensoric option with ZEISS XDT

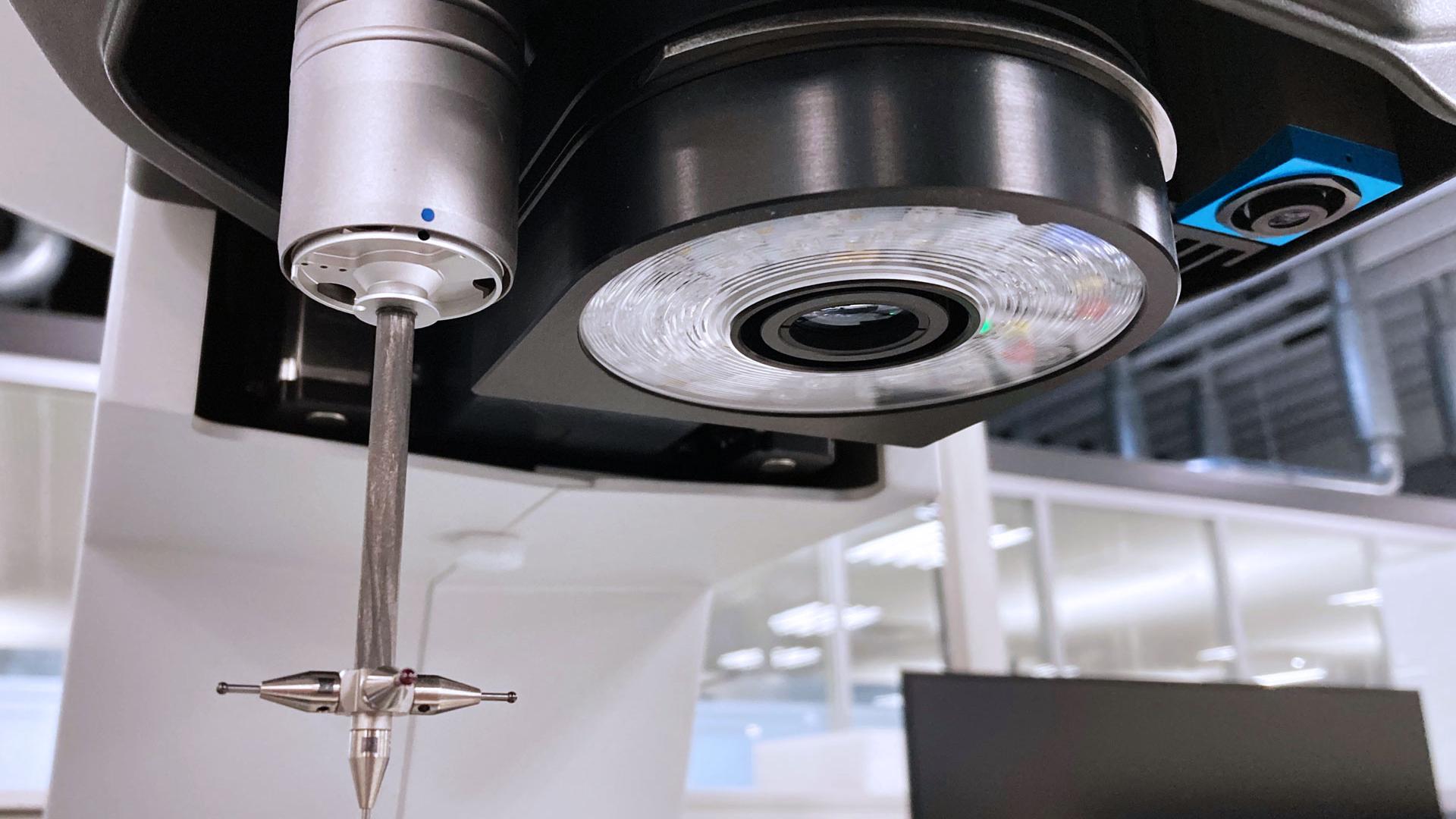

ZEISS O-DETECT optical measuring machine with tactile probe and ring light.

Fast and precise tactile 3D measurements

With the option ZEISS XDT, it is possible to add a tactile single-point sensor to ZEISS O-DETECT. The use of the tactile sensor enables to easily reach lateral bores or undercuts that cannot be detected with an optical camera sensor. Depending on the measuring task, individual stylus configurations can be mounted and exchanged in the CNC-capable measuring program. As a passively measuring sensor, ZEISS XDT delivers reproducible measurement results, as for each individual probing point, a large number of measurement points are determined and a stable mean value is calculated.

Two software solutions – your choice​

Thanks to ZEISS O-DETECT's compatibility with both ZEISS CALYPSO and ZEISS INSPECT, users can choose the software that best fits their workflow and seamlessly integrate the VMM into their existing quality processes.​
  • 3D CAD model of a precision component with dimensional and geometric tolerances for ZEISS metrology inspection.

    ZEISS CALYPSO

    Software for dimensional measurement technology​

    ZEISS CALYPSO enables fast, reliable and efficient optical and dimensional inspections. Inspection plans can be created automatically based on PMI data including all relevant features and characteristics, reducing programming effort and accelerating setup. Automated measurement routines help streamline inspection workflows, while optional extensions support advanced applications and increased productivity. The software adapts to your individual measurement requirements and grows with your quality assurance needs.​

  • 3D scanned component with colorful deviation map showing dimensional accuracy in ZEISS INSPECT software.

    ZEISS INSPECT​

    Fast access to professional metrology​

    ZEISS INSPECT enables users to create and execute optical and dimensional inspection routines quickly and efficiently. Automated inspection plan generation, intuitive operation and guided workflows reduce training effort and help accelerate the path from CAD model to measurement result. Integrated reporting and automation features streamline daily quality workflows and increase productivity.​

Technical data for ZEISS O-DETECT

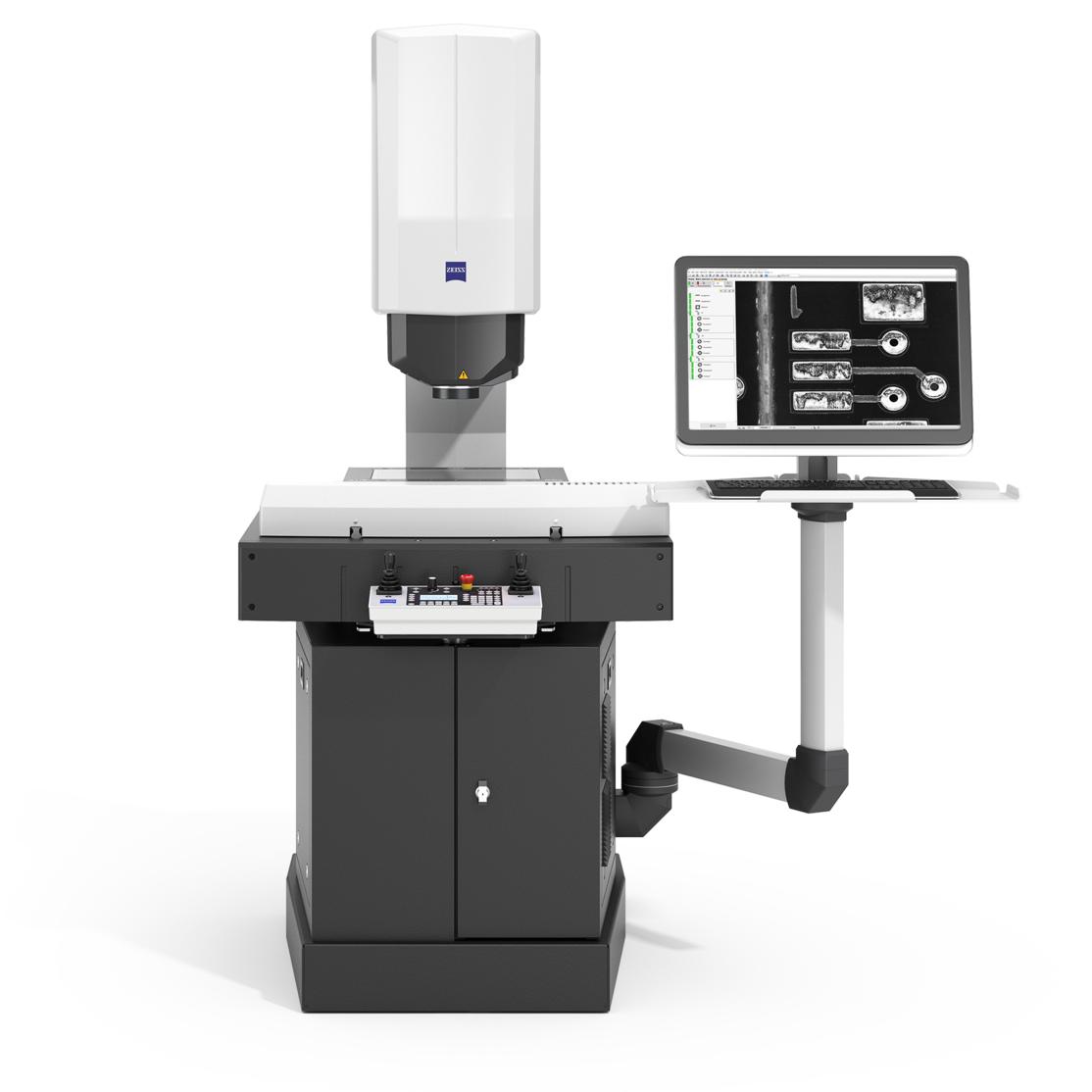

ZEISS O-DETECT 3/2/2 optical measuring machine with inspection monitor.
O-DETECT 3/2/2

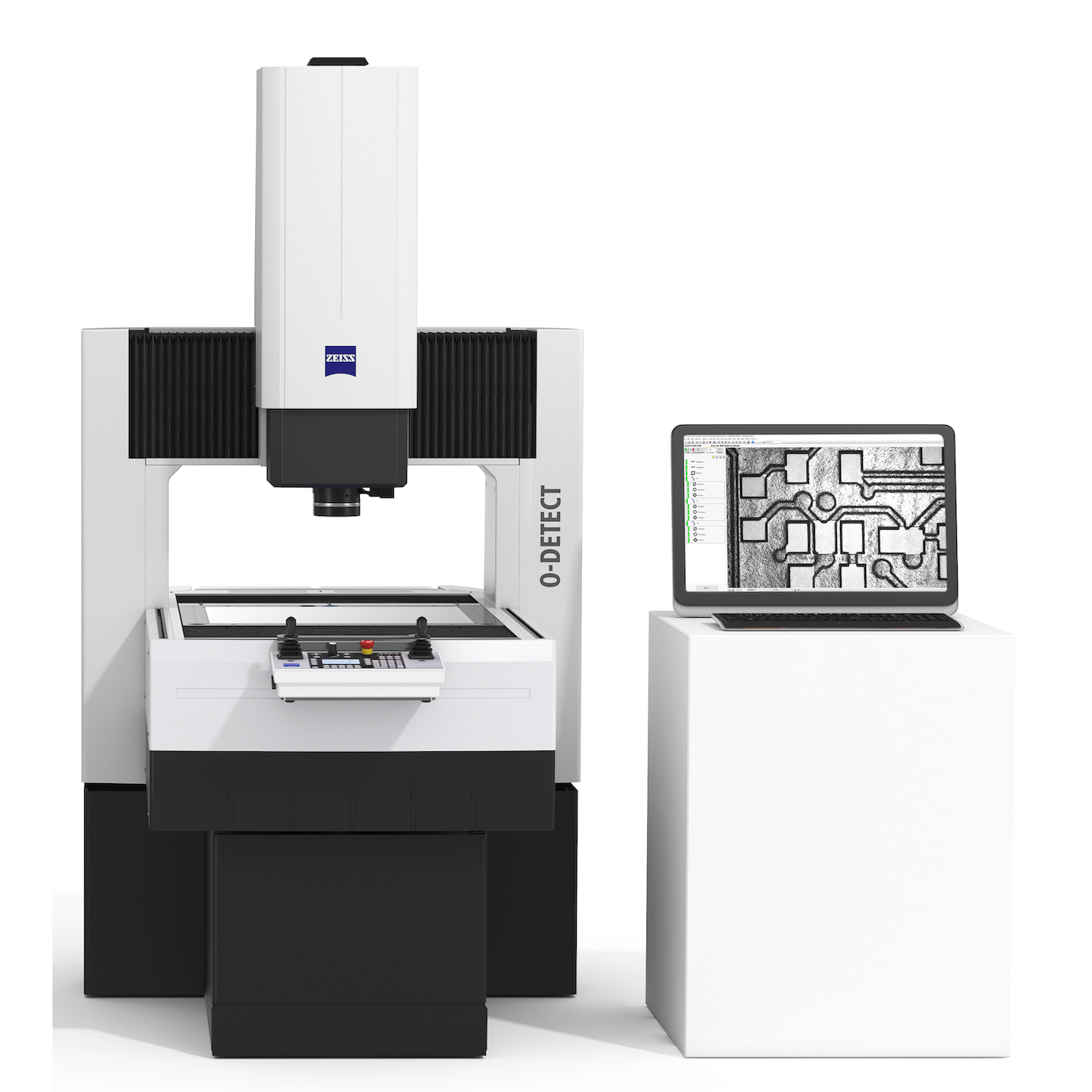

ZEISS O-DETECT 5/4/3 optical measuring machine with inspection software.
O-DETECT 5/4/3

Camera

ZEISS INVENTA D1

ZEISS INVENTA D1

Measuring volume

300 x 200 x 200 mm3

500 x 400 x 300 mm3

Field of view

8.4 x 7.0 mm2

8.4 x 7.0 mm2

Length measurement error MPE (EU)

in 2D: 1.9 µm + L/150 µm

in 3D: 2.4 µm + L/150 µm

in 2D: 1.9 µm + L/150 µm

in 3D: 2.4 µm + L/150 µm

Software

ZEISS CALYPSO, ZEISS INSPECT

ZEISS CALYPSO, ZEISS INSPECT

Application examples

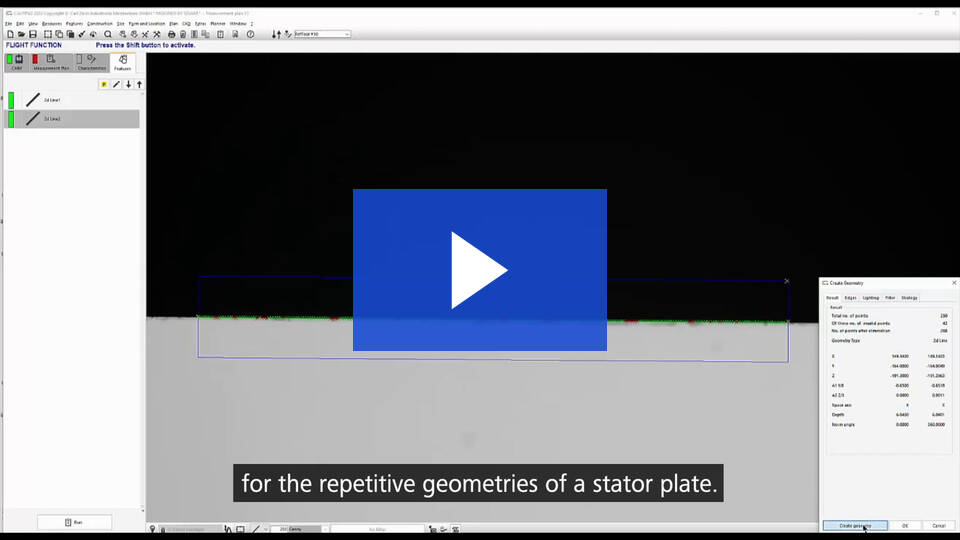

  • Thumbnail image for video "Measurement of glossy and reflective medical components with ZEISS O-DETECT"

    Measurement of glossy and reflective medical components with ZEISS O-DETECT
  • Thumbnail image for video "Measurement of electric motor components with ZEISS O-DETECT"

    Measurement of electric motor components with ZEISS O-DETECT
  • Thumbnail image for video "Measurement of electronic components with ZEISS O-DETECT"

    Measurement of electronic components with ZEISS O-DETECT

  • Third-party Content Blocked

    The video player is blocked due to your cookie preferences. To change the settings and play the video, please click the button below and consent to use of "Functional" tracking technologies.
    Measurement of glossy and reflective medical components with ZEISS O-DETECT

  • Third-party Content Blocked

    The video player is blocked due to your cookie preferences. To change the settings and play the video, please click the button below and consent to use of "Functional" tracking technologies.
    Measurement of electric motor components with ZEISS O-DETECT

  • Third-party Content Blocked

    The video player is blocked due to your cookie preferences. To change the settings and play the video, please click the button below and consent to use of "Functional" tracking technologies.
    Measurement of electronic components with ZEISS O-DETECT

Learn more about the illumination options of ZEISS O-DETECT

Fill out the form below to download our whitepaper.

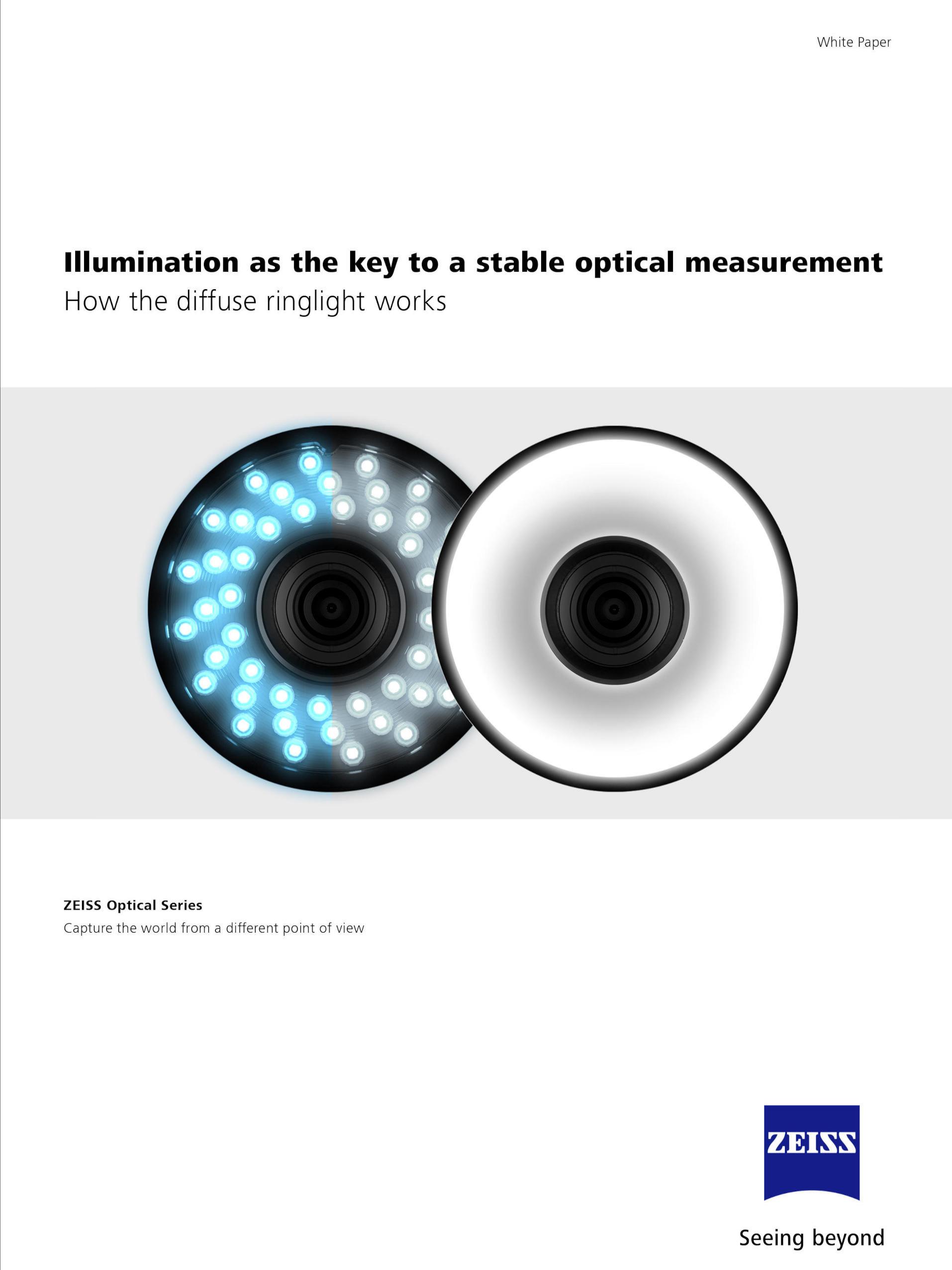

White paper illumination options of ZEISS O-DETECT

Form is loading...

If you want to have more information on data processing at ZEISS please refer to our data privacy notice.

Contact us​

Interested in exploring our products or services further? We're excited to offer you more details or a live demo, either remotely or in person.​

ZEISS Metrology Shop

Easily order probes, measurement accessories, and more​

ZEISS Metrology Portal

Get access to the full range of systems and software services​

ZEISS Academy Metrology

Your personalized metrology training, available in different formats

Do you need more information?
