Rotors and Shafts Inspection

Inspection of form and position

Due to the high performance, torque, and speed of shafts, the rotor must meet very tight form and concentricity tolerances that require thorough inspection.

The speed, weight, and dimensions of the shaft are crucial for effective torque transfer. In turbine applications, the shaft can be utilized in either low or high-speed scenarios, serving as the main shaft for the drivetrain or in various stages of a gearbox.

The challenge

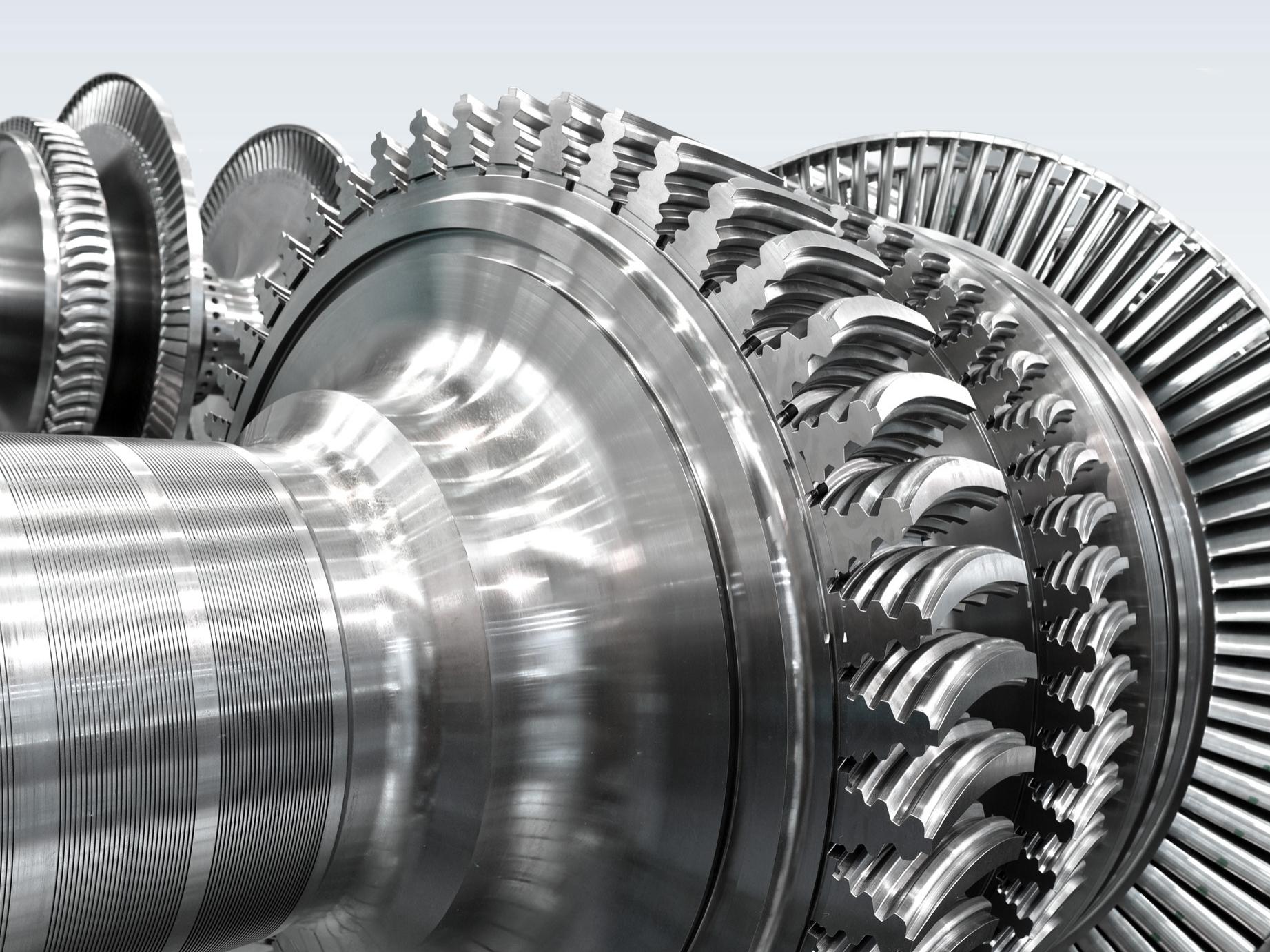

In high-speed and high-torque applications, maintaining tight shape and position tolerances is crucial for performance. The dimensions of the parts being inspected can vary significantly, ranging from small components to large-scale pieces. Accurate measurement and repeatability are essential, particularly for larger dimensional parts, to ensure reliability and efficiency in operation.
Our solution

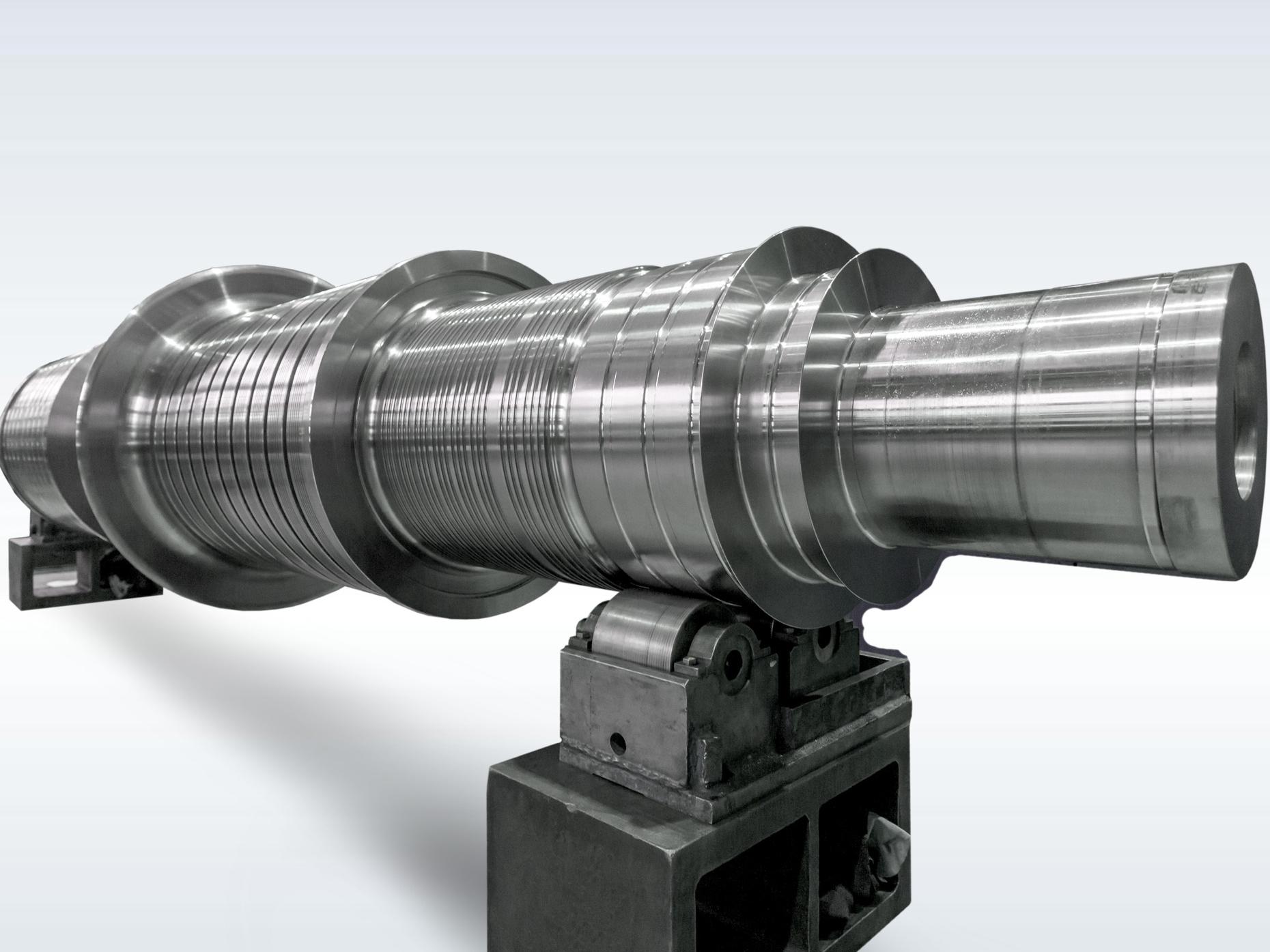

High-precision CMM systems are the ideal solution for measuring individual components. For smaller parts, the ZEISS PRISMO and ZEISS CONTURA models excel, while the MMZ family is designed for larger components. ZEISS coordinate measuring technologies (CMM) equipped with active scanning technology are perfectly suited to meet these measurement needs.

ZEISS CMMs
