ZEISS CONTURA

ZEISS CONTURA

Prepared for all challenges - today and tomorrow

ZEISS CONTURA enables you to be prepared today for the measurement requirements of tomorrow: The new generation is equipped with the mass technology and, thanks to a common interface, enables simple switching between different sensor technologies in just a few simple steps. In addition to innovative options such as measuring in four axes using a flexible rotary table, an automated probe changing system or the HTG option (for larger temperature ranges), the device also stands for first-class performance, ergonomics and future security.

  • Versatile sensor technology for diverse applications
  • Enhanced measuring speed with reliable accuracy
  • Designed for ergonomic comfort and space optimization
Versatility with mass technology

Versatility with mass technology

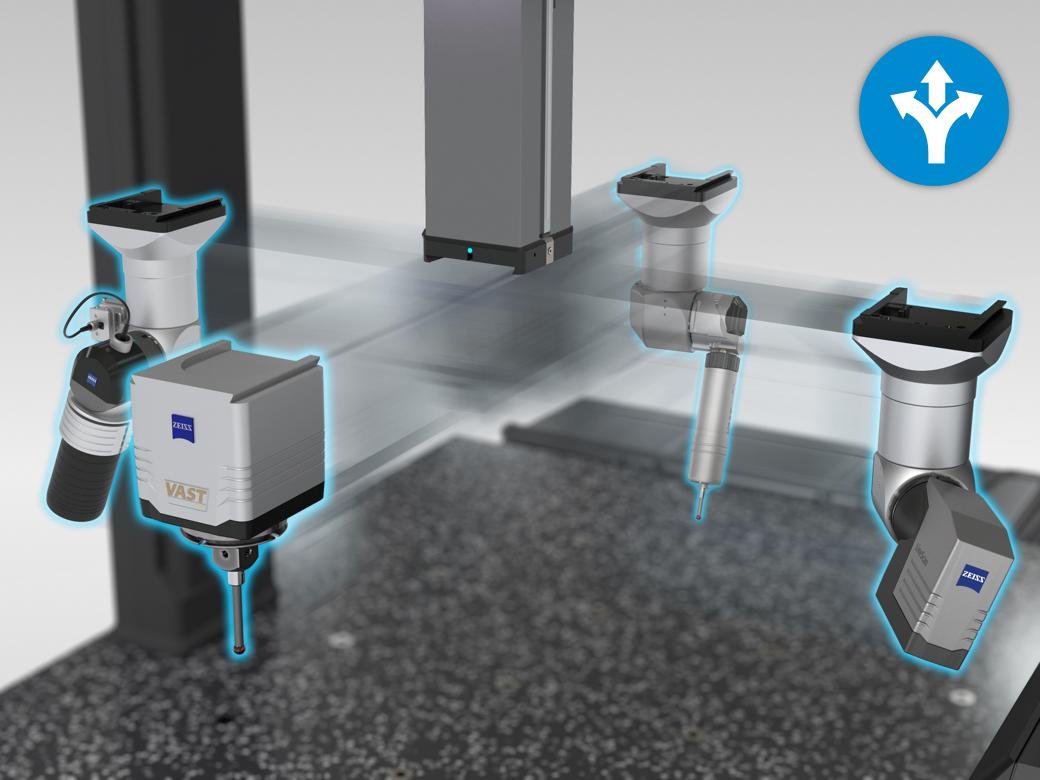

ZEISS CONTURA comprises an extensive range of sensors and thus offers the right sensor or sensor system for every application and every requirement. With the mass technology, a large number of ZEISS sensors can be operated with high precision and quickly replaced on the same measuring instrument: Sensors with an articulating probe holder or fixed probe configuration, optical or tactile, passive or active - this is how ZEISS CONTURA achieves maximum flexibility.

Discover the benefits of ZEISS CONTURA

Optical sensors

Optical sensors

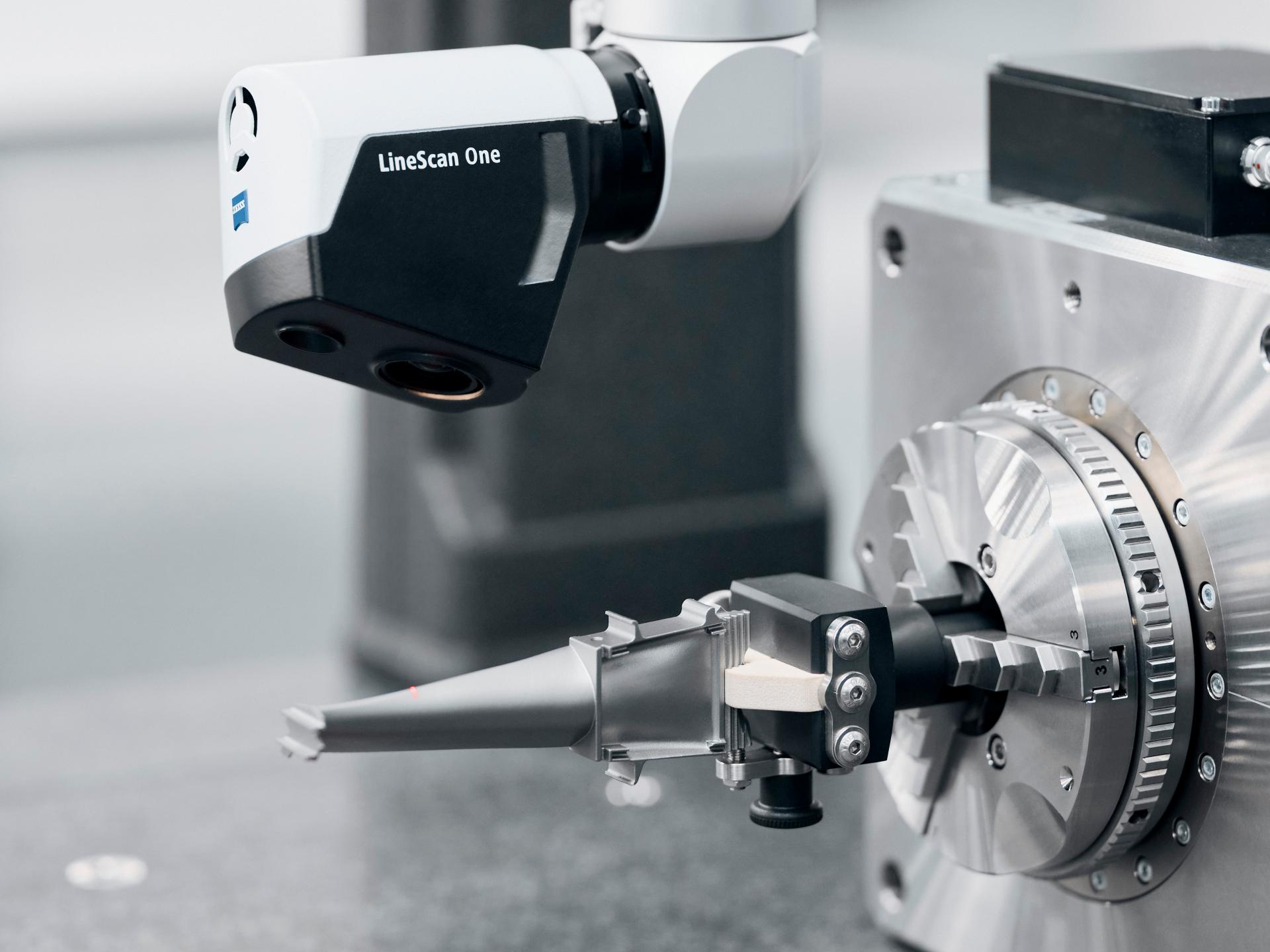

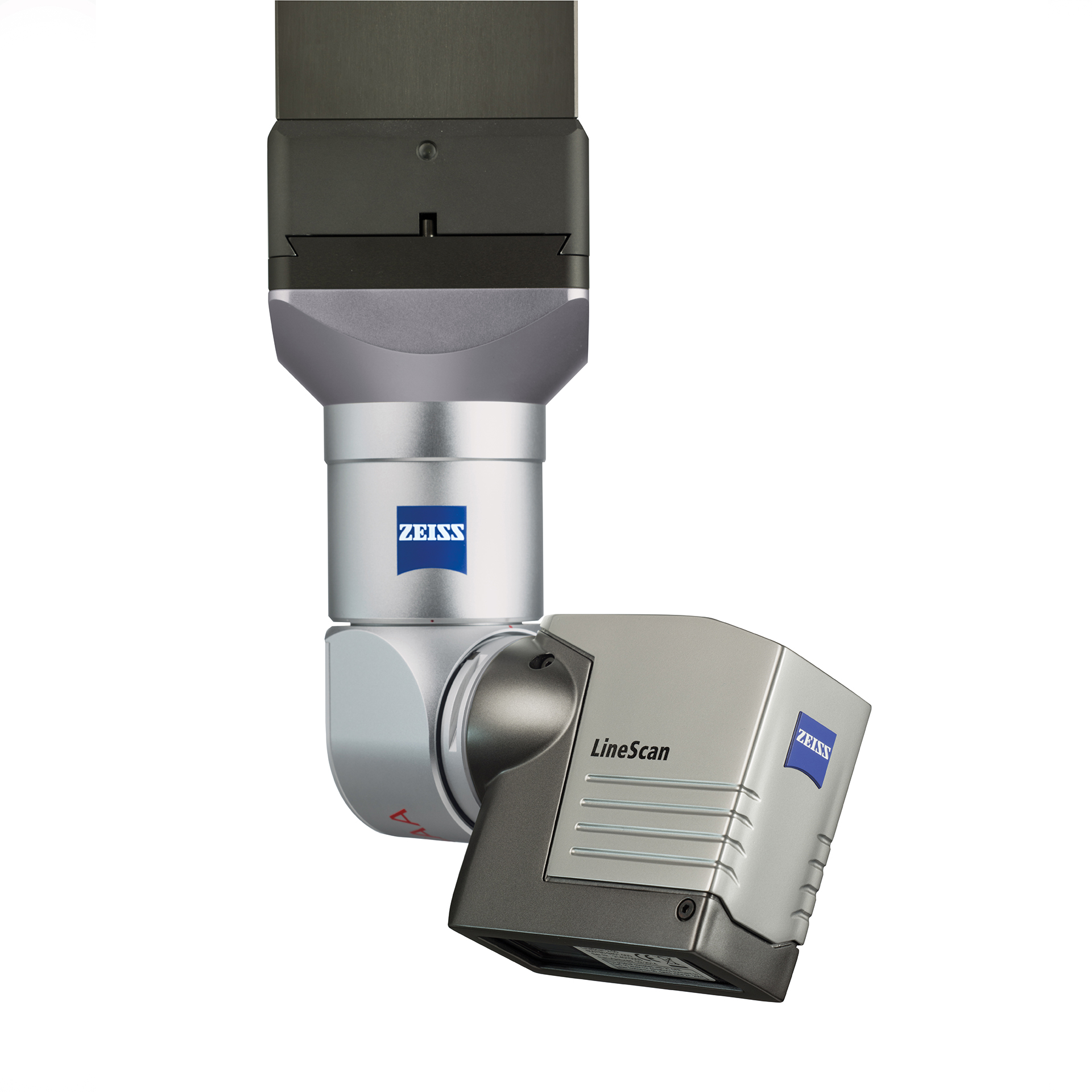

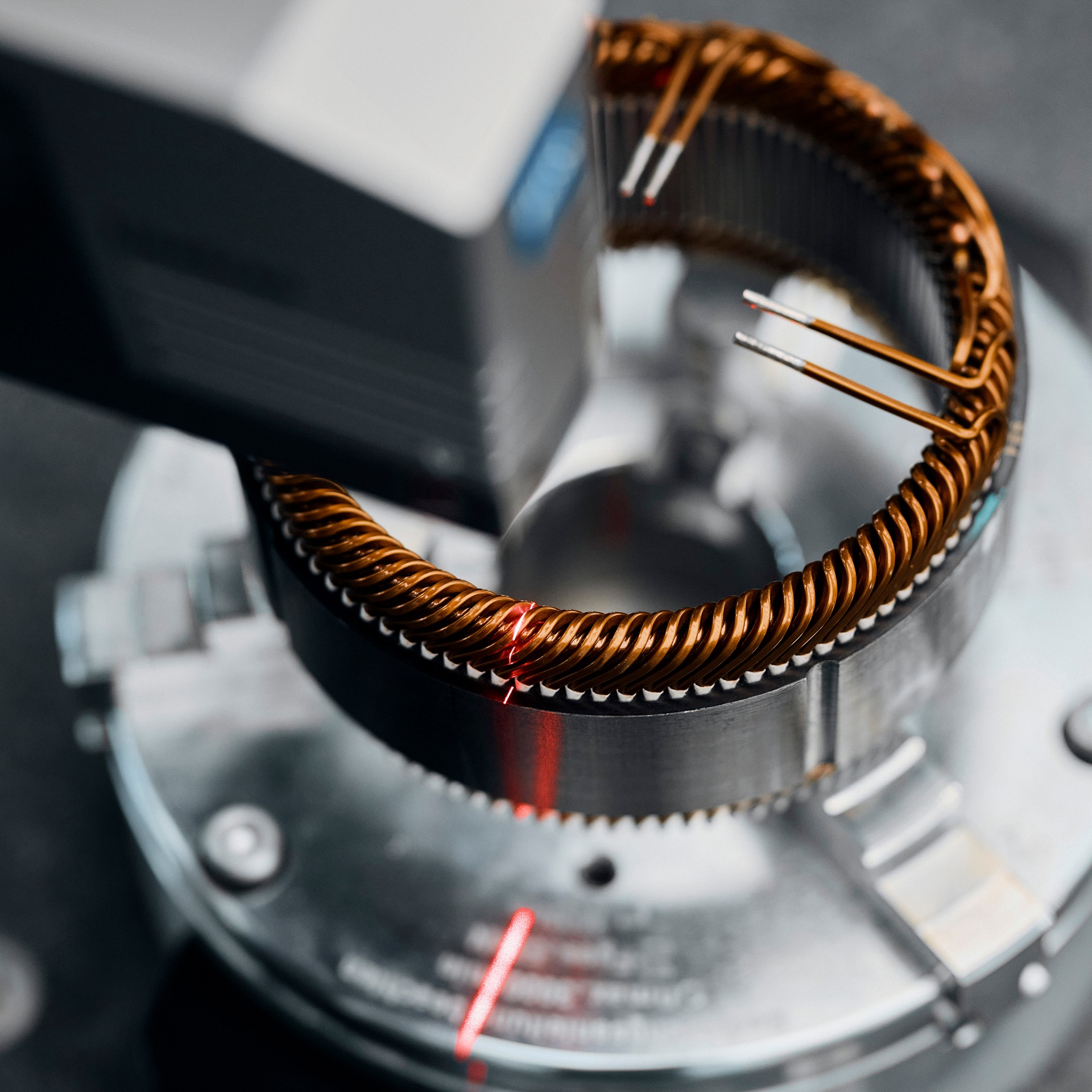

ZEISS CONTURA combines the performance of tactile and optical measurement tasks on a single device: from 2D image sensors to chromatic white light sensors to triangulation lasers. With ZEISS CONTURA, the world of optical sensors opens up anew.

Ergonomy

Ergonomy

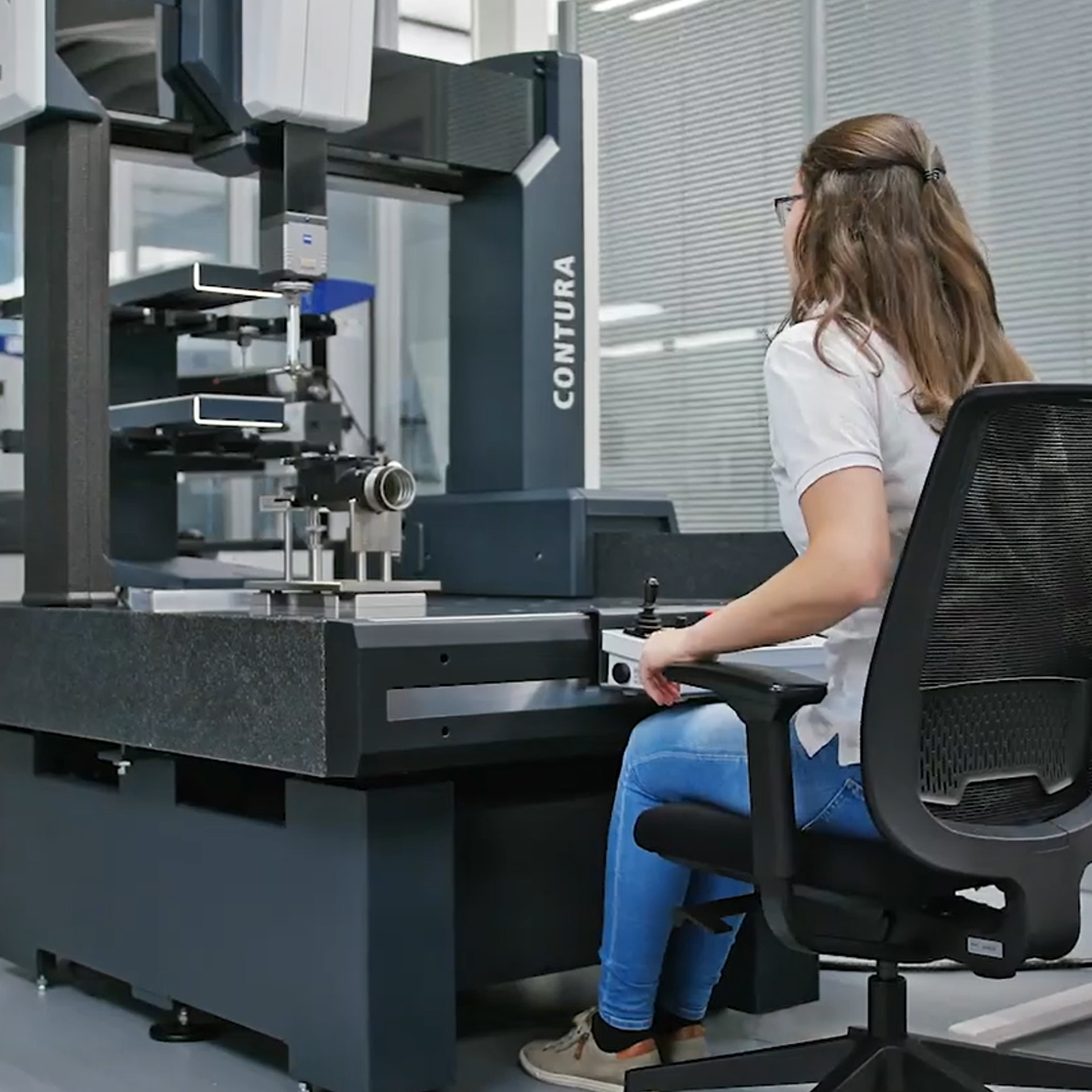

Small measuring rooms require a measuring device to adapt with the available space. The optimized height and width of the CMM, but also by well thought out special features with regard to ergonomics, it is possible to work comfortably for the user.

Future proof

Future-proof

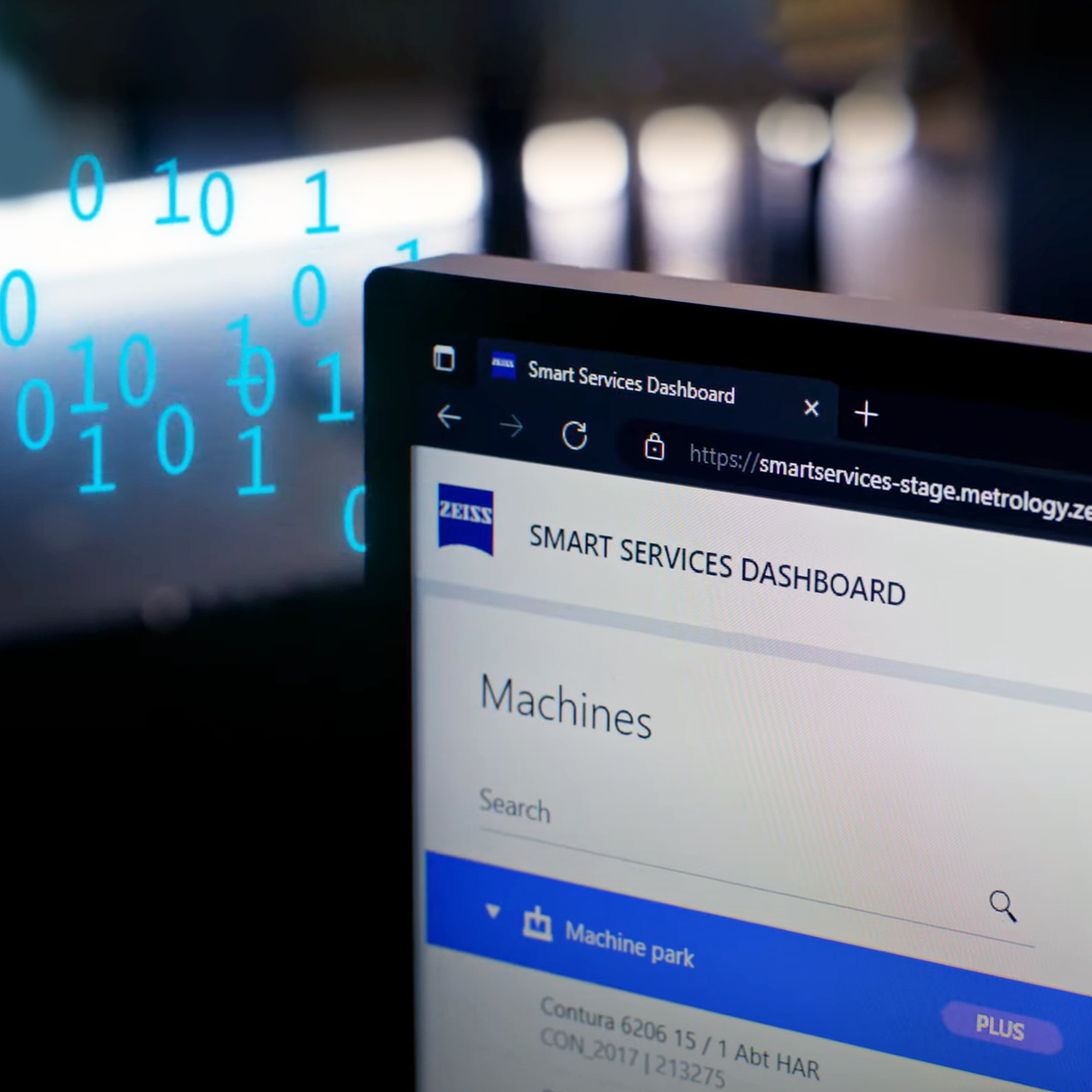

ZEISS CONTURA is also ready for Industry 4.0. The ZEISS Smart Services range of digital services allows the performance of the device to be monitored while on the move in real time.

Sizes

Sizes

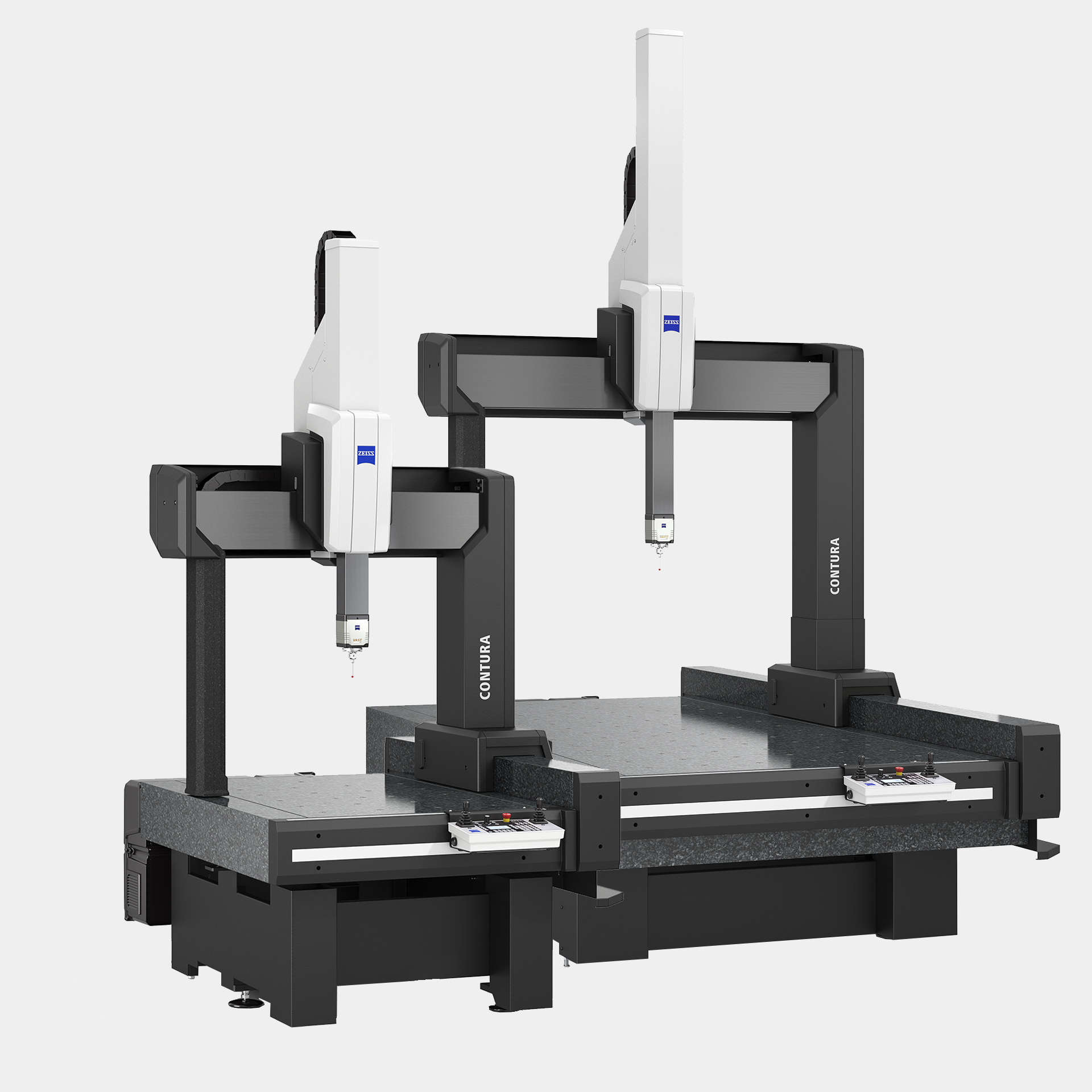

As measuring challenges change, so can the demands on application sizes. In order to meet these changing requirements for larger workpieces, ZEISS CONTURA will now be available in the sizes 12/18/10 and 12/24/10.



Performance

ZEISS CONTURA makes it possible to reduce the measuring time to a minimum while maintaining reliable accuracy. This is guaranteed by functions such as ZEISS VAST navigator or ZEISS VAST performance in conjunction with ZEISS VAST measuring heads.

  • ZEISS CONTURA with ZEISS VAST performance

    ZEISS CONTURA with ZEISS VAST performance

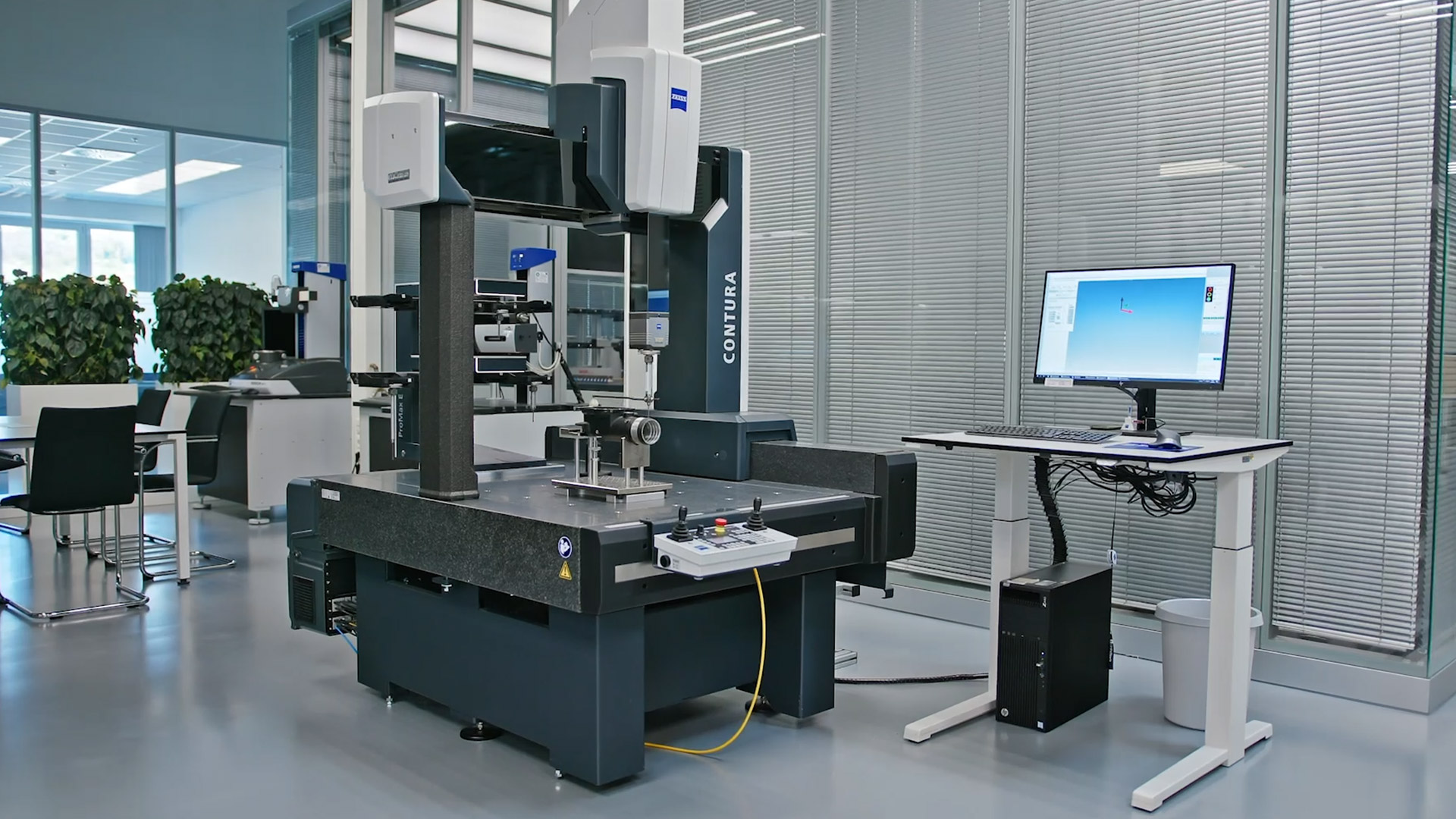

  • ZEISS CONTURA with VAST navigator

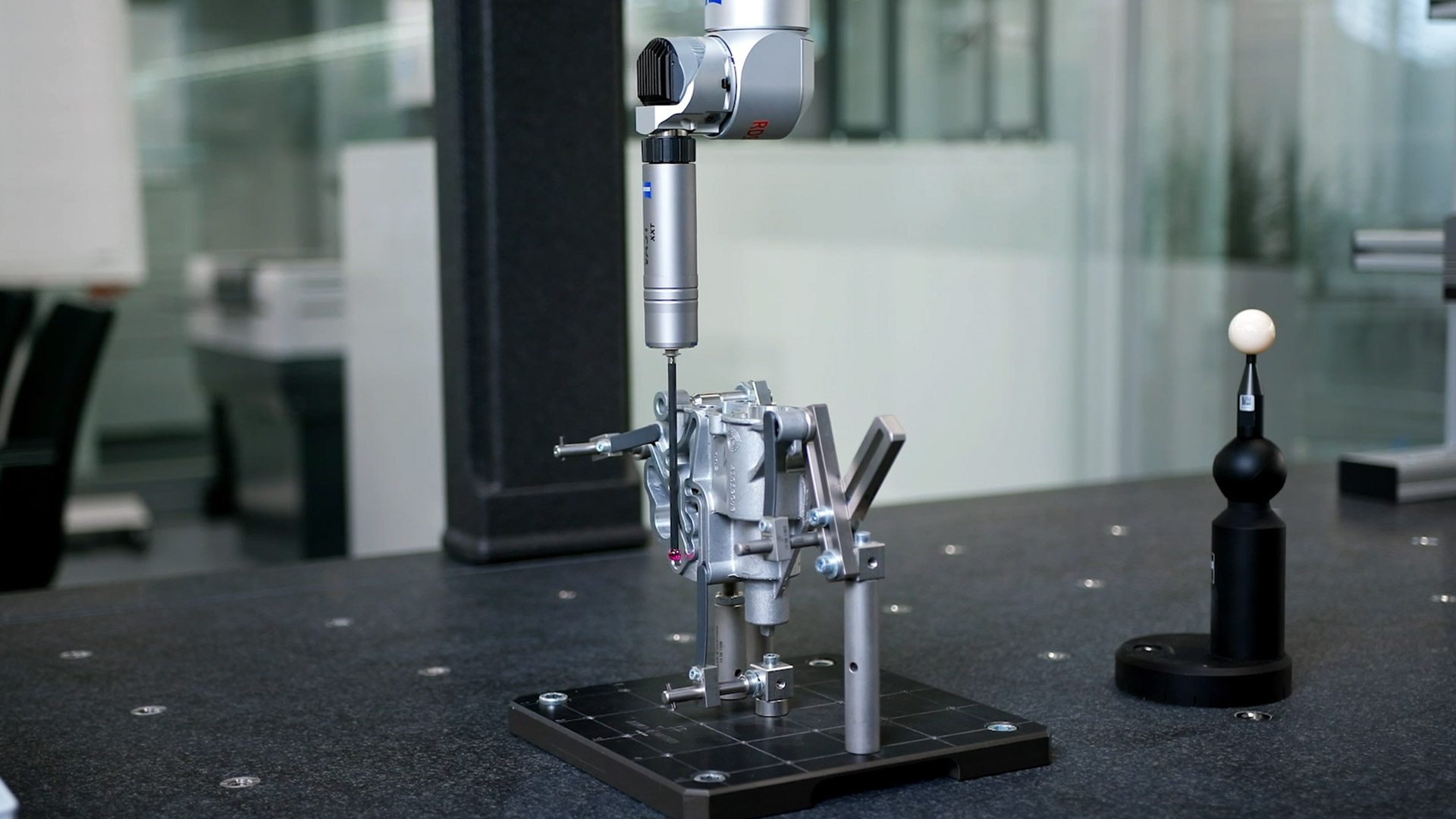

  • ZEISS CONTURA with Fly Mode

    ZEISS CONTURA with Fly Mode

  • Ergonomy

    Ergonomy

  • ZEISS CONTURA with ZEISS VAST performance
  • ZEISS CONTURA with VAST navigator
  • ZEISS CONTURA with Fly Mode

Options

  • HTG (High Temperature Gradient)

    With the HTG option (High Temperature Gradient) even larger temperature ranges are no challenge for ZEISS CONTURA. Thanks to the floating glass ceramic scales, the new ZEISS CONTURA withstands thermal changes - temperature stability with constant measuring accuracy is thus guaranteed.

  • Rotary Table

    The new flexible rotary table can be installed in the measuring range as a surface-mounted variant when needed and can then be conveniently moved out of the measuring range again. This option enables measurements in four axes.

  • ProMax E

    With the ProMax E option, ZEISS offers an automated probe changing magazine to guarantee the complete measuring volume during the changing process. It automatically moves into the measuring range and replaces the probe systems safely and accurately.

  • Further Options

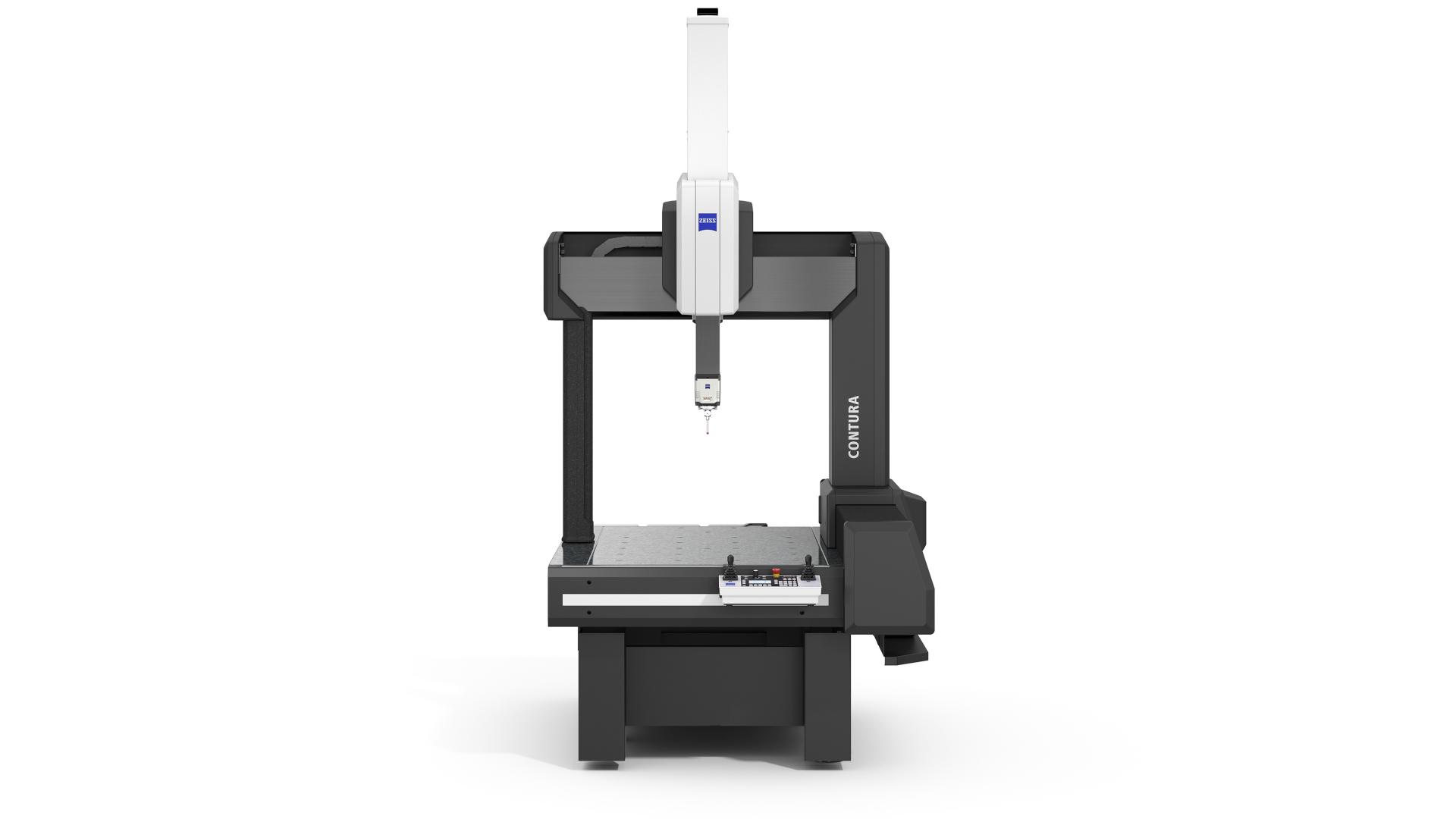

    Bellows: Dirt or dust are no problem for ZEISS CONTURA! As an option, which can also be retrofitted, ZEISS offers a comprehensive bellows. It covers all four guide levels on the Y-guide beam.

    Safety Position: If ZEISS CONTURA is integrated into an automation process, this can be provided with the Mini-SiPos option. A protocol is transferred to a second part (crane or robot) with information on when the machine is in a safe position or when the second part is in a safe position. This avoids unwanted interactions between the parts.


More sustainability in your measuring processes with ZEISS CONTURA

At the heart of every machine’s lifecycle, energy consumption plays a pivotal role during the usage phase, significantly influencing the environmental footprint. ZEISS CONTURA exemplifies efficient resource consumption, incorporating energy-saving features.

Sustainability Features

With the ZEISS PowerSaver feature, the machine is disconnected from the power supply when not in use and power consumption is reduced to zero during downtimes. Users can define the activation of the ZEISS PowerSaver at specific times.
ZEISS AirSaver ensures further savings and automatically switches off the compressed air after a preset time.

Technical Data

ZEISS CONTURA

Size in dm

Various sizes

In X: 7 -12​
In Y: 7 - 24​
In Z: 6 - 10

Accuracy from

1,4 + L/350 µm

Probes

Wide range of probes thanks to mass technology

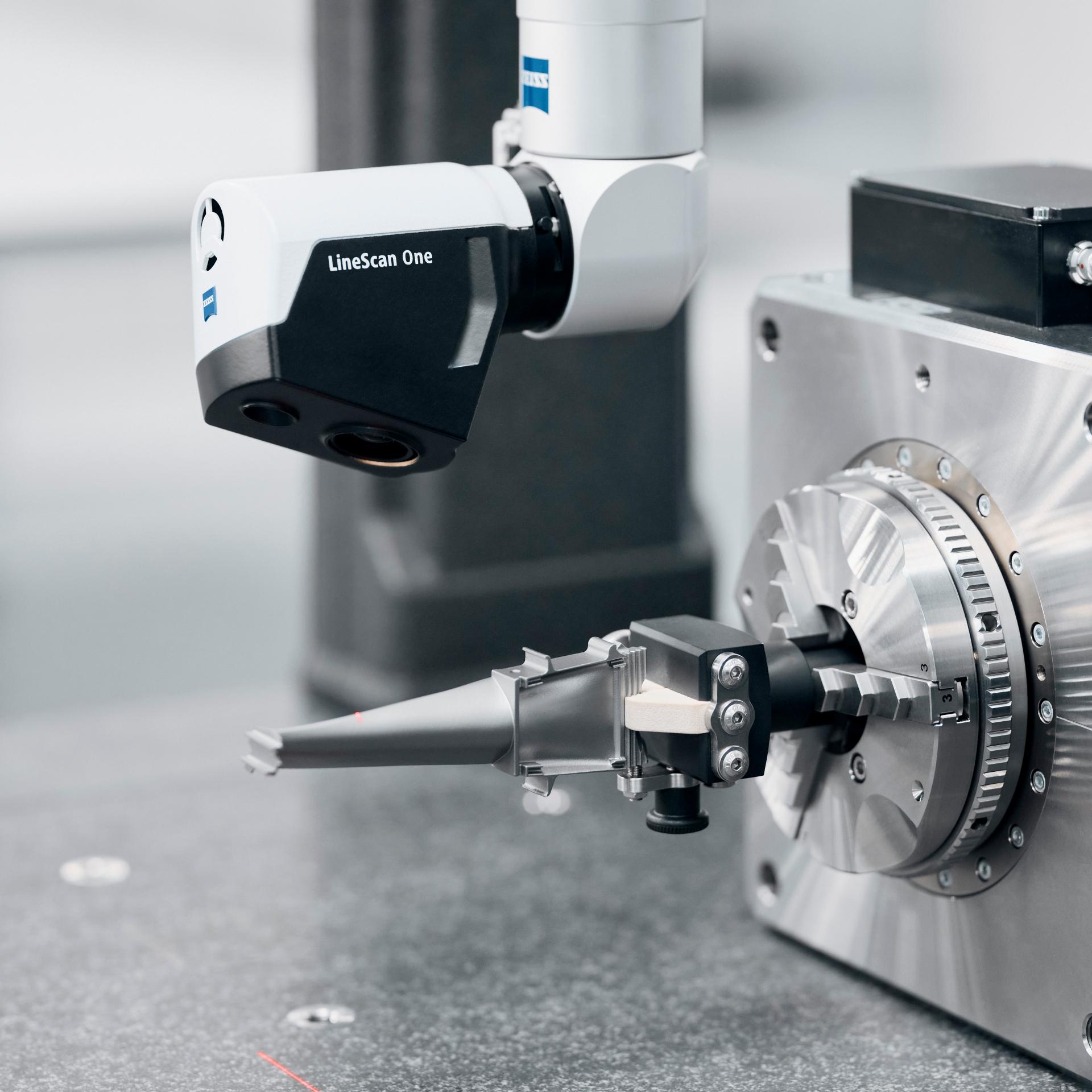

ZEISS XDT, ZEISS VAST XXT, ZEISS VAST XT gold, ZEISS VAST XTR gold, ZEISS ViScan, ZEISS DotScan, ZEISS LineScan, ZEISS RDS

Maximum workpiece weight

730 – 1200 kg (depending on size)

Software

ZEISS CALYPSO

Do you need more information about ZEISS CONTURA?

Fill out the form below to download our whitepaper.

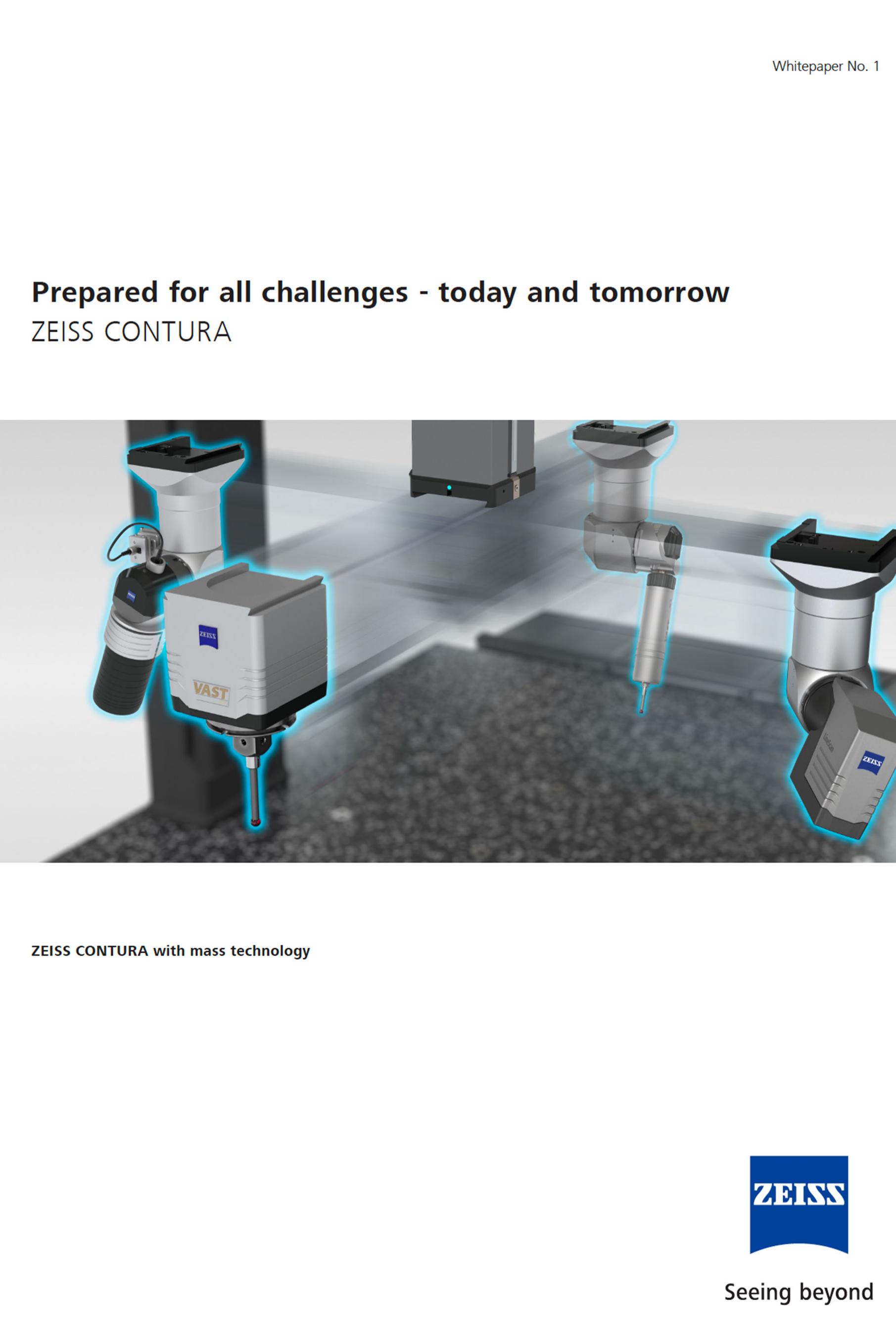

Whitepaper ZEISS CONTURA

Form is loading...

If you want to have more information on data processing at ZEISS please refer to our data privacy notice.

Download more information

  • CONTURA Original Accessories Digital Flyer, EN

    Pages: 6
    File size: 577 KB
  • CONTURA Product Launch Flyer, EN

    Pages: 3
    File size: 1 MB

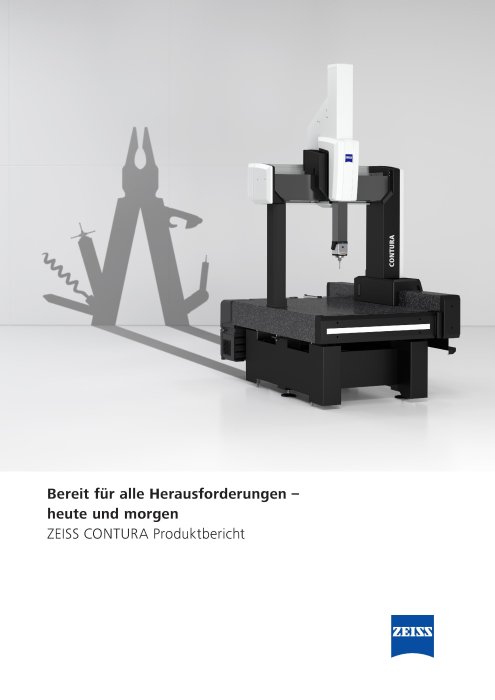

  • CONTURA Product Report, EN
