Point clouds at the speed of light

ZEISS LineScan is the tool of choice when capturing the entire surface of forms using point clouds – whether for a comparison with available nominal CAD data sets or for the creation of a new CAD model.

  • High speed and comprehensive surface detection increase productivity
  • Large sensor selection with different measuring ranges and accuracies for a wide range of applications
  • ZEISS LineScan 2-8 is the world's most precise line scanner on CMMs and ensures outstanding measurement results
  • Powerful software integration in ZEISS CALYPSO - for a standardized uniform, easy-to-use user interface
LineScan

Benefits

Greater productivity
The sensor ensures the swift, complete capture of the surface structure and a high point density, making it possible to reduce the measuring time by up to 70%. This increases productivity considerably.

Flexibility
The bespoke sensors for particular applications assist the operator by simplifying the measurement strategy. Invest only in the sensor that best fits the application.

Trust in measurement data
Users trust their measurement results because of accurate, high resolution images. This reduces iterations, resulting in lower part costs and higher machine productivity through reduced measurement time.

Exceptional user-friendliness
No change in how users work: the assessments are displayed together with the standard geometry evaluations in the report. Users gain a wider range of measurement possibilities with ZEISS CALYPSO.

Application examples

The strengths of ZEISS LineScan are particularly evident in the areas of car body, mold/tool making, model making, design and for touch-sensitive or finely structured surfaces.

LineScan: Application examples

Automotive

  • CAD inspection of car bodies
  • Gap and alignment measurements
  • Body volume analysis for electric motors

Aerospace

  • Quality inspection of free form areas of cast metal parts for jet engines
  • Measurement of rotor blades and wing elements

Forming

  • CAD comparison of formed parts
  • Wear and repair analysis of forming tools
  • Reverse engineering of forming tools
LineScan: Application examples

Medical systems

  • Flatness inspection of photographic plates for digital X-ray
  • Inspection of forming tools for dental drills

Energy

  • CAD measurement and reverse engineering of blades for wind and water turbines

Ship building

  • CAD comparison of cylinder blocks of ship engines

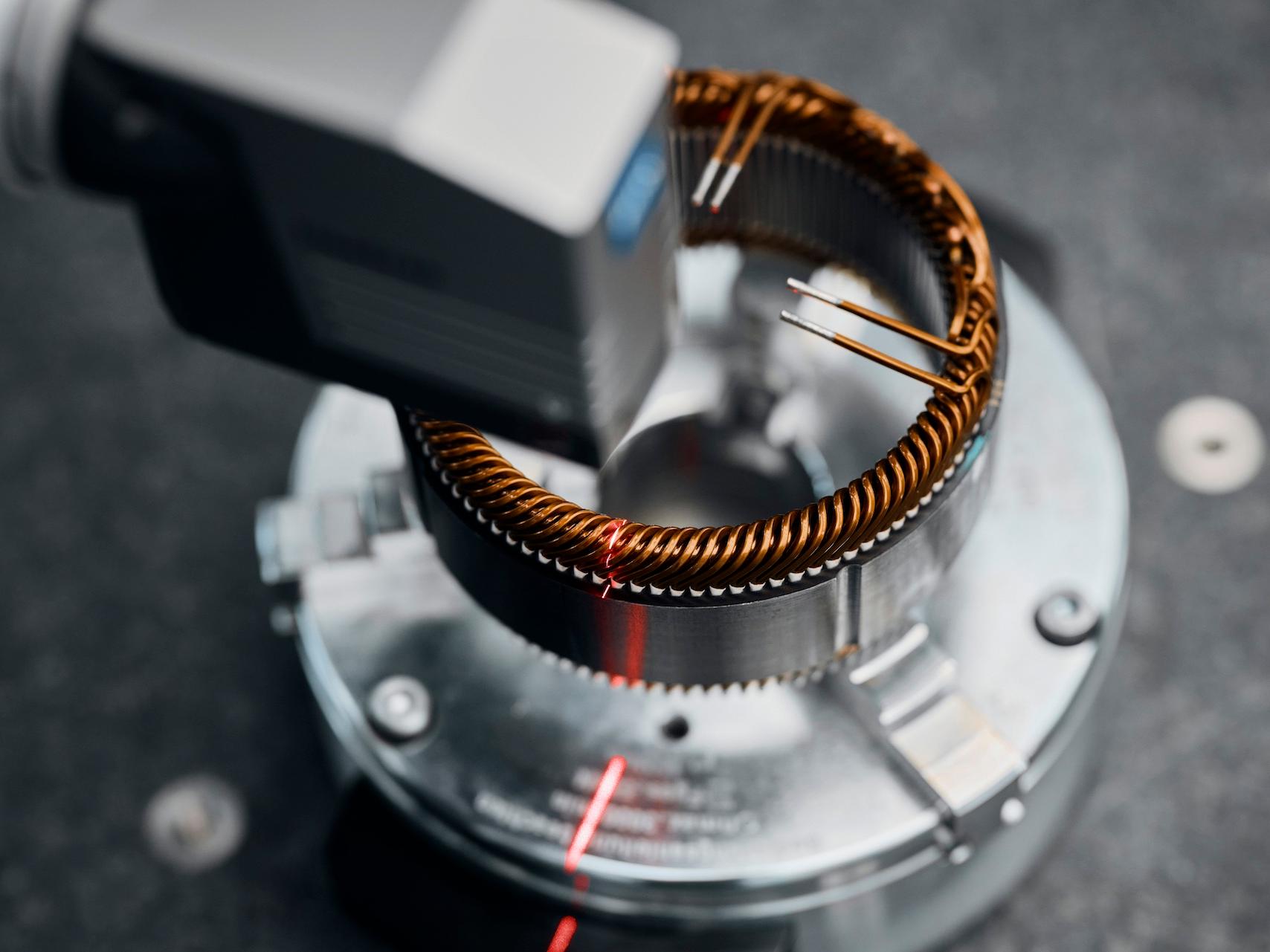

Body volume analysis for electric motors

Applications in electromobility are one example of the use of the of the ZEISS LineScan optical sensor. The external dimensions of the stator are a decisive factor for its mounting in the electric motor the electric motor housing. The position of the connecting flange and of the shaft require measurement in relation to the gear position.

Large selection with different measuring ranges

Suitable for the most diverse applications

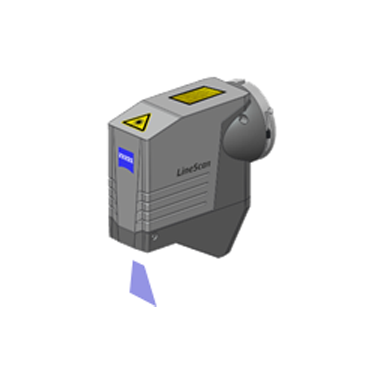

LineScan 2-8
LineScan 2-8

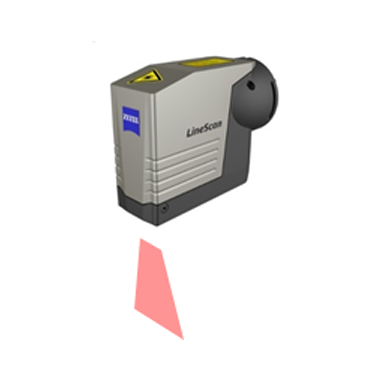

LineScan 2-25
LineScan 2-25

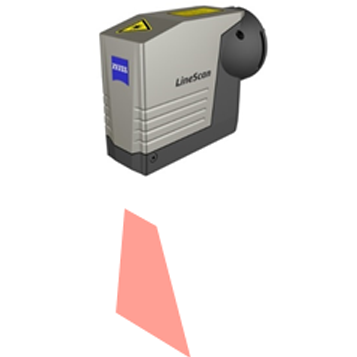

LineScan 2-50
LineScan 2-50

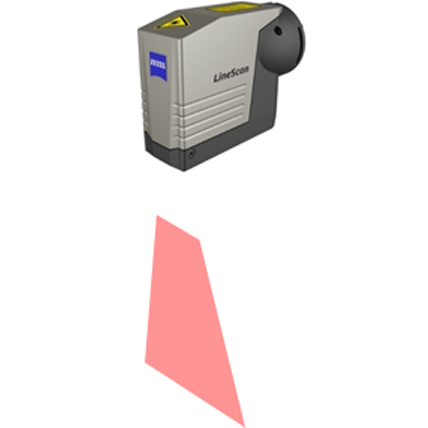

LineScan 2-100
LineScan 2-100

MPE P (D.95%:Tr:Opt*):

2,9 μm - PRISMO;
3,3 μm – CONTURA/ACCURA

12 μm

20 μm

50 μm

RMS*:

0,9 μm

4 μm

5 μm

12 μm

Small components with high accuracy; small tolerances

Medium sized components with high accuracy; medium tolerances

Universal scanner, for a wide range of applications

Very large measuring range with lower accuracy; large tolerances
