Process Control Solutions (PCS)

Accelerated processes Process control for next generation semiconductor elements

Increasing complexity, new materials and ever smaller semiconductor structures: The requirements for metrology and process control solutions are constantly rising. ZEISS offers solutions for the modern production of logic and memory chips.

  • 3D Metrology Workstation
  • MultiSEM
  • NanoFab

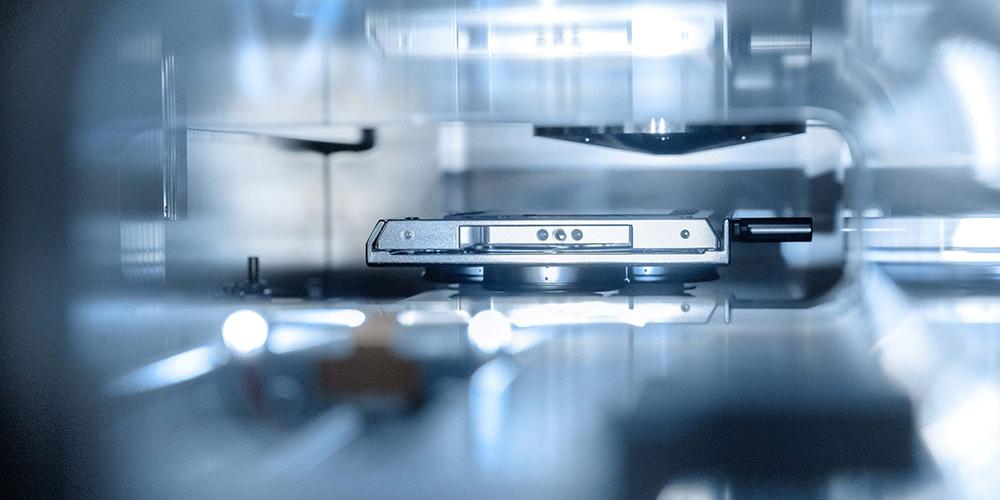

Electron beam of the MultiSEM technology from ZEISS SMT

Valuable information Process control for new methods

With its wide range of technologies, ZEISS offers innovative process control solutions for obtaining relevant information for the production of logic and memory chips. This is how we equip the semiconductor industry to meet its challenges for the next generation of elements.

Faster, more precise, and more flexible Our solutions designed for process control

  • 1,5 TB

    Constant data rate per hour with MultiSEM

  • 0,9 nm

    SEM resolution at the coincidence point at 15 kiloelectron volts (keV) with the 3D metrology workstation

  • 3 in 1

    Ion beams: helium and neon column in nanoFab – with option to integrate a gallium FIB

SMT process control solutions at a glance

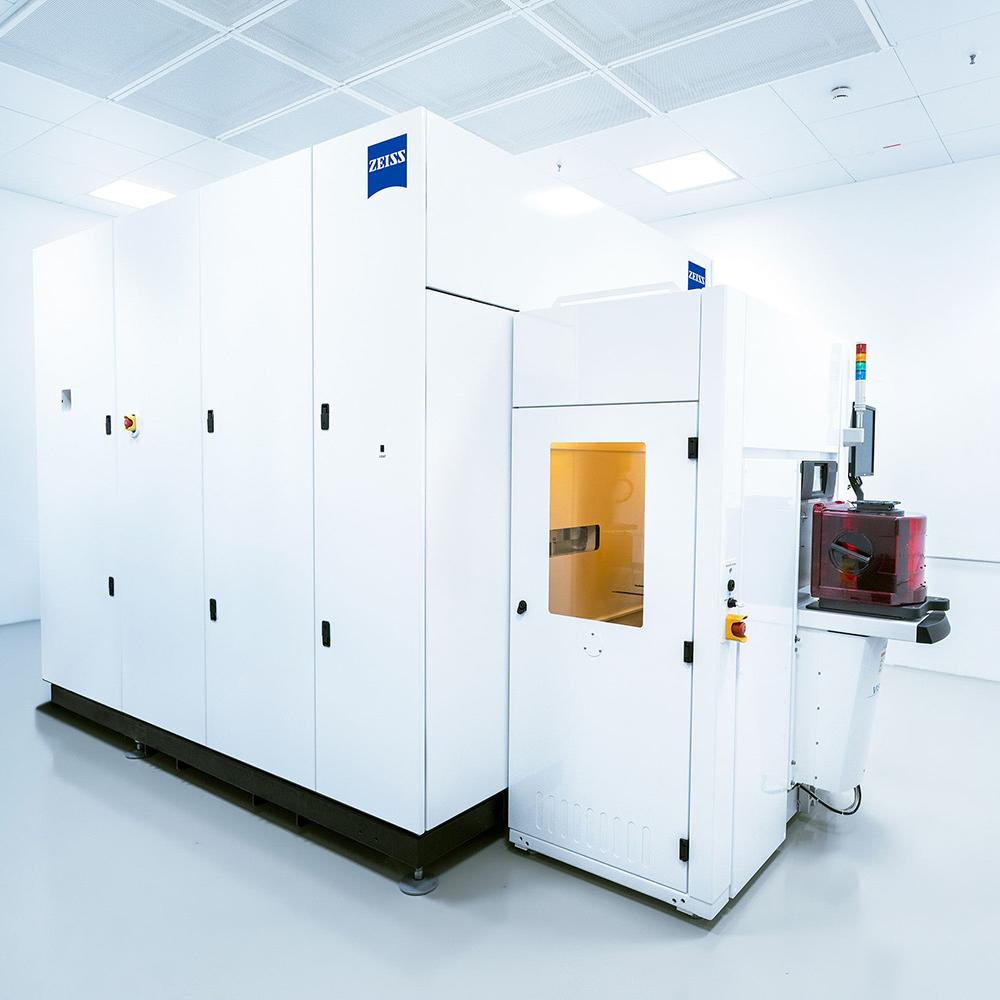

A 3-D Tomo Metrology Workstation form ZEISS SMT

ZEISS 3D Metrology Workstation

The ZEISS 3D Metrology Workstation is a FIB-SEM combination for 3D high-throughput analysis with a resolution of up to 0.9 nanometers. This allows you to analyze the volume of microchips – sampling, analyzing and validating with nanometer accuracy.

Two employees work on the MultiSEM

ZEISS MultiSEM

With 91 parallel electron beams, the unique, highly efficient ZEISS MultiSEM multi-beam scanning electron microscope makes complex 2D structures visible at an incomparably high speed. The intuitive ZEISS ZEN Imaging software enables reverse engineering, process control and troubleshooting in the finest semiconductor structures.

Technology from NanoFab

ZEISS NanoFab

Analyze and process semiconductor structures in the sub-10-nm range with the GFIS-based multi-ion beam microscope. The solution for rapid prototyping and circuit editing: With the combination of helium and neon ion beams and an optional gallium ion column, you can efficiently locate defects and correct errors.

Anything is imaginable – a lot is possible Contact us today

ZEISS empowers manufacturers worldwide with lithography optics and process control solutions for semiconductor manufacturing. With increasing complexity, new materials and the miniaturization of semiconductor structures, the demands on metrology and process control systems are also rising.
