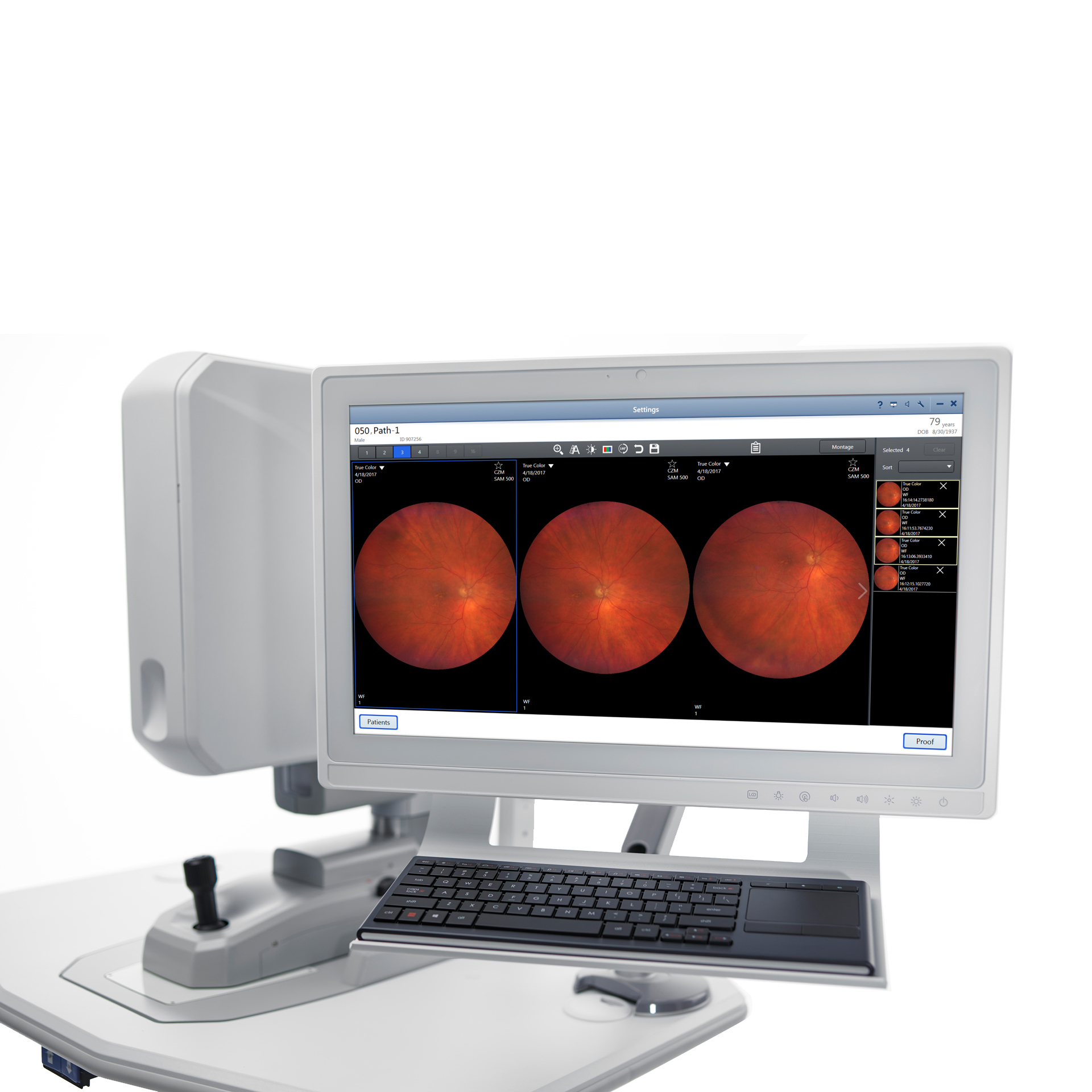

ZEISS CLARUS 500
Imaging ultra-wide without compromise.
The advent of widefield retinal imaging has shown us that indications of disease are often located in the far periphery of the retina. CLARUS™ 500 is the next generation fundus imaging system from ZEISS that provides True Color and high-resolution across an entire ultra-widefield image.

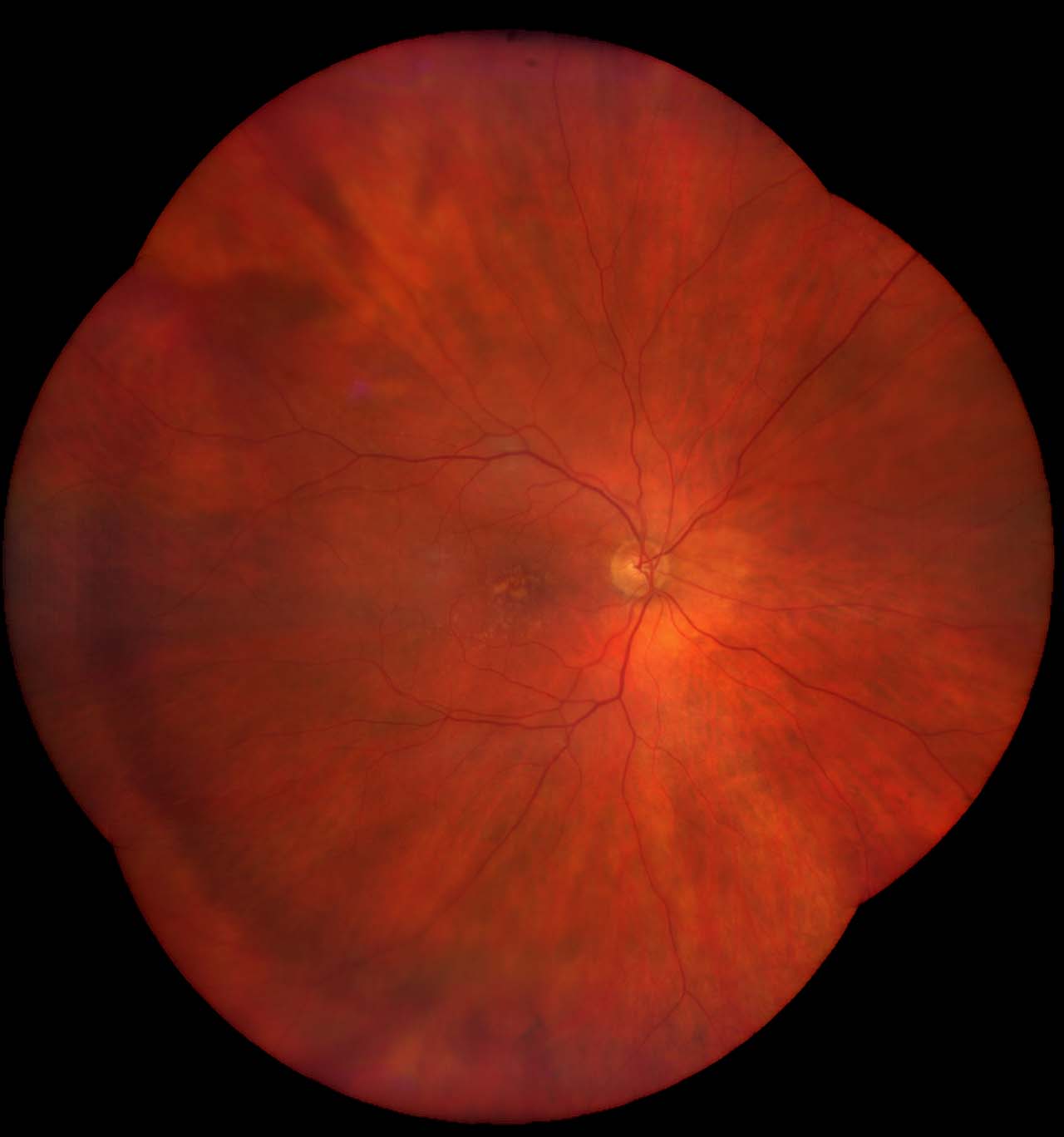

ZEISS CLARUS 500, the newest ultra-widefield retinal camera from ZEISS, allows clinicians to use color to their diagnostic advantage. ZEISS CLARUS generates images that closely resemble the coloration of the fundus as seen during clinical examination. Color fundus imaging can aid in the diagnosis and documentation of ocular disease, ensuring confidence when evaluating the optic disc, nevi and lesions where color is important.
ZEISS CLARUS 500 captures clear and accurate images from the macula to the far periphery. Early indications of disease can often be subtle and difficult to see through direct observation or low resolution fundus imaging. Leveraging ZEISS optics, ZEISS CLARUS 500 is an ultra-widefield retinal camera that captures a high-resolution image down to 7 microns.

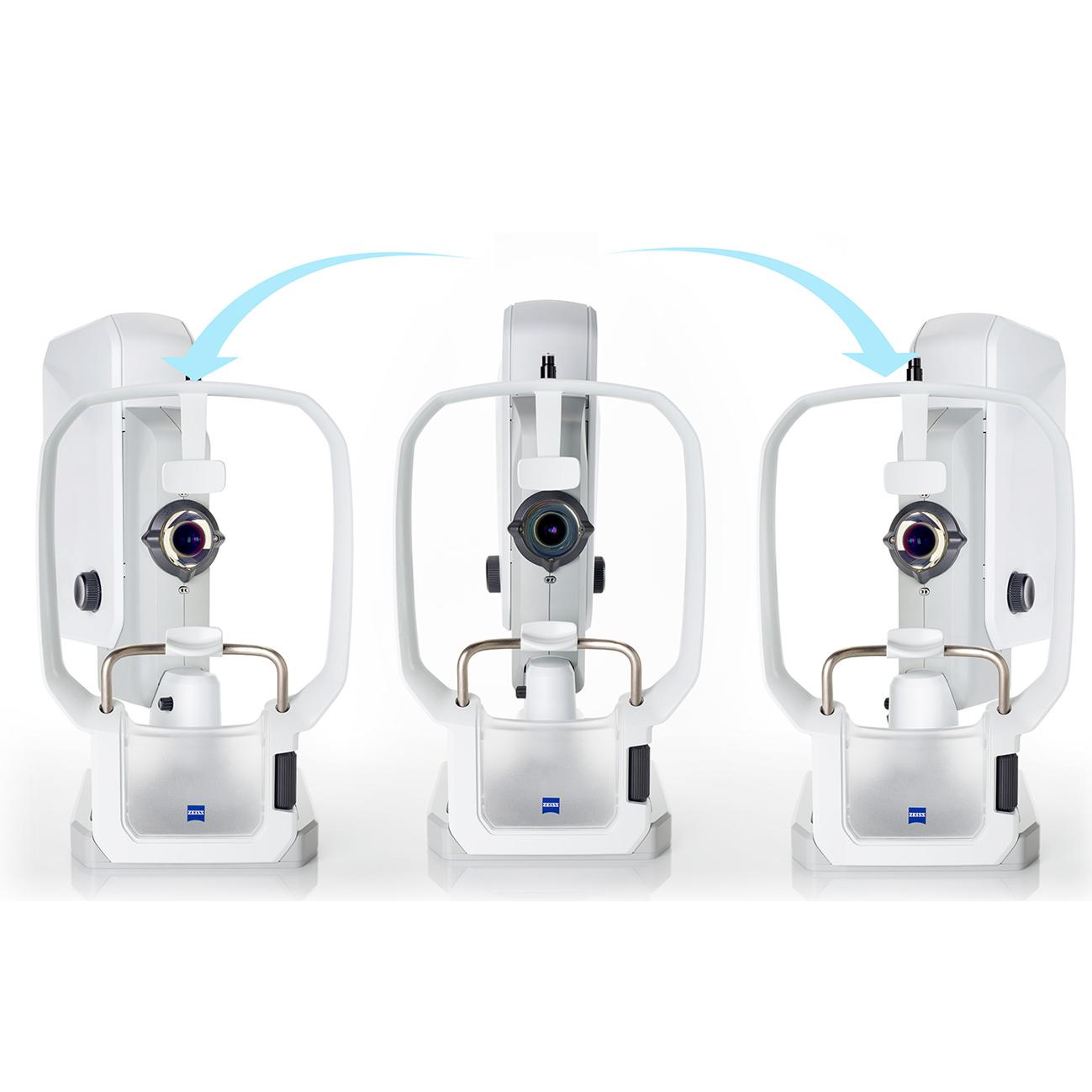

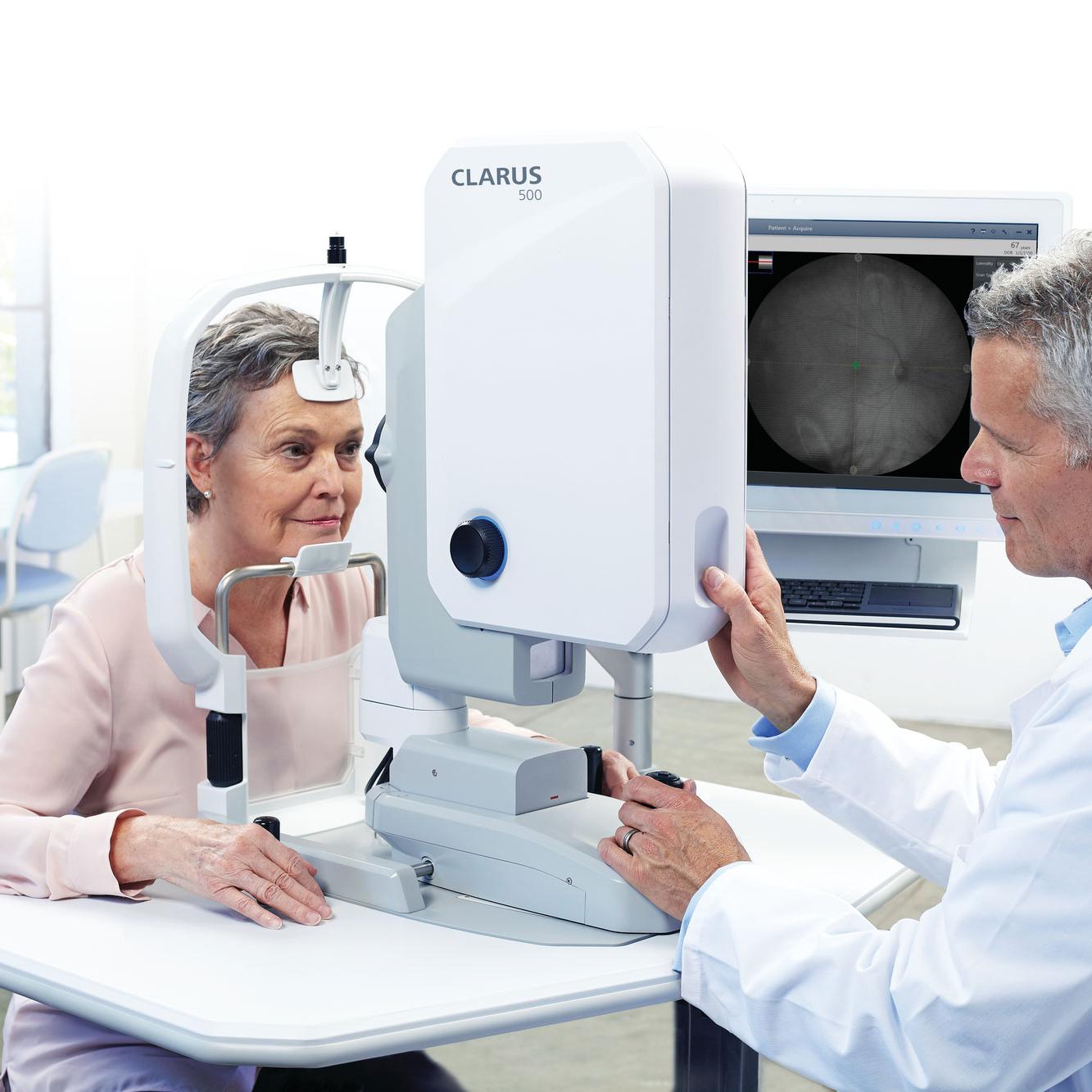

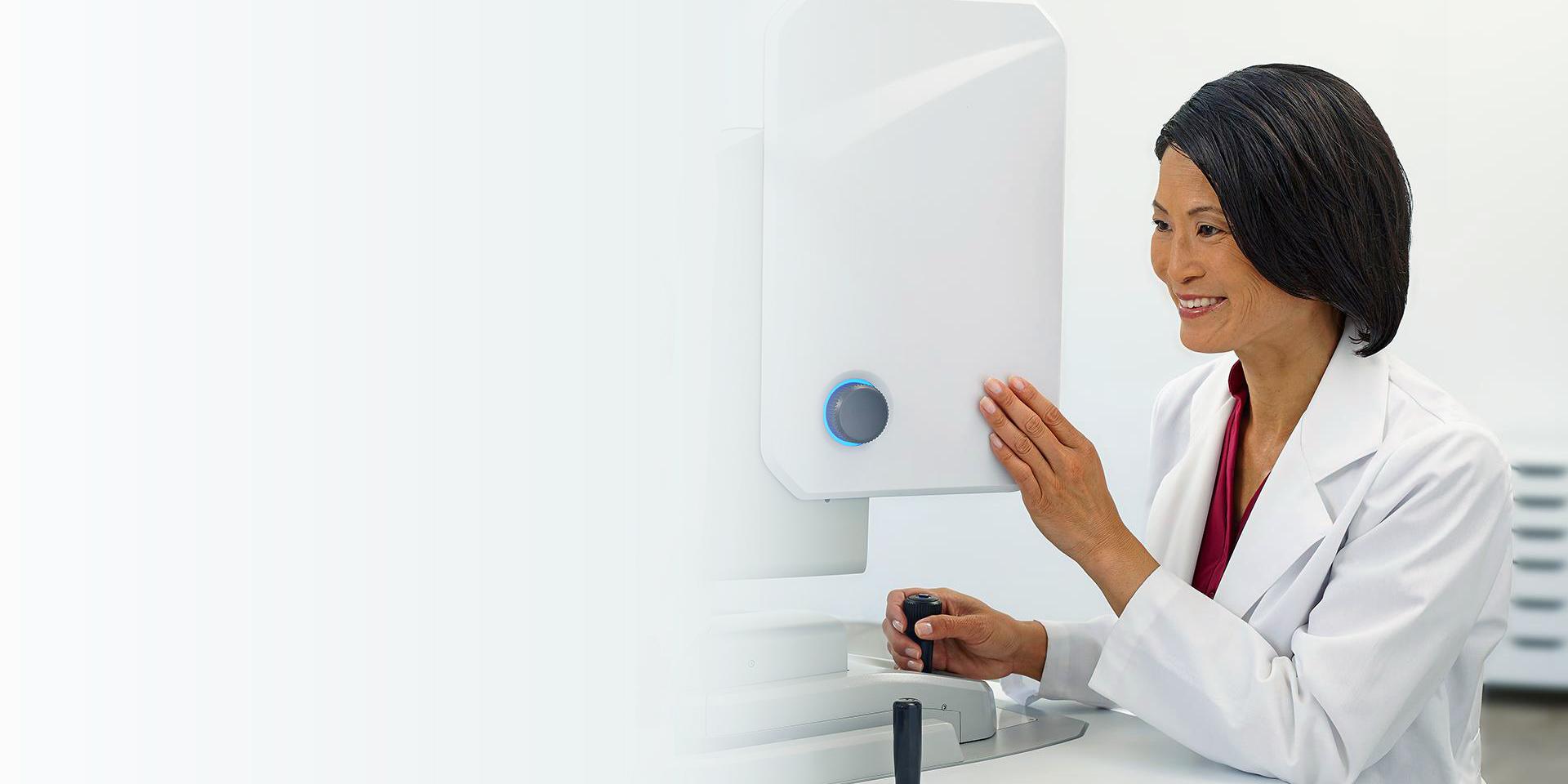

Simple, stable and intuitive, ZEISS CLARUS 500 is an ultra-widefield retinal camera that has been purposefully designed to optimize each patient's experience.
ZEISS CLARUS 500

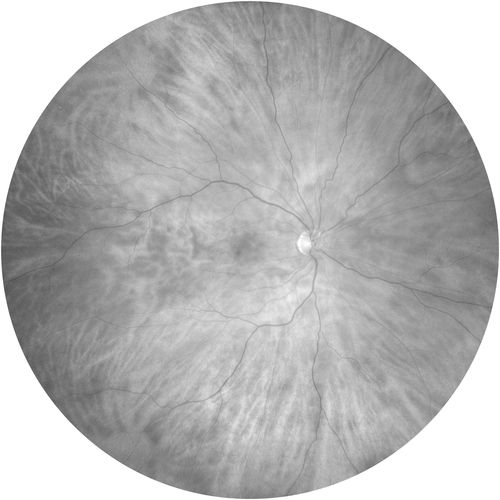

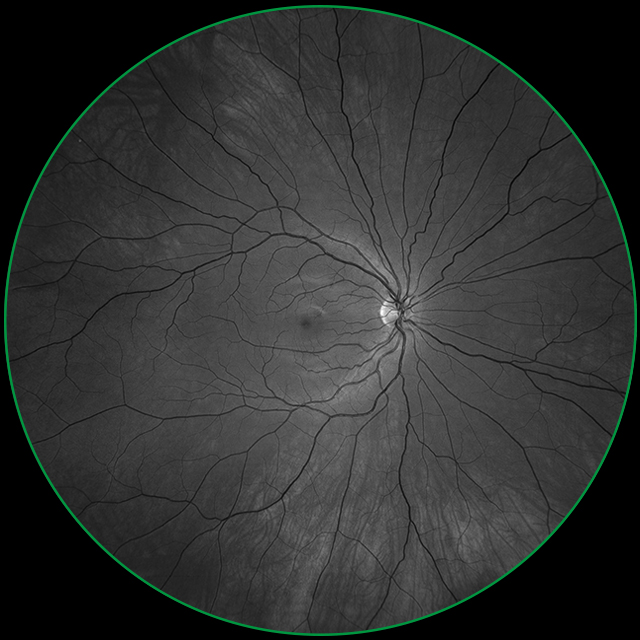

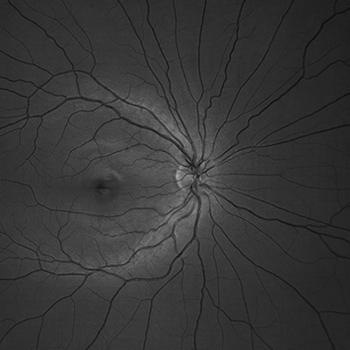

Imaging ModesTrue Color (with Red, Green and Blue channel separation)Autofluorescence-GreeAutofluorescence-BlueInfrared reflectanceExternal eye image (ocular surface)StereoField of View (measured from the center of the eye)133º Widefield (one image)200º Ultra-widefield (two images)up to 267º Montage (up to six images)Resolution7.3 μmPupil Diameter2.5 mm (minimum)Working Distance25 mm (patient’s eye – front lens)Compensation for ametropia- 24 D to + 20 D continuousLight SourcesRed LED, 585–640 nmGreen LED, 500–585 nmBlue LED, 435–500 nmInfrared laser diode, 785 nmAutomatic OperationsAuto-focusAuto-gainAutoMontageAuto-lateralityAcquisition SpeedLive IR Preview, 10 frames/secondImage Capture, ≤ 0.2 seconds
Acquisition Device Weight~23.6 kgAcquisition Device Dimensions (W x D x H)362 mm x 546 mm x 676 mmTable SpecificationsWheelchair accessible, electronic liftInstrument Table Dimensions (W x D x H): 916 mm x 615 mm x 711 - 925 mmInstrument Table Weight: ~38 kgInput PowerAt-Instrument Computer Weight: ~8.5 kg100–240VAC, 50/60 HzIEC 60601-1 Class I
Monitor22" Full HD MVA LCD with LED BacklightResolution1920 x 1080ProcessorIntel® 6th Generation Core i5-6500TEHardrive1 TB (minimum 100,000 images)Dimensions (W x D x H)21.5" (54.6 cm) x 2.5" (6.4 cm) x 13.75" (34.9 cm)Weight~8.5 kgTouch ScreenCapactive, Multi-TouchRAM8GBInput/OutputUSB 3.0 x 4; RS-232 x 2; 1.5kV Isolated Gigabit Ethernet Port x 2; HDMI; and DisplayPortOperating SystemWindows 10MountingVESA 75/100 mm
