3D measurement system

ZEISS ARAMIS Adjustable 24M

Measuring deformation and displacement at the highest level of detail

ZEISS ARAMIS Adjustable 24M combines advanced technology with maximum flexibility. The two 24-megapixel cameras capture even the smallest details of 3D displacements and surface strains – both for point-based and full-field measurements.

High-resolution measurements
Next-generation testing sensor
Effective data acquisition

Deformation analysis at the highest level of detail

Take a closer look on the deformation behavior of your device under test

Smart options

For capturing optical data

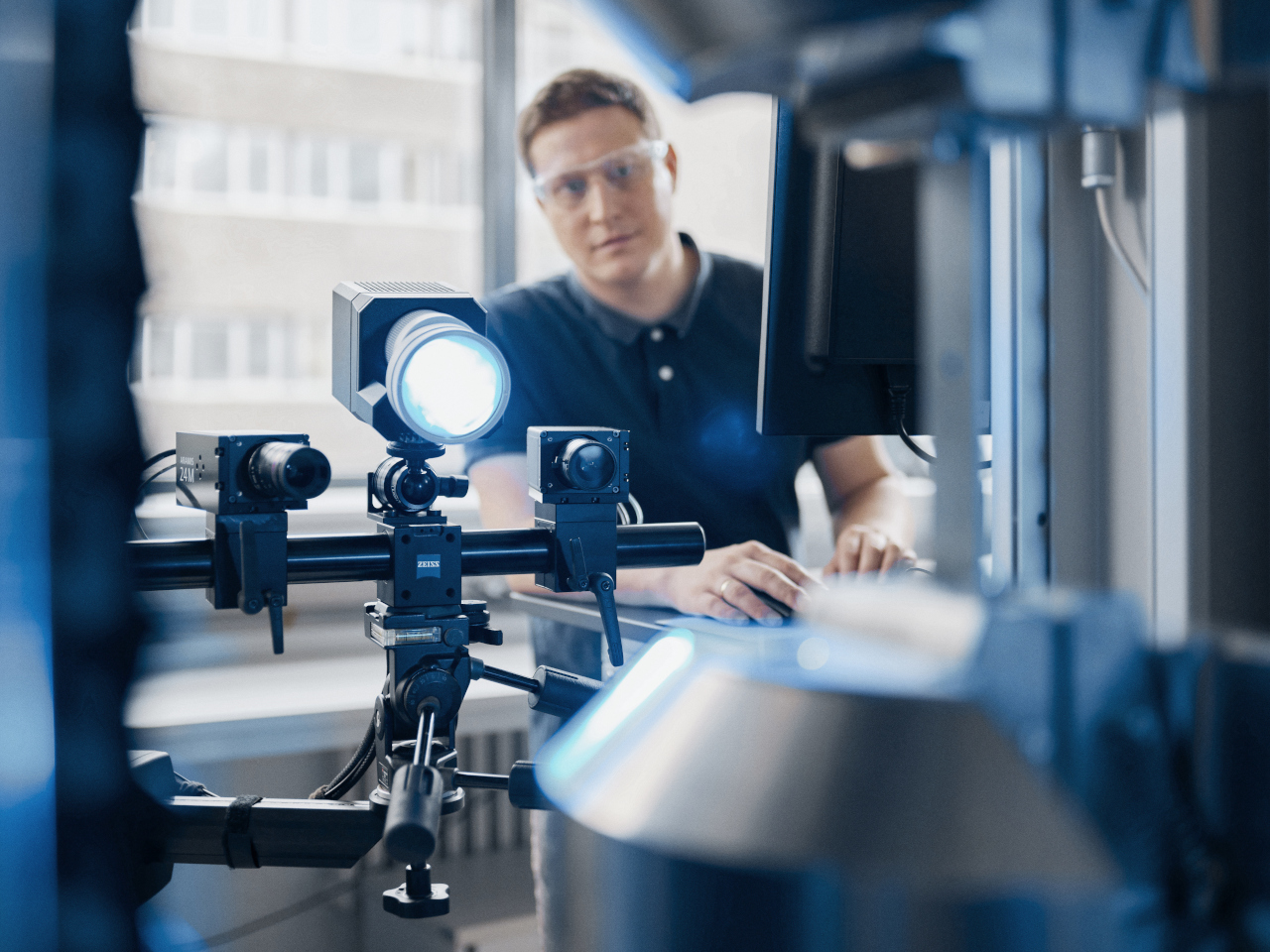

Whether you measure tension test specimens or components - with a total of four different image acquisition modes, ZEISS ARAMIS Adjustable 24M adapts perfectly to the dimensions of your object under test and the level of dynamics of your mechanical test.

High resolution

In time and space

With its unique combination of high local resolution and image recording rate, the sensor offers precise results for a wide range of mechanical tests and meets sophisticated demands in research and development.

Enhance collaboration

With easy-to-understand test results

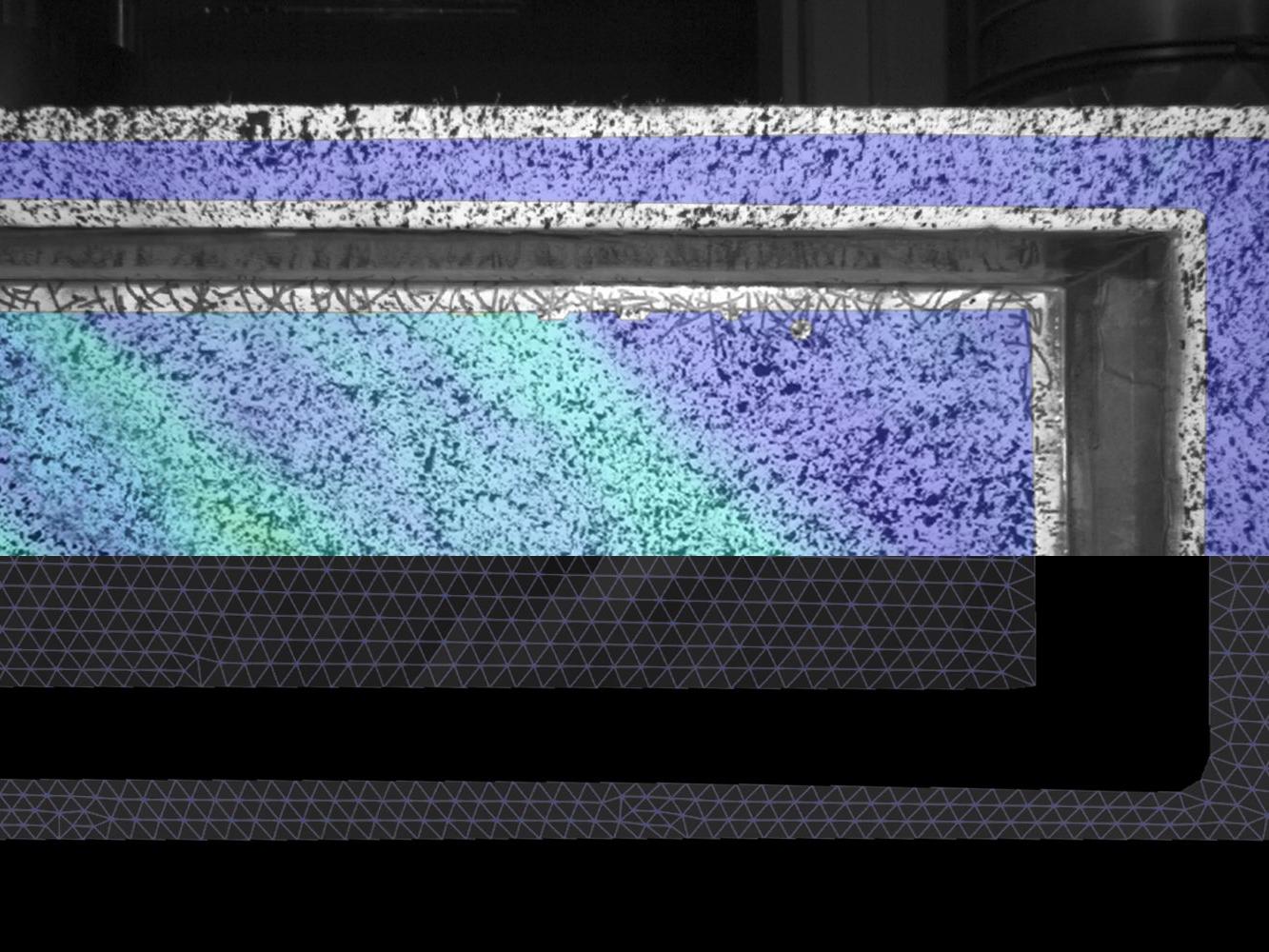

Improve the understanding of test results with the help of intuitive visualizations of strain distributions and displacement fields. Simulation engineers, test engineers and design engineers work hand in hand.

More insights to gain

Through high-resolution data

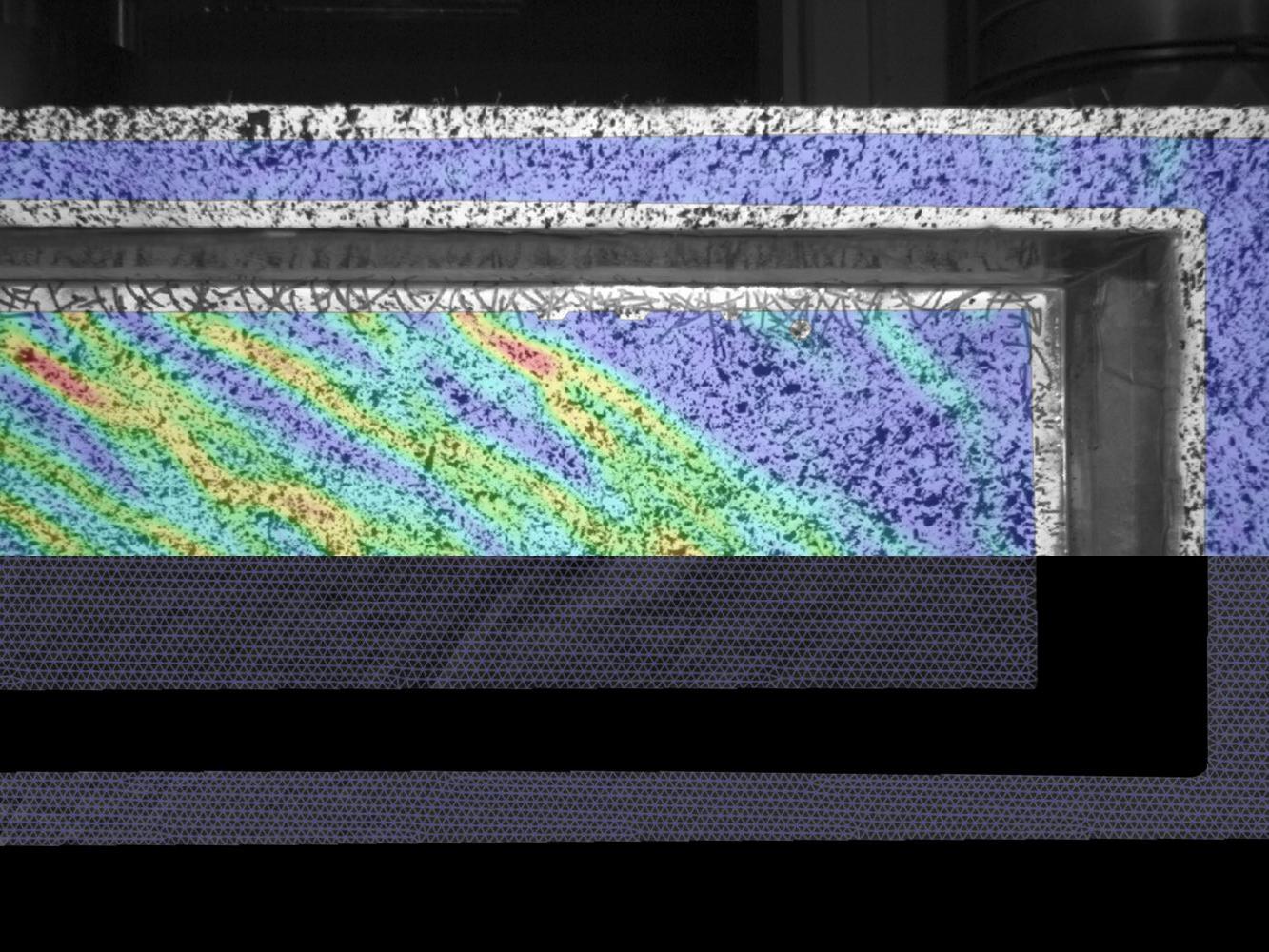

The high spatial resolution of the sensor enables the acquisition of more 3D coordinates per measuring area. This provides you with more information about filigree areas or structures and allows you to measure large objects (> 500 mm) at shorter stand-off distances.

Seamless integration

Between hardware and software

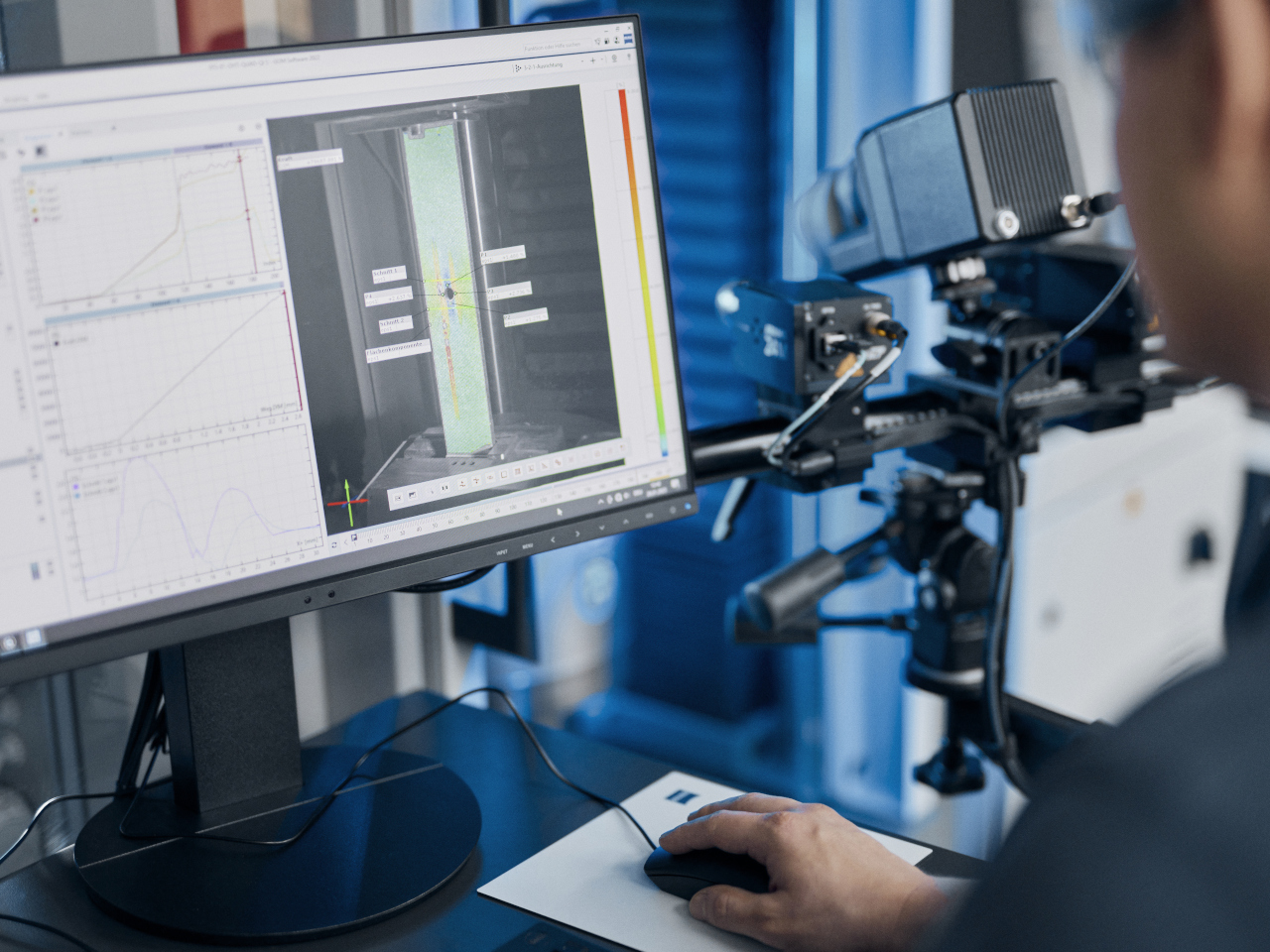

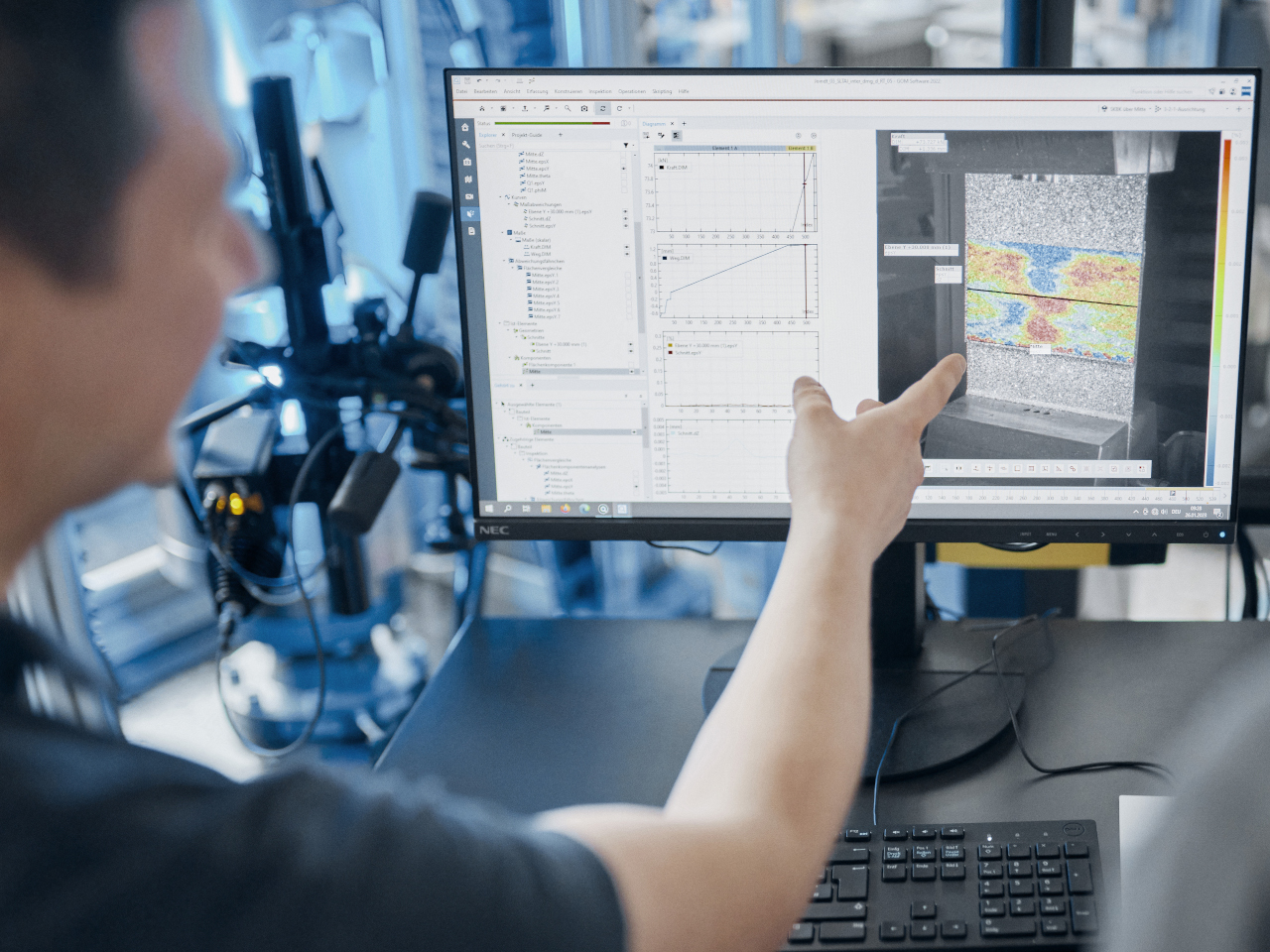

ZEISS CORRELATE is the right choice for the ZEISS ARAMIS Adjustable 24M system. The combination enables capturing, analyzing and reporting of results from mechanical tests of materials, components and structures.

Learn more about ZEISS CORRELATE

The next generation 3D testing sensor

More flexibility to meet your test requirements

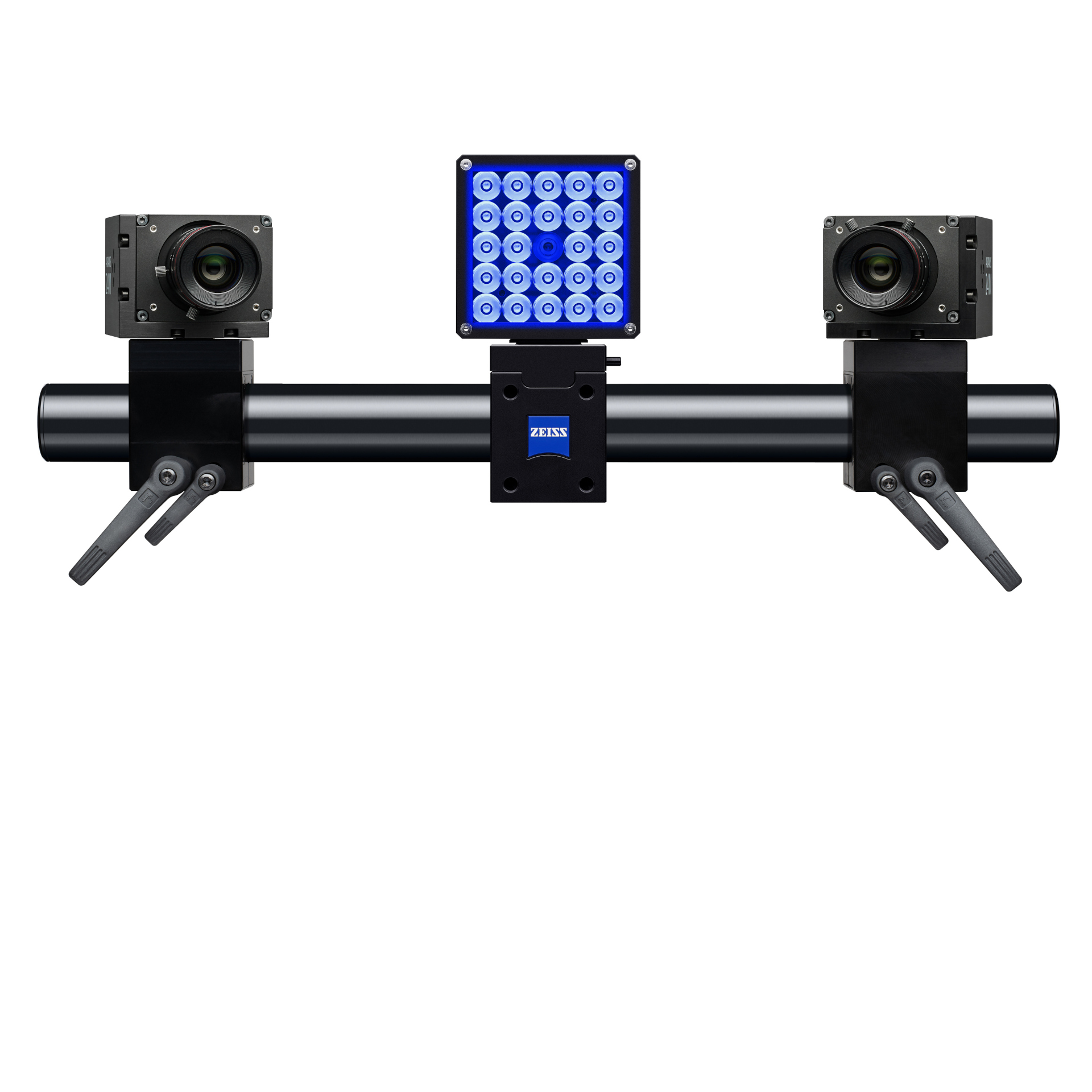

The powerful hardware of the ZEISS ARAMIS Adjustable 24M sensor is up to your challenges in the realm of mechanical testing. The backside-illuminated camera chip ensures excellent light sensitivity while fiber optic components allow for high data transmission rates.

Versatile

ZEISS ARAMIS Adjustable 24M has a frame rate of 100 frames per second (fps) at full camera resolution. However, it can be increased to 360 fps with four additional frame modes. In combination with the modular design, the system can be adapted to a wide range of measuring tasks.
Robust

The sensor’s lightweight and flexible fiber optic cables as well as its industrial network components enable fast and reliable processing of measuring data. The system thus achieves high data transmission rates and is insensitive to electromagnetic interference.
Reliable

The acceptance procedure is based on VDI standards 2634-1 and 2626 and is an integral part of the outbound delivery process of the ZEISS ARAMIS Adjustable 24M system. For performance that customers can rely on.

Precise and versatile for research and development

The unique combination of high spatial resolution, fast image acquisition rate and modular design offers maximum flexibility to handle a wide range of measuring tasks. This is crucial when the requirements for a sensor change rapidly in research and development.

Civil engineering

In the field of material characterization, the sensor reliably determines material parameters and registers even the smallest crack peaks that occur prior to material failure. During crack development and crack opening analysis of larger components with low strain, the high spatial resolution enables an early analysis of structural changes in detail.
Electronics

Compared to sensors with lower resolution, more information is generated on the same measuring area, allowing displacements or strains to be calculated more accurately. Therefore, even small samples and components (2–50 mm) can be measured with the highest level of detail to analyze the behavior of electronic components under thermal load.
Automotive

In the context of fatigue testing of larger components (> 500 mm) with low strain, the ZEISS ARAMIS Adjustable 24M allows more accurate determination of deformations at maximum force and a temporally detailed record of displacements.

Download information

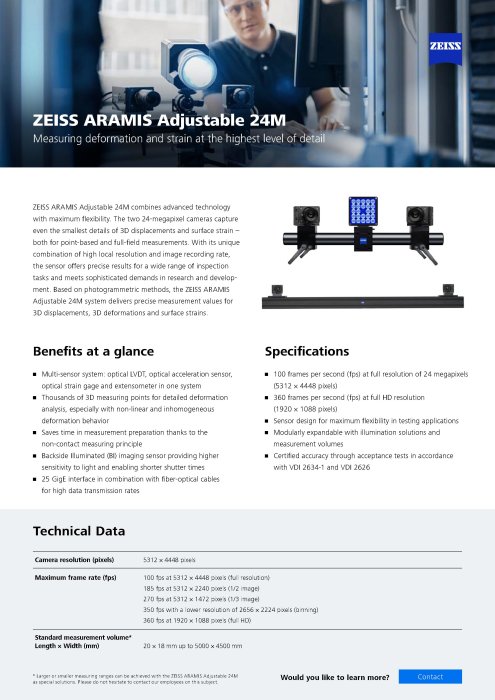

All important information of the optical measurement systemZEISS ARAMIS Adjustable 24M at a glance
