Fast and cost-effective toolmaking and repair

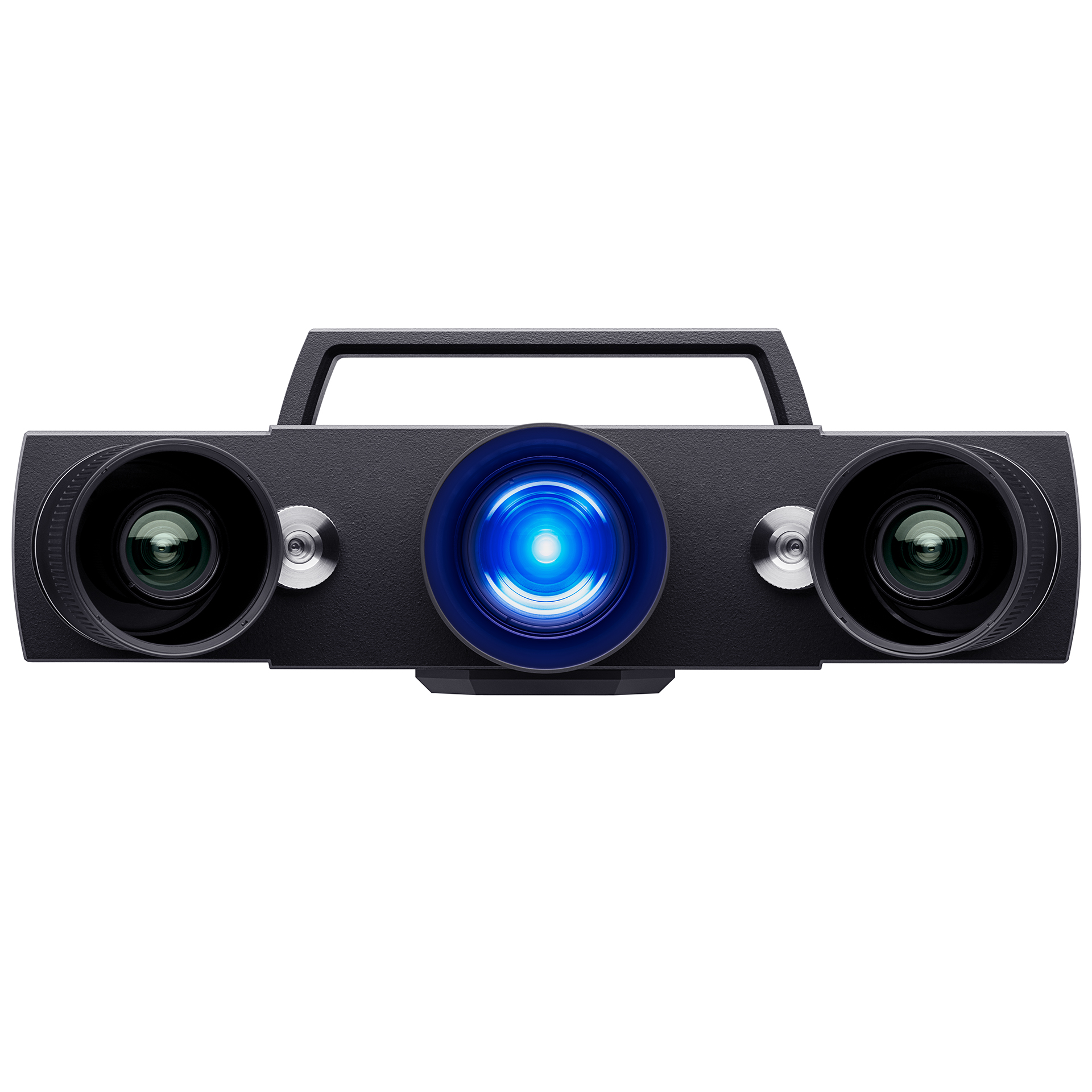

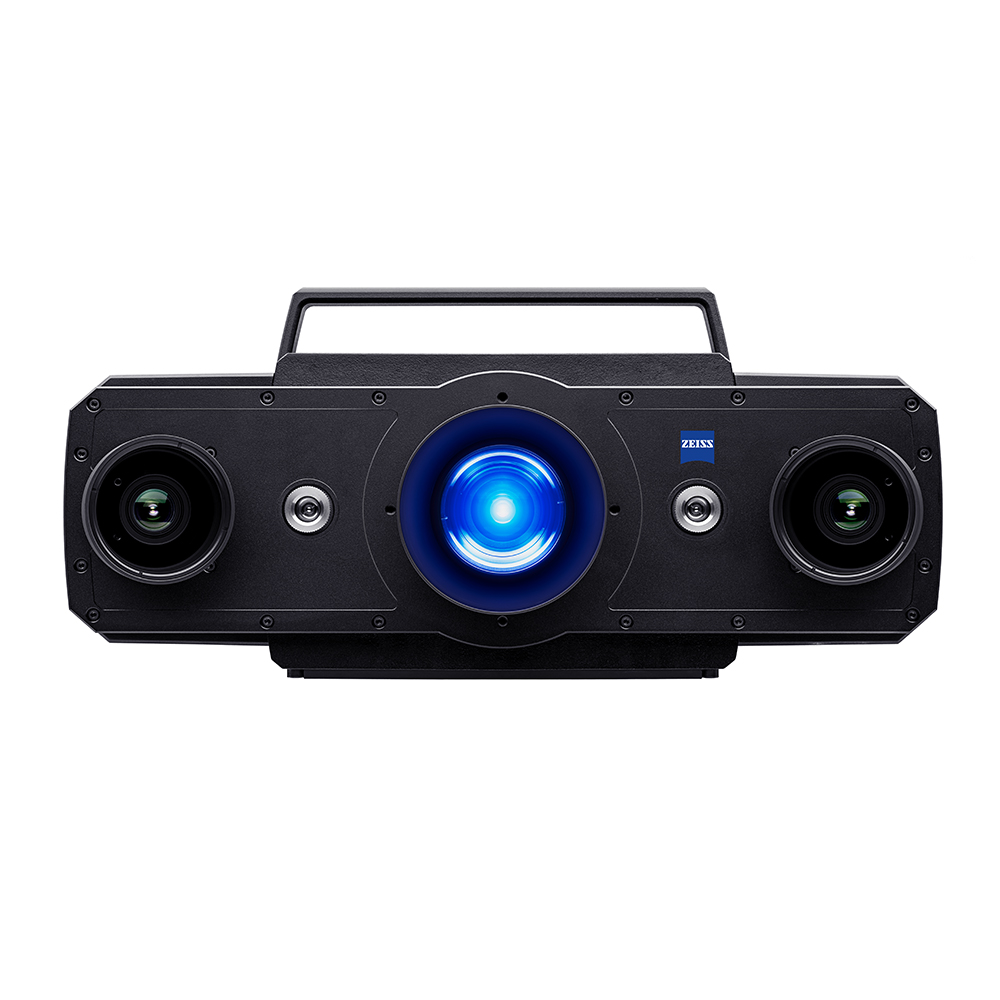

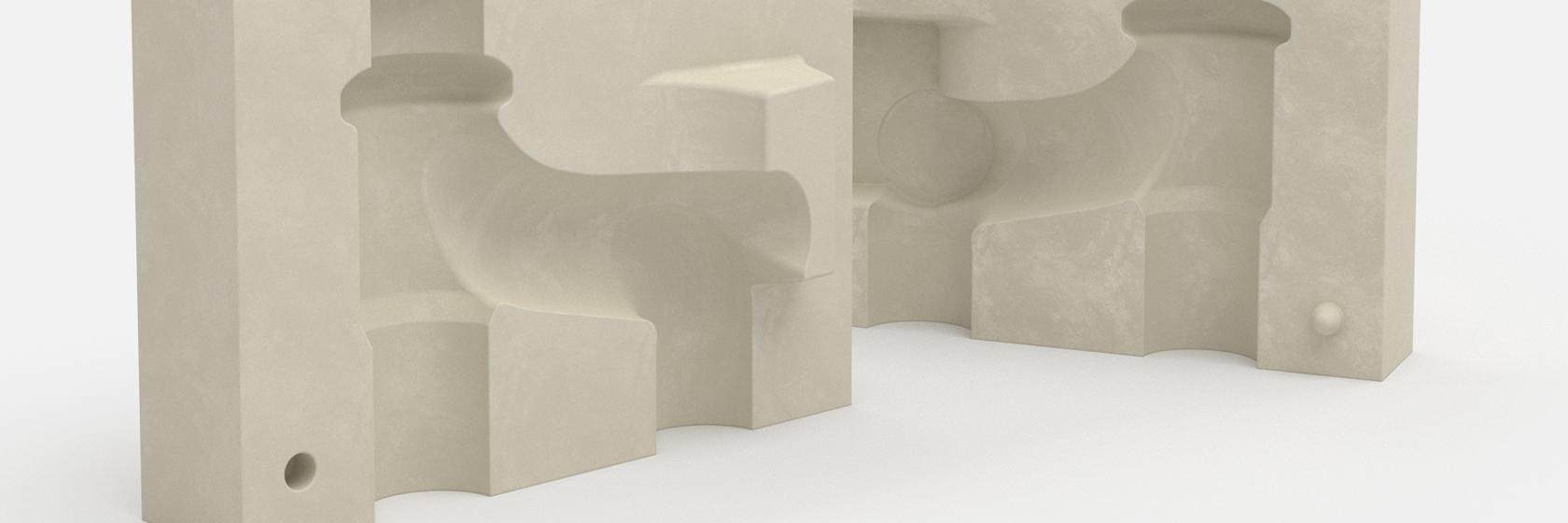

3D digitization saves time and costs during toolmaking and maintenance. During CNC machining of pressure die-cast tools and electrodes, wax patterns and ceramic core dies as well as sand core boxes, early control of each manufacturing step by comparing nominal and actual data reduces iteration loops, especially for multiple cavities. In try-out, ATOS systems offer 3D data to target the area for tool correction.


  • Targeted tool correction
  • Faster tool buy-off
  • Maintenance and repair
  • Marking of applied material and repair welding

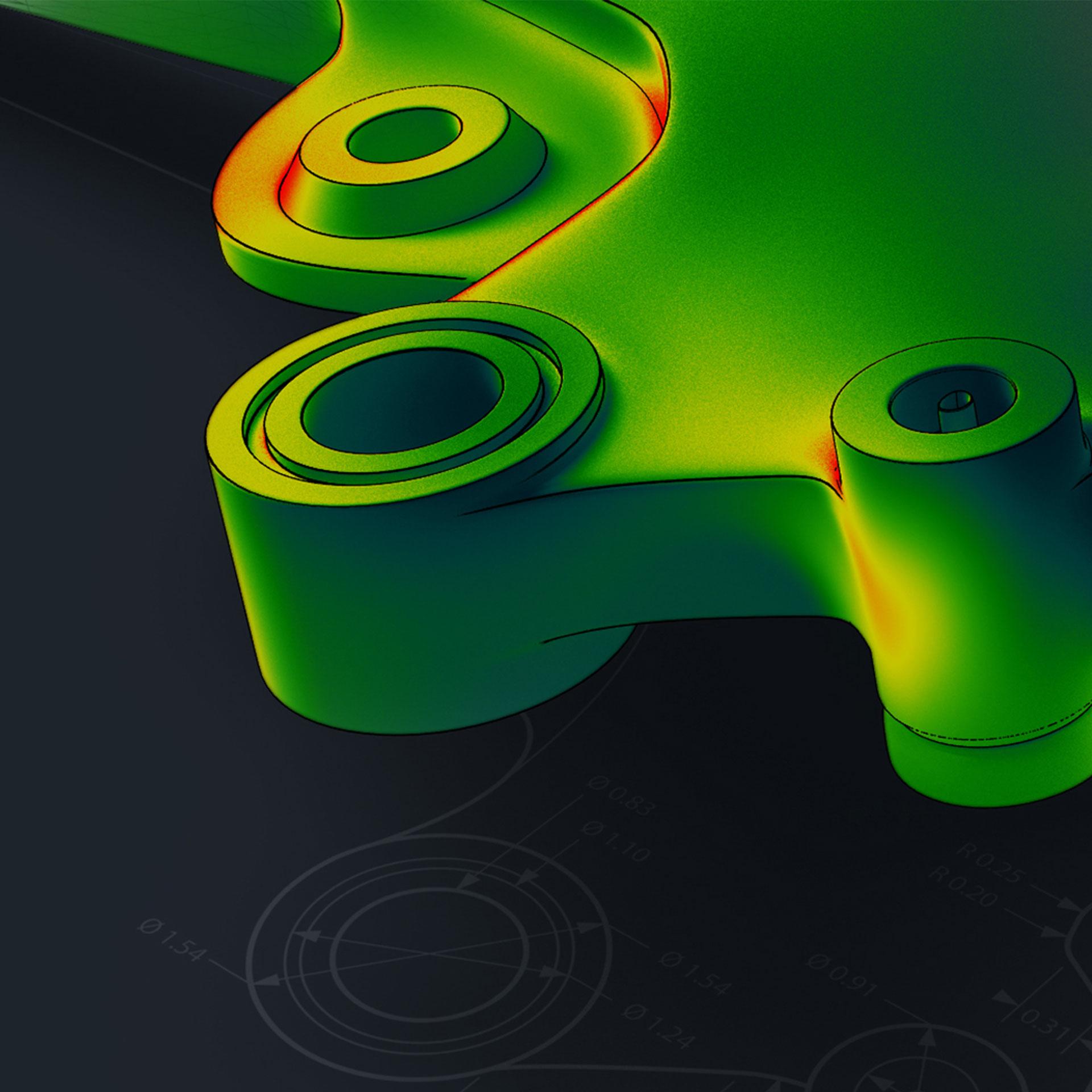

Improved planning of repairs by determining lifetime and tool service life. Machining areas on components which demand welding or rework by metal cutting are marked by back projection of isolines from a nominal-actual comparison. Later tool corrections can be easily archived in a digital format. This saves time and storage space.
