ATOS ScanBox Serie 4
3D measuring machine

ATOS ScanBox Series 4

Mobile stand-alone measuring solution for the production environment

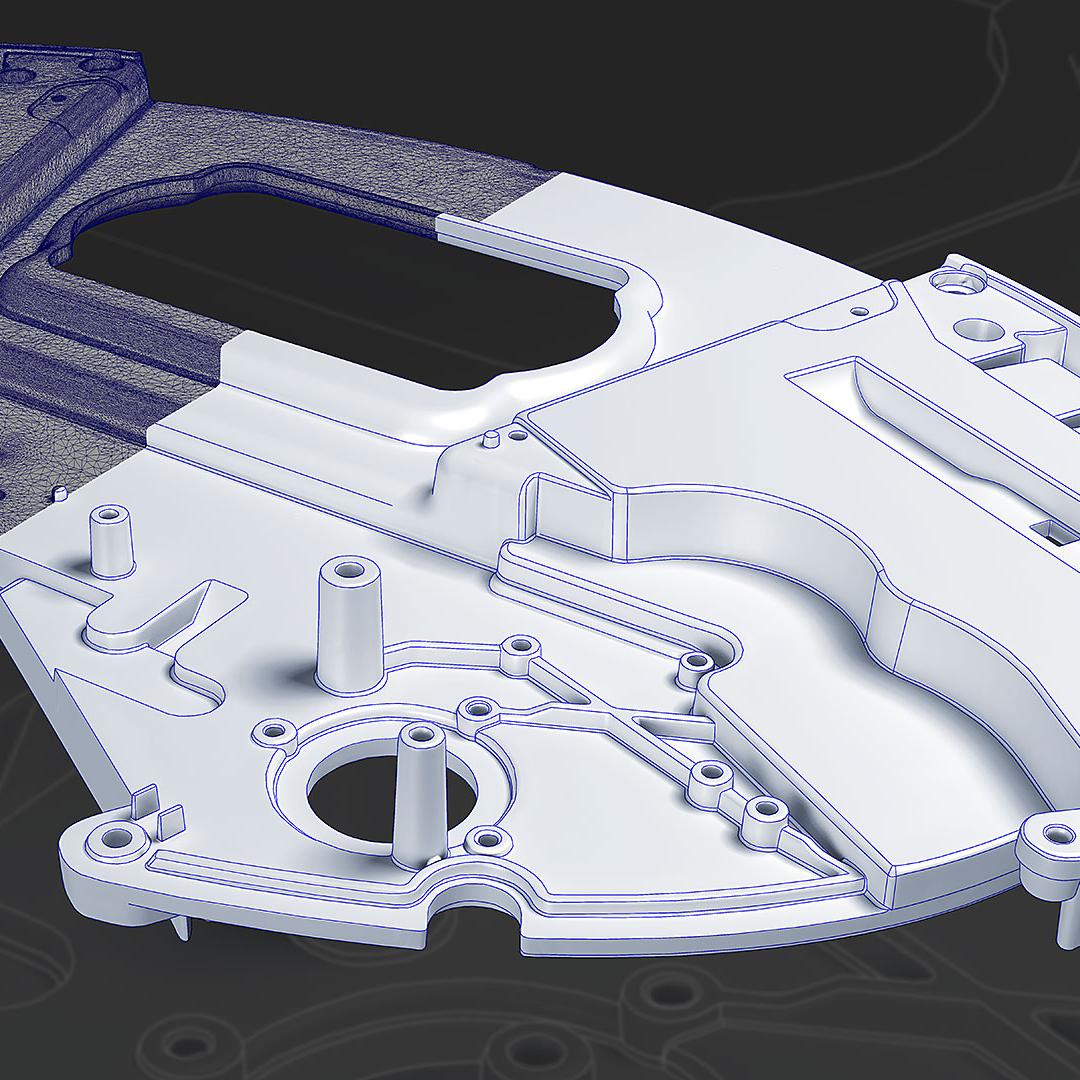

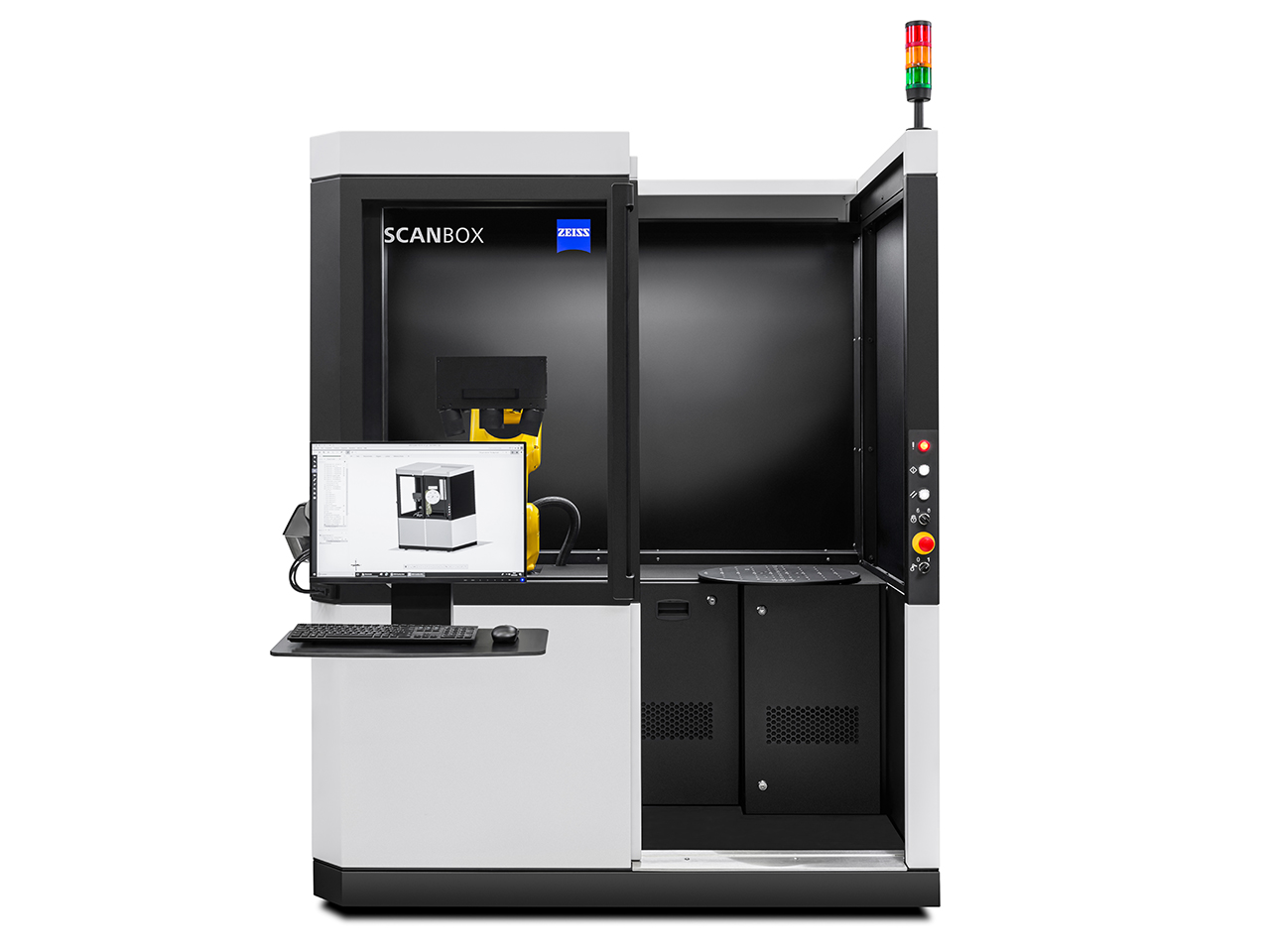

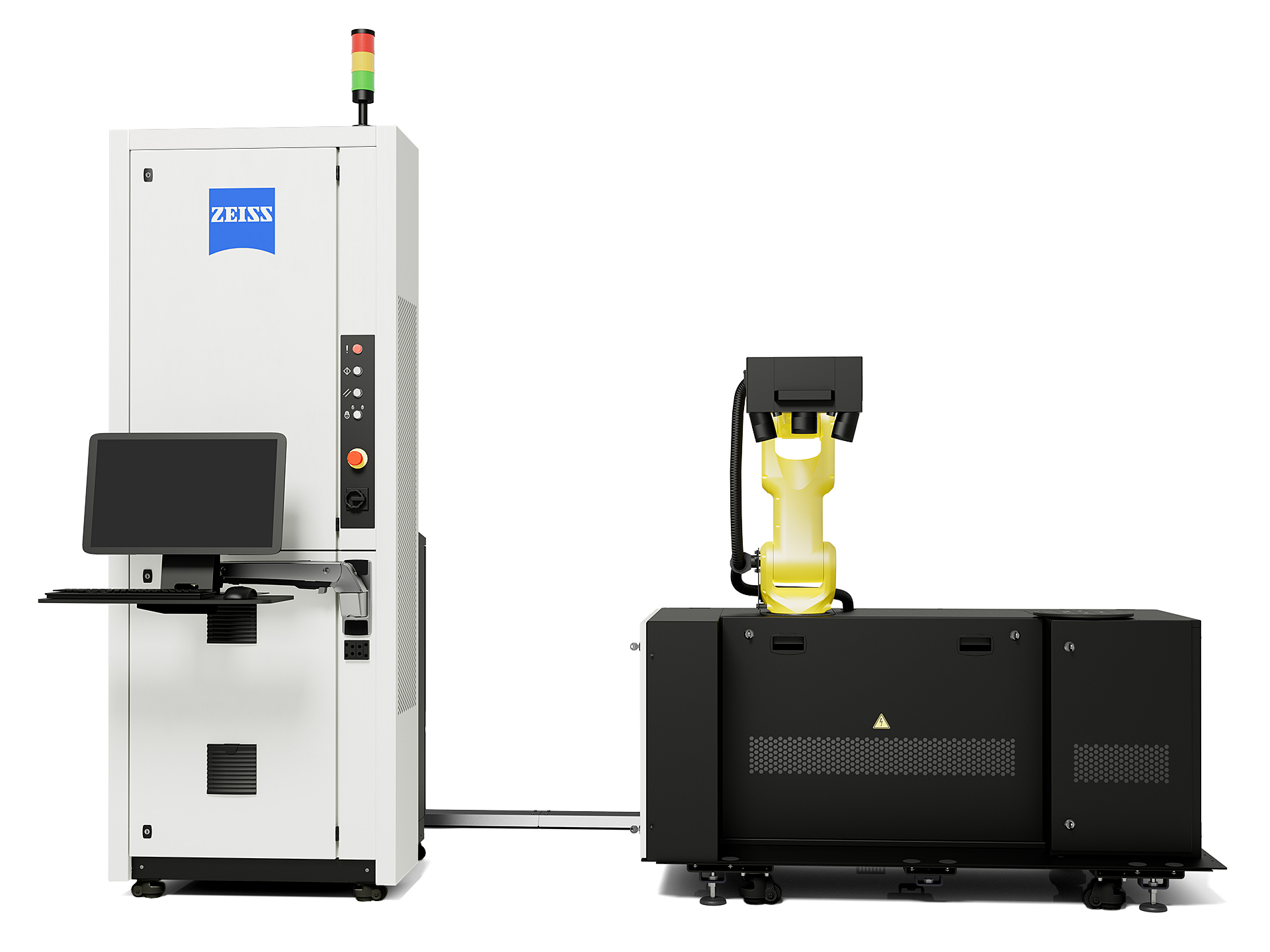

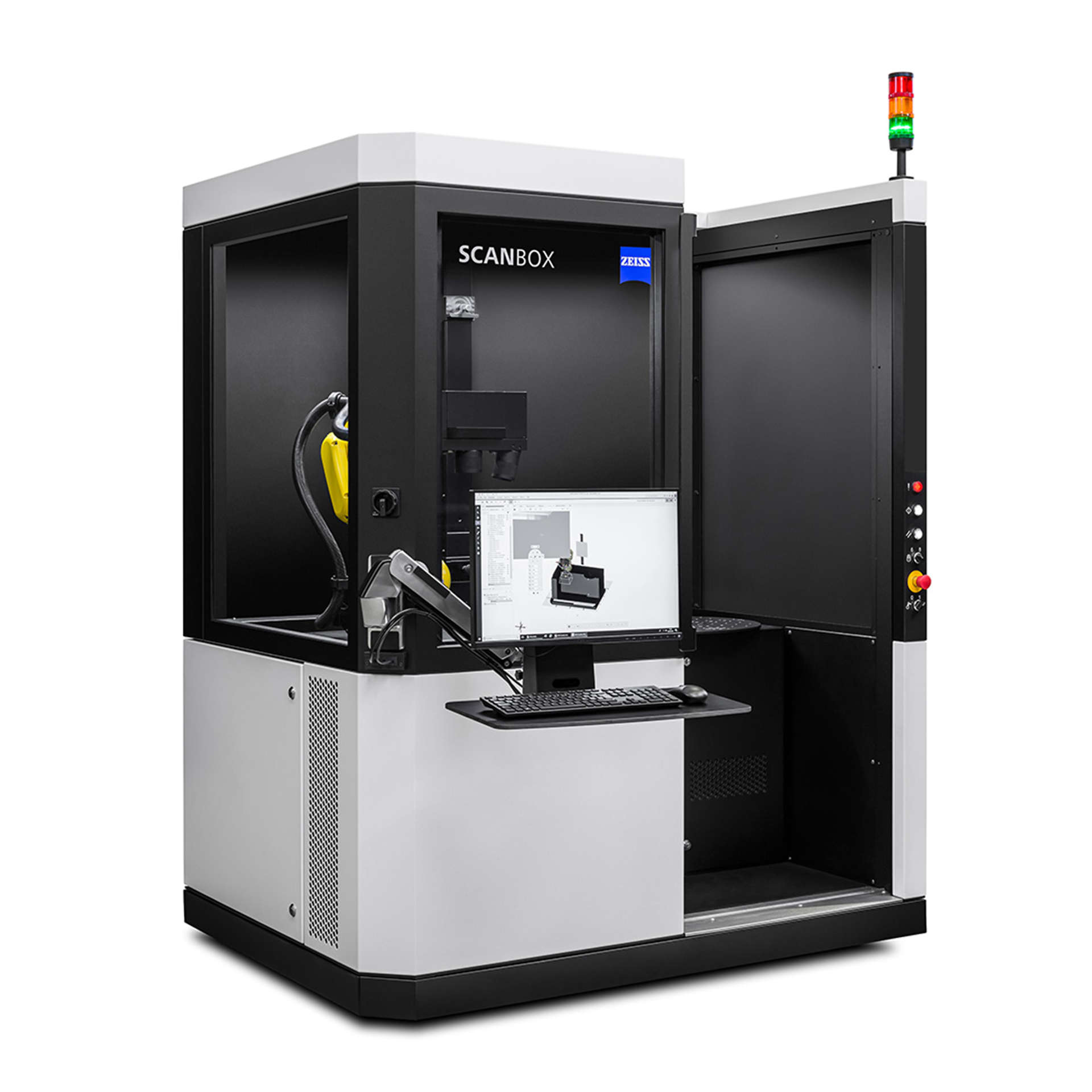

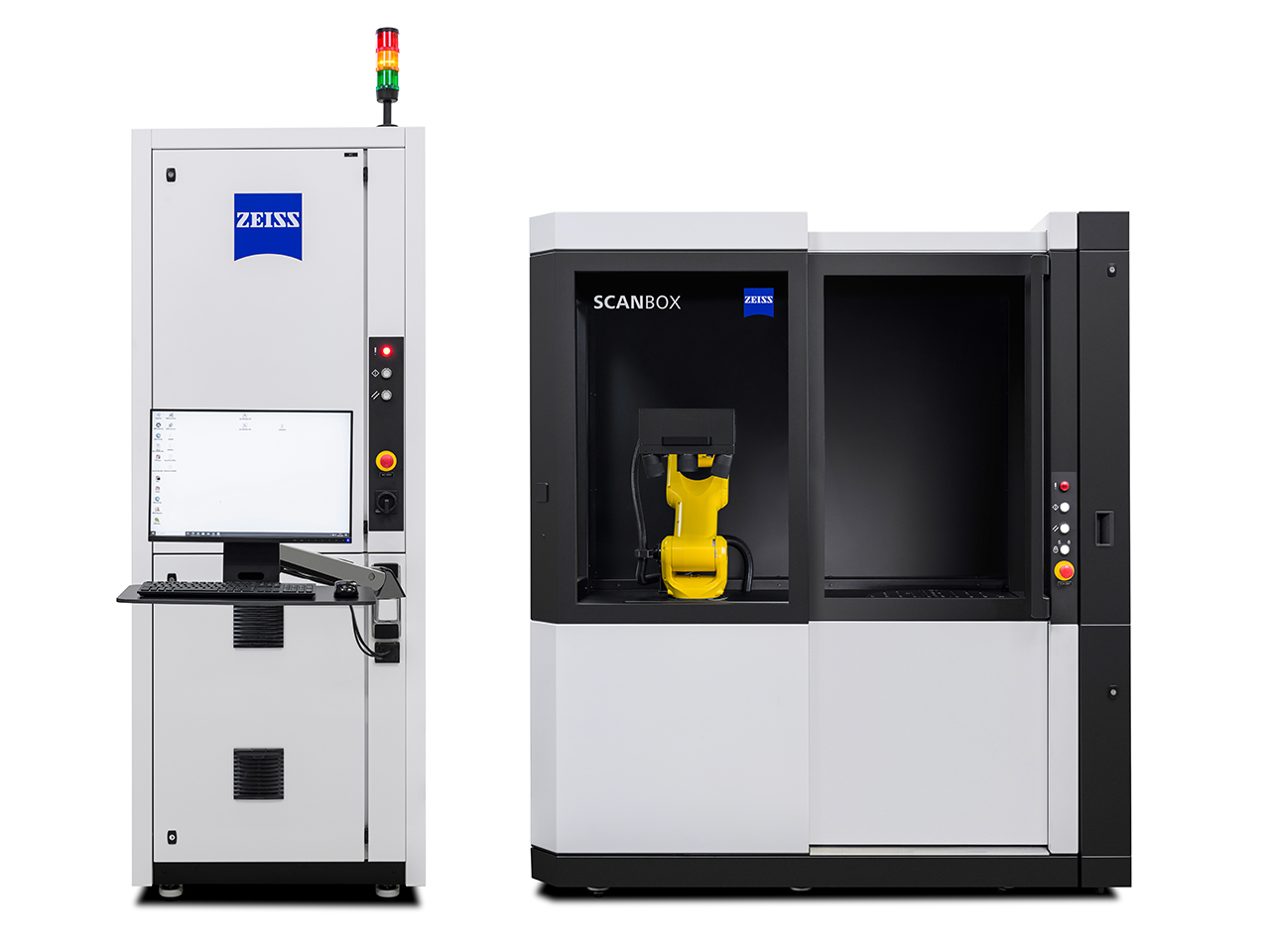

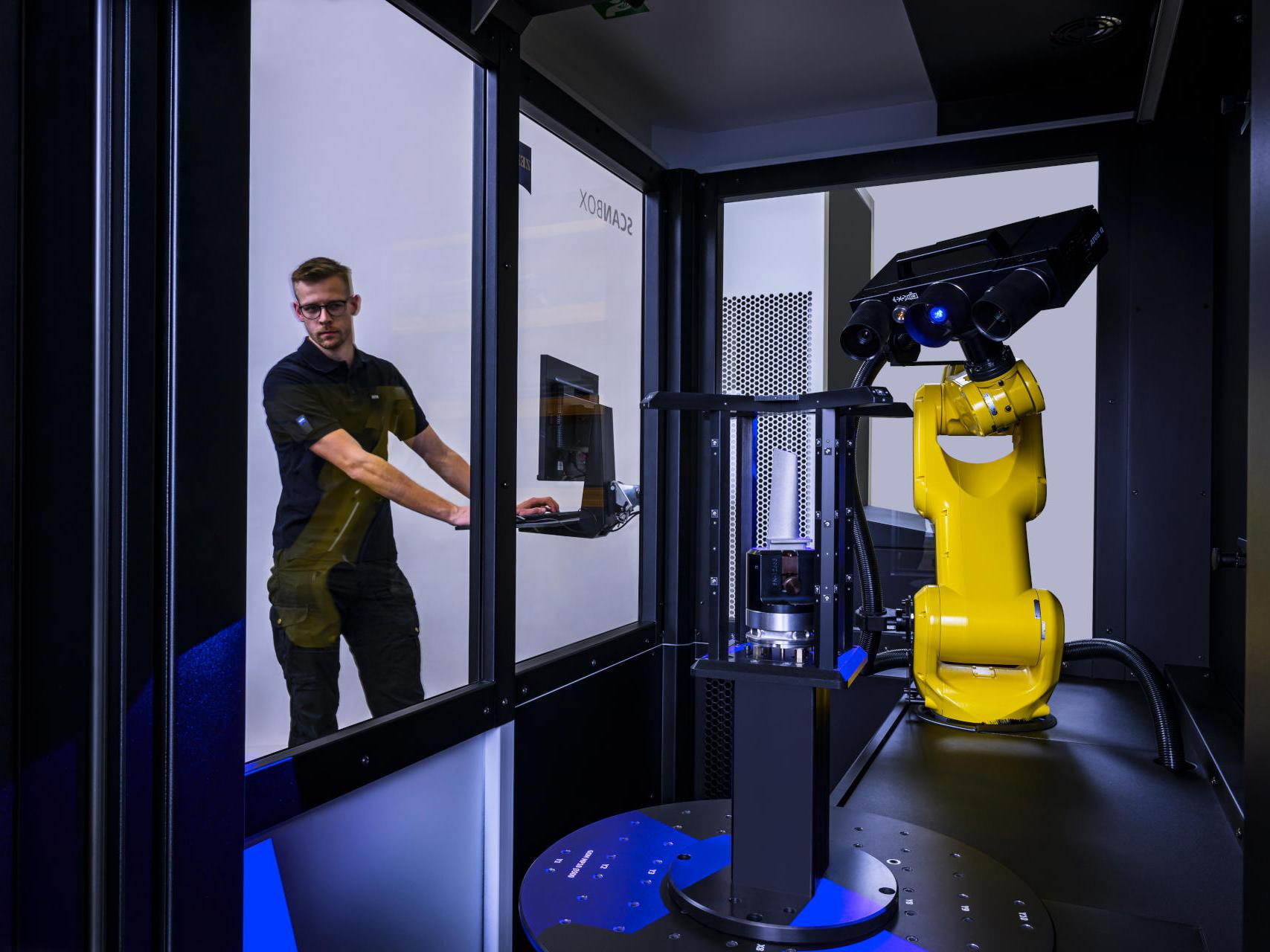

With the ATOS ScanBox 4105 optical 3D measuring machine, you can quickly and efficiently inspect small and complex parts up to 500 mm in size. The compact and mobile system is ready for immediate use thanks to the plug&play concept and can be easily repositioned if required. Start all measuring procedures and inspection processes via the kiosk interface and the Virtual Measuring Room (VMR) in ZEISS INSPECT.

  • Compact design with small footprint
  • Automated measurement of small and complex parts
  • Easy operation at the touch of a button

Ready for immediate use and easy handling

Use the ATOS ScanBox 4105 for efficient quality assurance of your injection and die-cast parts, tools or formed, stamped and bent parts. See the performance of the compact 3D measuring machine for yourself

Plug & Play

Plug & Play

Turnkey 3D measuring machine

As ATOS ScanBox 4105 works with 100-240 V, there is no need for complex configurations: Simply connect, switch on and start the measuring program.

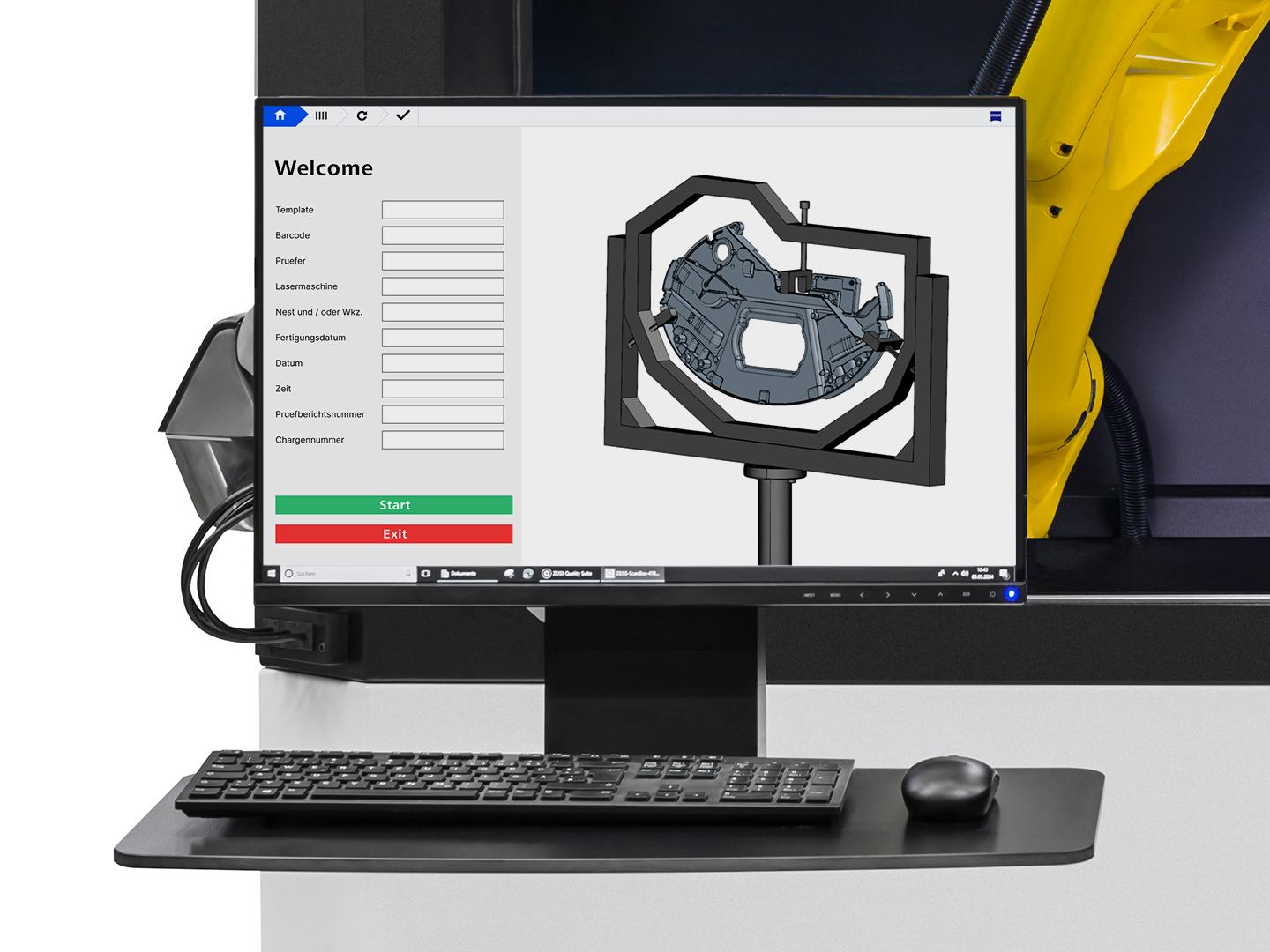

Easy operation

Easy operation

Automated process control at the touch of a button

Program and control the ATOS ScanBox 4105 via a simple user interface - the Kiosk Interface. Your plant employees do not need any special technical knowledge to operate it: Insert the part, select the measuring program and press the start button.

Fast & precise

Fast & precise

ATOS Q meets high metrological demands

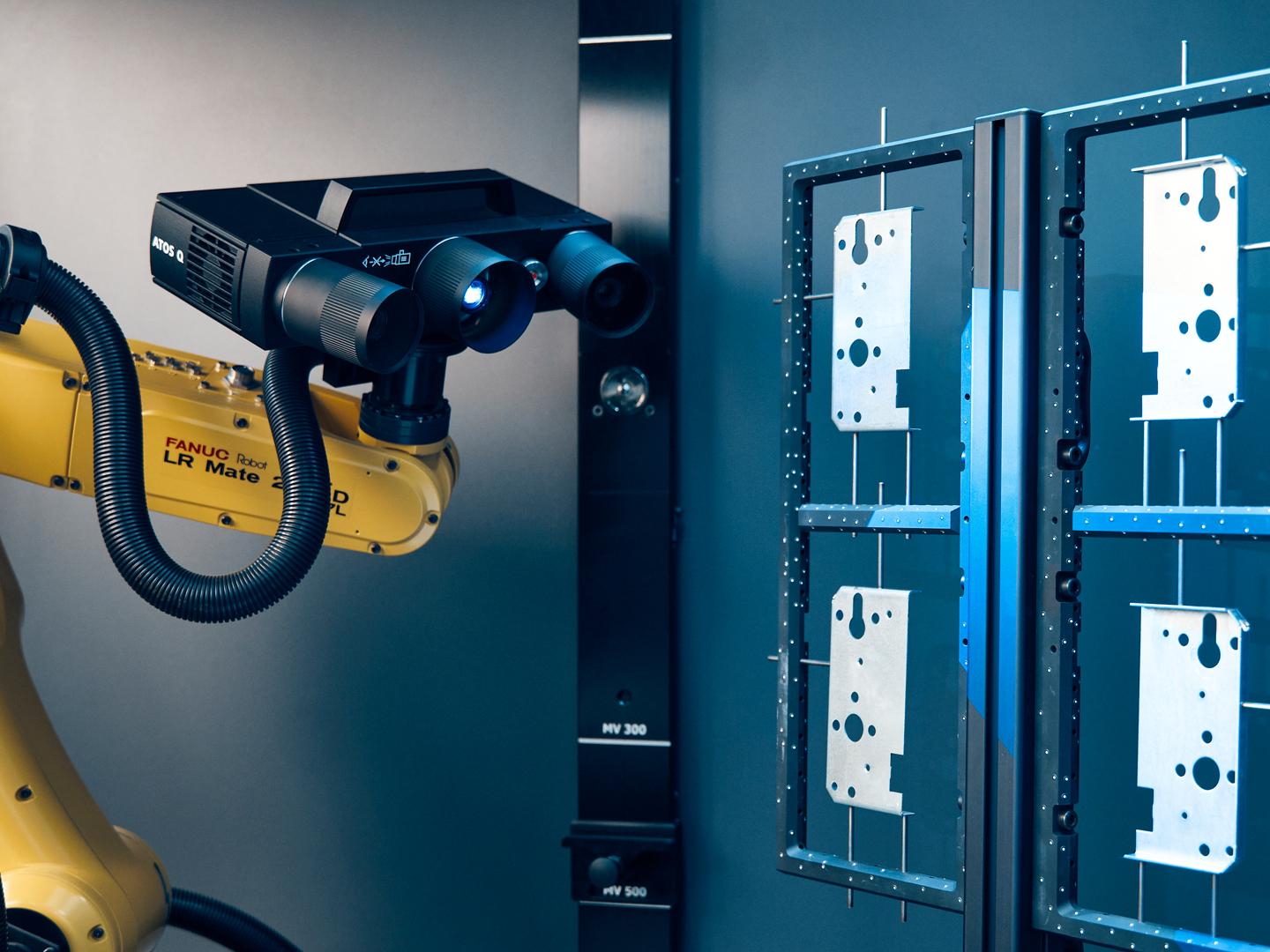

The integrated ATOS Q sensor provides quality information in a high level of detail for subsequent analysis in a short time. By using a multi-part fixture, you can measure several parts in one run - even in 24/7 operation if required: This allows you to increase your throughput, produce fewer rejects and standardize your quality assurance.

Virtual measuring room

Virtual Measuring Room

Real environment in a virtual simulation

The virtual measuring room (VMR) is the central control and measurement planning software for all elements of the optical 3D measuring machine. In it, the real environment is functionally represented in a virtual simulation. The VMR consists of a robot with one sensor, the programming, including the kinematics of the robot paths, the part, and the measurement plan. Thanks to the VMR, the user does not need any special robot expertise. All robot movements are simulated in the virtual measuring room before execution and checked for safety.

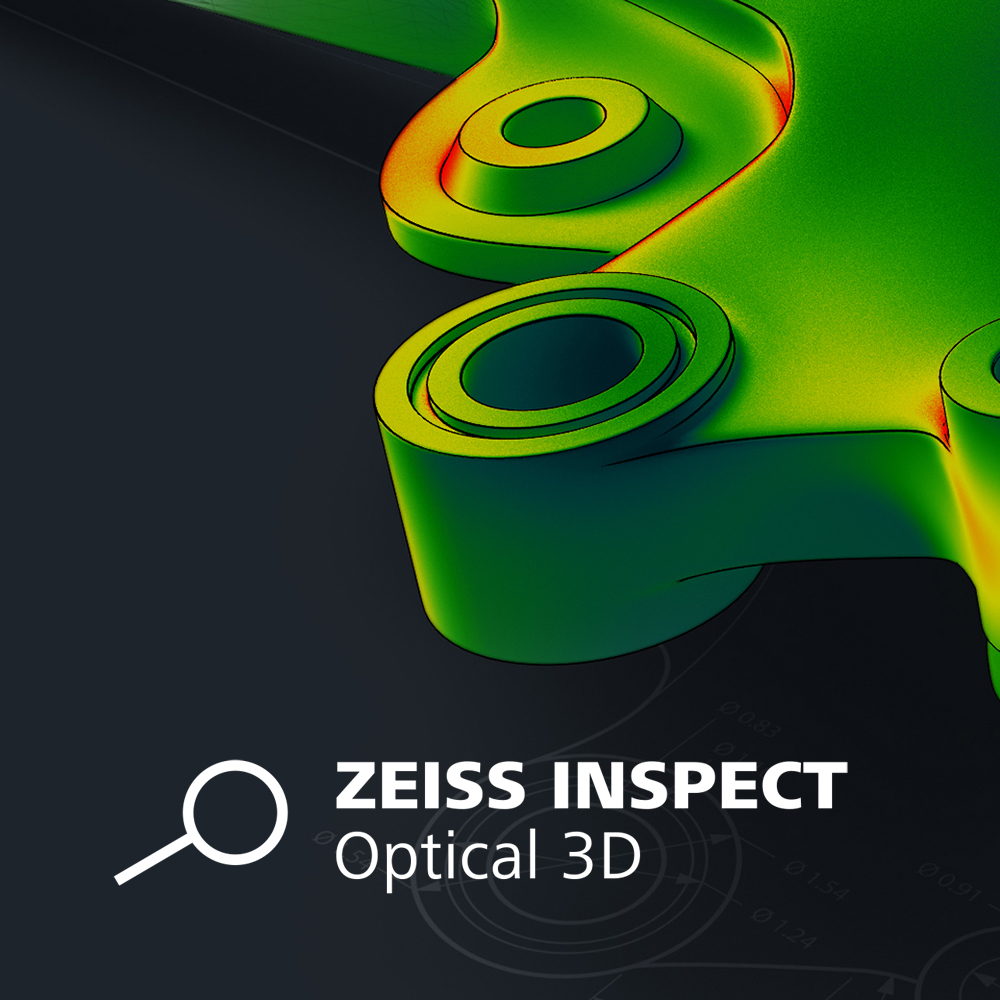

Effective analysis tool

Effective analysis tool

ZEISS INSPECT offers everything from a single source

Scanning, inspection and reporting: Evaluate nominal-actual comparisons as well as GD&T. Implement necessary corrections directly thanks to easy-to-understand results. With ZEISS INSPECT you can carry out complete analyses, receive comprehensive reporting and integrate measurement results into existing processes.

Metrology Story: Buderus Guss

The automotive supplier Buderus Guss produces around 15 million car brake discs a year at its Breidenbach site. Automated quality assurance is carried out with a production-integrated ATOS ScanBox 4105.

The asynchronous mode makes it possible to assess the first sample while the other parts are still being scanned.

Markus Sporer

Quality Manager, Hirschvogel Group

Download information

  • ZEISS ScanBox Brochure EN

    Pages: 28
    File size: 10 MB
  • ZEISS Success Story A7 Intégration EN

    Pages: 8
    File size: 3 MB

Technical information

Dimensions

1600 x 1200 x 2100 mm

Power supply

Standard, 100 - 240 V (1-phase, 16 A)

Max. part size

Ø 500 mm

Max. part weight

100 kg

Opening width

685 mm

Sensor compatibility

ATOS Q
