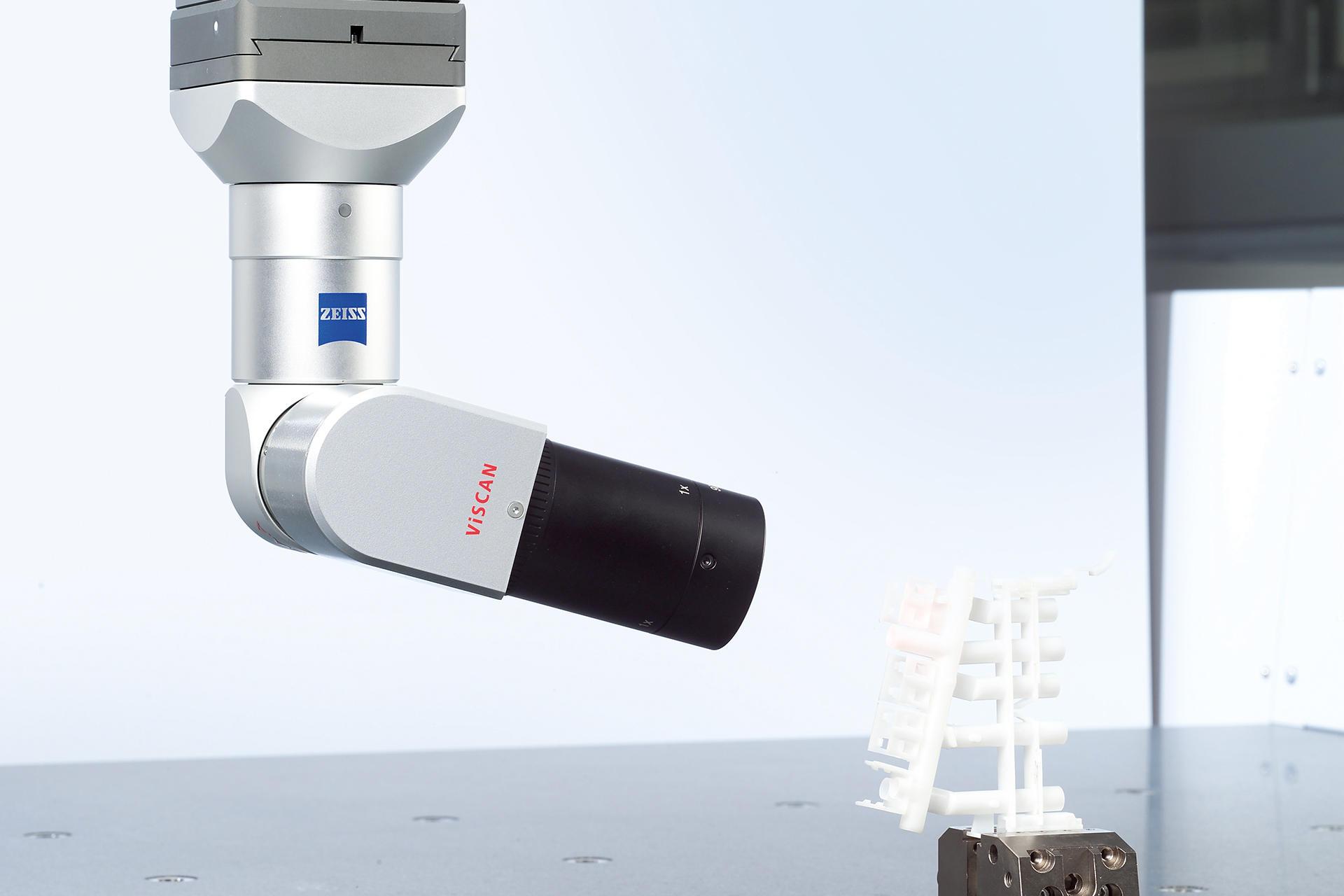

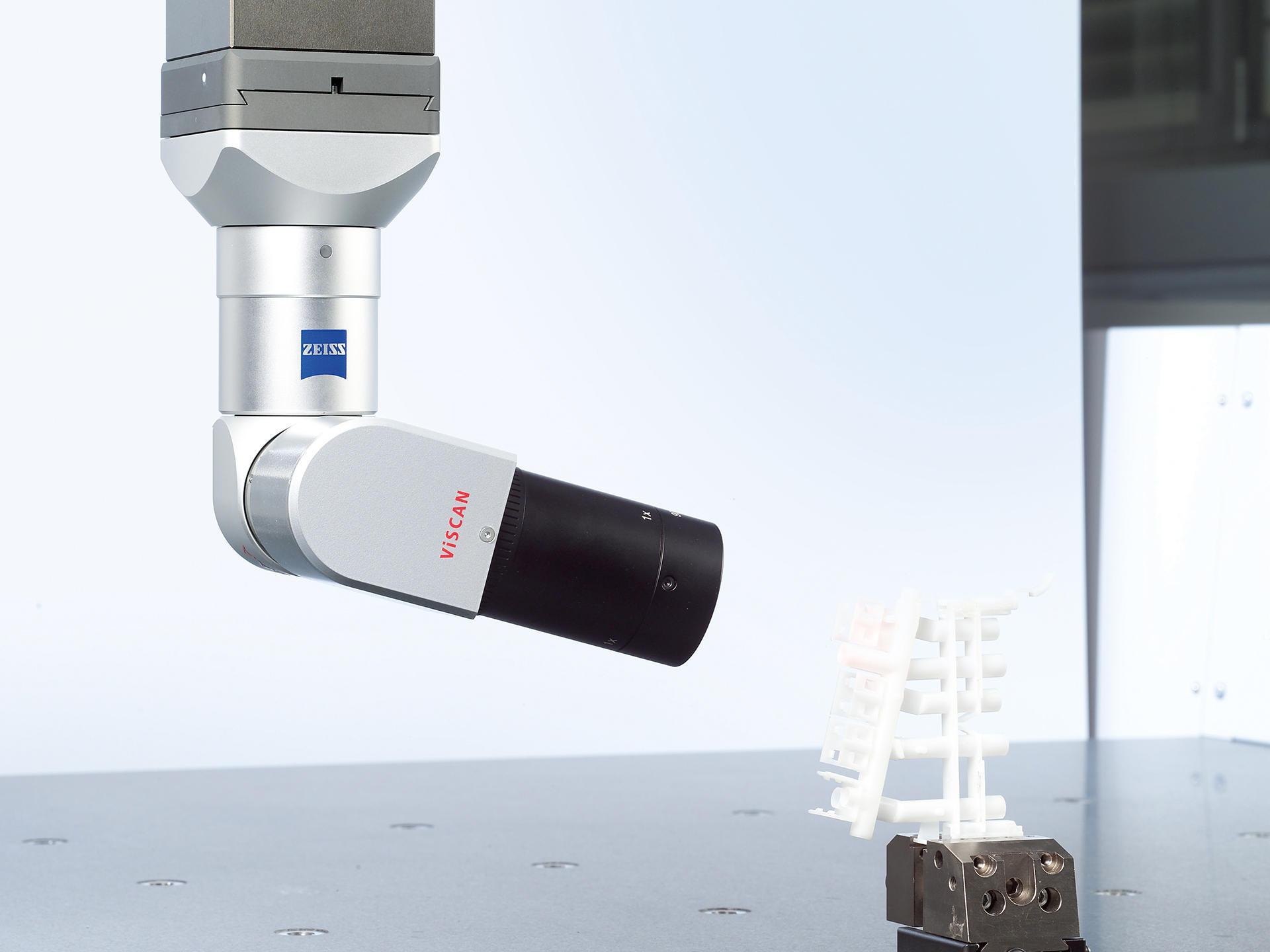

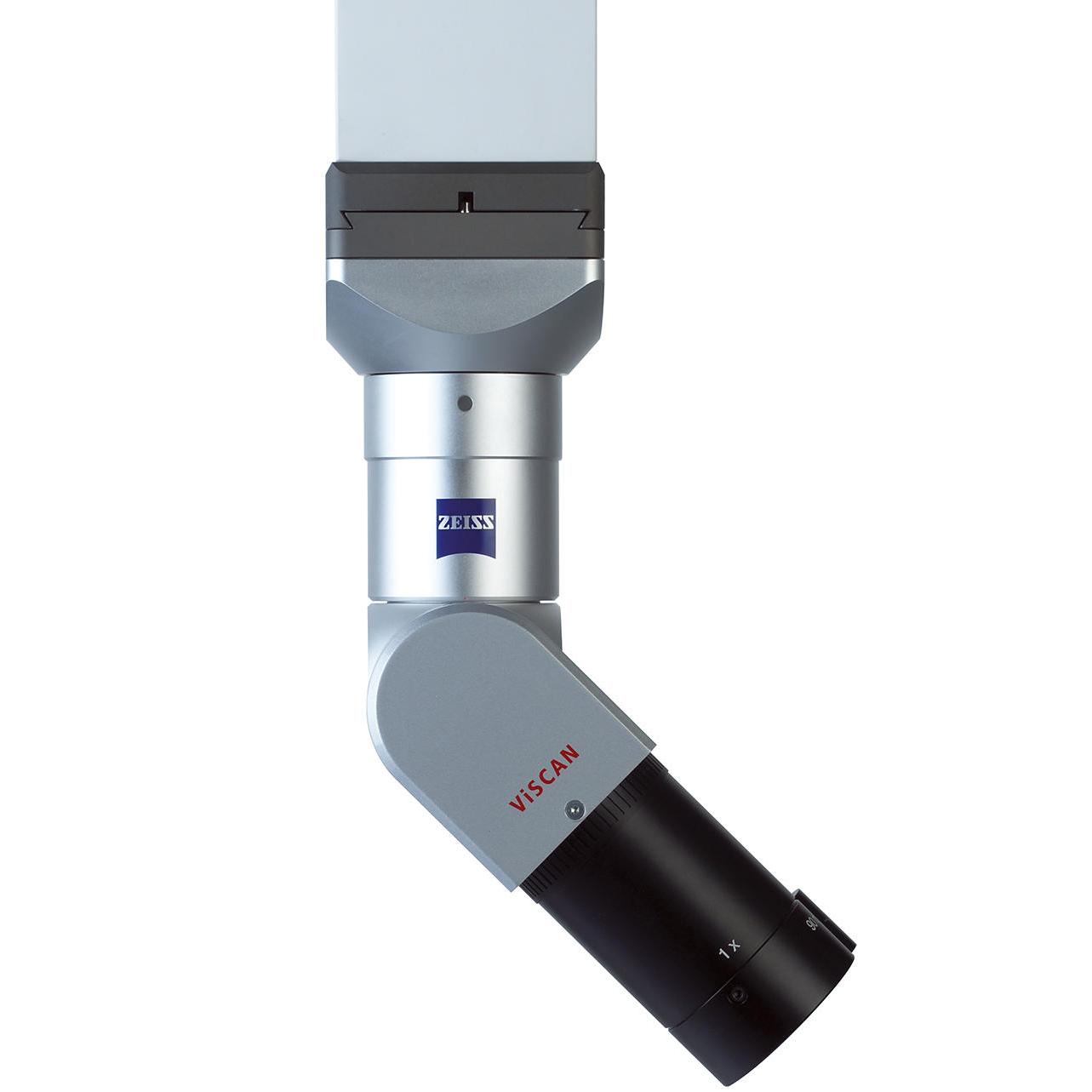

ZEISS ViScan optical 3D scanner with integrated camera, lens, and illumination.

ZEISS ViScan

Spotlight on two dimensions

See more in one scan: ZEISS ViScan combines high-resolution imaging, a large field of view and versatile illumination for reliable, non-contact optical measurement of 2D and 2,5D features.

  • Large field of view for capturing more in a single image
  • 5 MP sensor for high-resolution imaging
  • Coaxial illumination and new RGB ring-light for optimum visibility
  • Telecentric lenses for low distortion imaging

One optical probe. Many strengths.

From delicate medical components to tiny electronic structures, ZEISS ViScan is designed for a wide variety of non-contact measurement tasks. Its optical system combines high-resolution imaging with advanced illumination and telecentric optics to make even small and challenging features clearly measurable.

The right light for every detail

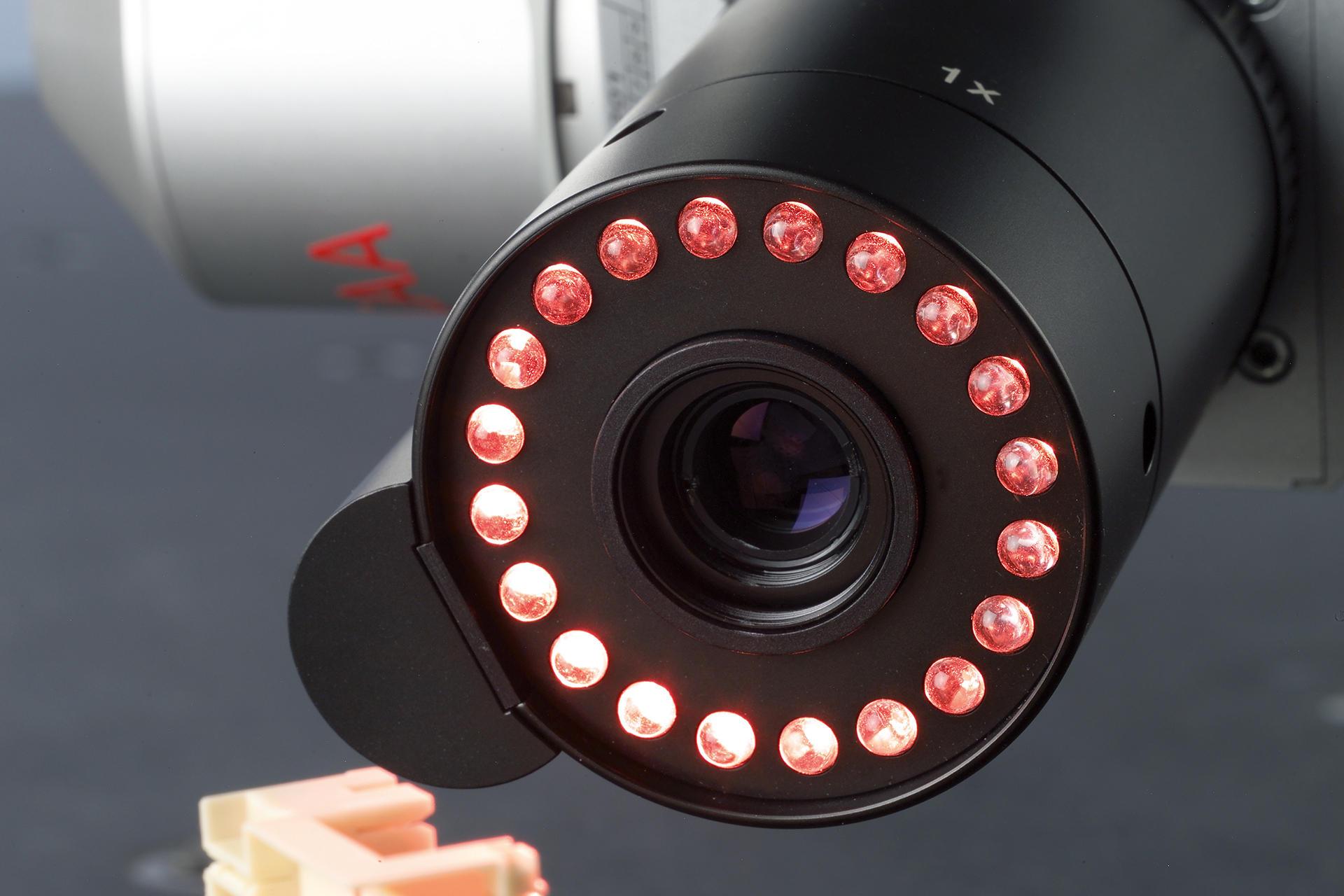

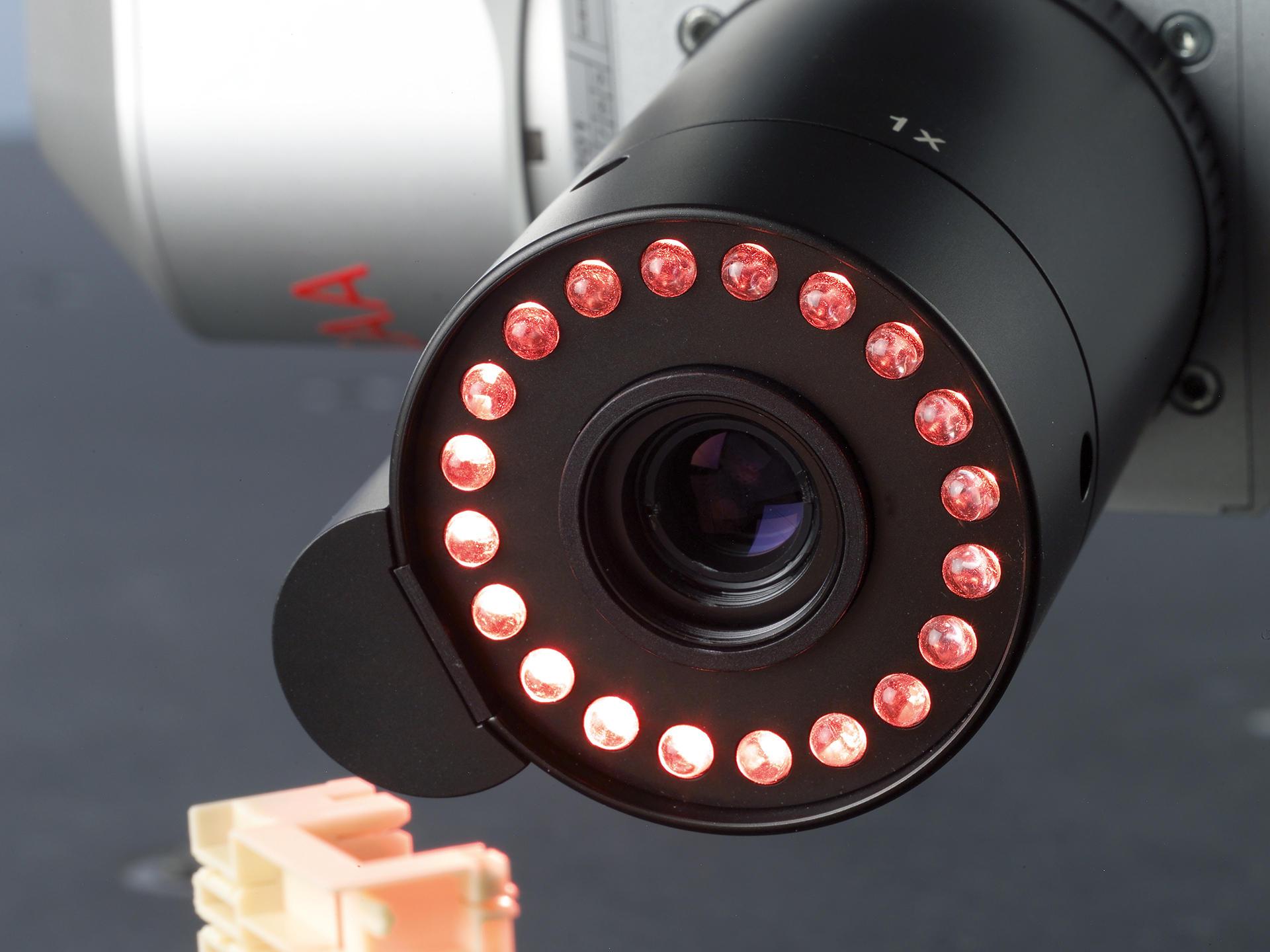

The RGB LED ring-light provides flexible illumination for different surfaces and geometries. Four LED sections can be selected individually, while a diffuser supports homogeneous illumination and helps reduce direct reflections on shiny surfaces. Green light is the standard illumination for measurement.

How you benefit:

  • Adapt illumination to the feature and workpiece
  • Improve visibility and contrast, even on challenging surfaces
  • Reduce disruptive reflections with homogeneous illumination
Comparison of connector pins imaged without and with a telecentric optic.

Precise imaging with minimal distortion

Telecentric optics help keep dimensions true across the image and minimize optical distortion. The image scale remains stable while the large depth of field helps keep relevant features sharp.

How you benefit:

  • Low image distortion for reliable and precise dimensional evaluation
  • True-to-scale imaging of geometrical features
  • Large depth of field for consistently sharp images
New ZEISS ViScan field of view compared with the former ViScan on an electronic connector.

Bring recessed features into focus

Integrated coaxial illumination directs light along the optical axis, helping to create strong contrast even on features that are difficult to illuminate with conventional ring lighting alone.

How you benefit:

  • Clearly illuminate edges and features within recessed areas
  • Generate high contrast for reliable edge detection
  • Support precise focusing for optical measurement
ZEISS ViScan comparison showing a larger new field of view around the original view of an electronic connector.

Capture more. See more.

A 5 MP monochrome CMOS sensor delivers detailed images, while the enlarged field of view lets ZEISS ViScan capture a larger area of the workpiece at once. Depending on magnification, measuring areas of up to 16.8 × 14.2 mm are available.

How you benefit:

  • High-resolution images for evaluating small geometrical features
  • Capture larger areas in a single position
  • Reduce the need to reposition when inspecting larger 2D structures

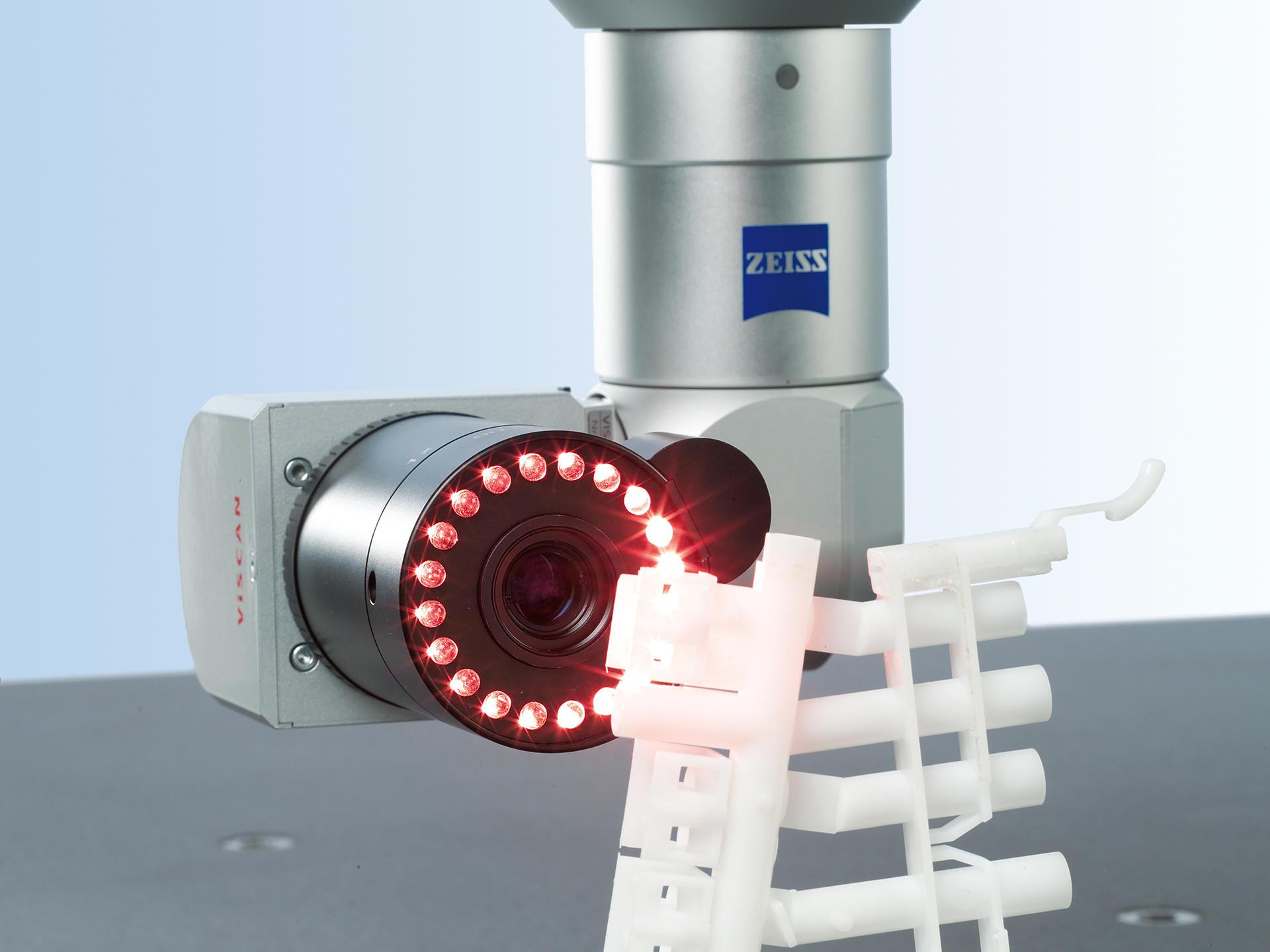

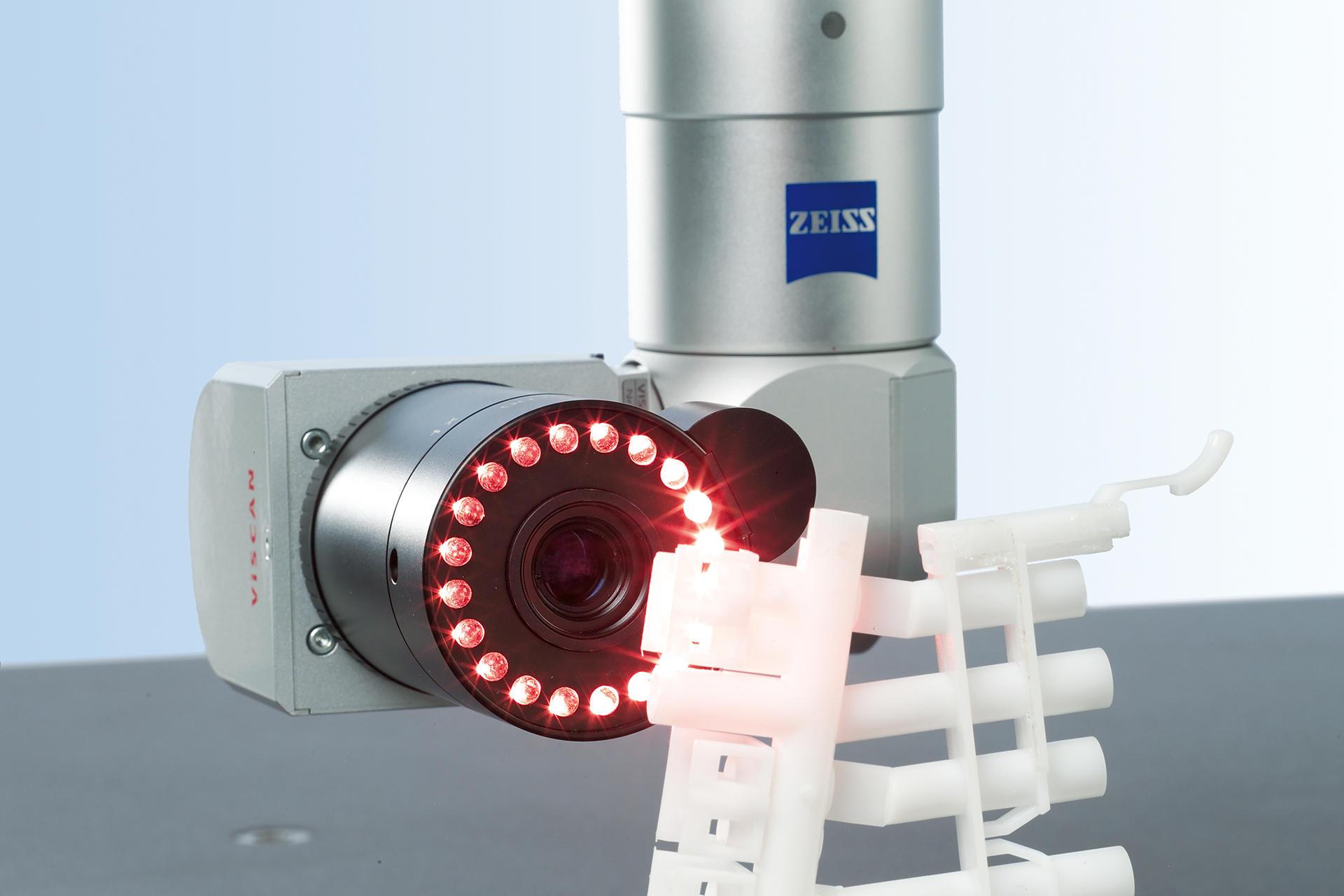

ZEISS ViScan in action

Applications

  • Three sterile plastic syringes with blue caps and milliliter measurement markings.

    Medical

    • Syringes and medical plastics
    • Tubes & hoses
    • Mechanical heart valves
  • Machined metal flanges with precision-drilled holes arranged on an industrial production line.

    Machinery

    • Small housings
    • Small gears & plastic gears
    • Contour measurement & edge detection
  • Electronic circuit boards with microchips and pin connectors arranged on a transparent assembly platform.

    Electronics

    • Connectors
    • Circuit boards / PCBs
    • Pins, thin & small features
  • Transparent bipolar plate with etched channels, geometric patterns and rectangular fluid chambers.

    NEV

    • Bipolar plates
    • Hair pins

Technical data

Sensor

2/3‘‘ CMOS, 5 MP, monochrome

Magnifications

0.5x / 1x

Min. pixel size

6.9 µm (0.5x)
3.45 µm (1x)

Measuring area / field of view

8.4 mm x 7.1 mm (1x)
16.8 mm x 14.2 mm (0.5x)

Accuracy ISO 10360-7 MPE_EU(XY)

4,5 µm +L/350

Accuracy ISO 10360-7 MPE_PFV2D

3µm

Lens type

Telecentric + coaxial illumination

Working distance

110 mm

Temperature controlled

✔

Autofocus speed

Up to 200 fps

Ring light illumination

Red-Blue-Green

Measurement (target)

At single position

Power / interface

PoE card
