ZEISS Xradia Synchrotron Achieve Energy-Tunable Ultra-High Resolution 3D Imaging at Your Synchrotron

ZEISS Xradia Synchrotron brings nanoscale X-ray imaging to your synchrotron facility, enabling you to forgo costly and time-consuming in-house development. Proprietary X-ray optics and a 3D X-ray spectro-microscopy platform deliver the ultra-bright, tunable X-ray beams available at facilities. Achieve fast non-destructive 3D imaging with a resolution less than 30 nm. The Xradia Synchrotron family covers energy ranges from soft to hard X-rays under diverse environments e.g. cryo-, in situ heating, load, electrochemical.

  • Maximize your scientific output
  • Experience leading 3D resolution and contrast
  • Advanced imaging in 4D and beyond
Beam path, transmission X-ray microscopy architecture (TXM).

Maximize Your Scientific Output

  • Benefit from this turnkey high resolution X-ray microscope​
  • Your instrument’s uptime is taken care of by the global 24/7 support network​
  • From sample prep to data collection to reconstruction: make the most of this highly efficient end-to-end workflow solution ​
  • Use your platform’s performance in an optimal way by networking with the community of synchrotron scientists​

Beam path, transmission X-ray microscopy architecture (TXM).

Experience Leading 3D Resolution and Contrast​

Experience Leading 3D Resolution and Contrast​

  • Achieve a spatial resolution of less than 30 nm ​
  • Image with a variety of available contrast modes such as fluorescence, Zernike, XANES​
  • Extend your platform to meet your research needs with e.g. cryo-, in situ modules​
Human cancer cell. Elemental Distribution in a human cancer cell. Image courtesy of C. Weekley, University of Adelaide.
Human cancer cell. Elemental Distribution in a human cancer cell. Image courtesy of C. Weekley, University of Adelaide.

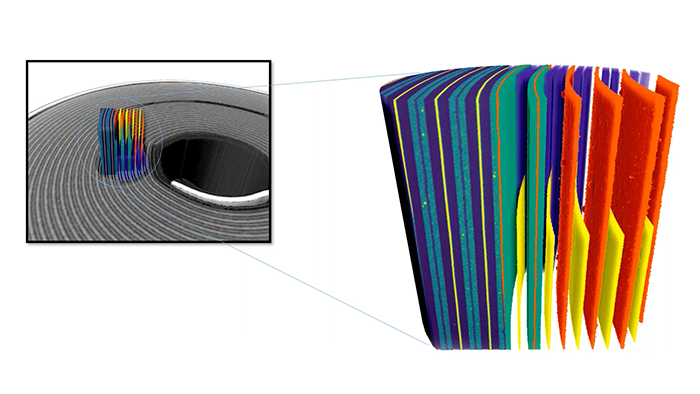

Advanced Imaging in 4D and Beyond

  • Leverage X-ray beams available at 2nd and 3rd generation synchrotron facilities​
  • Combine imaging with XANES spectroscopy ​
  • Map elemental and chemical composition in 3D​
  • Study nanostructural evolution in situ under real operating conditions e.g. in batteries​
  • Monitor chemical reactions in a gas or fluid flow reactor​
  • Quantify the distribution of chemical phases under high pressure using a diamond-anvil-cell. ​

Human cancer cell. Elemental Distribution in a human cancer cell. Image courtesy of C. Weekley, University of Adelaide.

  • Hard X-ray Nanotomography

    Xradia 800 Synchrotron

    Hard X-ray Nanotomography

    Image a wide range of your samples including battery and fuel cell electrodes, catalysts, and soft and hard tissue with resolution less than 30 nm. Operating in the 5-11 keV energy range, Xradia 800 Synchrotron is ideally suited for advanced techniques such as XANES spectro-microscopy for 3D chemical mapping and in situ imaging to enable you to study materials under real operating conditions.

  • Soft X-ray Nanotomography

    Xradia 825 Synchrotron

    Soft X-ray Nanotomography

    Acquire 3D tomographies of whole cells and tissues in the soft X-ray range using the water window. Cryogenic sample handling enables you to image in a frozen hydrated state, minimizing effects of radiation damage while maintaining the sample as close to its natural state as possible. For even more applications include chemical state mapping of both organic and inorganic materials and imaging of magnetic domains.

Applications

ZEISS Xradia Synchrotron

3D image of the chemical composition of a Nickel battery electrode (red: NiO, green: Ni); imaged with Xradia 800 Synchrotron.

Nickel Battery

3D image of the chemical composition of a Nickel battery electrode (red: NiO, green: Ni); imaged with Xradia 800 Synchrotron.

3D image of the chemical composition of a Nickel battery electrode (red: NiO, green: Ni); imaged with Xradia 800 Synchrotron.

Nickel Battery

3D image of the chemical composition of a Nickel battery electrode (red: NiO, green: Ni); imaged with Xradia 800 Synchrotron.

Multi-phase imaging of a solid oxide fuel cell (SOFC) electrode; imaged with Xradia 800 Synchrotron.

Solid Oxide Fuel Cell

Multi-phase imaging of a solid oxide fuel cell (SOFC) electrode; imaged with Xradia 800 Synchrotron.

Multi-phase imaging of a solid oxide fuel cell (SOFC) electrode; imaged with Xradia 800 Synchrotron.

Solid Oxide Fuel Cell

Multi-phase imaging of a solid oxide fuel cell (SOFC) electrode; imaged with Xradia 800 Synchrotron.

Segmented 3D rendering of a virus-infected Ptk2 cell. Blue: nucleus, red/orange: virus particles; width of the cell appr. 10 µm; Xradia 825 Synchrotron. Image courtesy of: F.J. Chichon, CNB-CSIC and ALBA Synchrotron (Spain).

Virus-infected Ptk2 Cell

Segmented 3D rendering of a virus-infected Ptk2 cell. Blue: nucleus, red/orange: virus particles; width of the cell appr. 10 µm; Xradia 825 Synchrotron. Image courtesy of: F.J. Chichon, CNB-CSIC and ALBA Synchrotron (Spain).

Segmented 3D rendering of a virus-infected Ptk2 cell. Blue: nucleus, red/orange: virus particles; width of the cell appr. 10 µm; Xradia 825 Synchrotron. Image courtesy of: F.J. Chichon, CNB-CSIC and ALBA Synchrotron (Spain).

Virus-infected Ptk2 Cell

Segmented 3D rendering of a virus-infected Ptk2 cell. Blue: nucleus, red/orange: virus particles; width of the cell appr. 10 µm; Xradia 825 Synchrotron. Image courtesy of: F.J. Chichon, CNB-CSIC and ALBA Synchrotron (Spain).

Xradia 800 Synchrotron
Xradia 825 Synchrotron

Materials Science

Monitor battery electrode particles in operando during the charge-discharge cycle. Perform chemical imaging of catalyst particles in situ. Analyze SOFC nanostructure in situ at operating temperature.

Perform chemical imaging of polymers by spectro-microscopy.

Life Sciences

Study toxicity of nanoparticles in cells and tissue. Image and quantify the nanostructure of bone.

Visualize ultrastructure in whole, unsectioned cells in the frozen hydrated state. Correlate X-ray and optical fluorescence microscopy for combined structural and functional imaging.

Natural Resources, Geo- and Environmental Sciences

Visualize morphology of iron melt at Earth’s lower mantle conditions. Study microstructure of soil particles relevant to water retention.

Study micro-organisms in wet environments.

Electronics

Image integrated circuits to find malicious modifications.

Image magnetic domains on the nanoscale.
